MHU38L-AWXGKA (2005)

Toyota Lexus Rx400h

Production Mar 2005 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503-0812)

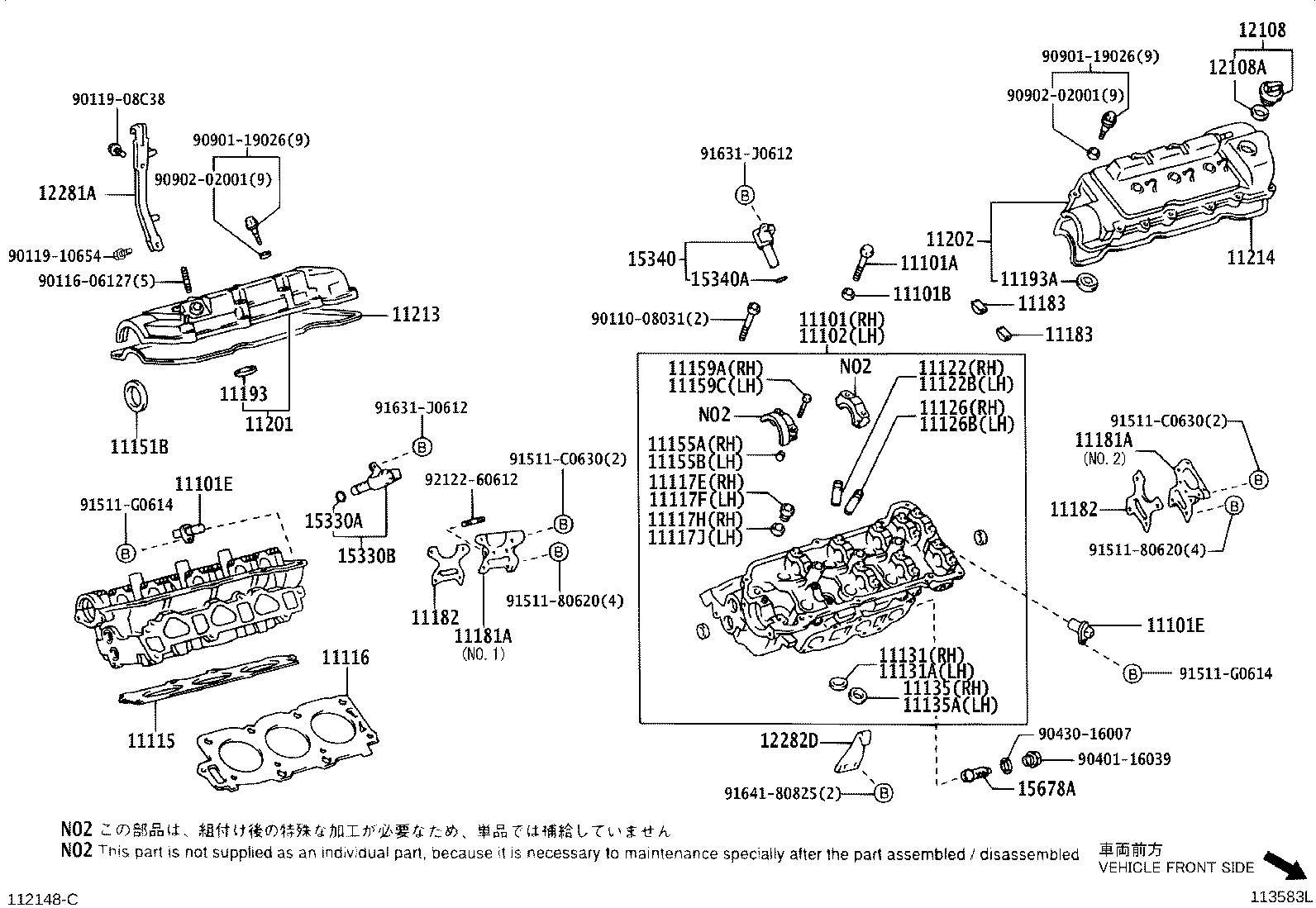

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11101E 11102 11115 11116 11117E 11117F 11117H 11117J 11122 11122B 11126 11126B 11131 11131A 11135 11135A 11151B 11155A 11155B 11159A 11159C 11181A 11181A 11182 11182 11183 11183 11193 11193A 11201 11202 11213 11214 12108 12108A 12281A 12282D 15330A 15330B 15340 15340A 15678A 9011008031 9011606127 9011908C38 9011910654 9040116039 9043016007 9090119026 9090119026 9090202001 9090202001 9151180620 9151180620 91511C0630 91511C0630 91511G0614 91511G0614 91631J0612 91631J0612 9164180825 9212260612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-29485

3MZFE..MHU3#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02117

3MZFE..MHU3#

 16
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11031

3MZFE..MHU3#

 16
11101E - SENSOR, CAM POSITION
90919-05026

3MZFE..MHU3#

 2
11101E - SENSOR, CAM POSITION
90919-05026

3MZFE..MHU3#

 2
11102 - HEAD, CYLINDER, LH
11102-29075

3MZFE..MHU3#

 1
11115 - GASKET, CYLINDER HEAD
11115-20051

3MZFE..MHU3#

 1
11116 - GASKET, CYLINDER HEAD, NO.2
11116-20051

3MZFE..MHU3#

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-24013

3MZFE..MHU3#

 2
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-24013

3MZFE..MHU3#

 2
11117H - GASKET(FOR WATER HOLE)
90430-24246

3MZFE..MHU3#

 2
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-24246

3MZFE..MHU3#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-20020

3MZFE..MHU3#

STD

 6
11123-20020

3MZFE..MHU3#

O/S 0.05

 6
11122B - BUSH, INTAKE VALVE GUIDE, NO.2
11122-20020

3MZFE..MHU3#

STD

 6
11123-20020

3MZFE..MHU3#

O/S 0.05

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-20020

3MZFE..MHU3#

STD

 6
11127-20020

3MZFE..MHU3#

O/S 0.05

 6
11126B - BUSH, EXHAUST VALVE GUIDE, NO.2
11126-20020

3MZFE..MHU3#

STD

 6
11127-20020

3MZFE..MHU3#

O/S 0.05

 6
11131 - SEAT, INTAKE VALVE
11132-62050

3MZFE..MHU3#

O/S 0.03

 6
11131-62050

3MZFE..MHU3#

STD

 6
11131A - SEAT, INTAKE VALVE, NO.2
11132-62050

3MZFE..MHU3#

O/S 0.03

 6
11131-62050

3MZFE..MHU3#

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-20040

3MZFE..MHU3#

STD

 6
11136-20040

3MZFE..MHU3#

O/S 0.03

 6
11135A - SEAT, EXHAUST VALVE, NO.2
11136-20040

3MZFE..MHU3#

O/S 0.03

 6
11135-20040

3MZFE..MHU3#

STD

 6
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-38034

3MZFE..MHU3#

 2
11155A - PIN, RING W/HEAD
90253-10004

3MZFE..MHU3#

 19
11155B - PIN, RING
90253-10004

3MZFE..MHU3#

 19
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

3MZFE..MHU3#

 20
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

3MZFE..MHU3#

 20
11181A - COVER, CYLINDER HEAD, REAR
11108-20010

3MZFE..MHU3#

NO.1

 1
11109-20010

3MZFE..MHU3#

NO.2

 1
11181A - COVER, CYLINDER HEAD, REAR
11108-20010

3MZFE..MHU3#

NO.1

 1
11109-20010

3MZFE..MHU3#

NO.2

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-20020

3MZFE..MHU3#

 2
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-20020

3MZFE..MHU3#

 2
11183 - PLUG, SEMICIRCULAR
11183-20010

3MZFE..MHU3#

 2
11183 - PLUG, SEMICIRCULAR
11183-20010

3MZFE..MHU3#

 2
11193 - GASKET, SPARK PLUG TUBE
11193-70010

3MZFE..MHU3#

 3
11193A - GASKET, SPARK PLUG TUBE, LH
11193-70010

3MZFE..MHU3#

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-20100

3MZFE..MHU3#

 1
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-20051

3MZFE..MHU3#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-20030

3MZFE..MHU3#

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-20030

3MZFE..MHU3#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-46031

3MZFE..MHU3#

 1
12180-20040

3MZFE..MHU3#

 1
12180-20030

3MZFE..MHU38

KOREA SPEC

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-20020

3MZFE..MHU3#

 1
12281A - HANGER, ENGINE, NO.1
12281-20060

3MZFE..MHU3#

 1
12282D - HANGER, ENGINE, NO.2
12282-20020

3MZFE..MHU3#

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

3MZFE..MHU3#

 1
15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH
15330-20011

3MZFE..MHU3#

 1
15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340-20011

3MZFE..MHU3#

 1
15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

3MZFE..MHU3#

 1
15678A - FILTER, OIL CONTROL VALVE
15678-20010

3MZFE..MHU3#

 2
Common parts
90110-08031
90116-06127
90119-08C38
90119-10654
90401-16039
90430-16007
90901-19026
90902-02001
91511-80620
91511-C0630
91511-G0614
91631-J0612
91641-80825
92122-60612
