MHU33L-AWXGKA (2005)

Toyota Lexus Rx400h

Production Mar 2005 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503-0608)

Click highlighted areas on diagram

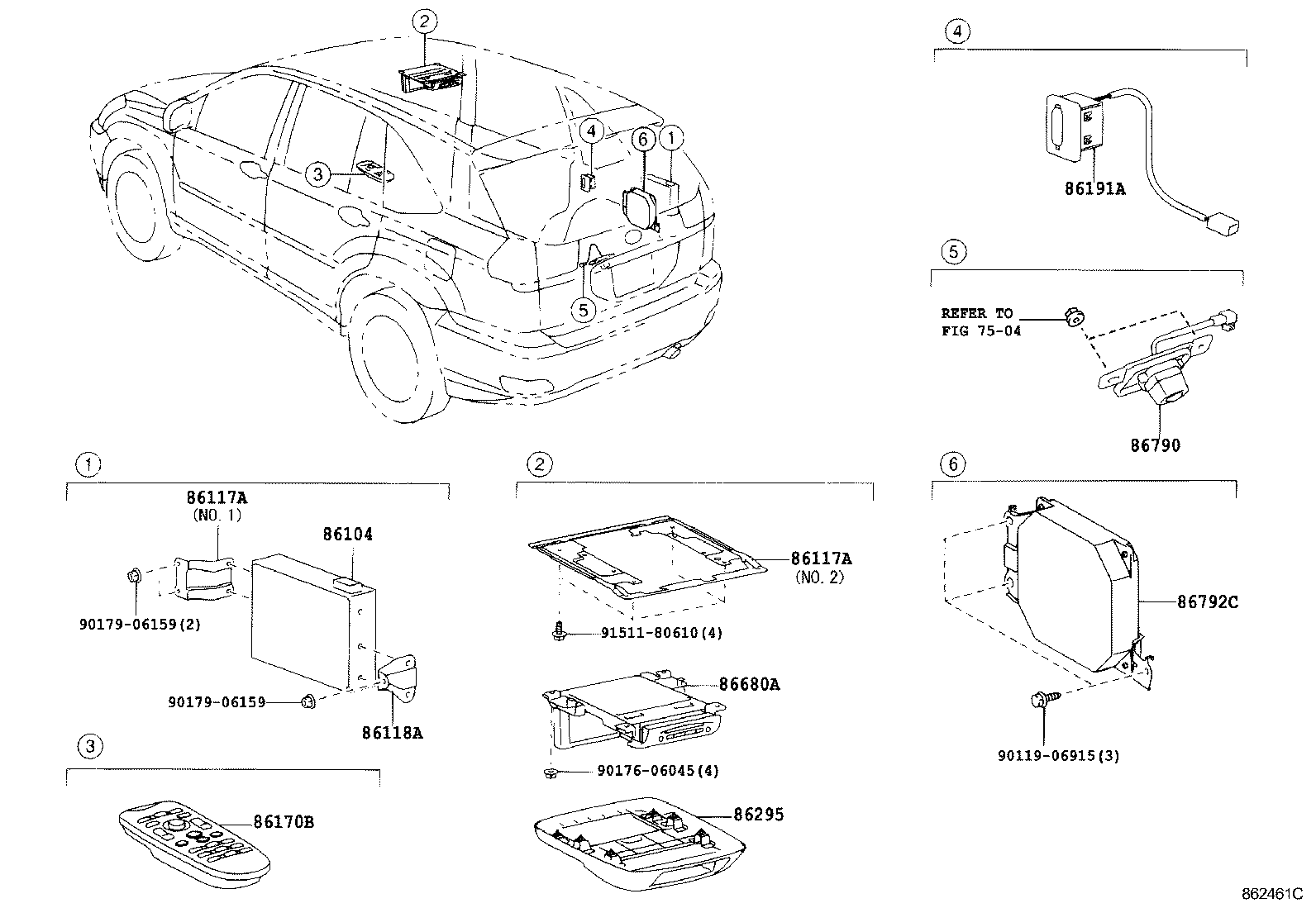

diagram 7504 86104 86117A 86117A 86118A 86170B 86191A 86295 86680A 86790 86792C 9011906915 9017606045 9017906159 9017906159 9151180610
Part # Description Qty Price
86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY
86104-48020

MHU3#

TELEVISION & VTR-WITH

 1
86117A - BRACKET, TELEVISION DISPLAY, A
86117-48040

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48081

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48030

MHU3#

TELEVISION & VTR-WITH,NO.1

 1
86117A - BRACKET, TELEVISION DISPLAY, A
86117-48040

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48081

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48030

MHU3#

TELEVISION & VTR-WITH,NO.1

 1
86118A - BRACKET, TELEVISION DISPLAY, B
86118-48030

MHU3#

TELEVISION & VTR-WITH

 1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-45020

MHU3#

TELEVISION & VTR-WITH

 1
86170-48010

MHU3#

TELEVISION & VTR-WITH

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-48010

MHU3#

TELEVISION & VTR-WITH

 1
86295 - BASE, TELEVISION
86295-48010B0

MHU3#

TELEVISION & VTR-WITH,LT.GRAY,TRIM1#,2#

 1
86295-48010A0

MHU3#

TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86295-48030A0

MHU3#

TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86295-48030B0

MHU3#

TELEVISION & VTR-WITH,LT.GRAY,TRIM11,12,2#

 1
86680A - DISPLAY ASSY, TELEVISION
86680-48030A0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86680-48040B0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,LT.GRAY,TRIM11,12,2#

 1
86680-48030B0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,LT.GRAY,TRIM1#,2#

 1
86680-48040A0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86790 - CAMERA ASSY, TELEVISION
86790-48020

MHU3#

EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)

 1
86790-48060

MHU3#

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

 1
86792C - COMPUTER, PARKING ASSIST
86792-48101

MHU3#

EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)

 1
Common parts
90119-06915
90176-06045
90179-06159
91511-80610
Linked diagrams
7504

(0608- )

Click highlighted areas on diagram

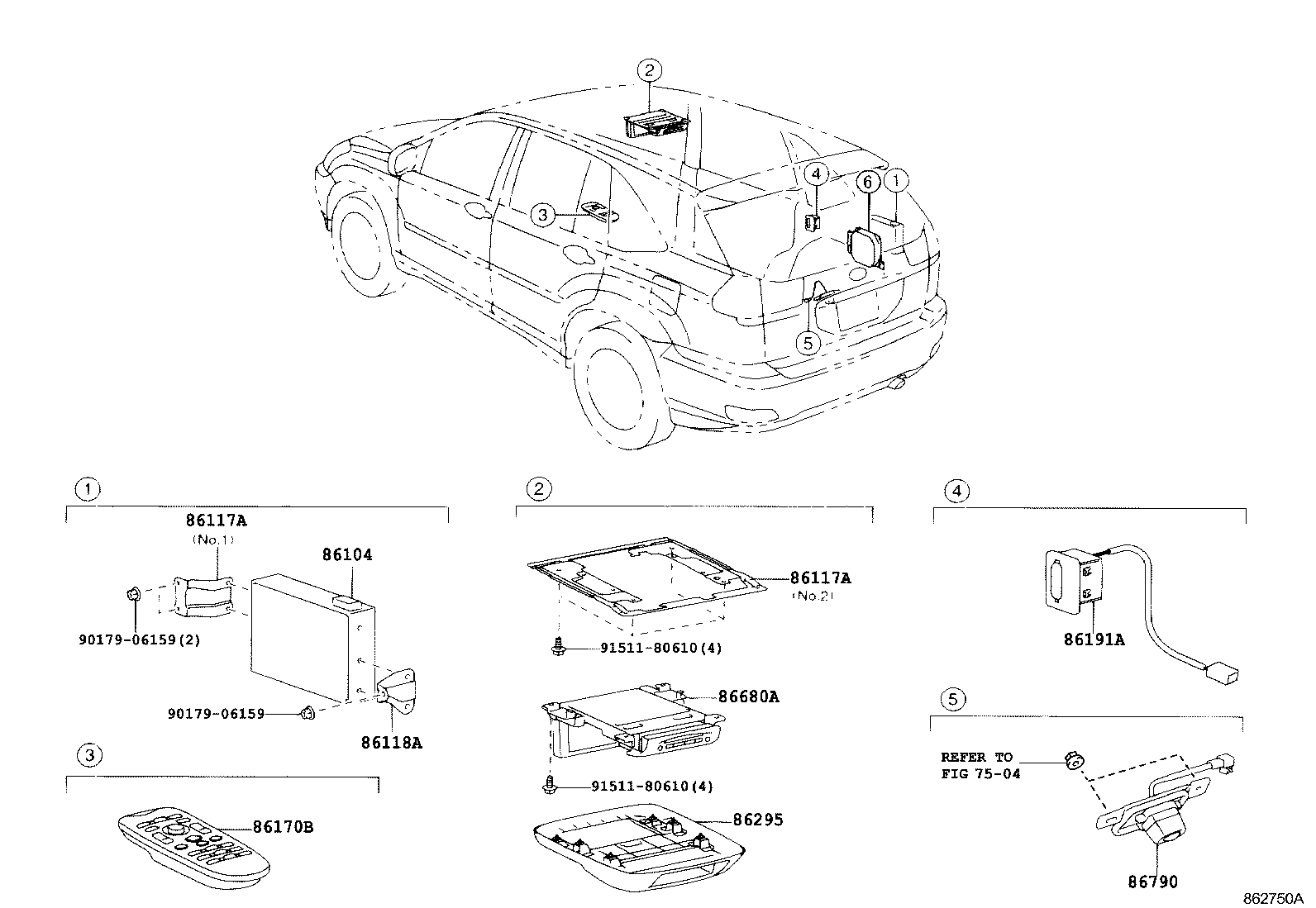

diagram 7504 86104 86117A 86117A 86118A 86170B 86191A 86295 86680A 86790 9017906159 9017906159 9151180610 9151180610
Part # Description Qty Price
86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY
86104-48020

MHU3#

TELEVISION & VTR-WITH

 1
86117A - BRACKET, TELEVISION DISPLAY, A
86117-48040

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48081

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48030

MHU3#

TELEVISION & VTR-WITH,NO.1

 1
86117A - BRACKET, TELEVISION DISPLAY, A
86117-48040

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48081

MHU3#

TELEVISION & VTR-WITH,NO.2

 1
86117-48030

MHU3#

TELEVISION & VTR-WITH,NO.1

 1
86118A - BRACKET, TELEVISION DISPLAY, B
86118-48030

MHU3#

TELEVISION & VTR-WITH

 1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-45020

MHU3#

TELEVISION & VTR-WITH

 1
86170-48010

MHU3#

TELEVISION & VTR-WITH

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-48010

MHU3#

TELEVISION & VTR-WITH

 1
86295 - BASE, TELEVISION
86295-48010B0

MHU3#

TELEVISION & VTR-WITH,LT.GRAY,TRIM1#,2#

 1
86295-48010A0

MHU3#

TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86295-48030A0

MHU3#

TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86295-48030B0

MHU3#

TELEVISION & VTR-WITH,LT.GRAY,TRIM11,12,2#

 1
86680A - DISPLAY ASSY, TELEVISION
86680-48030A0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86680-48040B0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,LT.GRAY,TRIM11,12,2#

 1
86680-48030B0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,LT.GRAY,TRIM1#,2#

 1
86680-48040A0

MHU3#

MATSUSHITA,TELEVISION & VTR-WITH,IVORY,TRIM0#

 1
86790 - CAMERA ASSY, TELEVISION
86790-48020

MHU3#

EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)

 1
86790-48060

MHU3#

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

 1
Common parts
90179-06159
91511-80610
Linked diagrams
7504
