MHU33L-AWXGKA (2005)

Toyota Lexus Rx400h

Production Mar 2005 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

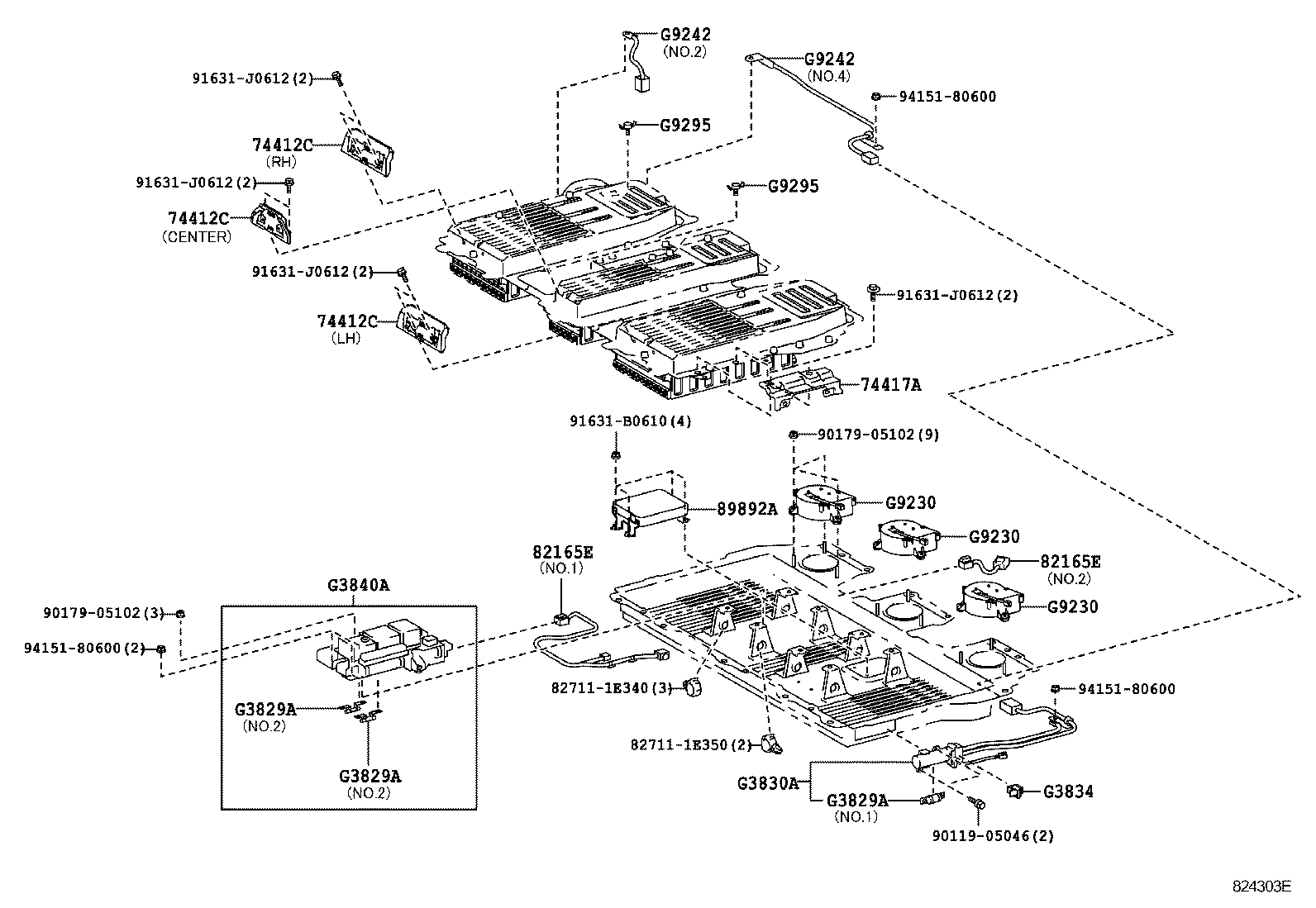

ILLUST NO. 2 OF 3(0503- )

Click highlighted areas on diagram

HV BATTERY

diagram 74412C 74412C 74412C 74417A 82165E 82165E 827111E340 827111E350 89892A 9011905046 9017905102 9017905102 91631B0610 91631J0612 91631J0612 91631J0612 91631J0612 9415180600 9415180600 9415180600 G3829A G3829A G3829A G3830A G3834 G3840A G9230 G9230 G9230 G9242 G9242 G9295 G9295
Part # Description Qty Price
74412C - DUCT, BATTERY CARRIER
74412-48020

MHU3#

CENTER

 1
74412-48010

MHU3#

RH & LH

 2
74412C - DUCT, BATTERY CARRIER
74412-48020

MHU3#

CENTER

 1
74412-48010

MHU3#

RH & LH

 2
74412C - DUCT, BATTERY CARRIER
74412-48020

MHU3#

CENTER

 1
74412-48010

MHU3#

RH & LH

 2
74417A - BRACKET, BATTERY CARRIER
74417-48010

MHU3#

 1
82165E - WIRE, BATTERY PACK
82165-48040

MHU3#

NO.2

 1
82165-48030

MHU3#

NO.1

 1
82165E - WIRE, BATTERY PACK
82165-48040

MHU3#

NO.2

 1
82165-48030

MHU3#

NO.1

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-48010

MHU3#

 1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11049

MHU3#

125A,MARK90982-11049,NO.1

 1
90982-11046

MHU3#

15A,NO.2

 2
G3829A - FUSE, ELECTRIC VEHICLE
90982-11049

MHU3#

125A,MARK90982-11049,NO.1

 1
90982-11046

MHU3#

15A,NO.2

 2
G3829A - FUSE, ELECTRIC VEHICLE
90982-11049

MHU3#

125A,MARK90982-11049,NO.1

 1
90982-11046

MHU3#

15A,NO.2

 2
G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3830-48011

MHU3#

 1
G3834 - GRIP, SERVICE PLUG
G3834-47020

MHU3#

 1
G3840A - RELAY ASSY, HYBRID VEHICLE
G3840-48010

MHU3#

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48010

MHU3#

 3
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48010

MHU3#

 3
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48010

MHU3#

 3
G9242 - CABLE, MAIN BATTERY
G9242-48010

MHU3#

NO.1

 1
G9242-48030

MHU3#

NO.3

 1
G9242-48040

MHU3#

NO.4

 1
G9242-48020

MHU3#

NO.2

 1
G9242 - CABLE, MAIN BATTERY
G9242-48010

MHU3#

NO.1

 1
G9242-48030

MHU3#

NO.3

 1
G9242-48040

MHU3#

NO.4

 1
G9242-48020

MHU3#

NO.2

 1
G9295 - BRACKET, EV BATTERY WATER TANK
G9295-28030

MHU3#

 2
G9295 - BRACKET, EV BATTERY WATER TANK
G9295-28030

MHU3#

 2
Common parts
82711-1E340
82711-1E350
90119-05046
90179-05102
91631-B0610
91631-J0612
94151-80600

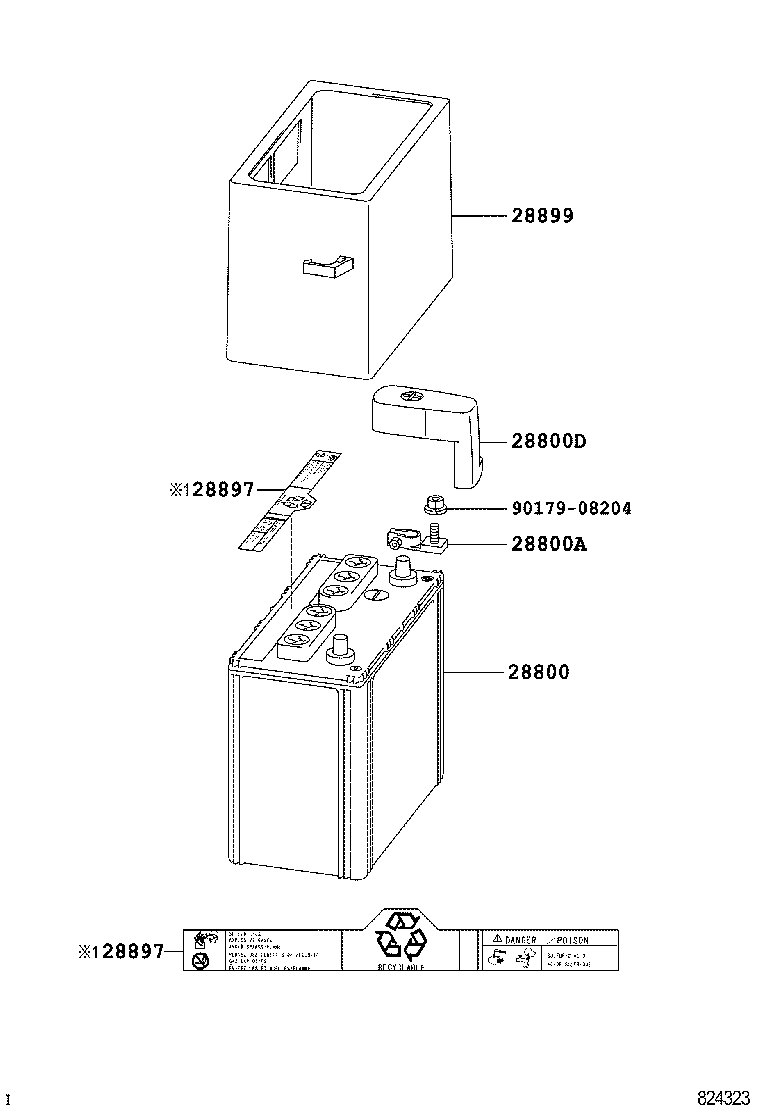

ILLUST NO. 1 OF 3(0503- )

Click highlighted areas on diagram

12V BATTERY

diagram 28800 28800A 28800D 28897 28897 28899 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-20060

3MZFE..MHU3#

55B24L(S)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05058

3MZFE..MHU3#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20440

3MZFE..MHU3#

 1
28897 - PLATE, BATTERY CAUTION
28897-20010

3MZFE..MHU3#

CANADA SPEC

 1
28897 - PLATE, BATTERY CAUTION
28897-20010

3MZFE..MHU3#

CANADA SPEC

 1
28899 - INSULATOR, BATTERY
28899-20010

3MZFE..MHU3#

 1
28899-20011

3MZFE..MHU3#

 1
Common parts
90179-08204

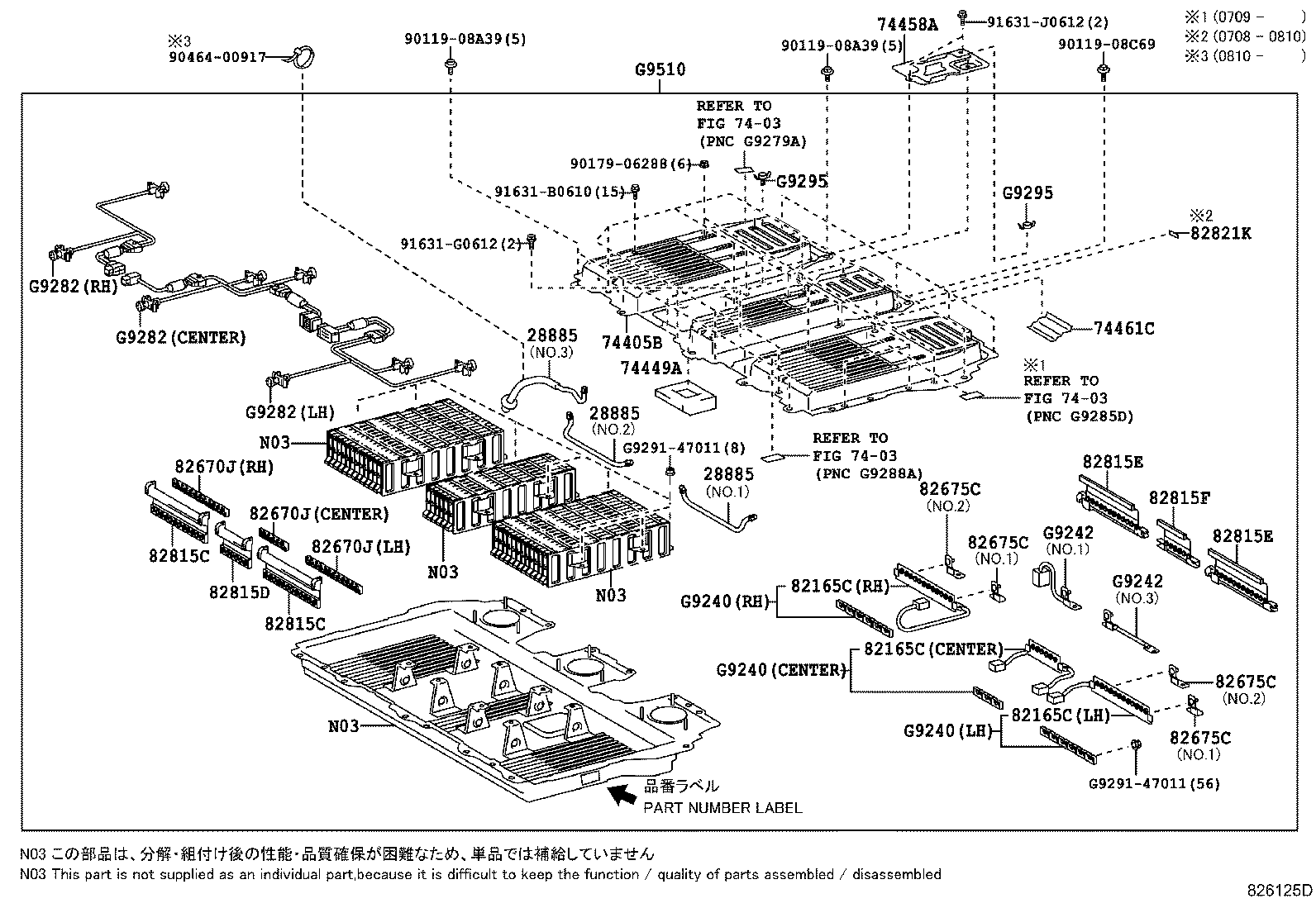

ILLUST NO. 3 OF 3(0503- )

Click highlighted areas on diagram

HV BATTERY

diagram 28885 28885 28885 7403 7403 74405B 74449A 74458A 74461C 82165C 82165C 82165C 82670J 82670J 82670J 82675C 82675C 82675C 82675C 82815C 82815C 82815D 82815E 82815E 82815F 82821K 9011908A39 9011908A39 9011908C69 9017906288 9046400917 91631B0610 91631G0612 91631J0612 G9240 G9240 G9240 G9242 G9242 G9282 G9282 G9282 G929147011 G929147011 G9295 G9295 G9510
Part # Description Qty Price
28885 - HOSE, BATTERY ROOM VENTILATION
28885-20010

3MZFE..MHU3#

NO.1

 1
28885-20020

3MZFE..MHU3#

NO.2

 1
28885-20030

3MZFE..MHU3#

NO.3

 1
28885 - HOSE, BATTERY ROOM VENTILATION
28885-20010

3MZFE..MHU3#

NO.1

 1
28885-20020

3MZFE..MHU3#

NO.2

 1
28885-20030

3MZFE..MHU3#

NO.3

 1
28885 - HOSE, BATTERY ROOM VENTILATION
28885-20010

3MZFE..MHU3#

NO.1

 1
28885-20020

3MZFE..MHU3#

NO.2

 1
28885-20030

3MZFE..MHU3#

NO.3

 1
74405B - COVER SUB-ASSY, BATTERY
74405-48010

MHU3#

 1
74405-48030

MHU3#

 1
74449A - PACKING, BATTERY, NO.2
74448-48010

MHU3#

 1
74458A - LID, BATTERY COVER, NO.1
74458-48010

MHU3#

 1
74461C - COVER, BATTERY
74461-48030

MHU3#

 1
82165C - WIRE, FRAME, NO.2
82165-48061

MHU3#

CENTER

 1
82165-48071

MHU3#

RH

 1
82165-48051

MHU3#

LH

 1
82165C - WIRE, FRAME, NO.2
82165-48061

MHU3#

CENTER

 1
82165-48071

MHU3#

RH

 1
82165-48051

MHU3#

LH

 1
82165C - WIRE, FRAME, NO.2
82165-48061

MHU3#

CENTER

 1
82165-48071

MHU3#

RH

 1
82165-48051

MHU3#

LH

 1
82670J - BLOCK ASSY, JUNCTION
82670-48071

MHU3#

RH & LH

 2
82670-48081

MHU3#

CENTER

 1
82670J - BLOCK ASSY, JUNCTION
82670-48071

MHU3#

RH & LH

 2
82670-48081

MHU3#

CENTER

 1
82670J - BLOCK ASSY, JUNCTION
82670-48071

MHU3#

RH & LH

 2
82670-48081

MHU3#

CENTER

 1
82675C - TERMINAL, JUNCTION
82675-48070

MHU3#

NO.2

 2
82675-48060

MHU3#

NO.1

 2
82675C - TERMINAL, JUNCTION
82675-48070

MHU3#

NO.2

 2
82675-48060

MHU3#

NO.1

 2
82675C - TERMINAL, JUNCTION
82675-48070

MHU3#

NO.2

 2
82675-48060

MHU3#

NO.1

 2
82675C - TERMINAL, JUNCTION
82675-48070

MHU3#

NO.2

 2
82675-48060

MHU3#

NO.1

 2
82815C - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-48311

MHU3#

 2
82815C - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-48311

MHU3#

 2
82815D - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-48321

MHU3#

 1
82815E - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-48331

MHU3#

 2
82815E - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-48331

MHU3#

 2
82815F - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-48341

MHU3#

 1
82821K - COVER, CONNECTOR
82821-48120

MHU3#

 1
G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE
G9240-48011

MHU3#

LH

 1
G9240-48021

MHU3#

CENTER

 1
G9240-48031

MHU3#

RH

 1
G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE
G9240-48011

MHU3#

LH

 1
G9240-48021

MHU3#

CENTER

 1
G9240-48031

MHU3#

RH

 1
G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE
G9240-48011

MHU3#

LH

 1
G9240-48021

MHU3#

CENTER

 1
G9240-48031

MHU3#

RH

 1
G9242 - CABLE, MAIN BATTERY
G9242-48010

MHU3#

NO.1

 1
G9242-48030

MHU3#

NO.3

 1
G9242-48040

MHU3#

NO.4

 1
G9242-48020

MHU3#

NO.2

 1
G9242 - CABLE, MAIN BATTERY
G9242-48010

MHU3#

NO.1

 1
G9242-48030

MHU3#

NO.3

 1
G9242-48040

MHU3#

NO.4

 1
G9242-48020

MHU3#

NO.2

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-48010

MHU3#

RH

 1
G9282-48030

MHU3#

CENTER

 1
G9282-48020

MHU3#

LH

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-48010

MHU3#

RH

 1
G9282-48030

MHU3#

CENTER

 1
G9282-48020

MHU3#

LH

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-48010

MHU3#

RH

 1
G9282-48030

MHU3#

CENTER

 1
G9282-48020

MHU3#

LH

 1
G9295 - BRACKET, EV BATTERY WATER TANK
G9295-28030

MHU3#

 2
G9295 - BRACKET, EV BATTERY WATER TANK
G9295-28030

MHU3#

 2
G9510 - BATTERY ASSY, HV SUPPLY
G9510-48032

MHU3#

P/N LABEL=G928048031

 1
G9510-48031

MHU3#

P/N LABEL=G928048030

 1
G9510-48011

MHU3#

 1
G9510-48010

MHU3#

 1
Common parts
90119-08A39
90119-08C69
90179-06288
90464-00917
91631-B0610
91631-G0612
91631-J0612
G9291-47011
Linked diagrams
7403
