MHU33L-AWXGKA (2005)

Toyota Lexus Rx400h

Production Mar 2005 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0503- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74317 74318 74320 74348 74610A 74612 74612 74612D 74612D 74620B 8121 9015150025
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0E011A0

MHU3#

IVORY,TRIM0#

 1
74310-0E011B0

MHU3#

LT.GRAY,TRIM1#,2#

 1
74317 - COVER, VISOR BRACKET, RH
74317-50010B1

MHU3#

LT.GRAY,TRIM1#,2#

 1
74317-50010A0

MHU3#

IVORY,TRIM0#

 1
74318 - COVER, VISOR BRACKET, LH
74317-50010A0

MHU3#

IVORY,TRIM0#

 1
74317-50010B1

MHU3#

LT.GRAY,TRIM1#,2#

 1
74320 - VISOR ASSY, LH
74320-0E011B0

MHU3#

LT.GRAY,TRIM1#,2#

 1
74320-0E011A0

MHU3#

IVORY,TRIM0#

 1
74348 - HOLDER, VISOR
74348-12040B0

MHU3#

LT.GRAY,TRIM1#,2#

 2
74348-12040A0

MHU3#

IVORY,TRIM0#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-58010A0

MHU3#

IVORY,TRIM0#

 2
74610-58010B0

MHU3#

LT.GRAY,TRIM1#,2#

 2
74612 - COVER, ASSIST GRIP
74611-58010B0

MHU3#

LT.GRAY,TRIM1#,2#

 4
74611-58010A0

MHU3#

IVORY,TRIM0#

 4
74612 - COVER, ASSIST GRIP
74611-58010B0

MHU3#

LT.GRAY,TRIM1#,2#

 4
74611-58010A0

MHU3#

IVORY,TRIM0#

 4
74612D - COVER, ASSIST GRIP
74612-58010B0

MHU3#

LT.GRAY,TRIM1#,2#

 4
74612-58010A0

MHU3#

IVORY,TRIM0#

 4
74612D - COVER, ASSIST GRIP
74612-58010B0

MHU3#

LT.GRAY,TRIM1#,2#

 4
74612-58010A0

MHU3#

IVORY,TRIM0#

 4
74620B - GRIP ASSY, ASSIST, REAR
74620-48030B0

MHU3#

LT.GRAY,TRIM1#,2#,RH

 1
74620-48030A0

MHU3#

IVORY,TRIM0#,RH

 1
74620-48040B0

MHU3#

LT.GRAY,TRIM1#,2#,LH

 1
74620-48040A0

MHU3#

IVORY,TRIM0#,LH

 1
Common parts
90151-50025
Linked diagrams
8121

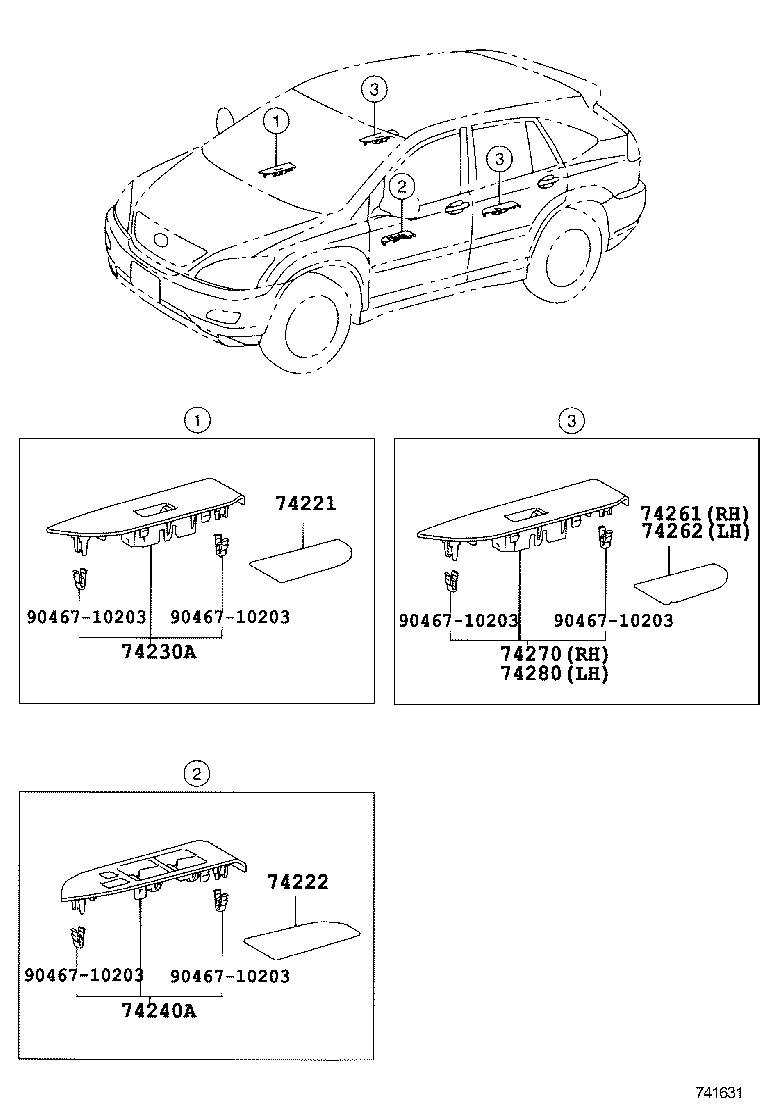

ILLUST NO. 1 OF 2(0503- )

Click highlighted areas on diagram

ARMREST

diagram 74221 74222 74230A 74240A 74261 74262 74270 74280 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
74221 - COVER, DOOR ARMREST, RH
74221-48010

MHU3#

 1
74222 - COVER, DOOR ARMREST, LH
74222-48010

MHU3#

 1
74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH
74230-48140

MHU3#

 1
74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH
74240-48140

MHU3#

 1
74261 - COVER, REAR DOOR ARMREST, RH
74261-48010

MHU3#

 1
74262 - COVER, REAR DOOR ARMREST, LH
74262-48010

MHU3#

 1
74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH
74270-48130

MHU3#

 1
74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH
74280-48130

MHU3#

 1
Common parts
90467-10203
