MHU33L-AWXGKA (2005)

Toyota Lexus Rx400h

Production Mar 2005 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

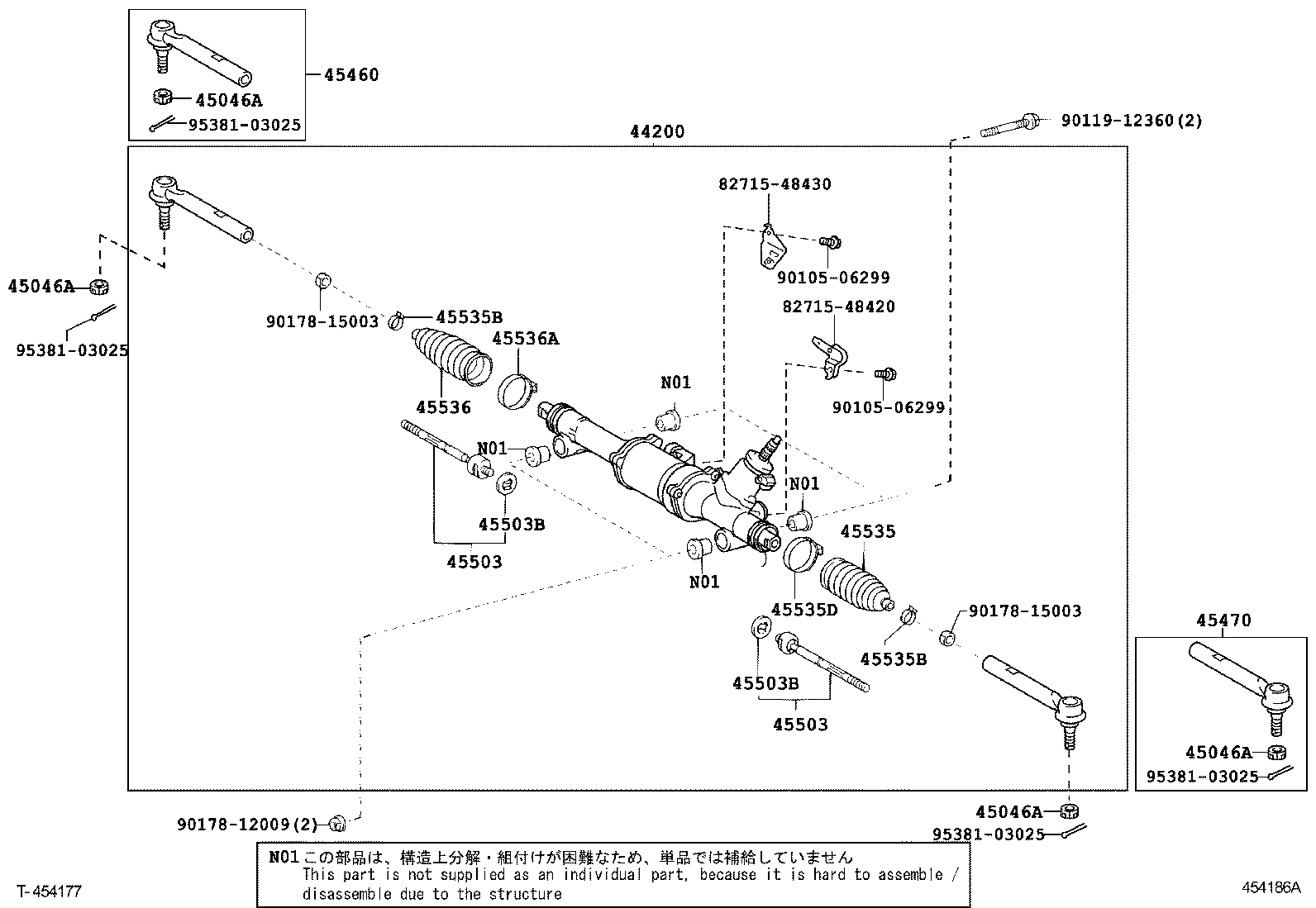

Click highlighted areas on diagram

diagram 44200 45046A 45046A 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45535 45535B 45535B 45535D 45536 45536A 8271548420 8271548430 9010506299 9010506299 9011912360 9017812009 9017815003 9017815003 9538103025 9538103025 9538103025 9538103025
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-48131

MHU3#

 1
44200-48130

MHU3#

 1
44200-48132

MHU3#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MHU3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MHU3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MHU3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MHU3#

 2
45460 - ROD ASSY, TIE, RH
45460-29435

MHU3#

 1
45460-49075

MHU3#

 1
45470 - ROD ASSY, TIE, LH
45460-49075

MHU3#

 1
45460-29435

MHU3#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-49135

MHU3#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-49135

MHU3#

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

MHU3#

OD=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

MHU3#

OD=38

 2
45535 - BOOT, STEERING RACK, NO.1
45535-30030

MHU3#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

MHU3#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

MHU3#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016

MHU3#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-30030

MHU3#

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-55016

MHU3#

 1
Common parts
82715-48420
82715-48430
90105-06299
90119-12360
90178-12009
90178-15003
95381-03025
