GYL10L-CWXGKA (2014)

Toyota Lexus Rx350/450h(Nap

Production Mar 2014 - Oct 2015
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1403- )GYL1#

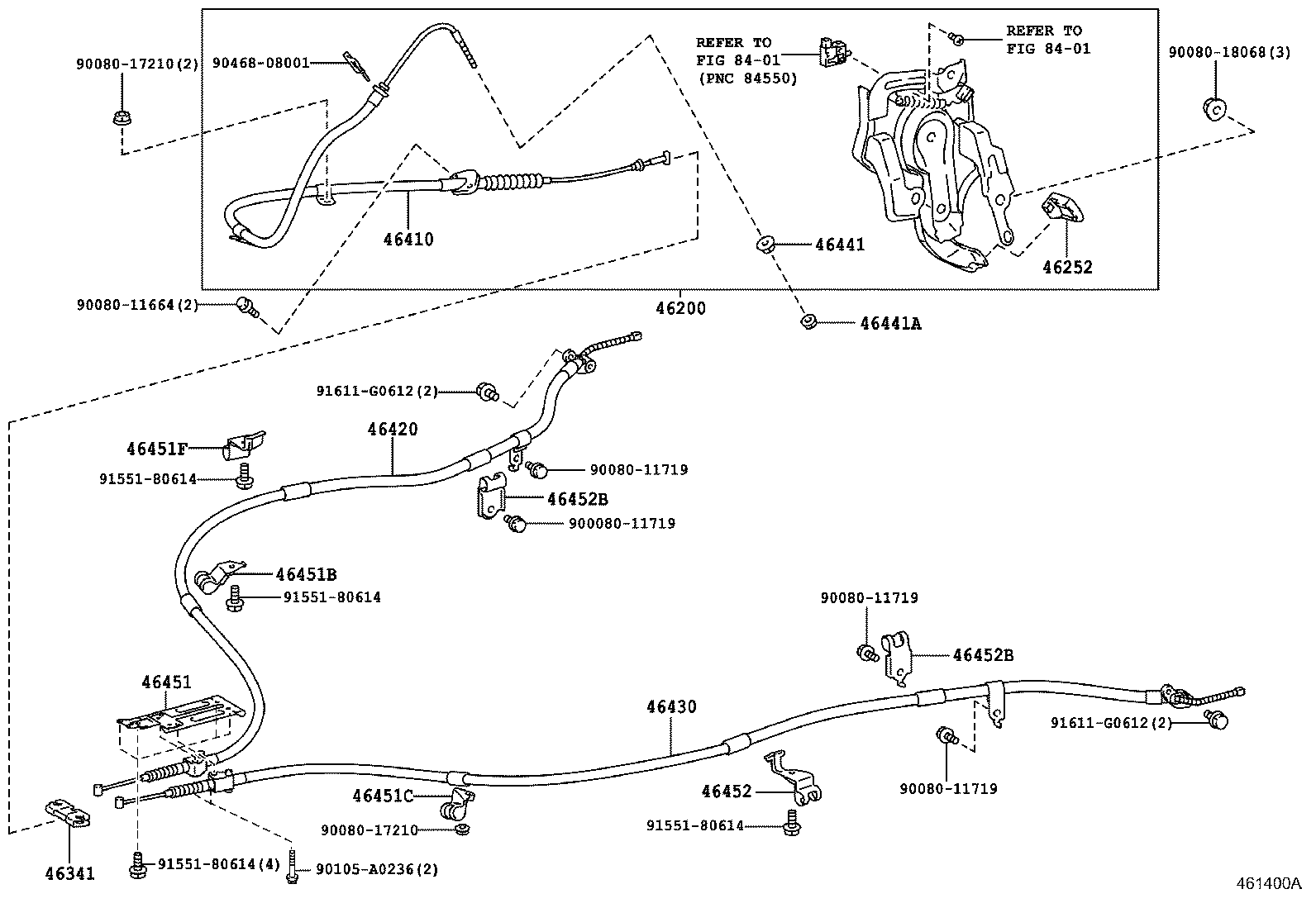

Click highlighted areas on diagram

diagram 46200 46252 46341 46410 46420 46430 46441 46441A 46451 46451B 46451C 46451F 46452 46452B 46452B 8401 8401 9008011664 9008011719 9008011719 9008011719 9008017210 9008017210 9008018068 90105A0236 9046808001 9155180614 9155180614 9155180614 9155180614 91611G0612 91611G0612
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-48170

GYL1#..NAP

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-48170

GYL1#..NAP

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-48161

GYL1#..NAP

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-48161

GYL1#..NAP

 1
46451 - BRACKET, CABLE SUPPORT
46451-48180

GYL1#..NAP

(L)

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-48260

GYL1#..NAP

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-48250

GYL1#..NAP

 1
Common parts
90080-11664
90080-11719
90080-17210
90080-18068
90105-A0236
90468-08001
91551-80614
91611-G0612
