GYL10L-CWXGKA (2014)
Toyota Lexus Rx350/450h(Nap
(1403- )2GRFXE

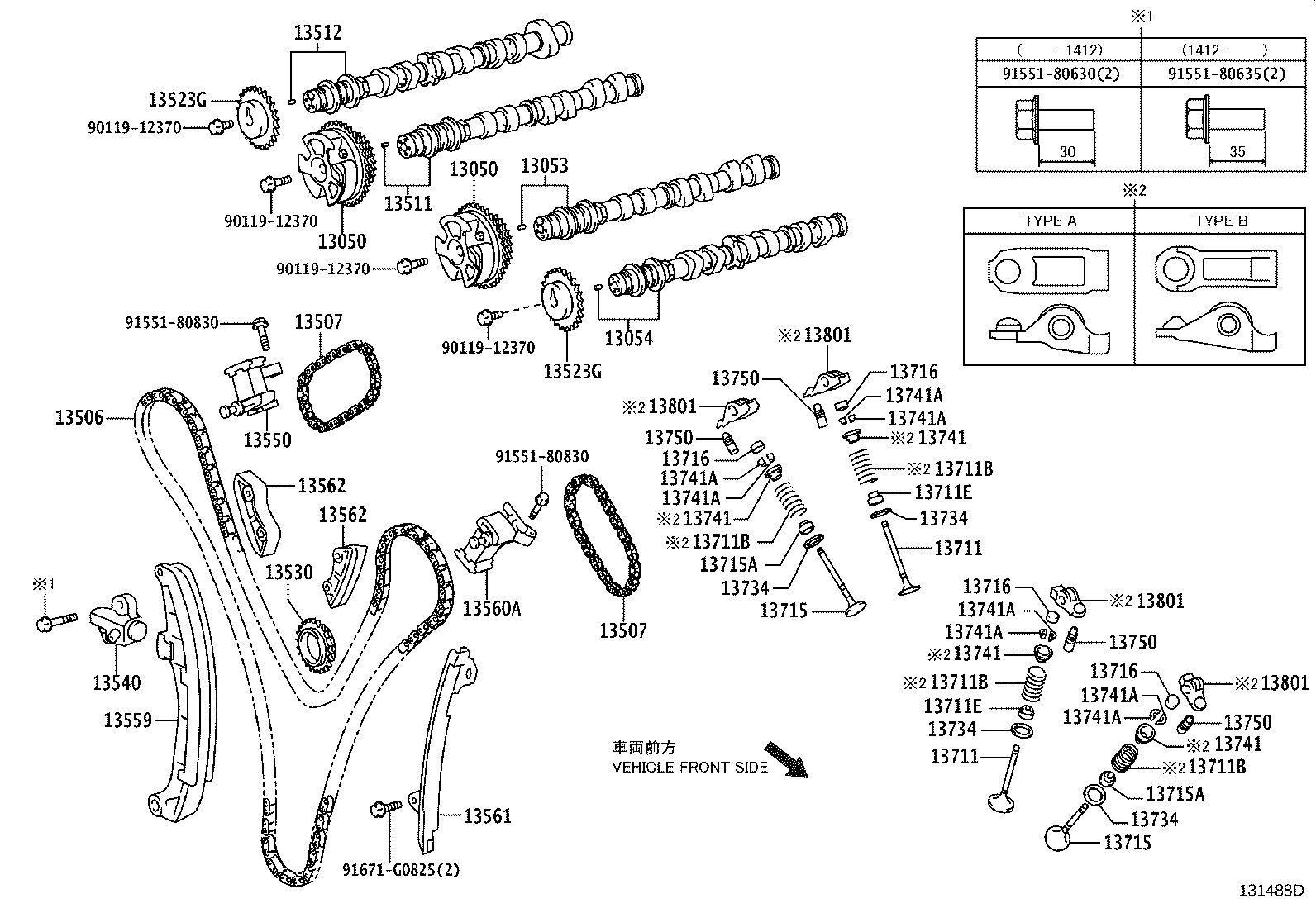

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-31141 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-31141 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-31070 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-31070 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-31031 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-31020 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-31020 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13511 - CAMSHAFT | ||||
| 13501-31110 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-31070 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13523G - SPROCKET, CAMSHAFT TIMING | ||||
| 13523-31040 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13523G - SPROCKET, CAMSHAFT TIMING | ||||
| 13523-31040 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-31021 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13540-31060 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-31020 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-31020 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13560A - TENSIONER ASSY, CHAIN, NO.3 | ||||
| 13560-31020 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-31021 |
2GRFXE..GYL1#..NAP |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-31020 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-31020 |
2GRFXE..GYL1#..NAP |
2 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31101 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 90501-33027 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 90501-33027 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 90501-33027 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-36007 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 90501-33027 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-31150 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-31150 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2GRFXE..GYL1#..NAP |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13741-31020 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13741-31020 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13741-31020 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE B |
24 | ||
| 13741-31020 |
2GRFXE..GYL1#..NAP PNC 13801=TYPE A |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2GRFXE..GYL1#..NAP |
48 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-31030 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-31030 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-31030 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-31030 |
2GRFXE..GYL1#..NAP |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
2GRFXE..GYL1#..NAP TYPE A:REFER ILLUST. |
24 | ||
| 13801-36020 |
2GRFXE..GYL1#..NAP TYPE B:REFER ILLUST. |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
2GRFXE..GYL1#..NAP TYPE A:REFER ILLUST. |
24 | ||
| 13801-36020 |
2GRFXE..GYL1#..NAP TYPE B:REFER ILLUST. |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
2GRFXE..GYL1#..NAP TYPE A:REFER ILLUST. |
24 | ||
| 13801-36020 |
2GRFXE..GYL1#..NAP TYPE B:REFER ILLUST. |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
2GRFXE..GYL1#..NAP TYPE A:REFER ILLUST. |
24 | ||
| 13801-36020 |
2GRFXE..GYL1#..NAP TYPE B:REFER ILLUST. |
24 | ||
| Common parts | ||||
| 90119-12370 | ||||
| 91551-80635 | ||||
| 91551-80830 | ||||
| 91671-G0825 | ||||
