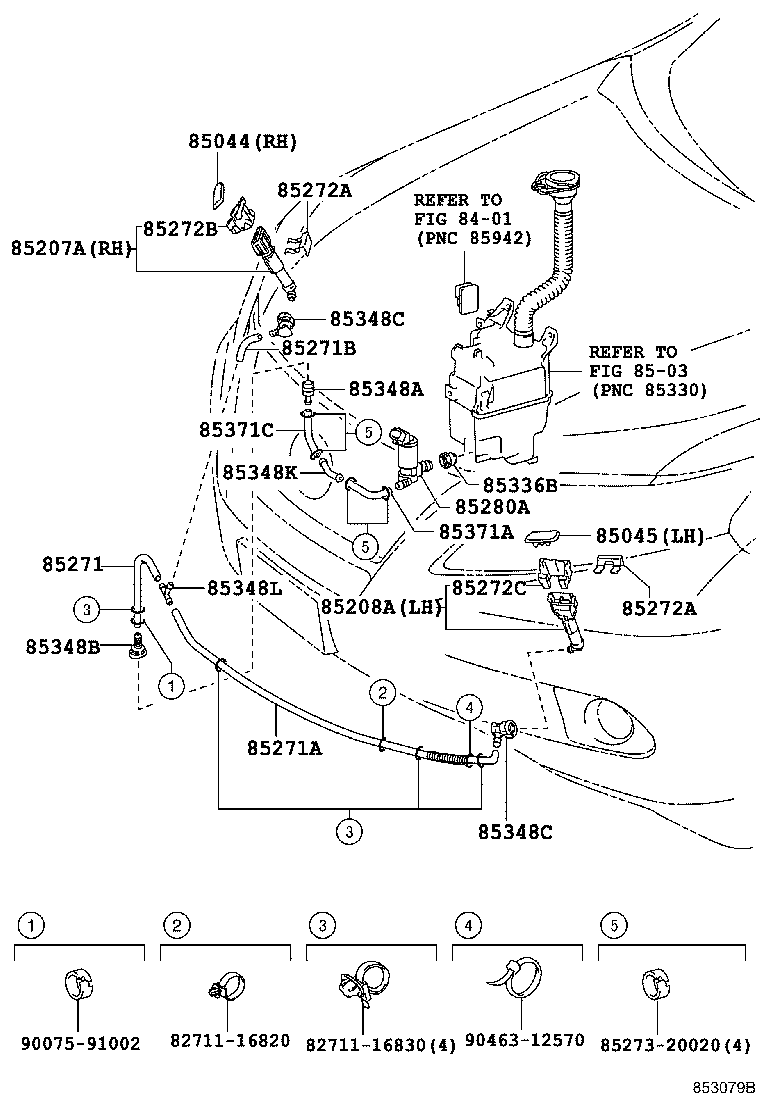

Toyota Lexus rx350/450h(nap GGL15 HEADLAMP CLEANER

Part #	Description	Period	Qty
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85044-48030A0	GGL15..NAP..8FC CANADA SPEC,WHITE PEARL CS.,077	07/2012 - 09/2013	1
85044-48030B2	GGL15..NAP..8FC CANADA SPEC,PLATINUM SILVER ME.,1J4	07/2012 - 09/2013	1
85044-48030C1	GGL15..NAP..8FC CANADA SPEC,STARLIGHT BLACK GF.,217	07/2012 - 09/2013	1
85044-48030B1	GGL15..NAP..8FC CANADA SPEC,MERCURY GRAY MC.,1H9	07/2012 - 09/2013	1
85044-48030D0	GGL15..NAP..8FC CANADA SPEC,GARNET RED MC.,3S0	07/2012 - 09/2013	1
85044-48030E1	GGL15..NAP..8FC CANADA SPEC,FIRE AGATE M.M.,4V3	07/2012 - 09/2013	1
85044-48030C0	GGL15..NAP..8FC CANADA SPEC,BLACK,212	07/2012 - 09/2013	1
85044-48030J0	GGL15..NAP..8FC CANADA SPEC,LAPIS LAZULI MC.,8V3	07/2012 - 09/2013	1
85044-48030E0	GGL15..NAP..8FC CANADA SPEC,SLEEK ECRU ME.,4U7	07/2012 - 09/2013	1
85353-48020A0	GGL15..NAP..8FC CANADA SPEC,WHITE PEARL CS.,077	09/2013 - 10/2015	1
85353-48020B0	GGL15..NAP..8FC CANADA SPEC,MERCURY GRAY MC.,1H9	09/2013 - 10/2015	1
85353-48020A1	GGL15..NAP..8FC CANADA SPEC,WHITE NOVA GF.,083 ,2MH	09/2013 - 10/2015	1
85353-48020B1	GGL15..NAP..8FC CANADA SPEC,PLATINUM SILVER ME.,1J4	09/2013 - 10/2015	1
85353-48020C0	GGL15..NAP..8FC CANADA SPEC,BLACK,212	09/2013 - 10/2015	1
85353-48020C1	GGL15..NAP..8FC CANADA SPEC,STARLIGHT BLACK GF.,217	09/2013 - 10/2015	1
85353-48020D0	GGL15..NAP..8FC CANADA SPEC,GARNET RED MC.,3S0	09/2013 - 10/2015	1
85353-48020J0	GGL15..NAP..8FC CANADA SPEC,LAPIS LAZULI MC.,8V3	09/2013 - 10/2015	1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85045-48030A0	GGL15..NAP..8FC CANADA SPEC,WHITE PEARL CS.,077	07/2012 - 09/2013	1
85045-48030E0	GGL15..NAP..8FC CANADA SPEC,SLEEK ECRU ME.,4U7	07/2012 - 09/2013	1
85045-48030B1	GGL15..NAP..8FC CANADA SPEC,MERCURY GRAY MC.,1H9	07/2012 - 09/2013	1
85045-48030E1	GGL15..NAP..8FC CANADA SPEC,FIRE AGATE M.M.,4V3	07/2012 - 09/2013	1
85045-48030J0	GGL15..NAP..8FC CANADA SPEC,LAPIS LAZULI MC.,8V3	07/2012 - 09/2013	1
85045-48030C1	GGL15..NAP..8FC CANADA SPEC,STARLIGHT BLACK GF.,217	07/2012 - 09/2013	1
85045-48030D0	GGL15..NAP..8FC CANADA SPEC,GARNET RED MC.,3S0	07/2012 - 09/2013	1
85045-48030B2	GGL15..NAP..8FC CANADA SPEC,PLATINUM SILVER ME.,1J4	07/2012 - 09/2013	1
85045-48030C0	GGL15..NAP..8FC CANADA SPEC,BLACK,212	07/2012 - 09/2013	1
85354-48020A0	GGL15..NAP..8FC CANADA SPEC,WHITE PEARL CS.,077	09/2013 - 10/2015	1
85354-48020A1	GGL15..NAP..8FC CANADA SPEC,WHITE NOVA GF.,083 ,2MH	09/2013 - 10/2015	1
85354-48020B1	GGL15..NAP..8FC CANADA SPEC,PLATINUM SILVER ME.,1J4	09/2013 - 10/2015	1
85354-48020B0	GGL15..NAP..8FC CANADA SPEC,MERCURY GRAY MC.,1H9	09/2013 - 10/2015	1
85354-48020D0	GGL15..NAP..8FC CANADA SPEC,GARNET RED MC.,3S0	09/2013 - 10/2015	1
85354-48020C1	GGL15..NAP..8FC CANADA SPEC,STARLIGHT BLACK GF.,217	09/2013 - 10/2015	1
85354-48020C0	GGL15..NAP..8FC CANADA SPEC,BLACK,212	09/2013 - 10/2015	1
85354-48020J0	GGL15..NAP..8FC CANADA SPEC,LAPIS LAZULI MC.,8V3	09/2013 - 10/2015	1
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-48090	GGL15..NAP..8FC CANADA SPEC	09/2013 - 10/2015	1
85207-48070	GGL15..NAP..8FC CANADA SPEC	07/2012 - 09/2013	1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-48070	GGL15..NAP..8FC CANADA SPEC	07/2012 - 09/2013	1
85208-48090	GGL15..NAP..8FC CANADA SPEC	09/2013 - 10/2015	1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90075-15094	GGL15,GYL15..NAP L=180,CANADA SPEC	09/2013 - 12/2999	1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90075-15059	GGL15,GYL15..NAP L=80,CANADA SPEC	09/2013 - 12/2999	1
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85272-75050	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	2
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85272-75050	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	2
85272B - CLAMP, HEADLAMP CLEANER, NO.2
85272-48020	GGL15..NAP..8FC CANADA SPEC	07/2012 - 12/2999	1
85272C - CLAMP, HEADLAMP CLEANER, NO.3
85273-48020	GGL15..NAP..8FC CANADA SPEC	07/2012 - 12/2999	1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85357-42070	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
90075-17005	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
90075-17009	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	2
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
90075-17009	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	2
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85279-42010	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
90075-17010	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
90075-15040	GGL15,GYL15..NAP CANADA SPEC	09/2013 - 12/2999	1
85371C - HOSE, HEADLAMP CLEANER, NO.1
85376-14301	GGL15,GYL15..NAP L=75,CANADA SPEC	09/2013 - 12/2999	1
Common parts
82711-16820	None epc.PartDetail.None
82711-16830	None epc.PartDetail.None
85273-20020	None epc.PartDetail.None
90075-91002	None epc.PartDetail.None
90463-12570	None epc.PartDetail.None
Linked diagrams
8401
8503

GGL15L-CWZGKA (2012)

(1309- )
