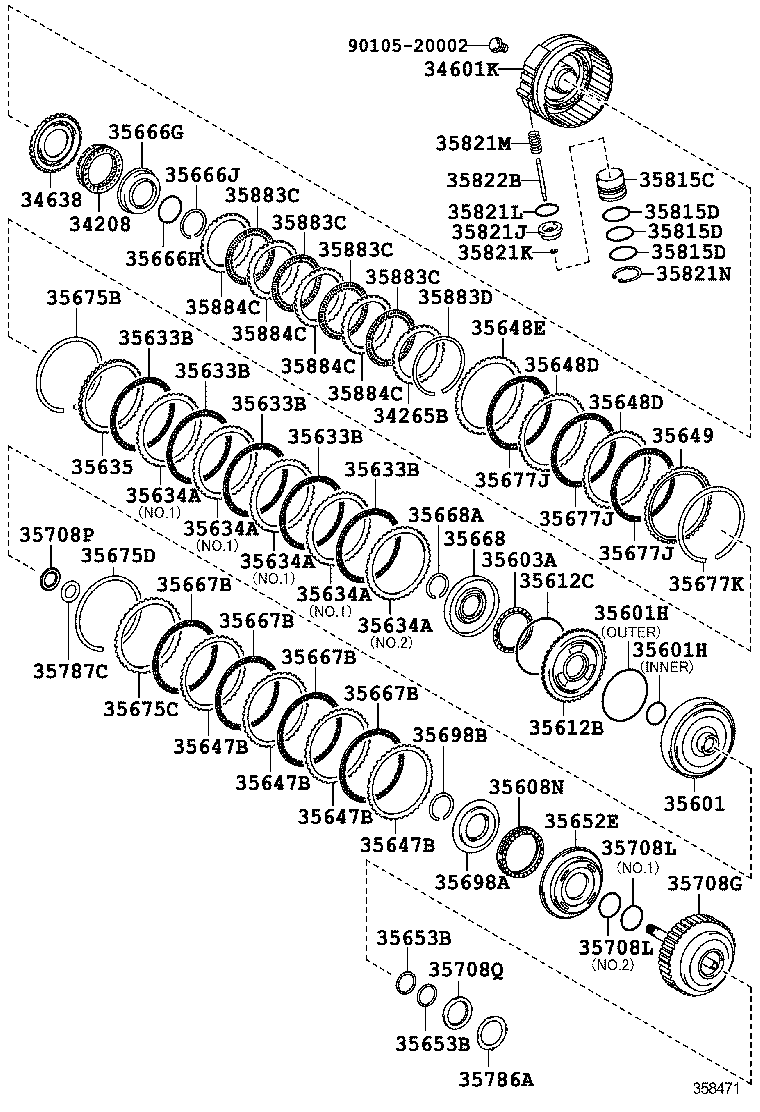

GGL15L-CWZGKA (2012)
Toyota Lexus Rx350/450h(Nap
(1207- )8FC
U880F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34208 - SPRING SUB-ASSY, UNDER DRIVE RETURN W/RETAINER | ||||
| 34208-48010 |
GGL15..NAP..8FC |
1 | ||
| 34265B - FLANGE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34265-48020 |
GGL15..NAP..8FC T=3.1 MARK 1 |
1 | ||
| 34265-48090 |
GGL15..NAP..8FC T=3.8 MARK 8 |
1 | ||
| 34265-48010 |
GGL15..NAP..8FC T=3.0 MARK 0 |
1 | ||
| 34265-48030 |
GGL15..NAP..8FC T=3.2 MARK 2 |
1 | ||
| 34265-48070 |
GGL15..NAP..8FC T=3.6 MARK 6 |
1 | ||
| 34265-48050 |
GGL15..NAP..8FC T=3.4 MARK 4 |
1 | ||
| 34265-48080 |
GGL15..NAP..8FC T=3.7 MARK 7 |
1 | ||
| 34265-48060 |
GGL15..NAP..8FC T=3.5 MARK 5 |
1 | ||
| 34265-48040 |
GGL15..NAP..8FC T=3.3 MARK 3 |
1 | ||
| 34601K - CLUTCH SUB-ASSY, C-3 & C-4 | ||||
| 34601-48010 |
GGL15..NAP..8FC |
1 | ||
| 34601-48012 |
GGL15..NAP..8FC |
1 | ||
| 34601-48011 |
GGL15..NAP..8FC |
1 | ||
| 34638 - PISTON, C-4 CLUTCH | ||||
| 34638-48010 |
GGL15..NAP..8FC |
1 | ||
| 35601 - DRUM SUB-ASSY, CLUTCH | ||||
| 35601-48020 |
GGL15..NAP..8FC |
1 | ||
| 35601H - RING, O(FOR C-1 DRUM) | ||||
| 90301-44004 |
GGL15..NAP..8FC INNER |
1 | ||
| 90301-99103 |
GGL15..NAP..8FC OUTER |
1 | ||
| 35601H - RING, O(FOR C-1 DRUM) | ||||
| 90301-44004 |
GGL15..NAP..8FC INNER |
1 | ||
| 90301-99103 |
GGL15..NAP..8FC OUTER |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-48010 |
GGL15..NAP..8FC |
1 | ||
| 35608N - SPRING SUB-ASSY, CLUTCH RETURN W/RETAINER | ||||
| 35608-48010 |
GGL15..NAP..8FC |
1 | ||
| 35612B - PISTON, FORWARD CLUTCH | ||||
| 35612-48010 |
GGL15..NAP..8FC |
1 | ||
| 35612C - RING, O(FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99123 |
GGL15..NAP..8FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35607-33010 |
GGL1#..NAP |
1 | ||
| 35633-48010 |
GGL15..NAP..8FC |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35607-33010 |
GGL1#..NAP |
1 | ||
| 35633-48010 |
GGL15..NAP..8FC |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35607-33010 |
GGL1#..NAP |
1 | ||
| 35633-48010 |
GGL15..NAP..8FC |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35607-33010 |
GGL1#..NAP |
1 | ||
| 35633-48010 |
GGL15..NAP..8FC |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35607-33010 |
GGL1#..NAP |
1 | ||
| 35633-48010 |
GGL15..NAP..8FC |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-48010 |
GGL15..NAP..8FC T=1.8,NO.1 |
4 | ||
| 35634-48020 |
GGL15..NAP..8FC T=1.4,NO.2 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-48010 |
GGL15..NAP..8FC T=1.8,NO.1 |
4 | ||
| 35634-48020 |
GGL15..NAP..8FC T=1.4,NO.2 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-48010 |
GGL15..NAP..8FC T=1.8,NO.1 |
4 | ||
| 35634-48020 |
GGL15..NAP..8FC T=1.4,NO.2 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-48010 |
GGL15..NAP..8FC T=1.8,NO.1 |
4 | ||
| 35634-48020 |
GGL15..NAP..8FC T=1.4,NO.2 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-48010 |
GGL15..NAP..8FC T=1.8,NO.1 |
4 | ||
| 35634-48020 |
GGL15..NAP..8FC T=1.4,NO.2 |
1 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-48020 |
GGL15..NAP..8FC T=4.2 |
1 | ||
| 35635-48060 |
GGL15..NAP..8FC T=4.6 |
1 | ||
| 35635-48080 |
GGL15..NAP..8FC T=4.8 |
1 | ||
| 35635-48030 |
GGL15..NAP..8FC T=4.3 |
1 | ||
| 35635-48050 |
GGL15..NAP..8FC T=4.5 |
1 | ||
| 35635-48040 |
GGL15..NAP..8FC T=4.4 |
1 | ||
| 35635-48090 |
GGL15..NAP..8FC T=4.45 |
1 | ||
| 35635-48070 |
GGL15..NAP..8FC T=4.7 |
1 | ||
| 35635-48110 |
GGL15..NAP..8FC T=4.65 |
1 | ||
| 35635-48010 |
GGL15..NAP..8FC T=4.1 |
1 | ||
| 35635-48100 |
GGL15..NAP..8FC T=4.55 |
1 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-48010 |
GGL15..NAP..8FC |
4 | ||
| 35065-33020 |
GGL1#..NAP |
1 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-48010 |
GGL15..NAP..8FC |
4 | ||
| 35065-33020 |
GGL1#..NAP |
1 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-48010 |
GGL15..NAP..8FC |
4 | ||
| 35065-33020 |
GGL1#..NAP |
1 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-48010 |
GGL15..NAP..8FC |
4 | ||
| 35065-33020 |
GGL1#..NAP |
1 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-48010 |
GGL15..NAP..8FC |
2 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-48010 |
GGL15..NAP..8FC |
2 | ||
| 35648E - PLATE, CLUTCH, NO.3 | ||||
| 35648-48020 |
GGL15..NAP..8FC |
1 | ||
| 35649 - FLANGE, REVERSE CLUTCH | ||||
| 35649-48040 |
GGL15..NAP..8FC T=3.1,MARK S |
1 | ||
| 35649-48010 |
GGL15..NAP..8FC T=2.8,MARK P |
1 | ||
| 35649-48070 |
GGL15..NAP..8FC T=3.4,MARK W |
1 | ||
| 35649-48080 |
GGL15..NAP..8FC T=3.5,MARK X |
1 | ||
| 35649-48060 |
GGL15..NAP..8FC T=3.3,MARK U |
1 | ||
| 35649-48030 |
GGL15..NAP..8FC T=3.0,MARK R |
1 | ||
| 35649-48020 |
GGL15..NAP..8FC T=2.9,MARK Q |
1 | ||
| 35649-48050 |
GGL15..NAP..8FC T=3.2,MARK T |
1 | ||
| 35652E - PISTON, C-2 CLUTCH | ||||
| 35652-48010 |
GGL15..NAP..8FC |
1 | ||
| 35653B - RING, DIRECT CLUTCH DRUM OIL SEAL | ||||
| 35653-33010 |
GGL1#..NAP |
2 | ||
| 35653-48010 |
GGL15..NAP..8FC |
2 | ||
| 35653B - RING, DIRECT CLUTCH DRUM OIL SEAL | ||||
| 35653-33010 |
GGL1#..NAP |
2 | ||
| 35653-48010 |
GGL15..NAP..8FC |
2 | ||
| 35666G - BALANCER, C-4 CLUTCH | ||||
| 35666-48010 |
GGL15..NAP..8FC |
1 | ||
| 35666H - RING, O(FOR C-4 CLUTCH BALANCER) | ||||
| 90301-56010 |
GGL15..NAP..8FC |
1 | ||
| 35666J - RING, SNAP(FOR C-4 CLUTCH BALANCER) | ||||
| 90520-55003 |
GGL15..NAP..8FC |
1 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-48010 |
GGL15..NAP..8FC |
4 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-48010 |
GGL15..NAP..8FC |
4 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-48010 |
GGL15..NAP..8FC |
4 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-48010 |
GGL15..NAP..8FC |
4 | ||
| 35668 - BALANCER, CLUTCH, NO.1 | ||||
| 35668-48010 |
GGL15..NAP..8FC |
1 | ||
| 35668A - RING, SNAP(FOR CLUTCH BALANCER) | ||||
| 90520-45037 |
GGL15..NAP..8FC |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90520-99146 |
GGL15..NAP..8FC |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-48030 |
GGL15..NAP..8FC T=2.7 |
1 | ||
| 35675-48040 |
GGL15..NAP..8FC T=2.8 |
1 | ||
| 35675-48080 |
GGL15..NAP..8FC T=3.2 |
1 | ||
| 35675-48060 |
GGL15..NAP..8FC T=3.0 |
1 | ||
| 35675-48050 |
GGL15..NAP..8FC T=2.9 |
1 | ||
| 35675-48100 |
GGL15..NAP..8FC T=2.95 |
1 | ||
| 35675-48090 |
GGL15..NAP..8FC T=2.85 |
1 | ||
| 35675-48010 |
GGL15..NAP..8FC T=2.5 |
1 | ||
| 35675-48020 |
GGL15..NAP..8FC T=2.6 |
1 | ||
| 35675-48110 |
GGL15..NAP..8FC T=3.05 |
1 | ||
| 35675-48070 |
GGL15..NAP..8FC T=3.1 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90520-99147 |
GGL15..NAP..8FC |
1 | ||
| 35677J - DISC, CLUTCH, NO.3 | ||||
| 35677-48010 |
GGL15..NAP..8FC |
3 | ||
| 35677J - DISC, CLUTCH, NO.3 | ||||
| 35677-48010 |
GGL15..NAP..8FC |
3 | ||
| 35677J - DISC, CLUTCH, NO.3 | ||||
| 35677-48010 |
GGL15..NAP..8FC |
3 | ||
| 35677K - RING, HOLE SNAP(FOR C-3 CLUTCH) | ||||
| 90520-99148 |
GGL15..NAP..8FC |
1 | ||
| 35698A - BALANCER, C-2 CLUTCH | ||||
| 35698-48010 |
GGL15..NAP..8FC |
1 | ||
| 35698B - RING SNAP(FOR C-2 CLUTCH BALANCER) | ||||
| 90520-52007 |
GGL15..NAP..8FC |
1 | ||
| 35708G - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-48010 |
GGL15..NAP..8FC |
1 | ||
| 35708L - RING, O (FOR INTERMEDIATE SHAFT) | ||||
| 90301-A0024 |
GGL1#..NAP |
1 | ||
| 90301-51004 |
GGL15..NAP..8FC NO.2 |
1 | ||
| 90301-50002 |
GGL15..NAP..8FC NO.1 |
1 | ||
| 35708L - RING, O (FOR INTERMEDIATE SHAFT) | ||||
| 90301-A0024 |
GGL1#..NAP |
1 | ||
| 90301-51004 |
GGL15..NAP..8FC NO.2 |
1 | ||
| 90301-50002 |
GGL15..NAP..8FC NO.1 |
1 | ||
| 35708P - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) | ||||
| 90374-24005 |
GGL15..NAP..8FC |
1 | ||
| 35708Q - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) | ||||
| 90374-50001 |
GGL15..NAP..8FC |
1 | ||
| 35786A - RACE, THRUST BEARING, NO.1 | ||||
| 35786-07010 |
GGL1#..NAP |
1 | ||
| 35786-48010 |
GGL15..NAP..8FC |
1 | ||
| 35787C - RACE, THRUST BEARING, NO.2 | ||||
| 35787-48010 |
GGL15..NAP..8FC |
1 | ||
| 35815C - COVER, BRAKE PISTON | ||||
| 35815-48010 |
GGL15..NAP..8FC |
1 | ||
| 35815D - RING, O(FOR BRAKE PISTON COVER) | ||||
| 90301-54008 |
GGL15..NAP..8FC |
3 | ||
| 35815D - RING, O(FOR BRAKE PISTON COVER) | ||||
| 90301-54008 |
GGL15..NAP..8FC |
3 | ||
| 35815D - RING, O(FOR BRAKE PISTON COVER) | ||||
| 90301-54008 |
GGL15..NAP..8FC |
3 | ||
| 35821J - PISTON, B-1 BRAKE | ||||
| 35821-48010 |
GGL15..NAP..8FC |
1 | ||
| 35821K - RING, E(FOR B-1 BRAKE PISTON) | ||||
| 96160-00500 |
GGL15..NAP..8FC |
1 | ||
| 35821L - RING, O(FOR B-1 BRAKE PISTON) | ||||
| 90301-47007 |
GGL15..NAP..8FC |
1 | ||
| 35821M - SPRING, COMPRESSION(FOR B-1 BRAKE PISTON) | ||||
| 90501-27039 |
GGL15..NAP..8FC |
1 | ||
| 35821N - RING, HOLE SNAP(FOR B-1 BRAKE PISTON) | ||||
| 90521-66010 |
GGL15..NAP..8FC |
1 | ||
| 35822B - ROD, B-1 BRAKE PISTON | ||||
| 35822-48030 |
GGL15..NAP..8FC L=103.3 |
1 | ||
| 35822-48010 |
GGL15..NAP..8FC L=102.8 |
1 | ||
| 35822-48080 |
GGL15..NAP..8FC L=104.55 |
1 | ||
| 35822-48060 |
GGL15..NAP..8FC L=104.05 |
1 | ||
| 35822-48040 |
GGL15..NAP..8FC L=103.55 |
1 | ||
| 35822-48070 |
GGL15..NAP..8FC L=104.3 |
1 | ||
| 35822-48110 |
GGL15..NAP..8FC L=105.3 |
1 | ||
| 35822-48090 |
GGL15..NAP..8FC L=104.8 |
1 | ||
| 35822-48100 |
GGL15..NAP..8FC L=105.05 |
1 | ||
| 35822-48050 |
GGL15..NAP..8FC L=103.8 |
1 | ||
| 35822-48020 |
GGL15..NAP..8FC L=103.05 |
1 | ||
| 35883C - DISC, CLUTCH, NO.4 | ||||
| 35883-48010 |
GGL15..NAP..8FC |
4 | ||
| 35883C - DISC, CLUTCH, NO.4 | ||||
| 35883-48010 |
GGL15..NAP..8FC |
4 | ||
| 35883C - DISC, CLUTCH, NO.4 | ||||
| 35883-48010 |
GGL15..NAP..8FC |
4 | ||
| 35883C - DISC, CLUTCH, NO.4 | ||||
| 35883-48010 |
GGL15..NAP..8FC |
4 | ||
| 35883D - RING, SNAP(FOR C-4 CLUTCH) | ||||
| 90520-99152 |
GGL15..NAP..8FC |
1 | ||
| 35884C - PLATE, CLUTCH, NO.4 | ||||
| 35884-48010 |
GGL15..NAP..8FC |
4 | ||
| 35884C - PLATE, CLUTCH, NO.4 | ||||
| 35884-48010 |
GGL15..NAP..8FC |
4 | ||
| 35884C - PLATE, CLUTCH, NO.4 | ||||
| 35884-48010 |
GGL15..NAP..8FC |
4 | ||
| 35884C - PLATE, CLUTCH, NO.4 | ||||
| 35884-48010 |
GGL15..NAP..8FC |
4 | ||
| Common parts | ||||
| 90105-20002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
