GGL15L-CWTGKA (2012)
Toyota Lexus Rx350/450h(Nap

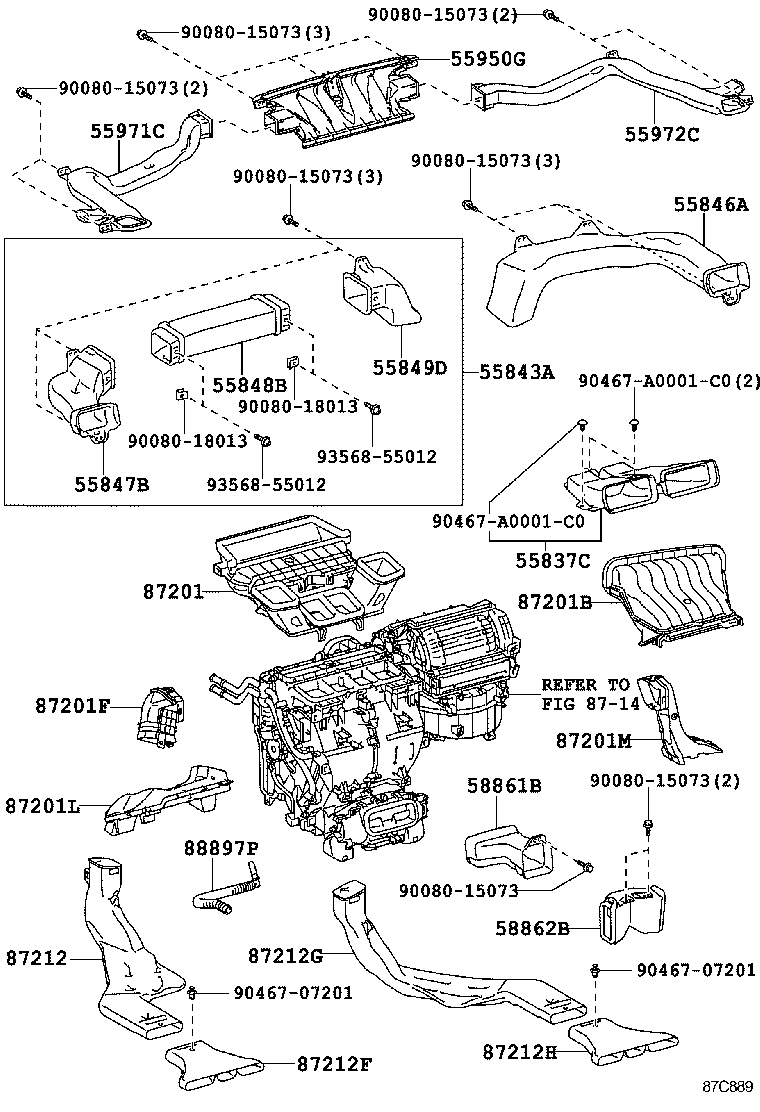

ILLUST NO. 2 OF 3(1204- )GGL1#,GYL15
AIR DUCT W(HEAD UP DISPLAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-0E020 |
GGL1#..NAP |
1 | ||
| 55837-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-0E050 |
GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
1 | ||
| 55843-0E020 |
GGL1#..NAP |
1 | ||
| 55843-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 55846-0E020 |
GGL1#..NAP |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-0E010 |
GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-0E010 |
GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
1 | ||
| 55849D - DUCT, HEATER TO REGISTER, NO.7 | ||||
| 55849-0E010 |
GGL1#,GYL15..NAP HEAD UP DISPLAY-WITH |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0E020 |
GGL1#..NAP |
1 | ||
| 55950-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 55971-0E020 |
GGL1#..NAP |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 55972-0E020 |
GGL1#..NAP |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 58861-0E020 |
GGL1#..NAP |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-0E050 |
GGL1#,GYL1#..NAP |
1 | ||
| 58862-0E020 |
GGL1#..NAP |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-0E040 |
GGL1#,GYL1#..NAP |
1 | ||
| 87201-0E040 |
GGL1#..NAP |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-0E020 |
GGL1#..NAP |
1 | ||
| 87201-0E020 |
GGL1#..NAP |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-0E030 |
GGL1#,GYL1#..NAP |
1 | ||
| 87211-0E030 |
GGL1#..NAP |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87211-0E040 |
GGL1#..NAP |
1 | ||
| 87211-0E040 |
GGL1#,GYL1#..NAP |
1 | ||
| 87201M - DUCT SUB-ASSY, AIR, NO.5 | ||||
| 87201-0E160 |
GGL1#,GYL1#..NAP |
1 | ||
| 87201-0E160 |
GGL1#..NAP |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-0E020 |
GGL1#..NAP |
1 | ||
| 87213-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87218-0E010 |
GGL1#..NAP |
1 | ||
| 87218-0E010 |
GGL1#,GYL1#..NAP |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-0E020 |
GGL1#,GYL1#..NAP |
1 | ||
| 87212-0E020 |
GGL1#..NAP |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-0E010 |
GGL1#..NAP |
1 | ||
| 87217-0E010 |
GGL1#,GYL1#..NAP |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-0E050 |
GGL1#,GYL1#..NAP |
1 | ||
| 87201-0E050 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90080-18013 | ||||
| 90467-07201 | ||||
| 90467-A0001C0 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8714 | ||||
