GGL15L-CWTGKA (2009)

Toyota Lexus Rx350/450h(Nap

Production Jan 2009 - Apr 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

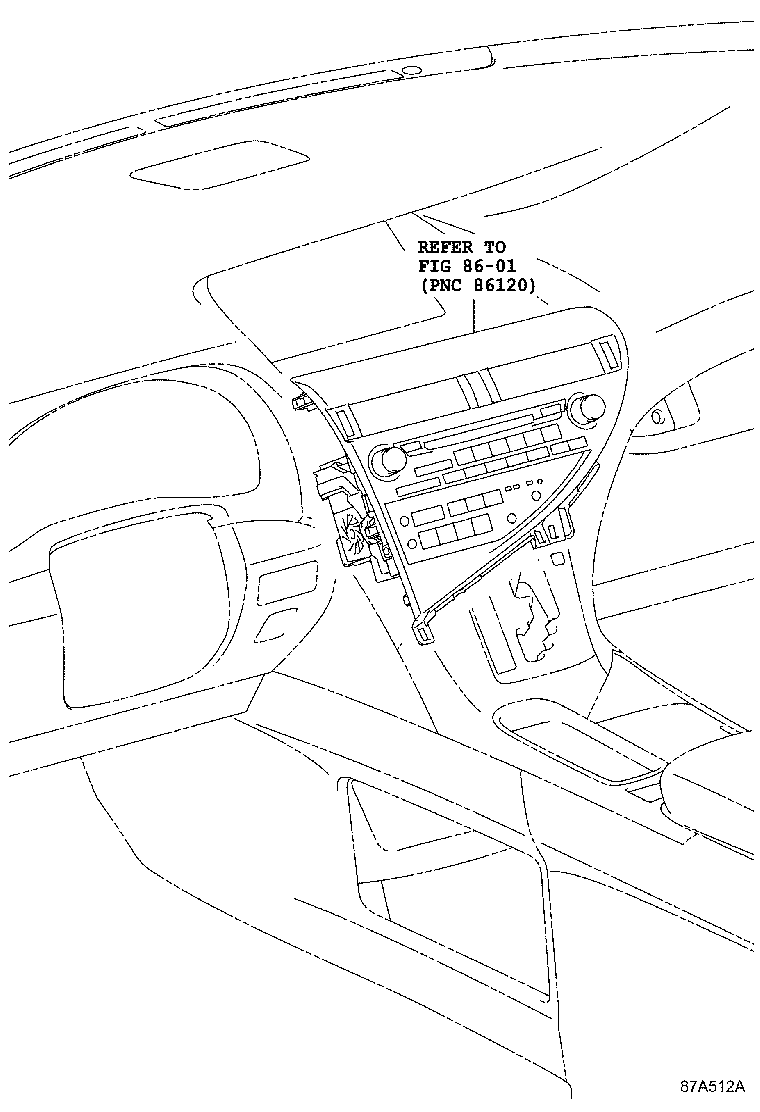

ILLUST NO. 1 OF 3(0901- )

Click highlighted areas on diagram

CONTROL PANEL

diagram 8601
Part # Description Qty Price
Linked diagrams
8601

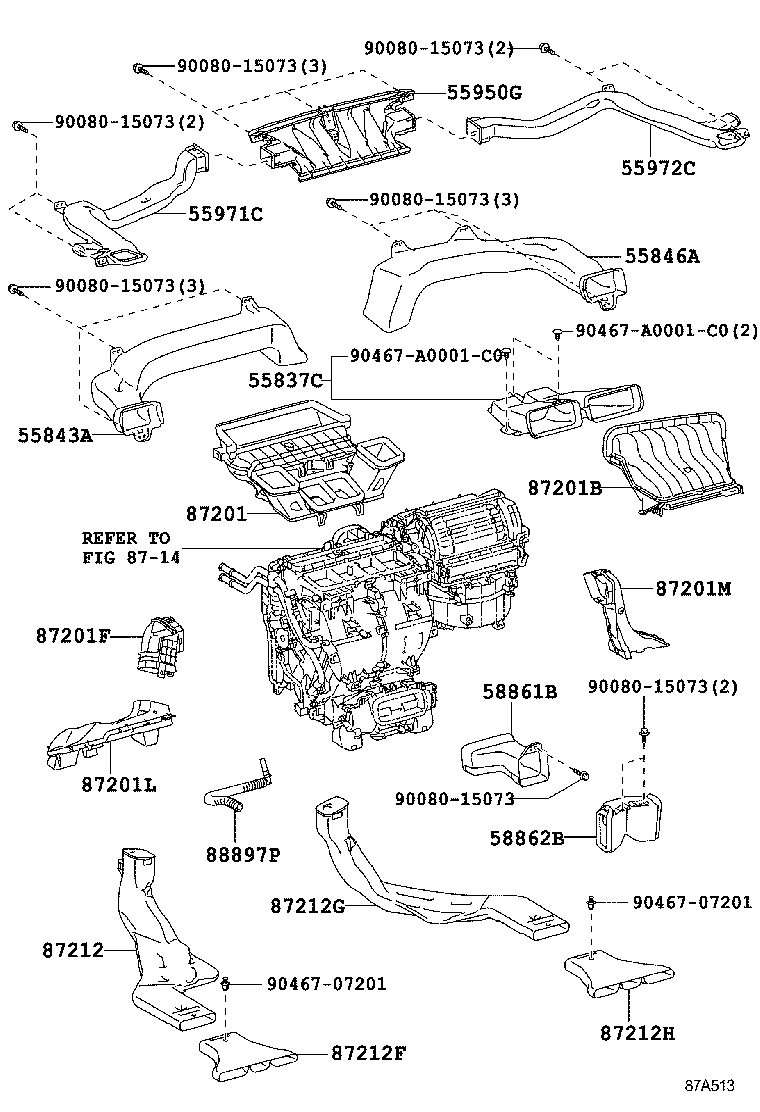

ILLUST NO. 2 OF 3(0901- )GGL15..6FC ; (0901- )GGL10,GYL1#

Click highlighted areas on diagram

AIR DUCT

diagram 55837C 55843A 55846A 55950G 55971C 55972C 58861B 58862B 8714 87201 87201B 87201F 87201L 87201M 87212 87212F 87212G 87212H 88897P 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9046707201 9046707201 90467A0001C0 90467A0001C0
Part # Description Qty Price
55837C - DUCT, HEATER TO REGISTER CENTER SUB
55837-0E020

GGL1#..NAP

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0E020

GGL1#..NAP

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-0E020

GGL1#..NAP

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0E020

GGL1#..NAP

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-0E020

GGL1#..NAP

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-0E020

GGL1#..NAP

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-0E020

GGL1#..NAP

 1
58862B - DUCT, CONSOLE BOX, NO.2
58862-0E020

GGL1#..NAP

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-0E040

GGL1#..NAP

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-0E020

GGL1#..NAP

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-0E030

GGL1#..NAP

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87211-0E040

GGL1#..NAP

 1
87201M - DUCT SUB-ASSY, AIR, NO.5
87201-0E160

GGL1#..NAP

 1
87212 - DUCT, AIR, REAR NO.1
87213-0E020

GGL1#..NAP

 1
87212F - DUCT, AIR, REAR NO.2
87218-0E010

GGL1#..NAP

 1
87212G - DUCT, AIR, REAR NO.3
87212-0E020

GGL1#..NAP

 1
87212H - DUCT, AIR, REAR NO.4
87217-0E010

GGL1#..NAP

 1
88897P - ASPIRATOR
87201-0E050

GGL1#..NAP

 1
Common parts
90080-15073
90467-07201
90467-A0001C0
Linked diagrams
8714

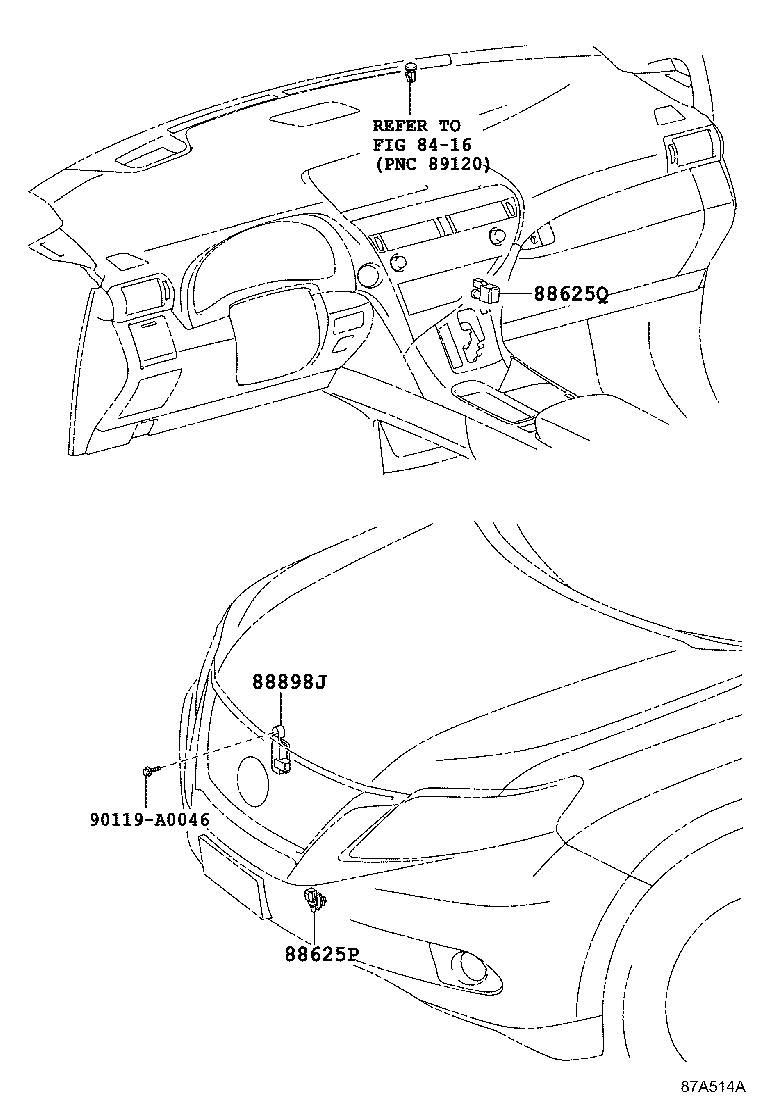

ILLUST NO. 3 OF 3(0901- )

Click highlighted areas on diagram

SENSOR

diagram 8416 88625P 88625Q 88898J 90119A0046
Part # Description Qty Price
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

GGL1#..NAP

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

GGL1#..NAP

 1
88898J - SENSOR, SMOG VENTILATION
88898-50030

GGL1#..NAP

EMV & NAVIGATION SYSTEM-WITH

 1
88898-50030

GGL1#..NAP

AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM

 1
88898-50031

GGL1#..NAP

AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM

 1
Common parts
90119-A0046
Linked diagrams
8416
