GGL15L-CWTGKA (2009)

Toyota Lexus Rx350/450h(Nap

Production Jan 2009 - Apr 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

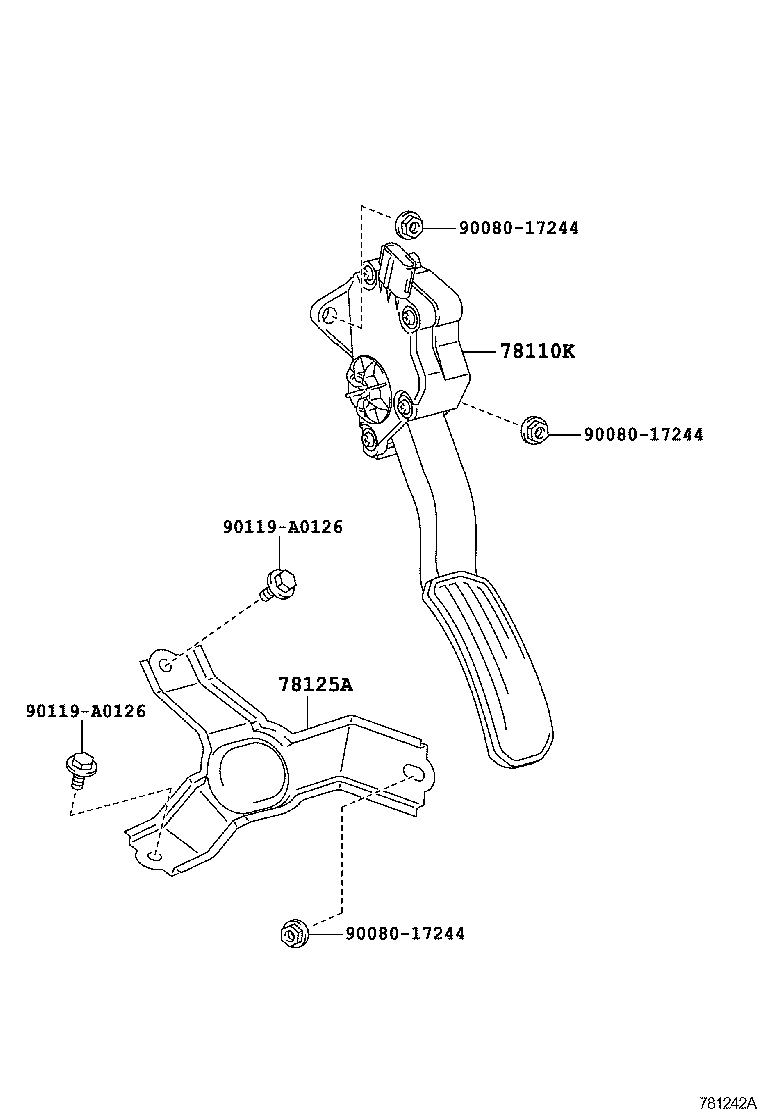

Click highlighted areas on diagram

diagram 78110K 78125A 9008017244 9008017244 9008017244 90119A0126 90119A0126
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-33020

GGL1#..NAP

 1
78110-33110

GGL1#..NAP

 1
78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2
78125-0E010

GGL1#..NAP

 1
Common parts
90080-17244
90119-A0126
