GGL15L-CWTGKA (2009)
Toyota Lexus Rx350/450h(Nap
Production
Jan 2009
-
Apr 2012
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )

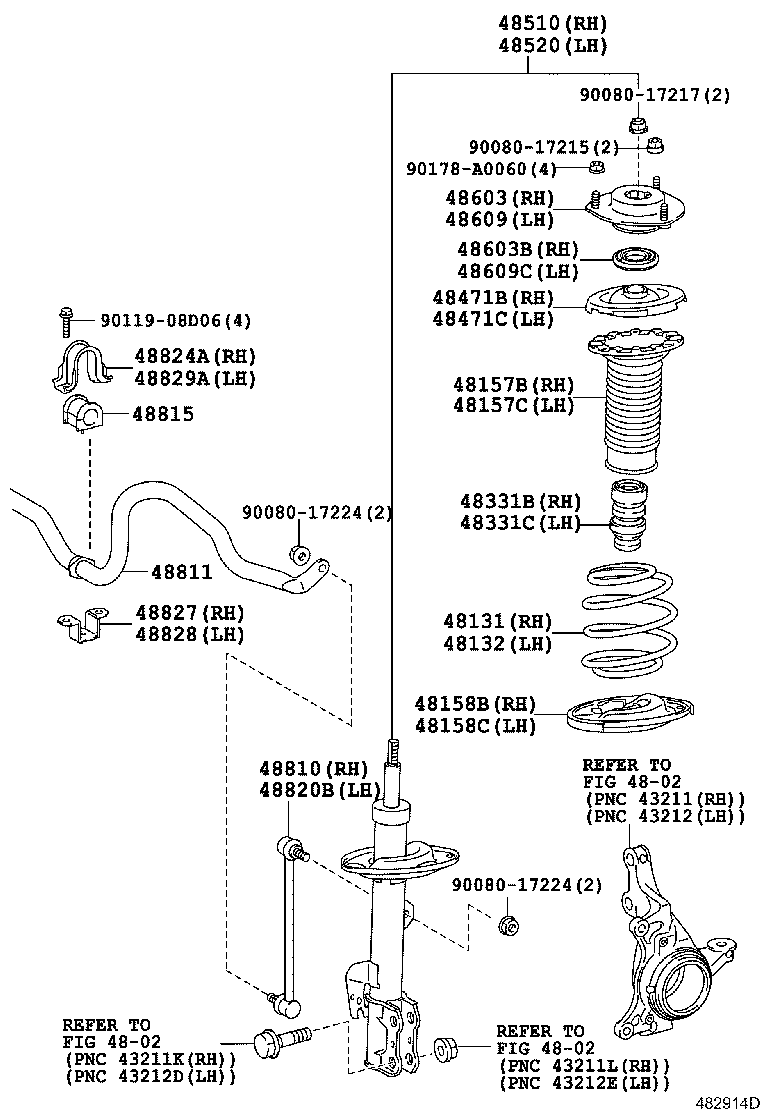

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0E040 |
GGL15..NAP |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-0E020 |
GGL15..NAP |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-0E010 |
GGL1#..NAP |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-0E010 |
GGL1#..NAP |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-48040 |
GGL1#..NAP |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-48030 |
GGL1#..NAP |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0E020 |
GGL1#..NAP |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0E020 |
GGL1#..NAP |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-0E011 |
GGL1#..NAP |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-0E011 |
GGL1#..NAP |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-A9800 |
GGL1#..NAP MARK 48510-0E030 |
1 | ||
| 48510-A9820 |
GGL1#..NAP MARK 48510-0E050,SPORT PACKAGE |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-A9520 |
GGL1#..NAP MARK 48520-0E050,SPORT PACKAGE |
1 | ||
| 48520-A9500 |
GGL1#..NAP MARK 48520-0E030 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0E050 |
GGL1#..NAP (L) |
1 | ||
| 48609-48060 |
GGL1#..NAP (J) |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
GGL1#..NAP |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-48060 |
GGL1#..NAP (J) |
1 | ||
| 48609-0E050 |
GGL1#..NAP (L) |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
GGL1#..NAP |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-06040 |
GGL1#..NAP |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0E040 |
GGL15..NAP |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-AE030 |
GGL1#..NAP |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06040 |
GGL1#..NAP |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0E020 |
GGL1#..NAP |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-08010 |
GGL1#..NAP |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-08010 |
GGL1#..NAP |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0E020 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 90080-17215 | ||||
| 90080-17217 | ||||
| 90080-17224 | ||||
| 90119-08D06 | ||||
| 90178-A0060 | ||||
| Linked diagrams | ||||
| 4802 | ||||
