GGL15L-CWTGKA (2009)

Toyota Lexus Rx350/450h(Nap

Production Jan 2009 - Apr 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

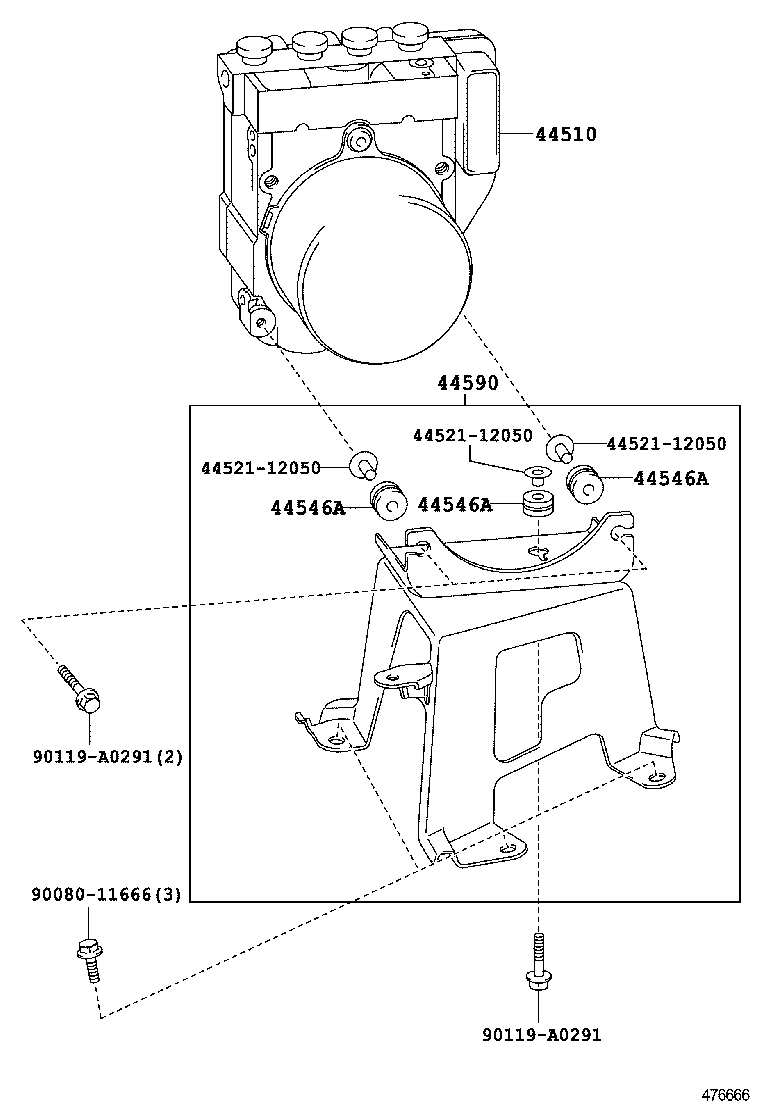

ILLUST NO. 2 OF 2(0901- )GGL1#

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9008011666 90119A0291 90119A0291
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0E060

GGL15..NAP

 1
44050-0E081

GGL15..NAP

VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)

 1
44050-0E061

GGL15..NAP

 1
44050-0E082

GGL15..NAP

VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)

 1
44050-0E080

GGL15..NAP

VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)

 1
44050-0E062

GGL15..NAP

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

GGL1#..NAP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

GGL1#..NAP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

GGL1#..NAP

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0E040

GGL1#..NAP

 1
Common parts
44521-12050
90080-11666
90119-A0291

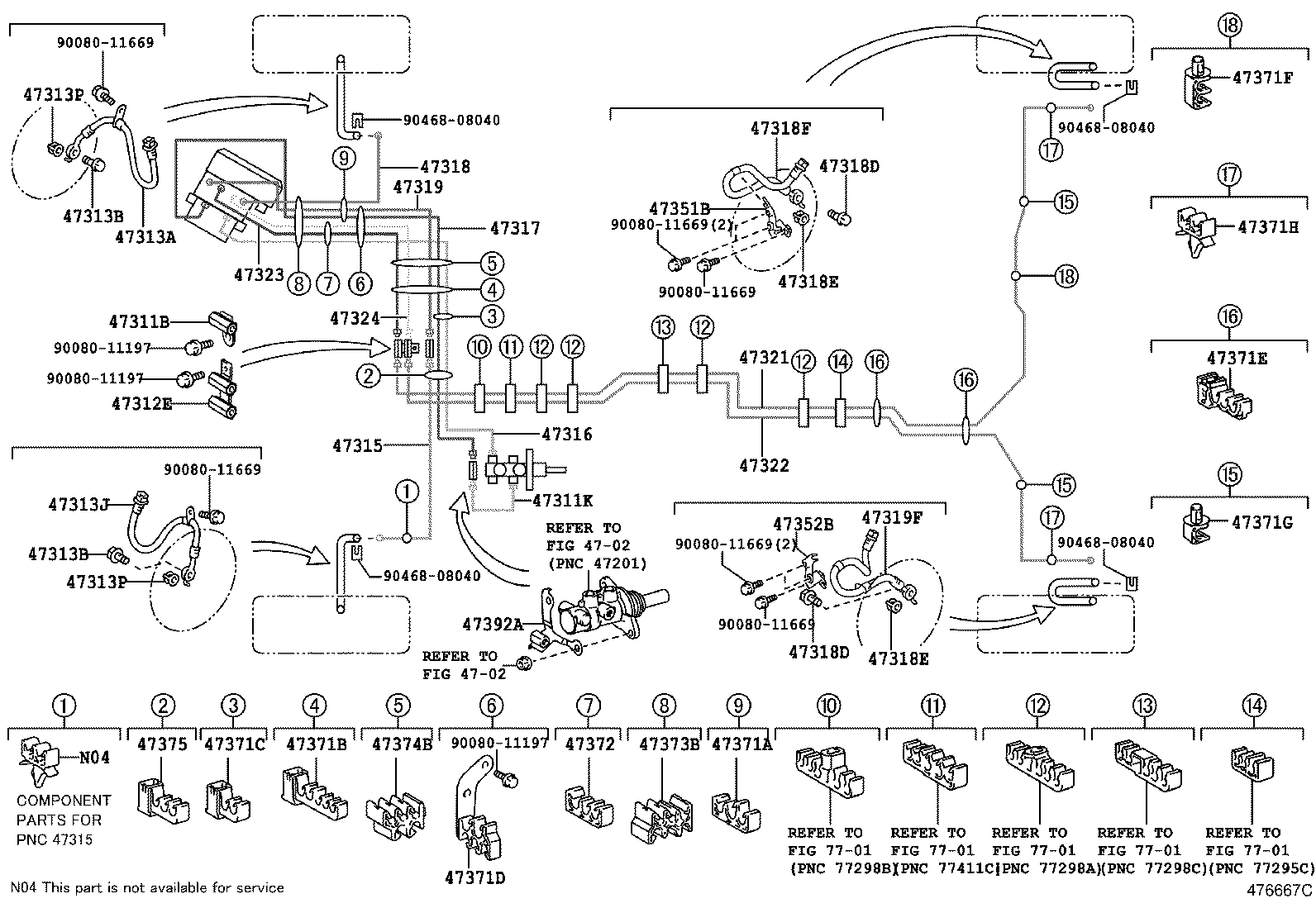

ILLUST NO. 1 OF 2(0901- )GGL1#

Click highlighted areas on diagram

diagram 4702 4702 47311B 47311K 47312E 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47351B 47352B 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47371H 47372 47373B 47374B 47375 47392A 7701 7701 7701 7701 7701 9008011197 9008011197 9008011197 9008011669 9008011669 9008011669 9008011669 9008011669 9008011669 9046808040 9046808040 9046808040 9046808040
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

GGL1#..NAP

 1
47311K - TUBE, BRAKE MASTER CYLINDER TO WAY
47311-48040

GGL1#..NAP

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10246

GGL1#..NAP

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-A2052

GGL1#..NAP

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GGL1#..NAP

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GGL1#..NAP

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-A2053

GGL1#..NAP

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GGL1#..NAP

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GGL1#..NAP

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0E020

GGL1#..NAP

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0E030

GGL1#..NAP

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0E030

GGL1#..NAP

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0E030

GGL1#..NAP

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GGL1#..NAP

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GGL1#..NAP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GGL1#..NAP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GGL1#..NAP

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-A2041

GGL1#..NAP

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-0E030

GGL1#..NAP

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-A2041

GGL1#..NAP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0E020

GGL1#..NAP

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0E020

GGL1#..NAP

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0E030

GGL1#..NAP

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0E030

GGL1#..NAP

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-0E010

GGL1#..NAP

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-0E010

GGL1#..NAP

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-A0006

GGL1#..NAP

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-A1019

GGL1#..NAP

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-A1025

GGL1#..NAP

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-A4012

GGL1#..NAP

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90080-46359

GGL1#..NAP

 2
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D13

GGL1#..NAP

 1
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D17

GGL1#..NAP

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90949-01D12

GGL1#..NAP

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90464-A0007

GGL1#..NAP

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90464-A0008

GGL1#..NAP

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-A1015

GGL1#..NAP

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-A1018

GGL1#..NAP

 1
47392A - WAY, BRAKE TUBE, NO.2
47392-48010

GGL1#..NAP

 1
Common parts
90080-11197
90080-11669
90468-08040
Linked diagrams
4702
7701
