GGL15L-CWTGKA (2009)

Toyota Lexus Rx350/450h(Nap

Production Jan 2009 - Apr 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

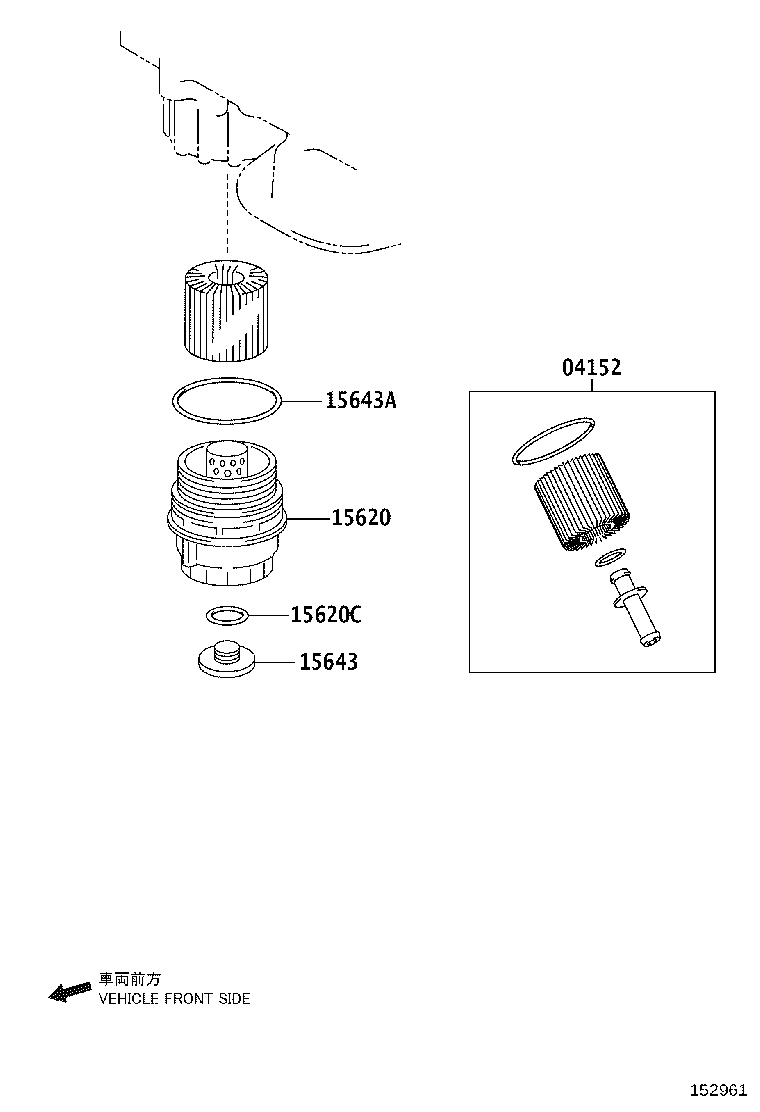

Click highlighted areas on diagram

diagram 04152 15620 15620C 15643 15643A
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31090

2GRFE..GGL1#..NAP

 1
15620 - CAP ASSY, OIL FILTER
15620-31060

2GRFE..GGL1#..NAP

 1
15620C - GASKET(FOR OIL FILTER CAP)
96723-35028

2GRFE..GGL1#..NAP

 1
15643 - PLUG, OIL FILTER DRAIN
15643-31050

2GRFE..GGL1#..NAP

 1
15643A - RING, O(FOR OIL FILTER DRAIN PLUG)
90301-79006

2GRFE..GGL1#..NAP

 1
