GGL10L-CWTGKA (2012)

Toyota Lexus Rx350/450h(Nap

Production Apr 2012 - Oct 2015
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )6FC

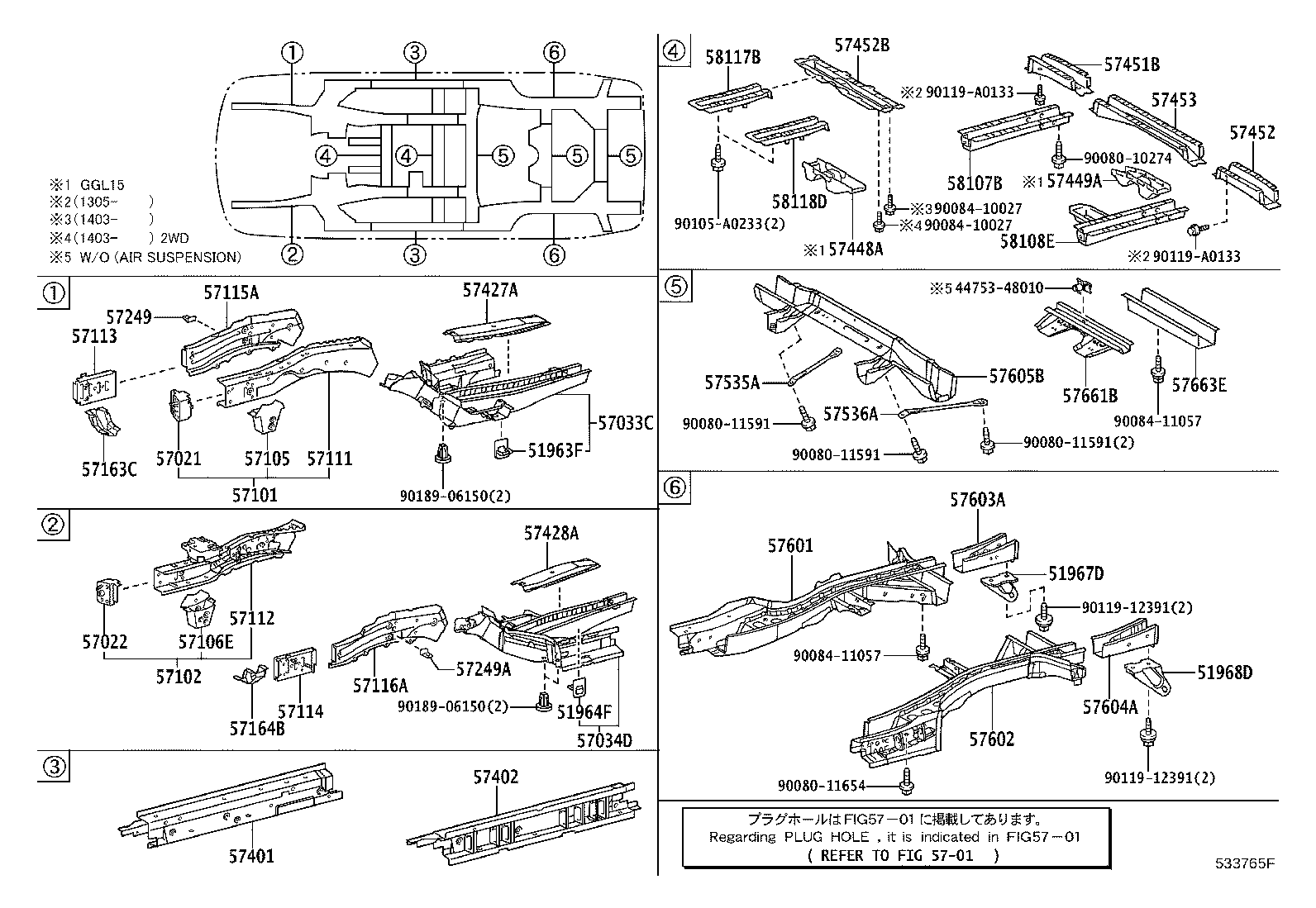

Click highlighted areas on diagram

diagram 4475348010 51963F 51964F 51967D 51968D 5701 57021 57022 57033C 57034D 57101 57102 57105 57106E 57111 57112 57113 57114 57115A 57116A 57163C 57164B 57249 57249A 57401 57402 57427A 57428A 57448A 57449A 57451B 57452 57452B 57453 57535A 57536A 57601 57602 57603A 57604A 57605B 57661B 57663E 58107B 58108E 58117B 58118D 9008010274 9008011591 9008011591 9008011591 9008011654 9008410027 9008410027 9008411057 9008411057 90105A0233 9011912391 9011912391 90119A0133 90119A0133 9018906150 9018906150
Part # Description Qty Price
51963F - HOOK, TRANSPORT
51961-0E080

GGL1#,GYL1#..NAP

 1
51964F - HOOK, TRANSPORT, LH
51961-0E080

GGL1#,GYL1#..NAP

 1
51967D - HOOK SUB-ASSY,REAR
51967-0E020

GGL1#..NAP

TOWING HITCH-TOWING RECIEVE HITCH & W/H

 1
51967-0E020

GGL15..NAP..6FC;GGL10,GYL1#..NAP

 1
51967-0E020

GGL1#..NAP

 1
51967-0E020

GGL15..NAP..6FC;GGL10,GYL15..NAP

TOWING HITCH-TOWING RECIEVE HITCH & W/H

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-0E020

GGL1#..NAP

 1
51968-0E020

GGL15..NAP..6FC;GGL10,GYL1#..NAP

 1
51968-0E020

GGL1#..NAP

TOWING HITCH-TOWING RECIEVE HITCH & W/H

 1
51968-0E020

GGL15..NAP..6FC;GGL10,GYL15..NAP

TOWING HITCH-TOWING RECIEVE HITCH & W/H

 1
57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57021-0E010

GGL1#..NAP

 1
57021-0E011

GGL1#,GYL1#..NAP

 1
57021-0E010

GGL1#..NAP

 1
57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57022-0E010

GGL1#..NAP

 1
57022-0E010

GGL1#..NAP

 1
57022-0E011

GGL1#,GYL1#..NAP

 1
57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57033-0E020

GGL1#..NAP

 1
57033-0E020

GGL1#,GYL1#..NAP

 1
57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57034-0E020

GGL1#,GYL1#..NAP

 1
57034-0E020

GGL1#..NAP

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57027-0E010

GGL1#..NAP

 1
57027-0E010

GGL1#..NAP

 1
57027-0E011

GGL1#,GYL1#..NAP

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57028-0E010

GGL1#..NAP

 1
57028-0E011

GGL1#..NAP

 1
57028-0E010

GGL1#..NAP

 1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-06010

GGL1#,GYL1#..NAP

 1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-0E010

GGL1#,GYL1#..NAP

 1
57111 - MEMBER, FRONT SIDE, RH
57111-0E010

GGL1#,GYL1#..NAP

 1
57112 - MEMBER, FRONT SIDE, LH
57112-0E010

GGL1#,GYL1#..NAP

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-0E010

GGL1#,GYL1#..NAP

 1
57113-0E010

GGL1#..NAP

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-0E010

GGL1#,GYL1#..NAP

 1
57114-0E010

GGL1#..NAP

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-0E010

GGL1#,GYL1#..NAP

 1
57115-0E010

GGL1#..NAP

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-0E010

GGL1#..NAP

 1
57116-0E010

GGL1#,GYL1#..NAP

 1
57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57163-0E010

GGL1#,GYL1#..NAP

 1
57163-0E010

GGL1#..NAP

 1
57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57164-0E010

GGL1#..NAP

 1
57164-0E010

GGL1#,GYL1#..NAP

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-0E010

GGL1#..NAP

 1
57249-0E010

GGL1#,GYL1#..NAP

 1
57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH
57249-0E010

GGL1#..NAP

 1
57249-0E010

GGL1#,GYL1#..NAP

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-0E020

GGL1#..NAP

 1
57401-0E023

GGL1#,GYL1#..NAP

 1
57401-0E024

GGL1#,GYL1#..NAP

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-0E020

GGL1#..NAP

 1
57402-0E022

GGL1#,GYL1#..NAP

 1
57402-0E023

GGL1#,GYL1#..NAP

 1
57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-0E020

GGL1#,GYL1#..NAP

 1
57427-0E020

GGL1#..NAP

 1
57427-0E021

GGL1#,GYL1#..NAP

 1
57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-0E020

GGL1#..NAP

 1
57428-0E020

GGL1#,GYL1#..NAP

 1
57428-0E021

GGL1#,GYL1#..NAP

 1
57451B - MEMBER, FRONT FLOOR CROSS, RH
57458-0E012

GGL1#..NAP

 1
57458-0E012

GGL1#..NAP

 1
57458-0E040

GGL1#,GYL1#..NAP

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57459-0E012

GGL1#..NAP

 1
57459-0E040

GGL1#,GYL1#..NAP

 1
57459-0E012

GGL1#..NAP

 1
57452B - MEMBER, FRONT FLOOR CROSS, NO.2
57452-0E012

GGL1#..NAP

 1
57452-0E014

GGL1#,GYL1#..NAP

 1
57452-0E011

GGL1#..NAP

 1
57453 - MEMBER, FRONT FLOOR CROSS, NO.3
57453-0E020

GGL1#..NAP

 1
57453-0E020

GGL1#..NAP

 1
57453-0E050

GGL1#,GYL1#..NAP

 1
57535A - BRACE, FRONT FLOOR, RH
57535-0E020

GGL1#..NAP

 1
57535-0E020

GGL1#..NAP

 1
57536A - BRACE, FRONT FLOOR, LH
57536-0E010

GGL1#..NAP

 1
57536-0E010

GGL1#..NAP

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-0E907

GGL1#..NAP

 1
57601-0E907

GGL1#,GYL1#..NAP

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-0E907

GGL1#,GYL1#..NAP

 1
57602-0E907

GGL1#..NAP

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57606-0E020

GGL1#..NAP

 1
57606-0E021

GGL1#,GYL1#..NAP

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57607-0E020

GGL1#..NAP

 1
57607-0E021

GGL1#,GYL1#..NAP

 1
57607-0E020

GGL1#,GYL1#..NAP

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-0E020

GGL1#..NAP

 1
57605-0E020

GGL1#..NAP

 1
57661B - MEMBER, REAR FLOOR CROSS, FRONT
57603-0E020

GGL1#..NAP

 1
57603-0E021

GGL1#..NAP

 1
57603-0E070

GGL1#..NAP

 1
57603-0E020

GGL1#..NAP

 1
57663E - MEMBER, REAR FLOOR CROSS, CENTER
57663-0E021

GGL1#,GYL1#..NAP

 1
57663-0E020

GGL1#..NAP

 1
58107B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58107-0E020

GGL1#..NAP

 1
58107-0E020

GGL1#,GYL1#..NAP

 1
58108E - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58108-0E020

GGL1#..NAP

 1
58108-0E020

GGL1#,GYL1#..NAP

 1
58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-0E010

GGL1#..NAP

 1
58117-0E010

GGL1#,GYL1#..NAP

 1
58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-0E010

GGL1#..NAP

 1
58118-0E010

GGL1#,GYL1#..NAP

 1
Common parts
44753-48010
90080-10274
90080-11591
90080-11654
90084-10027
90084-11057
90105-A0233
90119-12391
90119-A0133
90189-06150
