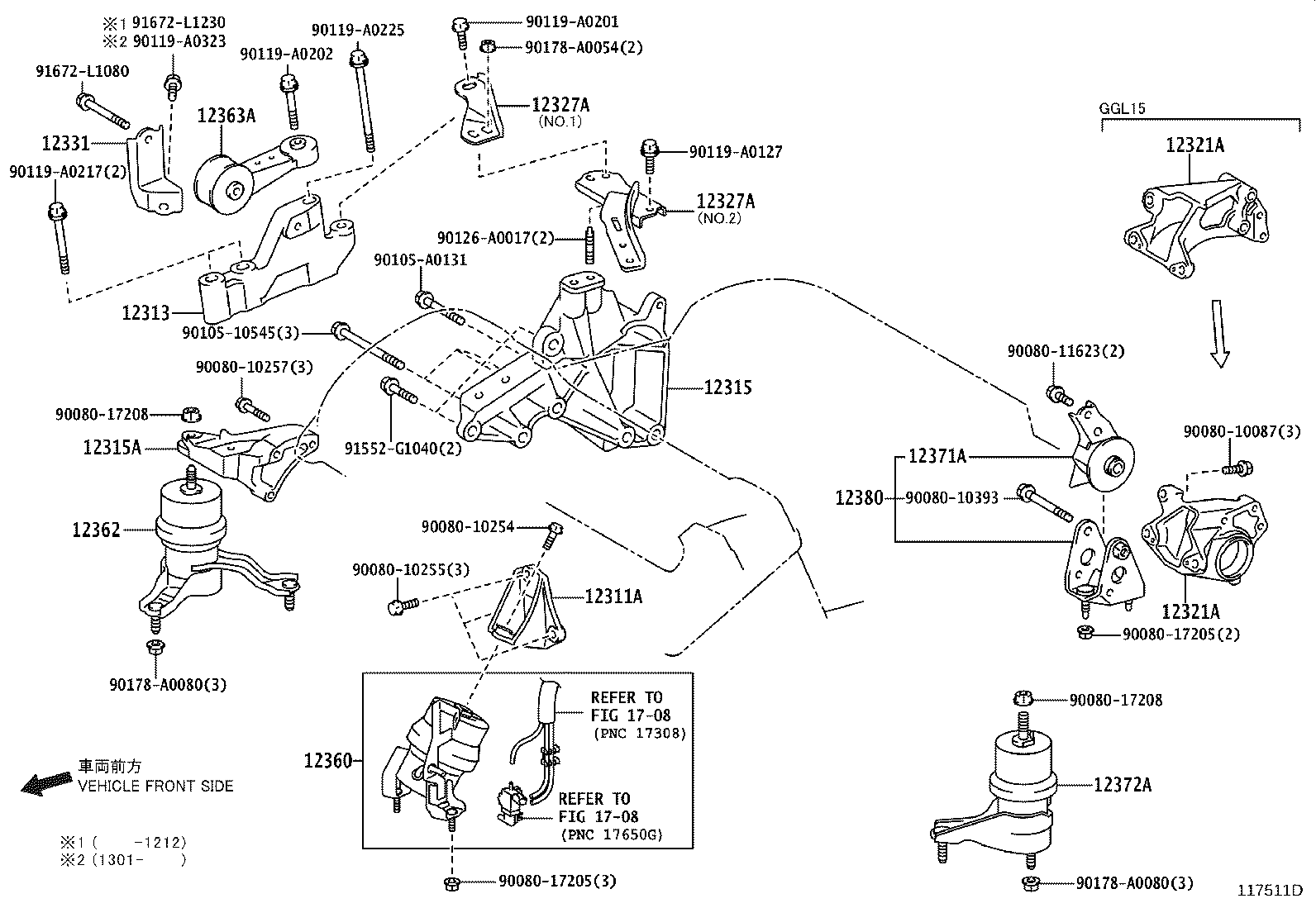

Toyota Lexus rx350/450h(nap GGL10 MOUNTING

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0P100	2GRFE..GGL1#..NAP..6FC	04/2012 - 12/2999	1
12311-0P020	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0P090	2GRFE..GGL1#..NAP	01/2009 - 05/2011	1
12313-0P060	2GR#..GGL1#,GYL1#..NAP	04/2012 - 12/2999	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0P031	2GRFE..GGL1#..NAP	04/2012 - 12/2999	1
12315-0P031	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12319-31010	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12315-0P020	2GR#..GGL1#,GYL1#..NAP	11/2012 - 12/2999	1
12319-31010	2GRFE..GGL1#..NAP	04/2012 - 10/2012	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31120	2GRFE..GGL10..NAP	01/2009 - 04/2012	1
12321-0P050	2GRFE..GGL10..NAP	12/2013 - 12/2999	1
12321-31120	2GRFE..GGL10..NAP	04/2012 - 11/2013	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31120	2GRFE..GGL10..NAP	01/2009 - 04/2012	1
12321-0P050	2GRFE..GGL10..NAP	12/2013 - 12/2999	1
12321-31120	2GRFE..GGL10..NAP	04/2012 - 11/2013	1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31070	2GRFE..GGL1#..NAP NO.2	01/2009 - 07/2011	1
12327-31090	2GRFE..GGL1#..NAP NO.2	04/2012 - 12/2999	1
12327-0P020	2GR#..GGL1#,GYL1#..NAP NO.1	04/2012 - 12/2999	1
12327-0P050	2GRFE..GGL1#..NAP NO.1	01/2009 - 07/2010	1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31070	2GRFE..GGL1#..NAP NO.2	01/2009 - 07/2011	1
12327-31090	2GRFE..GGL1#..NAP NO.2	04/2012 - 12/2999	1
12327-0P020	2GR#..GGL1#,GYL1#..NAP NO.1	04/2012 - 12/2999	1
12327-0P050	2GRFE..GGL1#..NAP NO.1	01/2009 - 07/2010	1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-0P020	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12331-0P020	2GR#..GGL1#,GYL1#..NAP	04/2012 - 12/2999	1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-0P140	2GRFE..GGL1#..NAP..6FC	04/2012 - 12/2999	1
12360-0P070	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-0P050	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12362-0P050	2GRFE..GGL1#..NAP	04/2012 - 05/2013	1
12362-0P051	2GR#..GGL1#,GYL1#..NAP	06/2013 - 12/2999	1
12363A - ROD, ENGINE MOVING CONTROL
12363-0P120	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12363-0P120	2GRFE..GGL1#..NAP	04/2012 - 12/2999	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0P180	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12371-0P180	2GRFE..GGL1#..NAP	04/2012 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0P010	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
12372-0P010	2GRFE..GGL1#..NAP	04/2012 - 12/2999	1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-0P090	2GRFE..GGL1#..NAP	04/2012 - 12/2999	1
12380-0P090	2GRFE..GGL1#..NAP	01/2009 - 04/2012	1
Common parts
90080-10087
90080-10254
90080-10255
90080-10257
90080-10393
90080-11623
90080-17205
90080-17208
90105-10545
90105-A0131
90119-A0127
90119-A0201
90119-A0202
90119-A0217
90119-A0225
90119-A0323
90126-A0017
90178-A0054
90178-A0080
91552-G1040
91672-L1080
91672-L1230
Linked diagrams
1708

GGL10L-CWTGKA (2012)

(1204- )2GRFE..6FC
