GGL10L-CWTGKA (2009)
Toyota Lexus Rx350/450h(Nap
ILLUST NO. 1 OF 3(0901-1309)

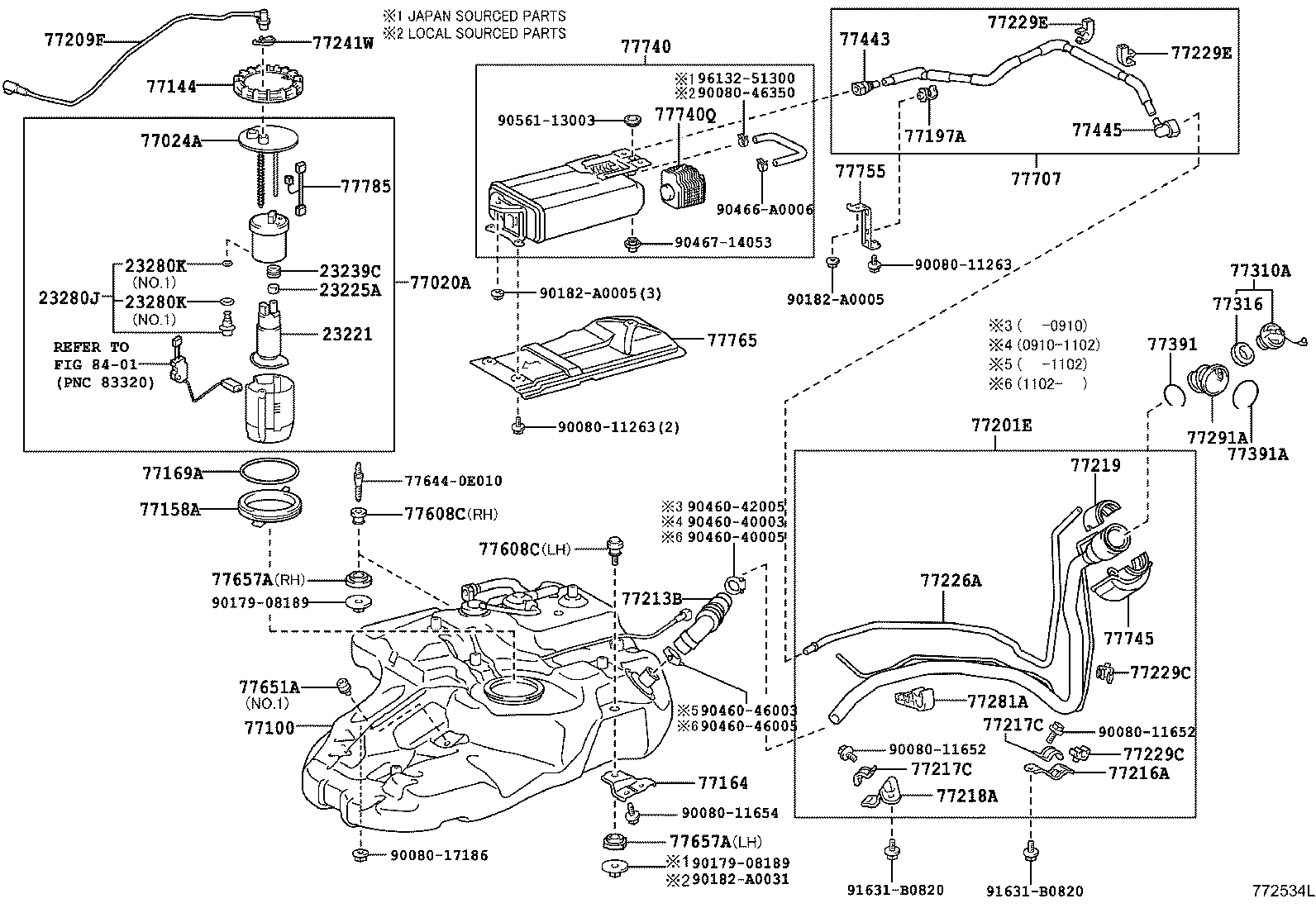

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-31370 |
2GRFE..GGL1#..NAP |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
2GRFE..GGL1#..NAP |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
2GRFE..GGL1#..NAP |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-38020 |
2GRFE..GGL1#..NAP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFE..GGL1#..NAP NO.1 |
1 | ||
| 90301-15024 |
2GRFE..GGL1#..NAP NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFE..GGL1#..NAP NO.1 |
1 | ||
| 90301-15024 |
2GRFE..GGL1#..NAP NO.2 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0E030 |
GGL1#..NAP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0E030 |
GGL1#..NAP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0E030 |
GGL1#..NAP |
1 | ||
| 77001-0E031 |
GGL1#..NAP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
GGL1#..NAP |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
GGL1#..NAP |
1 | ||
| 77164 - BRACKET, FUEL TANK, REAR LH | ||||
| 77142-48010 |
GGL1#..NAP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-48060 |
GGL1#..NAP |
1 | ||
| 77169-48040 |
GGL1#..NAP |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-02020 |
GGL1#..NAP |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77210-0E030 |
GGL1#..NAP |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0E040 |
GGL1#..NAP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0E020 |
GGL1#..NAP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0E020 |
GGL1#..NAP |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0E030 |
GGL1#..NAP |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0E030 |
GGL1#..NAP |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-0E030 |
GGL1#..NAP |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
GGL1#..NAP |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-0E020 |
GGL1#..NAP |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-0E010 |
GGL1#..NAP |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-0E010 |
GGL1#..NAP |
2 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-30060 |
GGL1#..NAP |
2 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-30060 |
GGL1#..NAP |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
GGL1#..NAP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-0E030 |
GGL1#..NAP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0E020 |
GGL1#..NAP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06040 |
GGL1#..NAP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
GGL1#..NAP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GGL1#..NAP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-30020 |
GGL1#..NAP |
1 | ||
| 77443 - CONNECTOR, FUEL TANK VENT | ||||
| 77443-33010 |
GGL1#..NAP |
1 | ||
| 77445 - CONNECTOR, FUEL TANK VENT, NO.2 | ||||
| 77445-33010 |
GGL1#..NAP |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-0E011 |
GGL1#..NAP RH |
1 | ||
| 77608-0E050 |
GGL1#..NAP LH |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-0E011 |
GGL1#..NAP RH |
1 | ||
| 77608-0E050 |
GGL1#..NAP LH |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-0E030 |
GGL1#..NAP NO.1 |
1 | ||
| 77651-12070 |
GGL1#..NAP NO.2 |
3 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-0E011 |
GGL1#..NAP RH |
1 | ||
| 77655-0E020 |
GGL1#..NAP LH |
2 | ||
| 77655-0E011 |
GGL1#..NAP RH |
2 | ||
| 77655-0E020 |
GGL1#..NAP LH |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-0E011 |
GGL1#..NAP RH |
1 | ||
| 77655-0E020 |
GGL1#..NAP LH |
2 | ||
| 77655-0E011 |
GGL1#..NAP RH |
2 | ||
| 77655-0E020 |
GGL1#..NAP LH |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-0E020 |
GGL1#..NAP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0E030 |
GGL1#..NAP |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF004 |
GGL1#..NAP |
1 | ||
| 90910-AF003 |
GGL1#..NAP |
1 | ||
| 77745 - FILTER, CHARCOAL CANISTER, NO.1 | ||||
| 77745-0E010 |
GGL1#..NAP |
1 | ||
| 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-48030 |
GGL1#..NAP |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-0E010 |
GGL1#..NAP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0E030 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 77644-0E010 | ||||
| 90080-11263 | ||||
| 90080-11652 | ||||
| 90080-11654 | ||||
| 90080-17186 | ||||
| 90080-46350 | ||||
| 90179-08189 | ||||
| 90182-A0005 | ||||
| 90182-A0031 | ||||
| 90460-40003 | ||||
| 90460-40005 | ||||
| 90460-42005 | ||||
| 90460-46003 | ||||
| 90460-46005 | ||||
| 90466-A0006 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 91631-B0820 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(0901- )GGL1#

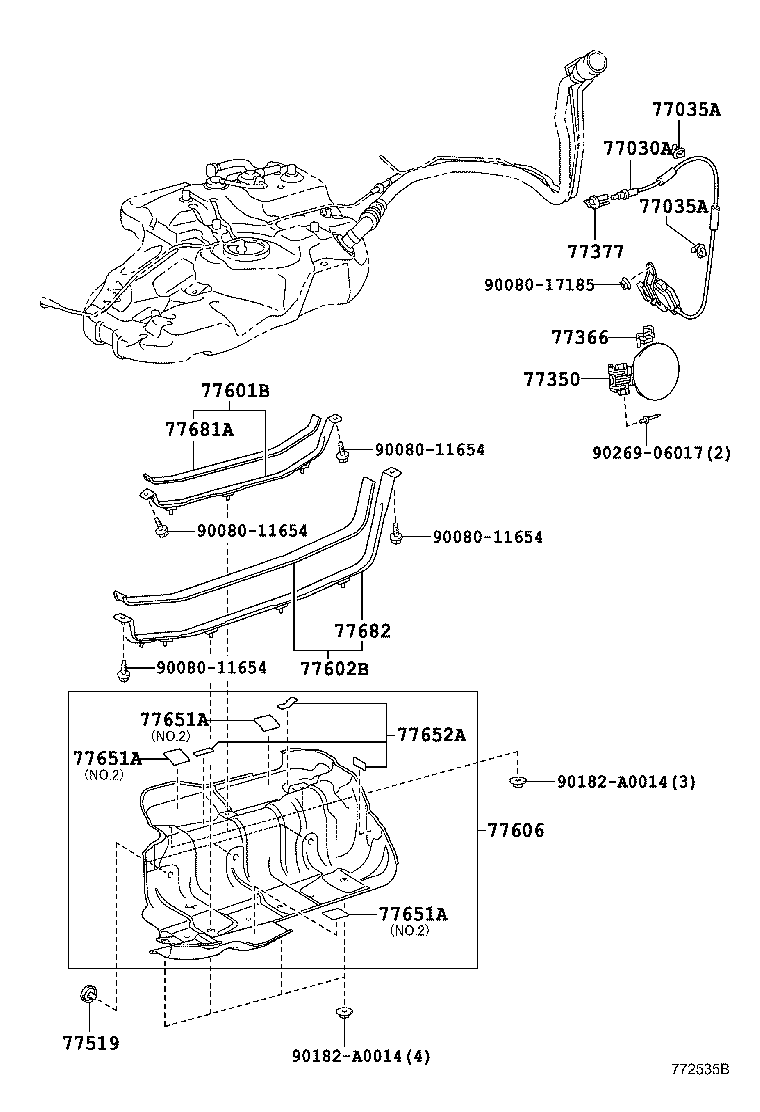

FUEL FILLER LID & PROTECTOR, BAND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-0E020 |
GGL1#..NAP |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
GGL1#..NAP |
2 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
GGL1#..NAP |
2 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0E010 |
GGL1#..NAP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-48030 |
GGL1#..NAP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
GGL1#..NAP |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-0E010 |
GGL1#..NAP |
3 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48080 |
GGL1#..NAP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48070 |
GGL1#..NAP |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48110 |
GGL1#..NAP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-0E030 |
GGL1#..NAP NO.1 |
1 | ||
| 77651-12070 |
GGL1#..NAP NO.2 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-0E030 |
GGL1#..NAP NO.1 |
1 | ||
| 77651-12070 |
GGL1#..NAP NO.2 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-0E030 |
GGL1#..NAP NO.1 |
1 | ||
| 77651-12070 |
GGL1#..NAP NO.2 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-48020 |
GGL1#..NAP |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-48050 |
GGL1#..NAP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-48050 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 90080-11654 | ||||
| 90080-17185 | ||||
| 90182-A0014 | ||||
| 90269-06017 | ||||
ILLUST NO. 2 OF 3(0901- )GGL1#

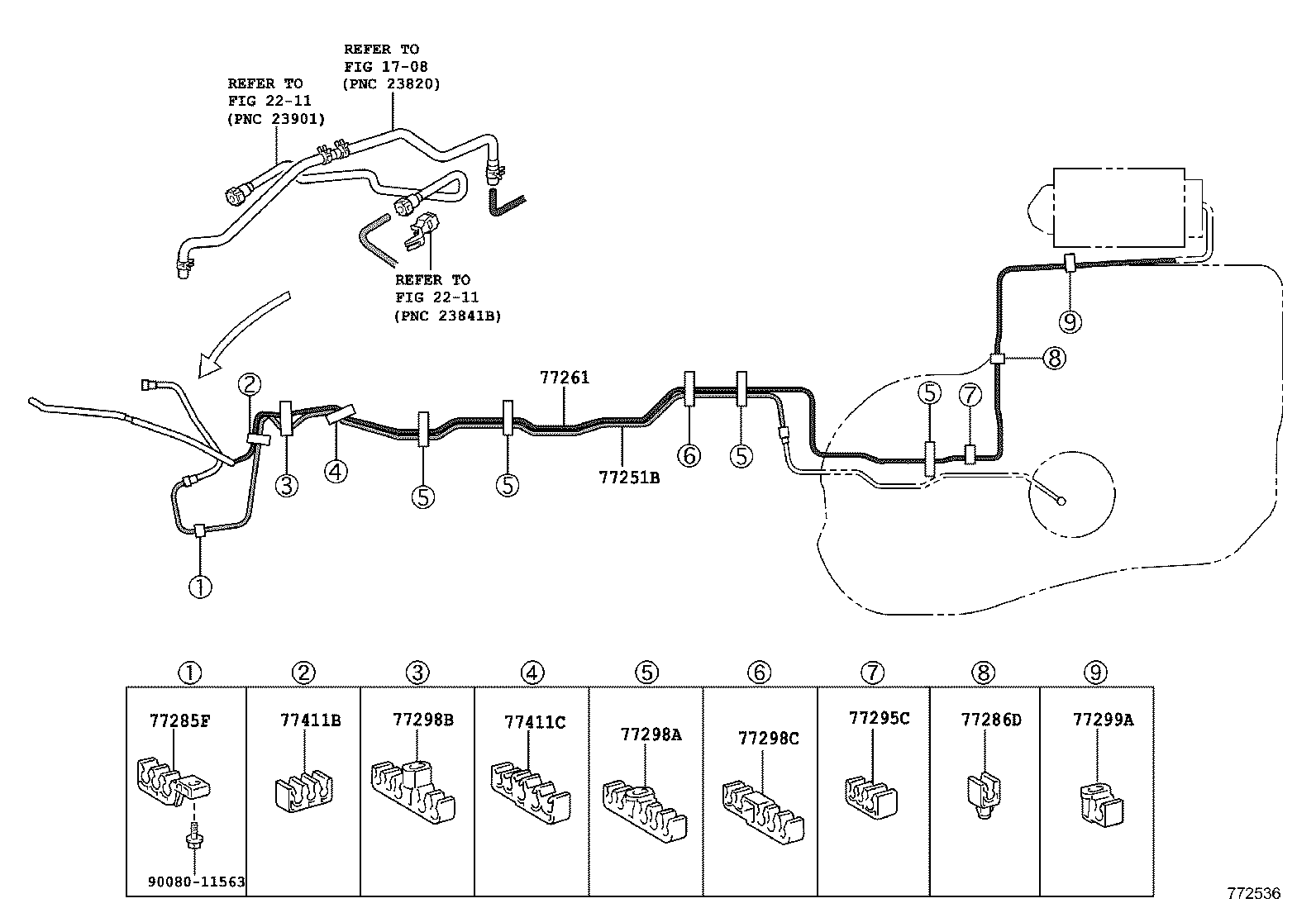

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0E020 |
GGL1#..NAP |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-0E020 |
GGL1#..NAP |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48020 |
GGL1#..NAP |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0E010 |
GGL1#..NAP |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-0E010 |
GGL1#..NAP |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0E010 |
GGL1#..NAP |
4 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0E020 |
GGL1#..NAP |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68030 |
GGL1#..NAP |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-0E010 |
GGL1#..NAP |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-0E010 |
GGL1#..NAP |
1 | ||
| 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-0E020 |
GGL1#..NAP |
1 | ||
| 77411-0E021 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 90080-11563 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
