GGL10L-CWTGKA (2009)
Toyota Lexus Rx350/450h(Nap

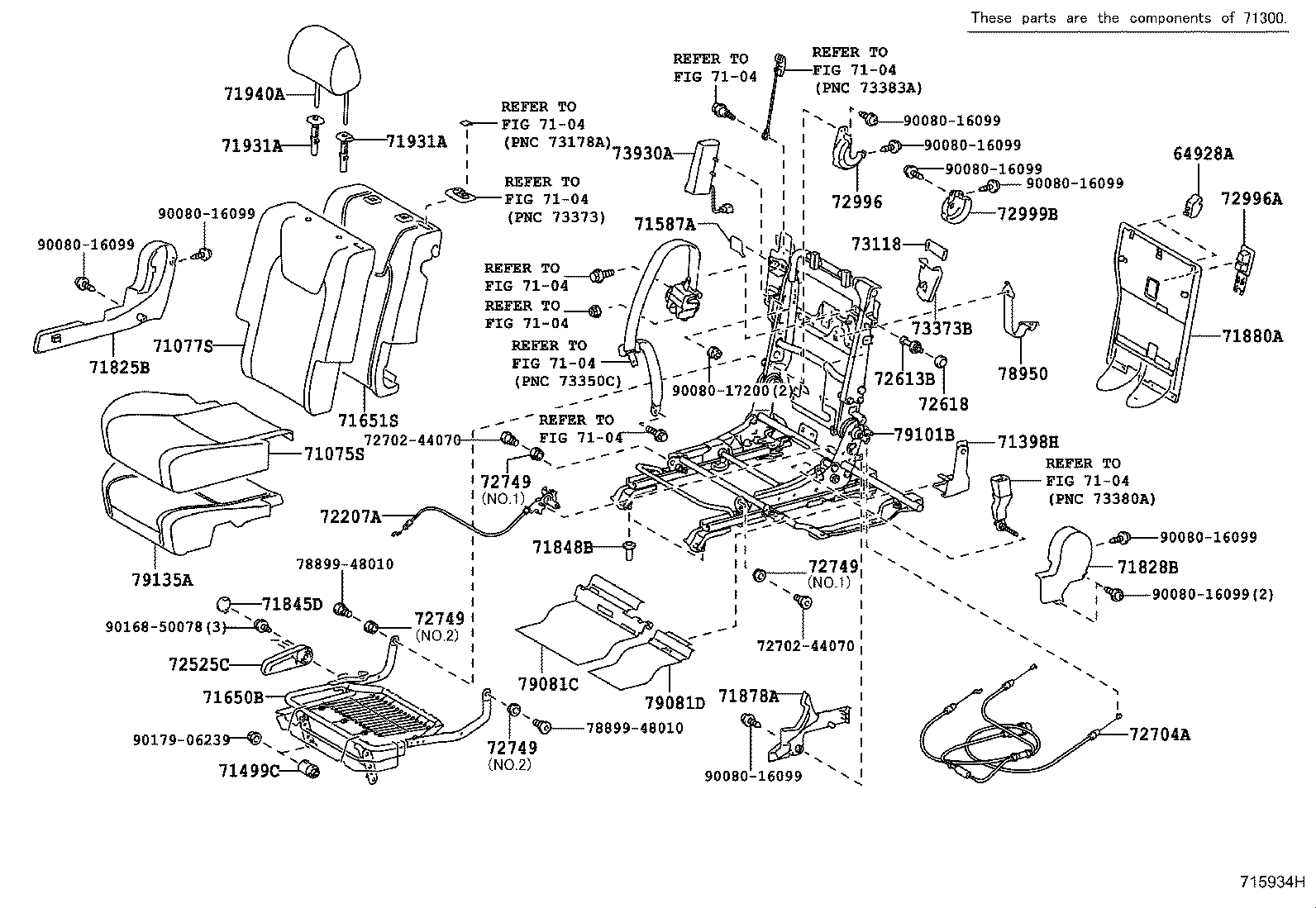

ILLUST NO. 2 OF 4(0901-1204)
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-0E030A0 |
GGL1#..NAP IVORY,TRIM0# |
4 | ||
| 64928-0E030B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
4 | ||
| 64928-0E030C0 |
GGL1#..NAP BLACK,TRIM2# |
4 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71075-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71075-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71075-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
1 | ||
| 71075-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71075-0E020A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71075-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71075-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71075-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71075-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71075-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71075-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71075-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71075-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71075-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0E020B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
1 | ||
| 71077-0E020A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71077-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71077-0E030C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71077-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71077-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71077-0E020C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71077-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71077-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71077-0E020B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71077-0E020A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71077-0E030A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71077-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71077-0E030B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71077-0E020C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71398-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71398-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-48010 |
GGL1#..NAP LH |
1 | ||
| 71499-48020 |
GGL1#..NAP RH |
1 | ||
| 71499-48011 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LH |
1 | ||
| 71499-48021 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),RH |
1 | ||
| 71587A - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71587-48010 |
GGL1#..NAP |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-0E020 |
GGL1#..NAP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0E020 |
GGL1#..NAP |
1 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71825-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71825-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71828-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71828-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71845D - CAP, REAR SEAT COVER, RH | ||||
| 71845-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71845-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71845-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0E070 |
GGL1#..NAP |
2 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71878-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71878-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71880-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71880-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030C0 |
GGL1#..NAP W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020C0 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71930-52030A3 |
GGL1#..NAP W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020B2 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71931-42020B2 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020A6 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71930-52030B5 |
GGL1#..NAP W(LOCK)&W(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020A6 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020C0 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030C0 |
GGL1#..NAP W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020C0 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71930-52030A3 |
GGL1#..NAP W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020B2 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71931-42020B2 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020A6 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71930-52030B5 |
GGL1#..NAP W(LOCK)&W(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020A6 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020C0 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0E110C0 |
GGL1#..NAP BLACK,TRIM2# |
2 | ||
| 71940-0E120A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
2 | ||
| 71940-0E110A1 |
GGL1#..NAP IVORY,TRIM0# |
2 | ||
| 71940-0E120C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0E190A1 |
GGL1#..NAP IVORY,TRIM0# |
2 | ||
| 71940-0E120B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-0E190B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
2 | ||
| 71940-0E120B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-0E190C1 |
GGL1#..NAP BLACK,TRIM2# |
2 | ||
| 71940-0E110B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
2 | ||
| 71940-0E200B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-0E120A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
2 | ||
| 71940-0E200C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0E200C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71940-0E120C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71940-0E200A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
2 | ||
| 71940-0E200A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
2 | ||
| 71940-0E200B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
2 | ||
| 72207A - PLATE, SEAT TRACK STOP RH | ||||
| 72207-48010 |
GGL1#..NAP |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72525-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72525-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-48010 |
GGL1#..NAP |
1 | ||
| 72618 - PROTECTOR, REAR SEAT BACK LOCK STRIKER | ||||
| 72618-52010 |
GGL1#..NAP |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-0E020 |
GGL1#..NAP |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0E020 |
GGL1#..NAP |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0E070B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
3 | ||
| 72996-0E070A0 |
GGL1#..NAP IVORY,TRIM0# |
3 | ||
| 72996-0E070C0 |
GGL1#..NAP BLACK,TRIM2# |
3 | ||
| 72999B - COVER, REAR SEAT CUSHION SIDE, LH | ||||
| 72999-0E010 |
GGL1#..NAP |
1 | ||
| 73118 - PLATE, BELT SUPPORT | ||||
| 73117-0E010 |
GGL1#..NAP |
1 | ||
| 73373B - COVER, REAR NO.1 SEAT SHOULDER BELT | ||||
| 73373-0E050 |
GGL1#..NAP |
1 | ||
| 73930A - AIR BAG ASSY, REAR SEAT, RH | ||||
| 73930-0E020 |
GGL1#..NAP |
1 | ||
| 73930-0E010 |
GGL1#..NAP |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0E020 |
GGL1#..NAP |
2 | ||
| 79081C - COVER, REAR SEAT, NO.1 | ||||
| 79081-0E100 |
GGL1#..NAP |
1 | ||
| 79081D - COVER, REAR SEAT, NO.2 | ||||
| 79081-0E120 |
GGL1#..NAP |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-0E010 |
GGL1#..NAP |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 71611-0E020 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 72702-44070 | ||||
| 78899-48010 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||
| 7104 | ||||

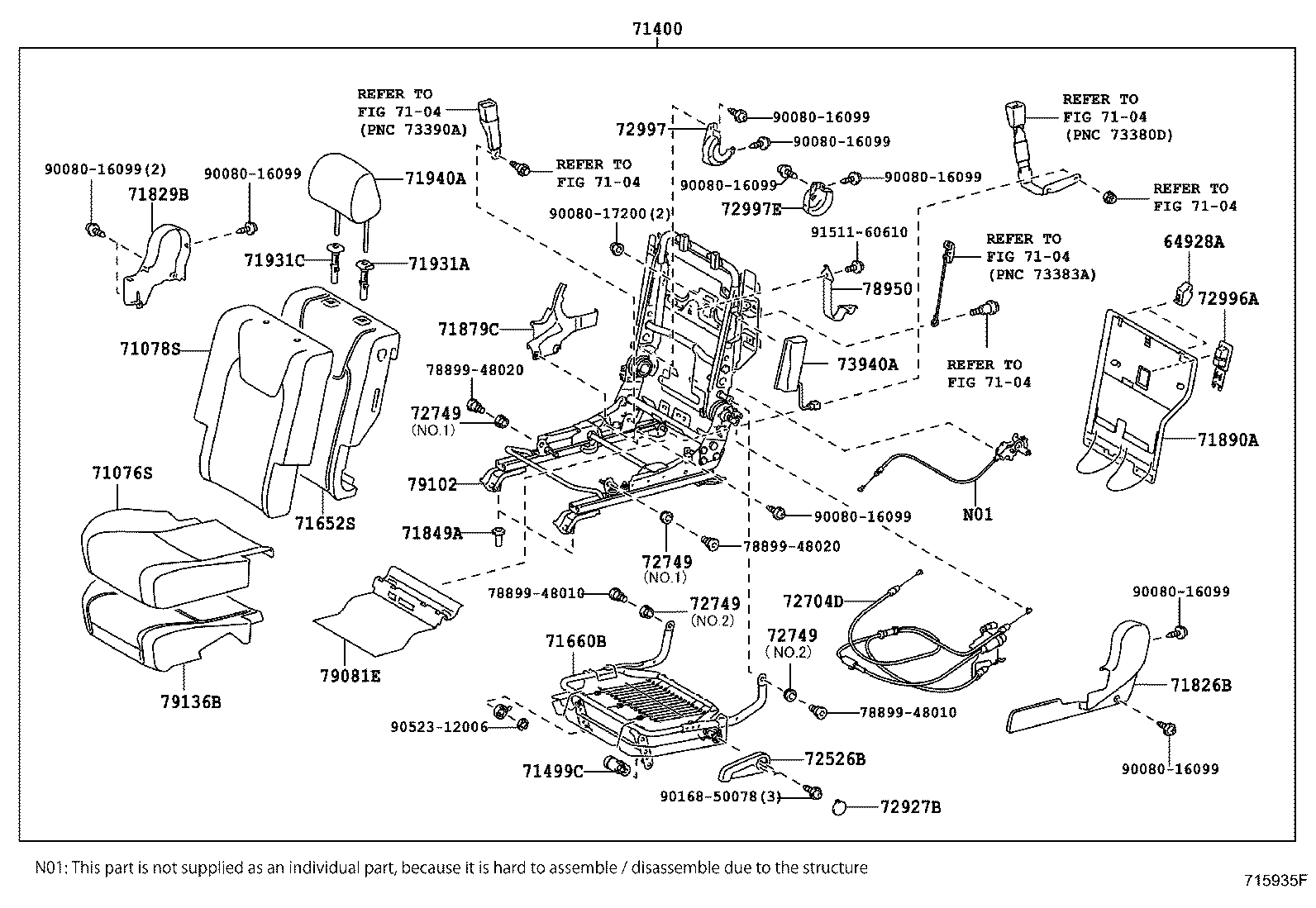

ILLUST NO. 4 OF 4(0901-1204)
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-0E030A0 |
GGL1#..NAP IVORY,TRIM0# |
4 | ||
| 64928-0E030B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
4 | ||
| 64928-0E030C0 |
GGL1#..NAP BLACK,TRIM2# |
4 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71076-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71076-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71076-0E020A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71076-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71076-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
1 | ||
| 71076-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71076-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71076-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71076-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71076-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71076-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71076-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71076-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71076-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0E020A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71078-0E030B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71078-0E020B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71078-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71078-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71078-0E020C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71078-0E020C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71078-0E040A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71078-0E020A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71078-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71078-0E040C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71078-0E020B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
1 | ||
| 71078-0E030A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71078-0E030C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71078-0E040B0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71400 - SEAT ASSY, REAR LH | ||||
| 71400-0E020B2 |
GGL1#..NAP LT GRAY,TRIM1# |
1 | ||
| 71400-0E020A3 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71400-0E030A2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71400-0E020C2 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71400-0E030A2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71400-0E030C2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71400-0E030C2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71400-0E220A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0# |
1 | ||
| 71400-0E030B2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71400-0E210C1 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71400-0E040B2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71400-0E040A3 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71400-0E220C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71400-0E030B2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71400-0E220B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71400-0E220B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71400-0E230A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71400-0E210B1 |
GGL1#..NAP LT GRAY,TRIM1# |
1 | ||
| 71400-0E040C2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71400-0E220C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71400-0E040A3 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71400-0E230B1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71400-0E230B1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71400-0E040C2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71400-0E230C1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71400-0E220A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM0# |
1 | ||
| 71400-0E040B2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71400-0E230C1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71400-0E210A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71400-0E230A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-48010 |
GGL1#..NAP LH |
1 | ||
| 71499-48020 |
GGL1#..NAP RH |
1 | ||
| 71499-48011 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LH |
1 | ||
| 71499-48021 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),RH |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0E020 |
GGL1#..NAP |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-0E020 |
GGL1#..NAP |
1 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71826-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71826-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71829-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71829-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0E070 |
GGL1#..NAP |
2 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71879-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71879-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71890-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71890-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030C0 |
GGL1#..NAP W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020C0 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71930-52030A3 |
GGL1#..NAP W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020B2 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71931-42020B2 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020A6 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71930-52030B5 |
GGL1#..NAP W(LOCK)&W(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020A6 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020C0 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-42020A6 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71931-42020B2 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71931-42020C0 |
GGL1#..NAP W(LOCK)&W/O(BUTTON),ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0E110C0 |
GGL1#..NAP BLACK,TRIM2# |
2 | ||
| 71940-0E120A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
2 | ||
| 71940-0E110A1 |
GGL1#..NAP IVORY,TRIM0# |
2 | ||
| 71940-0E120C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0E190A1 |
GGL1#..NAP IVORY,TRIM0# |
2 | ||
| 71940-0E120B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-0E190B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
2 | ||
| 71940-0E120B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-0E190C1 |
GGL1#..NAP BLACK,TRIM2# |
2 | ||
| 71940-0E110B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
2 | ||
| 71940-0E200B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-0E120A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
2 | ||
| 71940-0E200C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0E200C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71940-0E120C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
2 | ||
| 71940-0E200A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
2 | ||
| 71940-0E200A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
2 | ||
| 71940-0E200B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
2 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72526-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72526-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-0E030 |
GGL1#..NAP |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
GGL1#..NAP NO.1 |
4 | ||
| 72749-48010 |
GGL1#..NAP NO.2 |
4 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 71845-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71845-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71845-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0E070B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
3 | ||
| 72996-0E070A0 |
GGL1#..NAP IVORY,TRIM0# |
3 | ||
| 72996-0E070C0 |
GGL1#..NAP BLACK,TRIM2# |
3 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-0E020 |
GGL1#..NAP |
1 | ||
| 72997E - COVER, REAR SEAT SHIELD INNER, NO.2 | ||||
| 72997-0E010 |
GGL1#..NAP |
1 | ||
| 73940A - AIR BAG ASSY, REAR SEAT, LH | ||||
| 73940-0E010 |
GGL1#..NAP |
1 | ||
| 73940-0E020 |
GGL1#..NAP |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0E020 |
GGL1#..NAP |
2 | ||
| 79081E - COVER, REAR SEAT, NO.3 | ||||
| 79081-0E110 |
GGL1#..NAP |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79101-0E020 |
GGL1#..NAP |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 71612-0E020 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 78899-48010 | ||||
| 78899-48020 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||

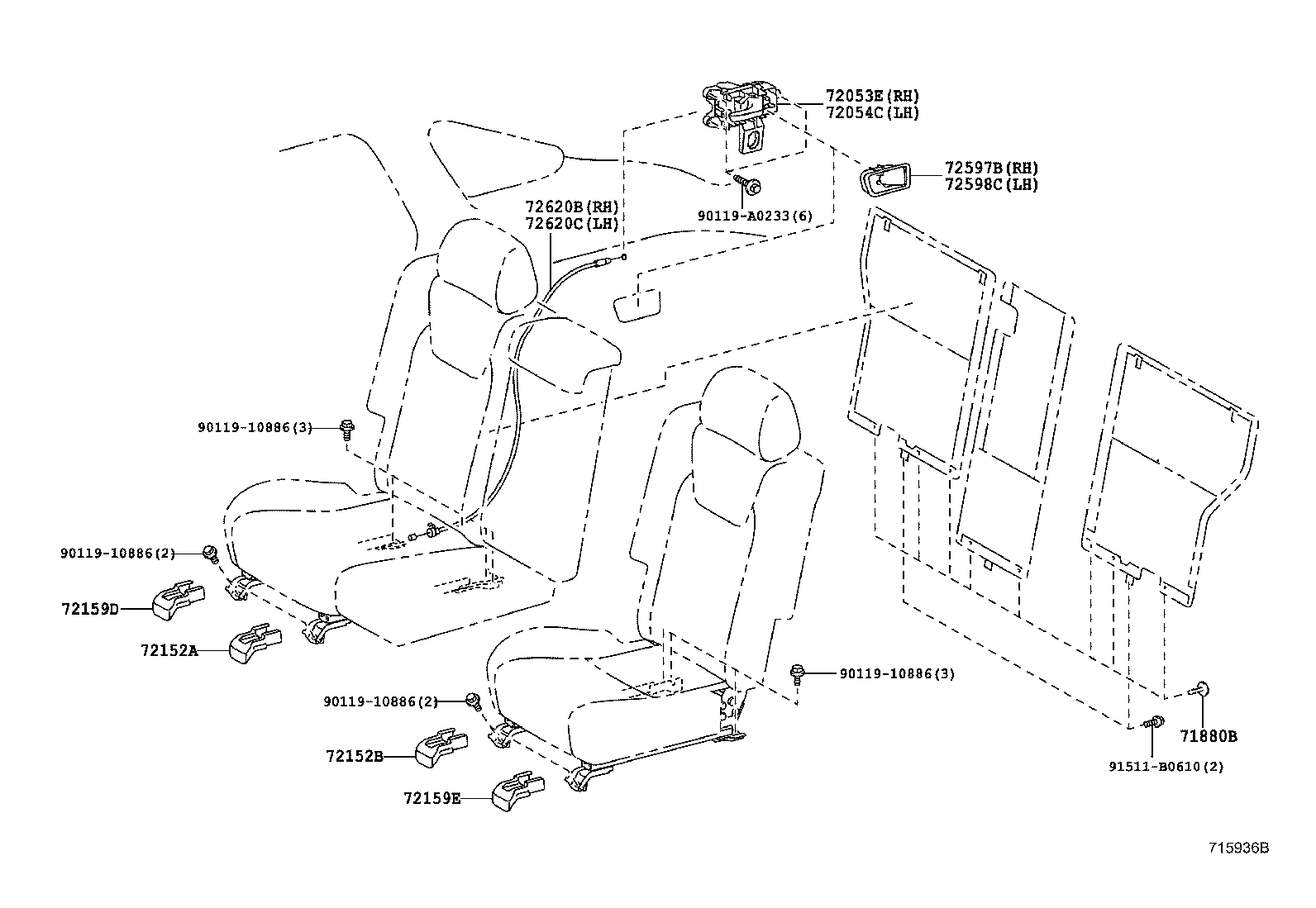

| 7104 | ||||
(0901- )
FITTING PARTS & LEVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-07049C0 |
GGL1#..NAP BLACK |
8 | ||
| 72053E - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72053-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72053-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72054C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72054-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72054-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72152-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72152-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72152-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72152B - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72152-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72152-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72152-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72159D - COVER, REAR SEAT TRACK BRACKET, OUTER RH | ||||
| 72152-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72152-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72152-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72159E - COVER, REAR SEAT TRACK BRACKET, OUTER LH | ||||
| 72152-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72152-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72152-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72597B - BEZEL, RECLINING REMOTE CONTROL LEVER, NO.1 | ||||
| 72597-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72597-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72597-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72598C - BEZEL, RECLINING REMOTE CONTROL, LH | ||||
| 72598-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72598-0E010A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72598-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0E010 |
GGL1#..NAP |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0E020 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 90119-10886 | ||||
| 90119-A0233 | ||||
| 91511-B0610 | ||||

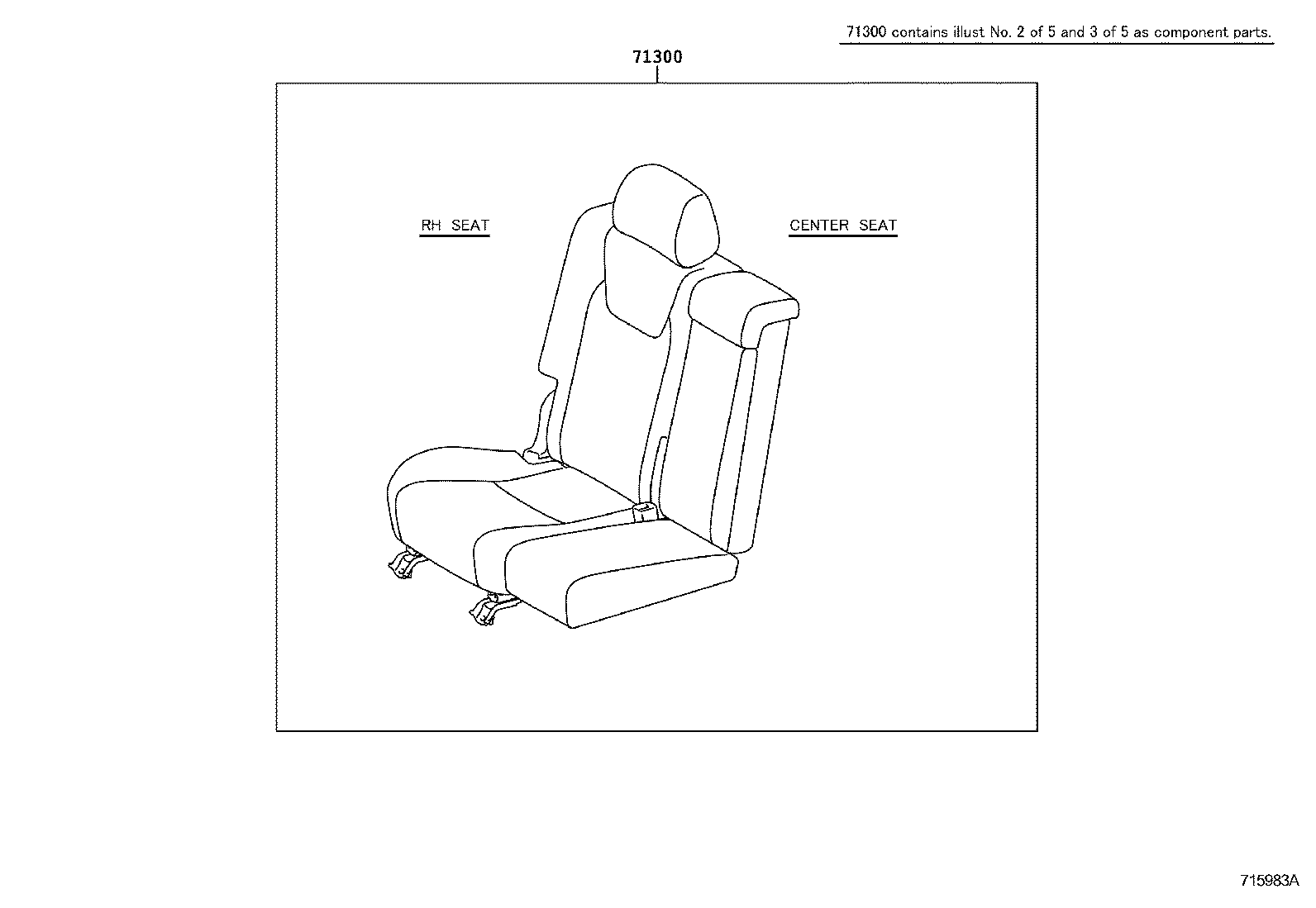

ILLUST NO. 1 OF 4(0901- )
RH & CENTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71300 - SEAT ASSY, REAR RH | ||||
| 71300-0E030C5 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71300-0E170C3 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71300-0E020A5 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71300-0E020C5 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71300-0E160B4 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71300-0E040C5 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71300-0E160A2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71300-0E030A6 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71300-0E040A5 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71300-0E030C7 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71300-0E160C3 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71300-0E040A7 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71300-0E170A3 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71300-0E040B5 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71300-0E020C7 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71300-0E030A4 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71300-0E020A7 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71300-0E390C2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71300-0E040C7 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71300-0E380C2 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71300-0E400A2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71300-0E020B5 |
GGL1#..NAP LT GRAY,TRIM1# |
1 | ||
| 71300-0E390A2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71300-0E400B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71300-0E380B1 |
GGL1#..NAP LT GRAY,TRIM1# |
1 | ||
| 71300-0E380A2 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71300-0E420A2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71300-0E400C2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71300-0E410A2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71300-0E030B5 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71300-0E160A4 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71300-0E170C5 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71300-0E390B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71300-0E160C5 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71300-0E420C2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71300-0E170B4 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71300-0E420B1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT GRAY,TRIM1# |
1 | ||
| 71300-0E170A5 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71300-0E410B1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT GRAY,TRIM1# |
1 | ||
| 71300-0E410C2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||

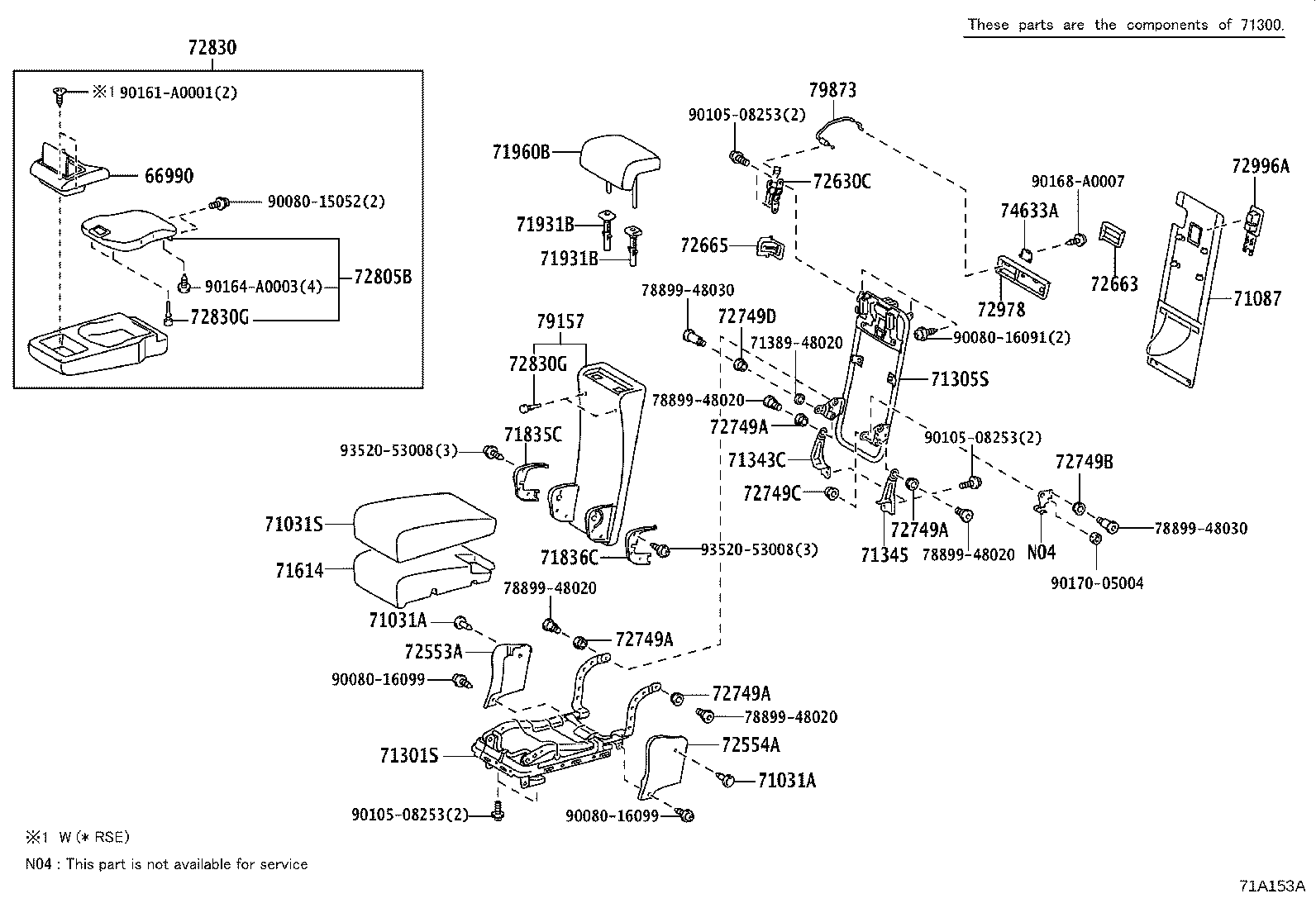

ILLUST NO. 3 OF 4(0901-1204)
CENTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-48150A7 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 66990-48150B4 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 66990-48150C6 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-0E020B1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 71097-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71097-0E020A0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71097-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71097-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71097-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
1 | ||
| 71097-0E020B1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 71097-0E020A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71097-0E020A0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71097-0E020C1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71097-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71097-0E020C1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71097-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71097-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71097-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71087-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71087-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-0E020 |
GGL1#..NAP |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-0E010 |
GGL1#..NAP |
1 | ||
| 71343C - HINGE, REAR SEAT BACK, CENTER | ||||
| 71343-48010 |
GGL1#..NAP |
1 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71343-48020 |
GGL1#..NAP |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-0E020 |
GGL1#..NAP |
1 | ||
| 71835C - MOULDING, REAR SEAT BACK, RH | ||||
| 71835-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71835-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71835-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71836C - MOULDING, REAR SEAT BACK, LH | ||||
| 71836-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71836-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71836-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71955-48010A1 |
GGL1#..NAP W(LOCK),IVORY,TRIM0# |
1 | ||
| 71955-48010C0 |
GGL1#..NAP W(LOCK),BLACK,TRIM2# |
1 | ||
| 71955-48010B0 |
GGL1#..NAP W(LOCK),LT.GRAY,TRIM1# |
1 | ||
| 71956-48010C0 |
GGL1#..NAP W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71955-48020C0 |
GGL1#..NAP W(LOCK),BLACK,TRIM2# |
1 | ||
| 71955-48020A0 |
GGL1#..NAP W(LOCK),IVORY,TRIM0# |
1 | ||
| 71956-48010B0 |
GGL1#..NAP W/O(LOCK),LT.GRAY,TRIM1# |
1 | ||
| 71955-48020B0 |
GGL1#..NAP W(LOCK),LT.GRAY,TRIM1# |
1 | ||
| 71956-48010A1 |
GGL1#..NAP W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71955-48010A1 |
GGL1#..NAP W(LOCK),IVORY,TRIM0# |
1 | ||
| 71955-48010C0 |
GGL1#..NAP W(LOCK),BLACK,TRIM2# |
1 | ||
| 71955-48010B0 |
GGL1#..NAP W(LOCK),LT.GRAY,TRIM1# |
1 | ||
| 71956-48010C0 |
GGL1#..NAP W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71955-48020C0 |
GGL1#..NAP W(LOCK),BLACK,TRIM2# |
1 | ||
| 71955-48020A0 |
GGL1#..NAP W(LOCK),IVORY,TRIM0# |
1 | ||
| 71956-48010B0 |
GGL1#..NAP W/O(LOCK),LT.GRAY,TRIM1# |
1 | ||
| 71955-48020B0 |
GGL1#..NAP W(LOCK),LT.GRAY,TRIM1# |
1 | ||
| 71956-48010A1 |
GGL1#..NAP W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0E020A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71960-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71960-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71960-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 71960-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71960-0E020B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 71960-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0E030A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71960-0E030C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71960-0E030A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 71960-0E030A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 71960-0E030B0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
1 | ||
| 71960-0E030C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0E030B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT GRAY,TRIM1# |
1 | ||
| 71960-0E020C1 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 71960-0E030C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 71960-0E020A2 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 71960-0E030B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LIGHT GRAY,TRIM1# |
1 | ||
| 72553A - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72553-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72553-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72554-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72554-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-48050 |
GGL1#..NAP |
1 | ||
| 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 | ||||
| 72661-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72661-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72661-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72665-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72665-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
GGL1#..NAP |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
GGL1#..NAP |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
GGL1#..NAP |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
GGL1#..NAP |
4 | ||
| 72749B - SPACER, REAR SEAT RECLINING, NO.1 | ||||
| 72749-0E030 |
GGL1#..NAP |
2 | ||
| 72749C - SPACER, REAR SEAT RECLINING, NO.2 | ||||
| 72749-48040 |
GGL1#..NAP |
1 | ||
| 72749D - SPACER, REAR SEAT RECLINING, NO.3 | ||||
| 72749-48050 |
GGL1#..NAP |
1 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-0E030A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 72805-0E020B2 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72805-0E020A4 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72805-0E030C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72805-0E030B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 72805-0E030B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 72805-0E030A1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 72805-0E020C2 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72805-0E030C1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0E020A6 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 72830-0E020A7 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72830-0E020B2 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM10 |
1 | ||
| 72830-0E030C2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830-0E030A2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 72830-0E110C0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 72830-0E100C0 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 72830-0E100A1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 72830-0E020C4 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72830-0E030B2 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 72830-0E02003 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72830-0E020C5 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830-0E110A4 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 72830-0E100B1 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 72830-0E030A6 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0# |
1 | ||
| 72830-0E110A0 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 72830-0E110B1 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 72830-0E030C6 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830-0E110C4 |
GGL1#..NAP ULTRA PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 72830-0E020B4 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72830-0E100A5 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),IVORY,TRIM0# |
1 | ||
| 72830-0E100C4 |
GGL1#..NAP SEAT HEATER-WITH(DRIVER & PASSENGER)&W(RR DISPLAY),BLACK,TRIM2# |
1 | ||
| 72830-0E02020 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72830G - CUSHION | ||||
| 90541-03022A7 |
GGL1#..NAP IVORY,TRIM0# |
4 | ||
| 90541-03022C1 |
GGL1#..NAP BLACK,TRIM2# |
4 | ||
| 90541-03022B2 |
GGL1#..NAP LT.GRAY,TRIM1# |
4 | ||
| 72830G - CUSHION | ||||
| 90541-03022A7 |
GGL1#..NAP IVORY,TRIM0# |
4 | ||
| 90541-03022C1 |
GGL1#..NAP BLACK,TRIM2# |
4 | ||
| 90541-03022B2 |
GGL1#..NAP LT.GRAY,TRIM1# |
4 | ||
| 72978 - COVER, NO.2 CENTER SEAT BACK | ||||
| 72978-0E020C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 72978-0E020B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 72978-0E020A0 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0E070B1 |
GGL1#..NAP LT.GRAY,TRIM1# |
3 | ||
| 72996-0E070A0 |
GGL1#..NAP IVORY,TRIM0# |
3 | ||
| 72996-0E070C0 |
GGL1#..NAP BLACK,TRIM2# |
3 | ||
| 74633A - CAP, COAT HOOK | ||||
| 74633-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 74633-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 74633-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 79157 - COVER, NO.1 SEAT BACK | ||||
| 79157-0E010A1 |
GGL1#..NAP IVORY,TRIM0# |
1 | ||
| 79157-0E010C0 |
GGL1#..NAP BLACK,TRIM2# |
1 | ||
| 79157-0E010B0 |
GGL1#..NAP LT.GRAY,TRIM1# |
1 | ||
| 79873 - WIRE, FOLD SEAT BACK | ||||
| 79873-0E020 |
GGL1#..NAP |
1 | ||
| Common parts | ||||
| 78899-48020 | ||||
| 90080-15052 | ||||
| 90080-16091 | ||||
| 90080-16099 | ||||
| 90105-08253 | ||||
| 90161-A0001 | ||||
| 90164-A0003 | ||||
| 90168-A0007 | ||||
| 93520-53008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
