GGL10L-CWTGKA (2009)

Toyota Lexus Rx350/450h(Nap

Production Jan 2009 - Apr 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901-1109)

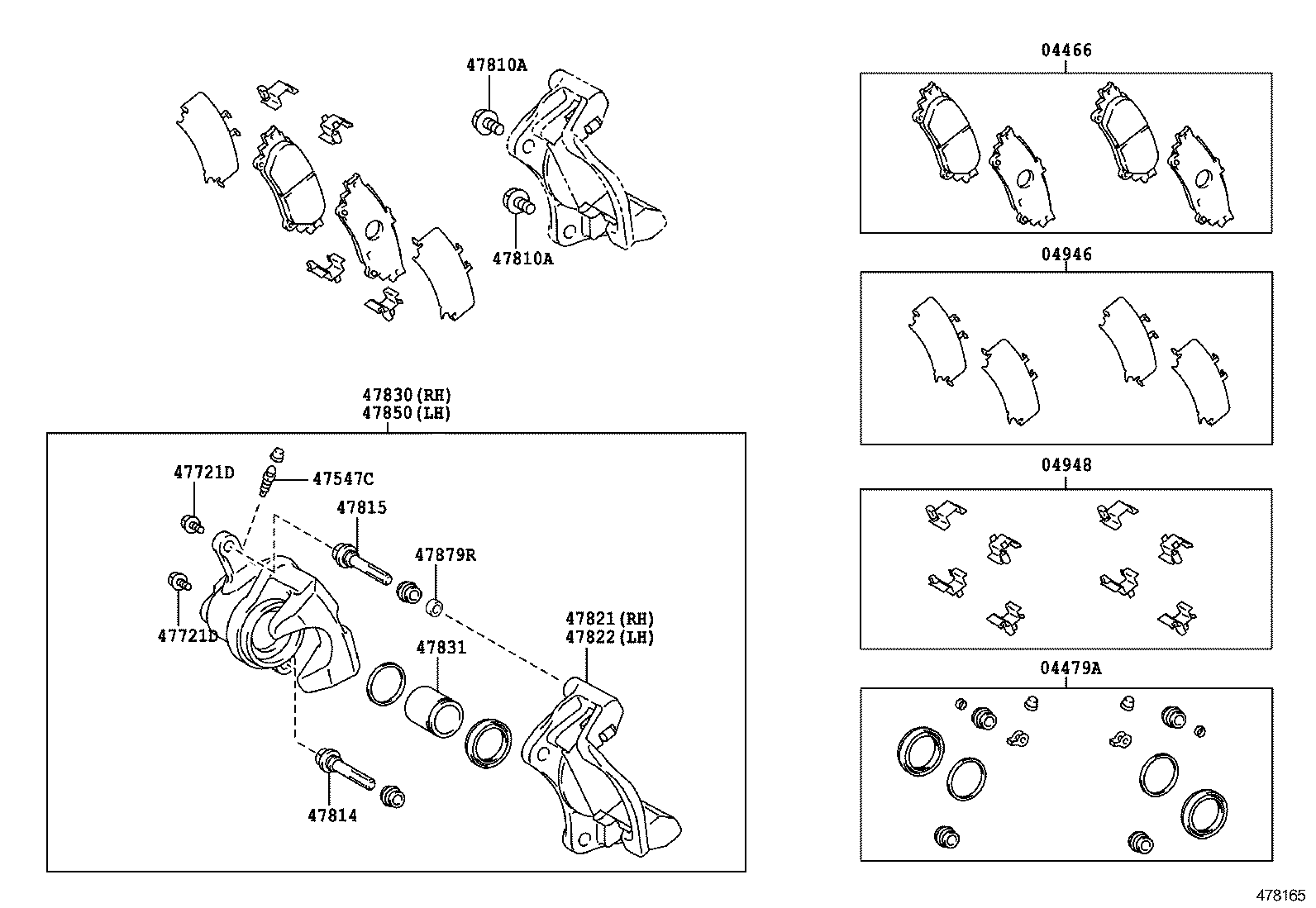

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 47547C 47721D 47721D 47810A 47810A 47814 47815 47816 47816 47817 47817 47821 47822 47830 47831 47850 47879R
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-0E010

GGL1#..NAP

MARK AK PA561

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-0E080

GGL1#..NAP

 1
04479-0E020

GGL1#..NAP

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-0E030

GGL1#..NAP

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-48050

GGL1#..NAP

 1
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-48100

GGL1#..NAP

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90016-AA604

GGL1#..NAP

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90016-AA604

GGL1#..NAP

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90080-10395

GGL1#..NAP

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90080-10395

GGL1#..NAP

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-06120

GGL1#..NAP

 2
47814-0E020

GGL1#..NAP

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-0E020

GGL1#..NAP

 2
47815-06120

GGL1#..NAP

 2
47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47816-48100

GGL1#..NAP

 4
47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47816-48100

GGL1#..NAP

 4
47817 - PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)
47817-48100

GGL1#..NAP

 4
47817 - PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)
47817-48100

GGL1#..NAP

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-0E021

GGL1#..NAP

 1
47821-0E020

GGL1#..NAP

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-0E021

GGL1#..NAP

 1
47822-0E020

GGL1#..NAP

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-0E020

GGL1#..NAP

 1
47830-0E021

GGL1#..NAP

 1
47831 - PISTON, REAR DISC BRAKE
47831-0E021

GGL1#..NAP

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-0E020

GGL1#..NAP

 1
47850-0E021

GGL1#..NAP

 1
47879R - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47879-06120

GGL1#..NAP

 2
47879-06052

GGL1#..NAP

 2

(1109- )

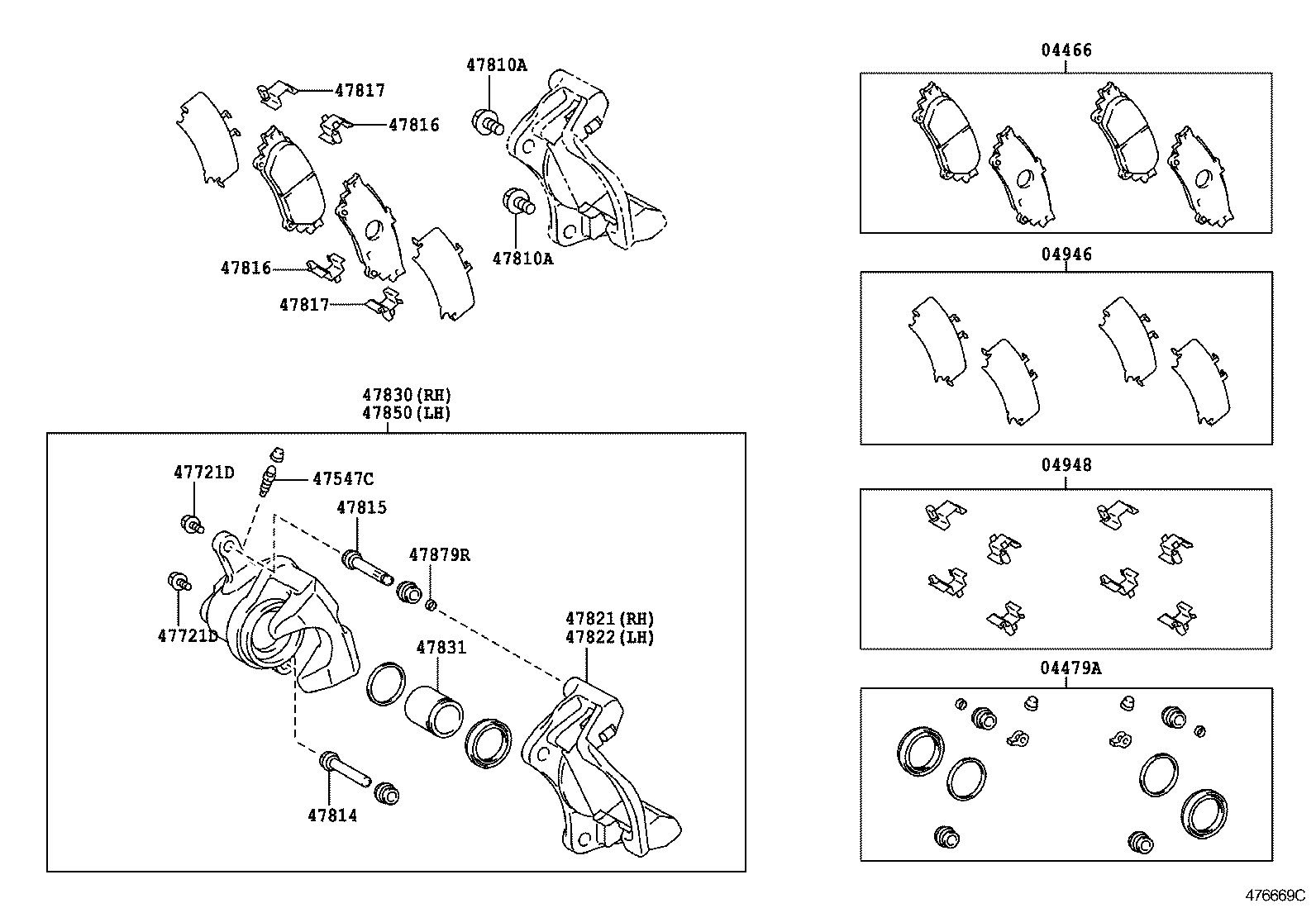

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 47547C 47721D 47721D 47810A 47810A 47814 47815 47821 47822 47830 47831 47850 47879R
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-0E010

GGL1#..NAP

MARK AK PA561

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-0E080

GGL1#..NAP

 1
04479-0E020

GGL1#..NAP

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-0E030

GGL1#..NAP

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-48050

GGL1#..NAP

 1
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-48100

GGL1#..NAP

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90016-AA604

GGL1#..NAP

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90016-AA604

GGL1#..NAP

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90080-10395

GGL1#..NAP

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90080-10395

GGL1#..NAP

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-06120

GGL1#..NAP

 2
47814-0E020

GGL1#..NAP

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-0E020

GGL1#..NAP

 2
47815-06120

GGL1#..NAP

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-0E021

GGL1#..NAP

 1
47821-0E020

GGL1#..NAP

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-0E021

GGL1#..NAP

 1
47822-0E020

GGL1#..NAP

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-0E020

GGL1#..NAP

 1
47830-0E021

GGL1#..NAP

 1
47831 - PISTON, REAR DISC BRAKE
47831-0E021

GGL1#..NAP

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-0E020

GGL1#..NAP

 1
47850-0E021

GGL1#..NAP

 1
47879R - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47879-06120

GGL1#..NAP

 2
47879-06052

GGL1#..NAP

 2
