GGL10L-CWTGKA (2009)

Toyota Lexus Rx350/450h(Nap

Production Jan 2009 - Apr 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

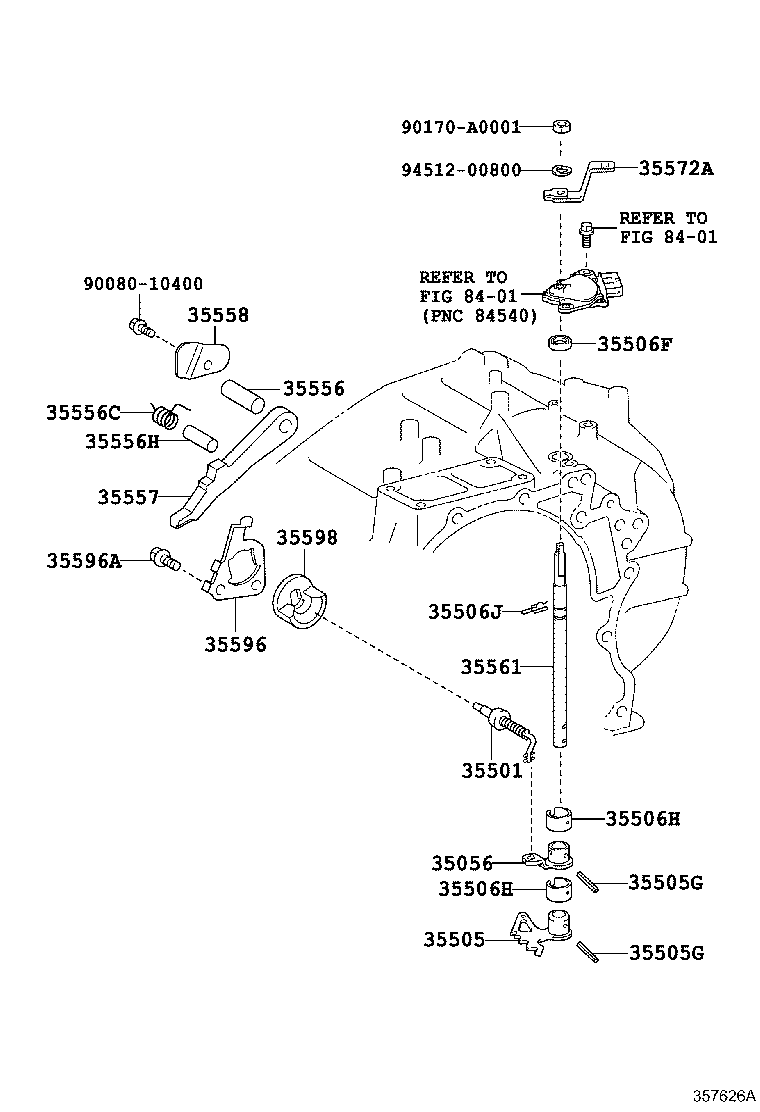

(0901-1203)

Click highlighted areas on diagram

U660E,U660F

diagram 35056 35501 35505 35505G 35505G 35506F 35506H 35506H 35506J 35556 35556C 35556H 35557 35558 35561 35572A 35596 35596A 35598 8401 8401 9008010400 90170A0001 9451200800
Part # Description Qty Price
35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35057-33010

GGL1#..NAP

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-33020

GGL1#..NAP

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-33011

GGL1#..NAP

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

GGL1#..NAP

 1
90254-04011

GGL1#..NAP

 2
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

GGL1#..NAP

 1
90254-04011

GGL1#..NAP

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-A0009

GGL1#..NAP

 1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006

GGL1#..NAP

 1
90560-20006

GGL1#..NAP

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006

GGL1#..NAP

 1
90560-20006

GGL1#..NAP

 2
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-A0001

GGL1#..NAP

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-33010

GGL1#..NAP

 1
35556C - SPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
90508-A0008

GGL1#..NAP

 1
35556H - SHAFT, PARKING LOCK PAWL
35556-63010

GGL1#..NAP

 1
35557 - PAWL, PARKING LOCK
35557-33020

GGL1#..NAP

 1
35557-33021

GGL1#..NAP

 1
35558 - CLAMP, PAWL SHAFT
35558-33010

GGL1#..NAP

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-33020

GGL1#..NAP

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-07020

GGL1#..NAP

 1
35572-08020

GGL1#..NAP

 1
35596 - PLATE, PAWL STOPPER
35596-07010

GGL1#..NAP

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90080-10400

GGL1#..NAP

*8-1.25PX16-13.5

 2
35598 - SLEEVE, PARKING LOCK
35598-33010

GGL1#..NAP

 1
Common parts
90080-10400
90170-A0001
94512-00800
Linked diagrams
8401

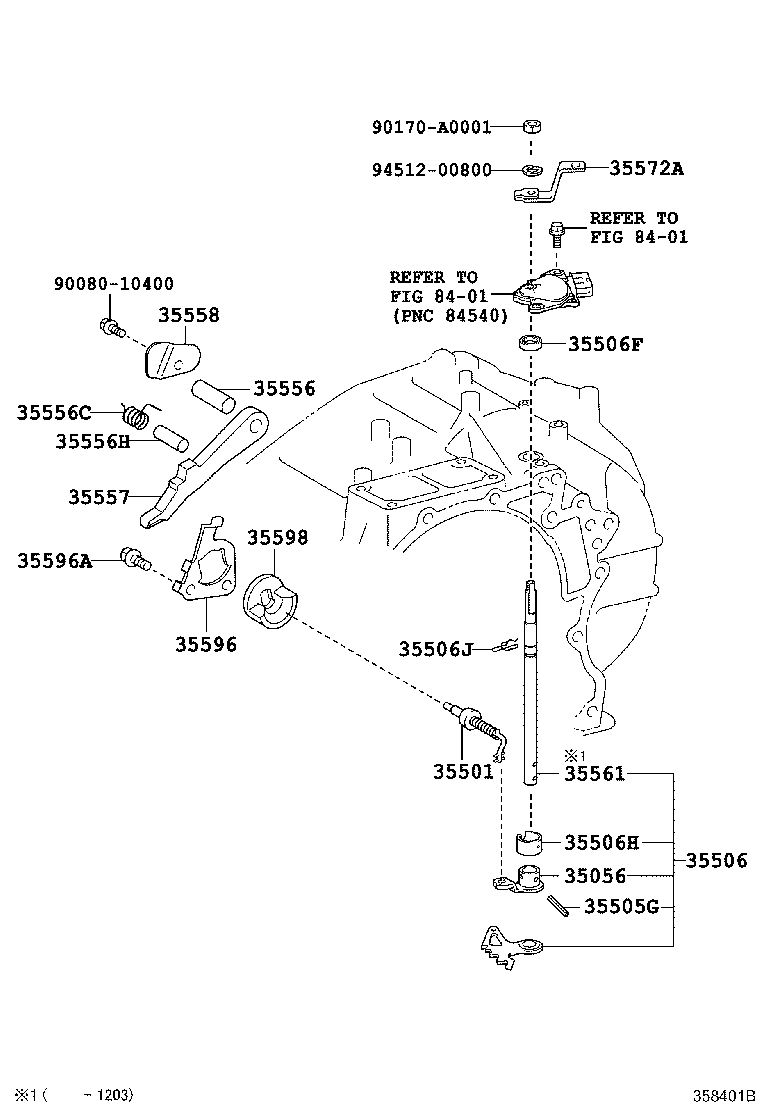

(1203- )6FC

Click highlighted areas on diagram

U660E,U660F

diagram 35056 35501 35505G 35506 35506F 35506H 35506J 35556 35556C 35556H 35557 35558 35561 35572A 35596 35596A 35598 8401 8401 9008010400 90170A0001 9451200800
Part # Description Qty Price
35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35057-33010

GGL1#..NAP

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-33020

GGL1#..NAP

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

GGL1#..NAP

 1
90254-04011

GGL1#..NAP

 2
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506-33020

GGL1#..NAP

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-A0009

GGL1#..NAP

 1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006

GGL1#..NAP

 1
90560-20006

GGL1#..NAP

 2
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-A0001

GGL1#..NAP

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-33010

GGL1#..NAP

 1
35556C - SPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
90508-A0008

GGL1#..NAP

 1
35556H - SHAFT, PARKING LOCK PAWL
35556-63010

GGL1#..NAP

 1
35557 - PAWL, PARKING LOCK
35557-33020

GGL1#..NAP

 1
35557-33021

GGL1#..NAP

 1
35558 - CLAMP, PAWL SHAFT
35558-33010

GGL1#..NAP

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-33020

GGL1#..NAP

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-07020

GGL1#..NAP

 1
35572-08020

GGL1#..NAP

 1
35596 - PLATE, PAWL STOPPER
35596-07010

GGL1#..NAP

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90080-10400

GGL1#..NAP

*8-1.25PX16-13.5

 2
35598 - SLEEVE, PARKING LOCK
35598-33010

GGL1#..NAP

 1
Common parts
90080-10400
90170-A0001
94512-00800
Linked diagrams
8401
