GYL15L-AWXGKA (2009)

Toyota Lexus Rx350/450h(Jpp

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1203)GYL1#

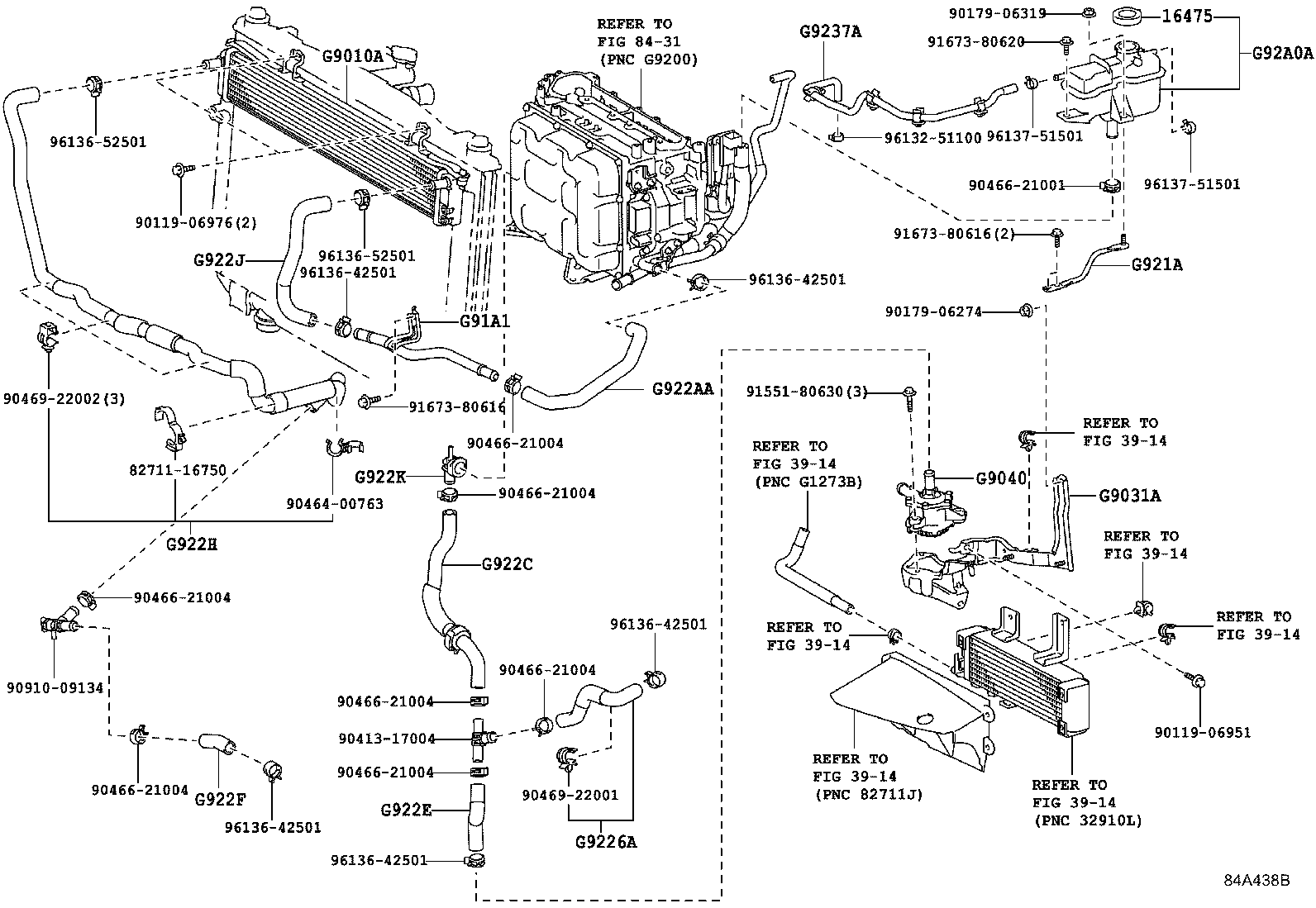

Click highlighted areas on diagram

diagram 16475 3914 3914 3914 3914 3914 3914 3914 8271116750 8431 9011906951 9011906976 9017906274 9017906319 9041317004 9046400763 9046621001 9046621004 9046621004 9046621004 9046621004 9046621004 9046621004 9046621004 9046922001 9046922002 9091009134 9155180630 9167380616 9167380616 9167380620 9613251100 9613642501 9613642501 9613642501 9613642501 9613642501 9613652501 9613652501 9613751501 9613751501 G9010A G9031A G9040 G91A1 G921A G9226A G922AA G922C G922E G922F G922H G922J G922K G9237A G92A0A
Part # Description Qty Price
16475 - CAP, RESERVE TANK
16475-51010

2GRFXE..GYL1#..JPP

 1
16475-37010

2GRFXE..GYL1#..JPP

 1
G9010A - RADIATOR ASSY
G9010-48040

GYL1#..JPP

 1
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9031-48010

GYL1#..JPP

 1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-48020

GYL1#..JPP

 1
G9040-47090

GYL1#..JPP

 1
G91A1 - PIPE, INVERTER COOLING, INLET
G91A1-48010

GYL1#..JPP

 1
G921A - BRACKET, INVERTER RESERVE TANK, NO.1
G921A-48010

GYL1#..JPP

 1
G921A-48011

GYL1#..JPP

 1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-48040

GYL1#..JPP

 1
G922AA - HOSE, INVERTER COOLING INLET, NO.1
G922A-48010

GYL1#..JPP

 1
G922C - HOSE, INVERTER COOLING OUTLET, NO.1
G922C-48011

GYL1#..JPP

 1
G922E - HOSE, HYBRID WATER PUMP INLET
G922E-48010

GYL1#..JPP

 1
G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1
G922F-48010

GYL1#..JPP

 1
G922H - HOSE, HYBRID RADIATOR INLET
G922H-48010

GYL1#..JPP

 1
G922J - HOSE, HYBRID RADIATOR OUTLET
G922J-48010

GYL1#..JPP

 1
G922K - CONNECTOR, HYBRID WATER HOSE
G922K-48011

GYL1#..JPP

 1
G9237A - HOSE, INVERTER DRAIN
G9237-48011

GYL1#..JPP

 1
G92A0A - TANK ASSY, INVERTER RESERVE
G92A0-48040

GYL1#..JPP

 1
G92A0-48041

GYL1#..JPP

 1
Common parts
82711-16750
90119-06951
90119-06976
90179-06274
90179-06319
90413-17004
90464-00763
90466-21001
90466-21004
90469-22001
90469-22002
90910-09134
91551-80630
91673-80616
91673-80620
96132-51100
96136-42501
96136-52501
96137-51501
Linked diagrams
3914
8431
