GYL15L-AWXGKA (2009)
Toyota Lexus Rx350/450h(Jpp
Production
Mar 2009
-
Mar 2012
Engine
2GRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(0903- )GYL1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9018 - BRACKET SUB-ASSY, INVERTER, NO.5 | ||||
| G9018-48010 |
GYL1#..JPP |
1 | ||
| G9019 - BRACKET SUB-ASSY, INVERTER TRAY | ||||
| G9019-48010 |
GYL1#..JPP |
1 | ||
| G9216 - BRACKET, INVERTER, NO.3 | ||||
| G9216-48040 |
GYL1#..JPP |
1 | ||
| G9217 - BRACKET, INVERTER, NO.4 | ||||
| G9217-48040 |
GYL1#..JPP |
1 | ||
| G9017-48010 |
GYL1#..JPP |
1 | ||
| G9223 - COVER, INVERTER TERMINAL | ||||
| G9223-48040 |
GYL1#..JPP |
1 | ||
| G9223-48041 |
GYL1#..JPP |
1 | ||
| Common parts | ||||
| 90119-08C92 | ||||
| 90179-06319 | ||||
| 90179-08256 | ||||
| 91631-B0616 | ||||
| 91673-80614 | ||||
| 91673-80818 | ||||
| 91673-A0614 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8202 | ||||

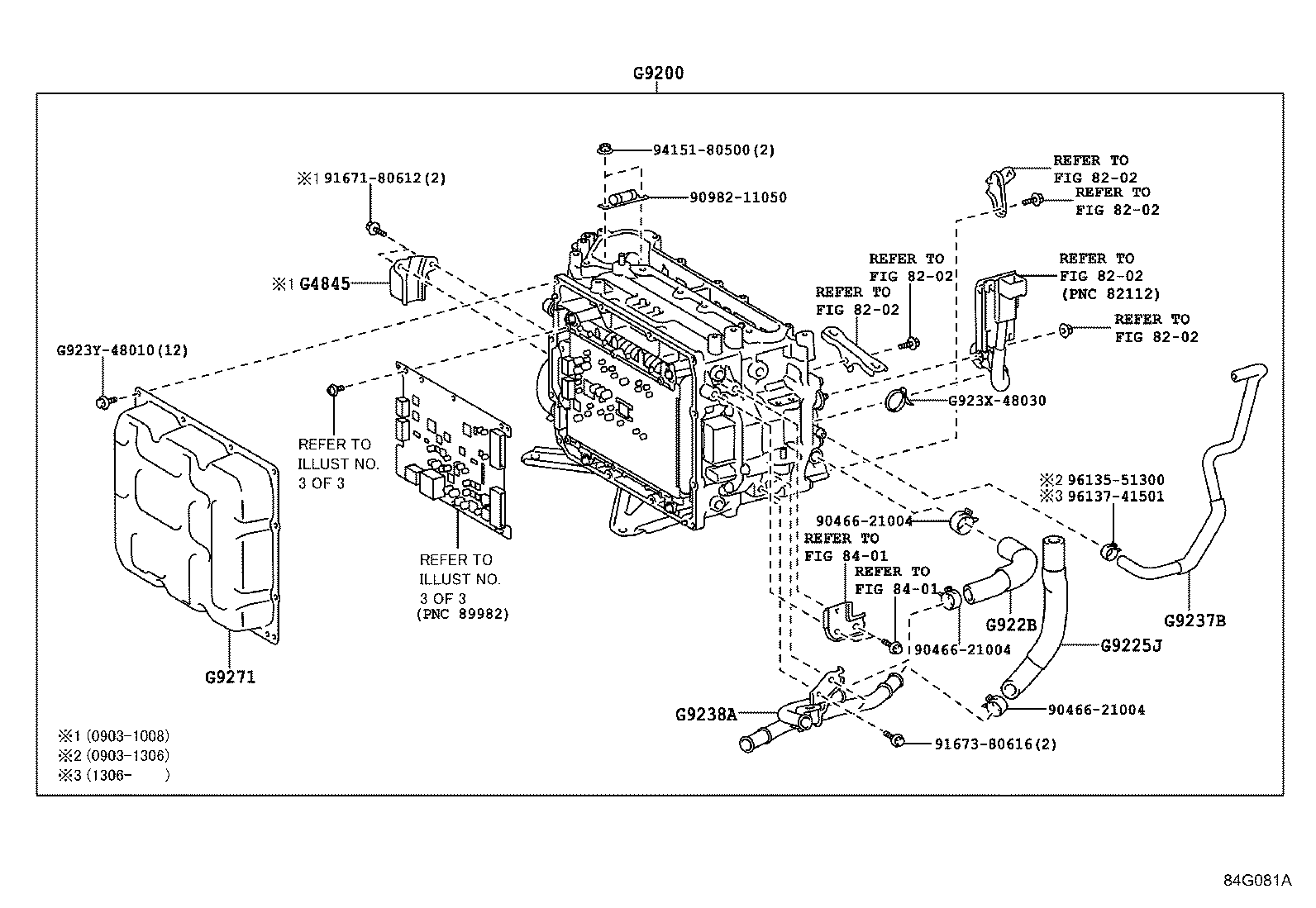

ILLUST NO. 2 OF 3(0903- )GYL1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G4845 - SENSOR, CIRCUIT BREAKER, NO.1 | ||||
| G4845-48040 |
GYL1#..JPP |
1 | ||
| G9200 - INVERTER ASSY, W/CONVERTER | ||||
| G92A0-48110 |
GYL15..JPP |
1 | ||
| G92A0-48061 |
GYL15..JPP |
1 | ||
| G92A0-48111 |
GYL15..JPP |
1 | ||
| G9225J - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-48050 |
GYL1#..JPP |
1 | ||
| G922B - HOSE, INVERTER COOLING INLET, NO.2 | ||||
| G922B-48010 |
GYL1#..JPP |
1 | ||
| G9237B - HOSE, INVERTER DRAIN | ||||
| G9237-48020 |
GYL1#..JPP |
1 | ||
| G9238A - PIPE, INVERTER COOLING | ||||
| G9238-48050 |
GYL1#..JPP |
1 | ||
| G9271 - COVER, CONVERTER | ||||
| G9271-48020 |
GYL1#..JPP |
1 | ||
| Common parts | ||||
| 90466-21004 | ||||
| 90982-11050 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 94151-80500 | ||||
| 96135-51300 | ||||
| 96137-41501 | ||||
| G923X-48030 | ||||
| G923Y-48010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

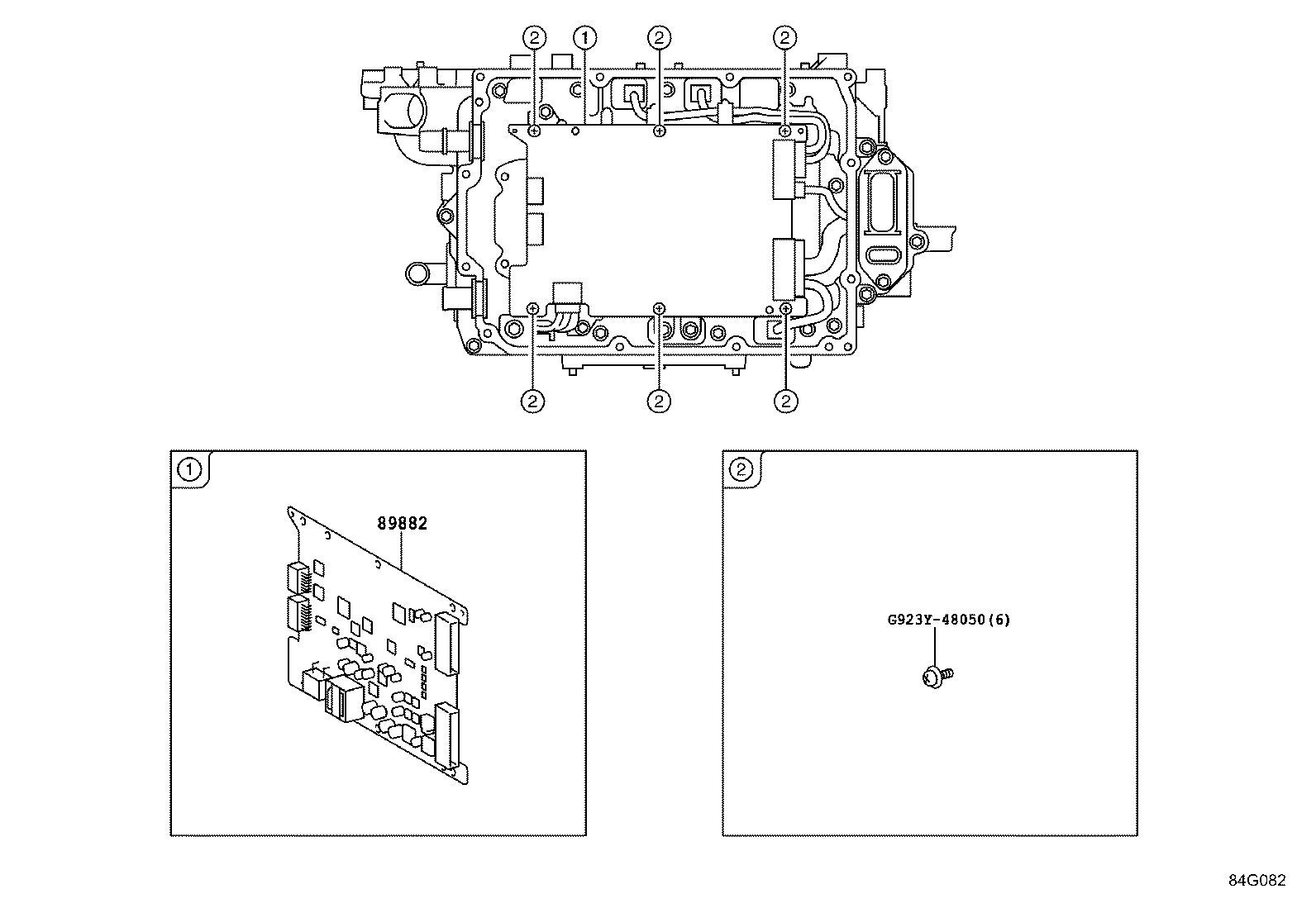

ILLUST NO. 3 OF 3(0903- )GYL1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89882 - COMPUTER, MOTOR GENERATOR CONTROL | ||||
| 89882-48030 |
GYL15..JPP |
1 | ||
| Common parts | ||||
| G923Y-48050 | ||||
