GYL15L-AWXGKA (2009)

Toyota Lexus Rx350/450h(Jpp

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )GYL1#

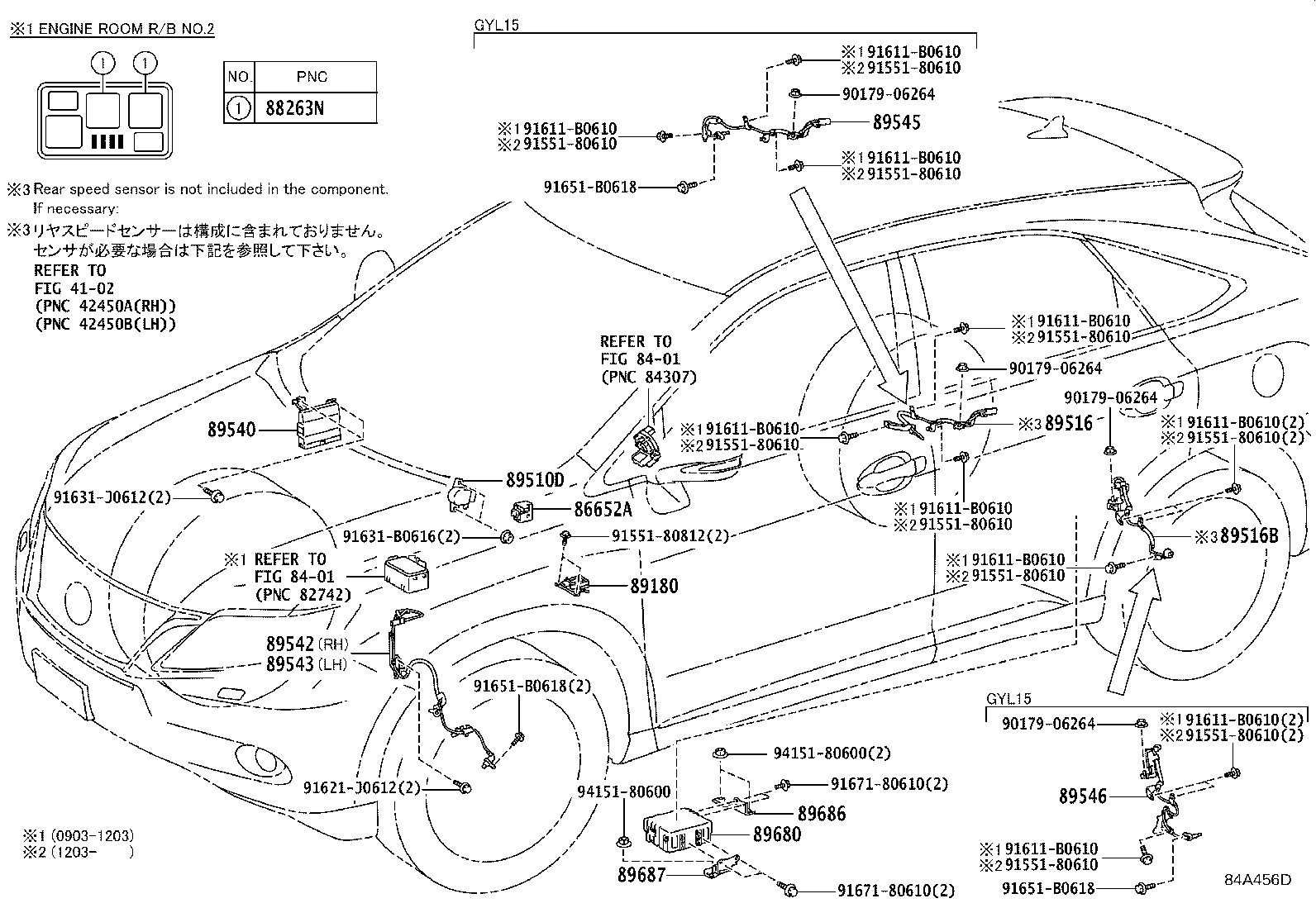

Click highlighted areas on diagram

diagram 4102 8401 8401 86652A 88263N 89180 89510D 89516 89516B 89540 89542 89543 89545 89546 89680 89686 89687 9017906264 9017906264 9017906264 9017906264 9155180610 9155180610 9155180610 9155180610 9155180610 9155180610 9155180610 9155180610 9155180610 9155180610 9155180812 91611B0610 91611B0610 91611B0610 91611B0610 91611B0610 91611B0610 91611B0610 91611B0610 91611B0610 91611B0610 91621J0612 91631B0616 91631J0612 91651B0618 91651B0618 91651B0618 9167180610 9167180610 9415180600 9415180600
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

GYL1#..JPP

 1
88263N - RELAY, ABS MOTOR
88263-21010

GYL1#..JPP

 2
89180 - SENSOR ASSY, YAWRATE
89180-48080

GYL1#..JPP

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47010

GYL1#..JPP

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-48421

GYL1#..JPP

 1
89540-48423

GYL1#..JPP

 1
89540-48422

GYL1#..JPP

 1
89540-48420

GYL1#..JPP

 1
89542 - SENSOR, SPEED, FRONT RH
89542-48050

GGL1#,GYL1#..JPP

 1
89543 - SENSOR, SPEED, FRONT LH
89543-48050

GGL1#,GYL1#..JPP

 1
89545 - SENSOR, SPEED, REAR RH
89545-48050

GGL15,GYL15..JPP

 1
89546 - SENSOR, SPEED, REAR LH
89546-48050

GGL15,GYL15..JPP

 1
89680 - SUPPLY ASSY, BRAKE CONTROL POWER
89680-33010

GYL1#..JPP

 1
89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686-48050

GYL1#..JPP

 1
89687 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2
89687-48030

GYL1#..JPP

 1
Common parts
90179-06264
91551-80610
91551-80812
91611-B0610
91621-J0612
91631-B0616
91631-J0612
91651-B0618
91671-80610
94151-80600
Linked diagrams
4102
8401
