GYL15L-AWXGKA (2009)
Toyota Lexus Rx350/450h(Jpp

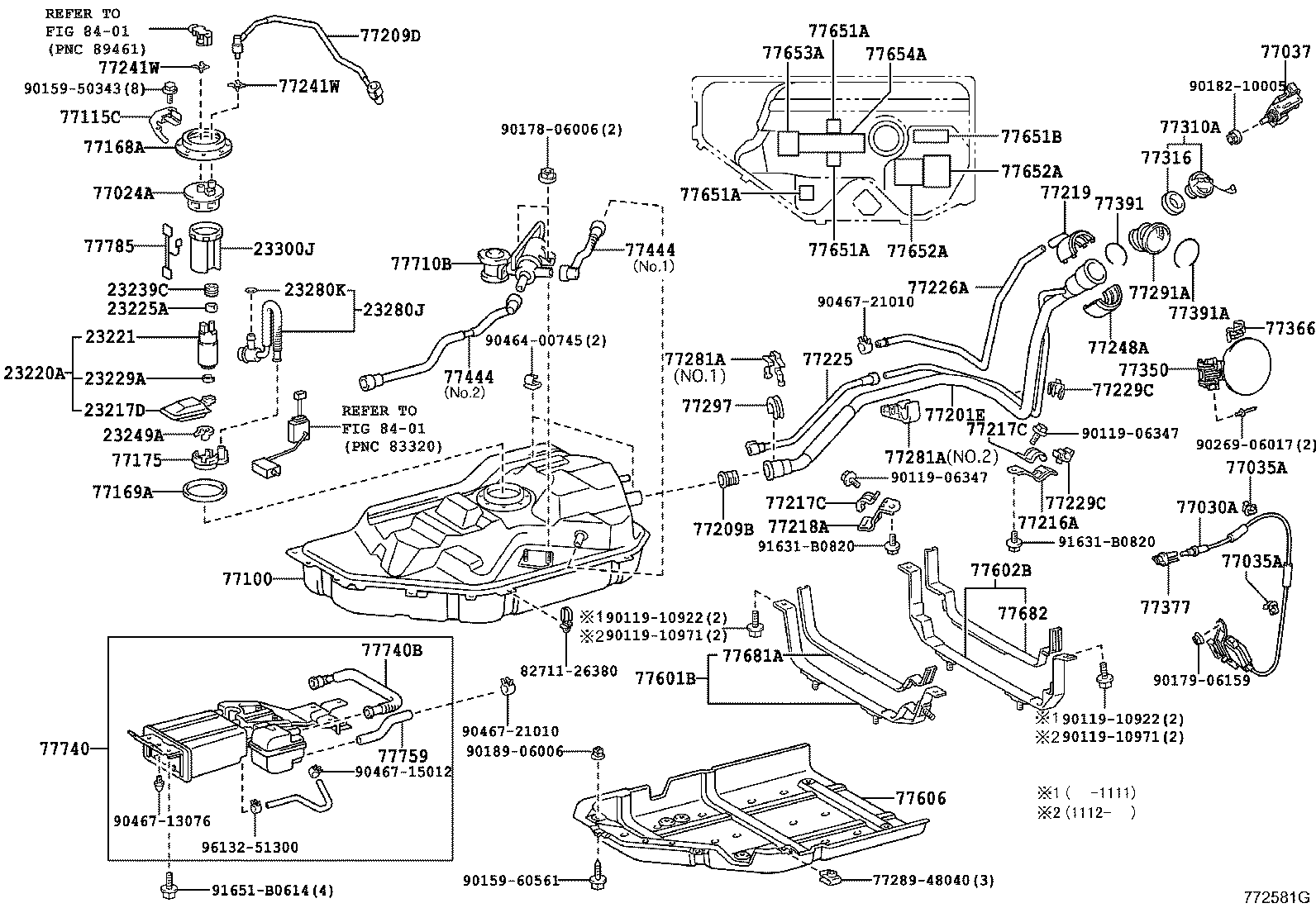

ILLUST NO. 1 OF 2(0903- )GYL1#
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31131 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23217-31130 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-31390 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31370 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23020-31010 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
2GRFXE..GYL1#..JPP |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-21010 |
2GRFXE..GYL1#..JPP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48020 |
GYL1#..JPP |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-48050 |
GGL1#,GYL1#..JPP |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
GGL1#,GYL1#..JPP |
2 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
GGL1#,GYL1#..JPP |
2 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-33020 |
GYL1#..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48111 |
GYL1#..JPP |
1 | ||
| 77115C - PLATE, FUEL TANK SIDE, NO.3 | ||||
| 77161-48020 |
GYL1#..JPP |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
GYL1#..JPP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33030 |
GYL1#..JPP |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30050 |
GYL1#..JPP |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-48260 |
GYL1#..JPP |
1 | ||
| 77201-48261 |
GYL1#..JPP |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-48050 |
GYL1#..JPP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-48040 |
GYL1#..JPP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-48070 |
GYL1#..JPP |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48070 |
GYL1#..JPP |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48070 |
GYL1#..JPP |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-48100 |
GYL1#..JPP |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-21010 |
GYL1#..JPP |
1 | ||
| 77225 - TUBE, BREATHER LOWER | ||||
| 77203-48030 |
GYL1#..JPP |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-48110 |
GYL1#..JPP |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48030 |
GGL1#,GYL1#..JPP |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48030 |
GGL1#,GYL1#..JPP |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GYL1#..JPP |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GYL1#..JPP |
2 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-52060 |
GYL1#..JPP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-48040 |
GYL1#..JPP NO.1 |
1 | ||
| 77281-48100 |
GYL1#..JPP NO.2 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-48040 |
GYL1#..JPP NO.1 |
1 | ||
| 77281-48100 |
GYL1#..JPP NO.2 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-48080 |
GGL1#,GYL1#..JPP |
1 | ||
| 77297 - CONNECTOR, FUEL TUBE | ||||
| 77297-48010 |
GYL1#..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48010 |
GYL1#..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-47020 |
GYL1#..JPP |
1 | ||
| 77316-48010 |
GYL1#..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48090 |
GGL1#,GYL1#..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-48030 |
GGL1#,GYL1#..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
GGL1#,GYL1#..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GGL1#,GYL1#..JPP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-30020 |
GGL1#,GYL1#..JPP |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-48090 |
GYL1#..JPP NO.2 |
1 | ||
| 77404-48040 |
GYL1#..JPP NO.1 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-48090 |
GYL1#..JPP NO.2 |
1 | ||
| 77404-48040 |
GYL1#..JPP NO.1 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48050 |
GYL1#..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48080 |
GYL1#..JPP |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48120 |
GYL1#..JPP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GGL1#,GYL1#..JPP |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GGL1#,GYL1#..JPP |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GGL1#,GYL1#..JPP |
3 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-44010 |
GYL1#..JPP |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20110 |
GYL1#..JPP |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20110 |
GYL1#..JPP |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
GYL1#..JPP |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-26070 |
GYL1#..JPP |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77616-48020 |
GYL1#..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77616-48080 |
GYL1#..JPP |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-48020 |
GYL1#..JPP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48140 |
GYL1#..JPP |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 77404-48060 |
GYL1#..JPP |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-48040 |
GYL1#..JPP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
GYL1#..JPP |
1 | ||
| Common parts | ||||
| 77289-48040 | ||||
| 82711-26380 | ||||
| 90119-06347 | ||||
| 90119-10922 | ||||
| 90119-10971 | ||||
| 90159-50343 | ||||
| 90159-60561 | ||||
| 90178-06006 | ||||
| 90179-06159 | ||||
| 90182-10005 | ||||
| 90189-06006 | ||||
| 90269-06017 | ||||
| 90464-00745 | ||||
| 90467-13076 | ||||
| 90467-15012 | ||||
| 90467-21010 | ||||
| 91631-B0820 | ||||
| 91651-B0614 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

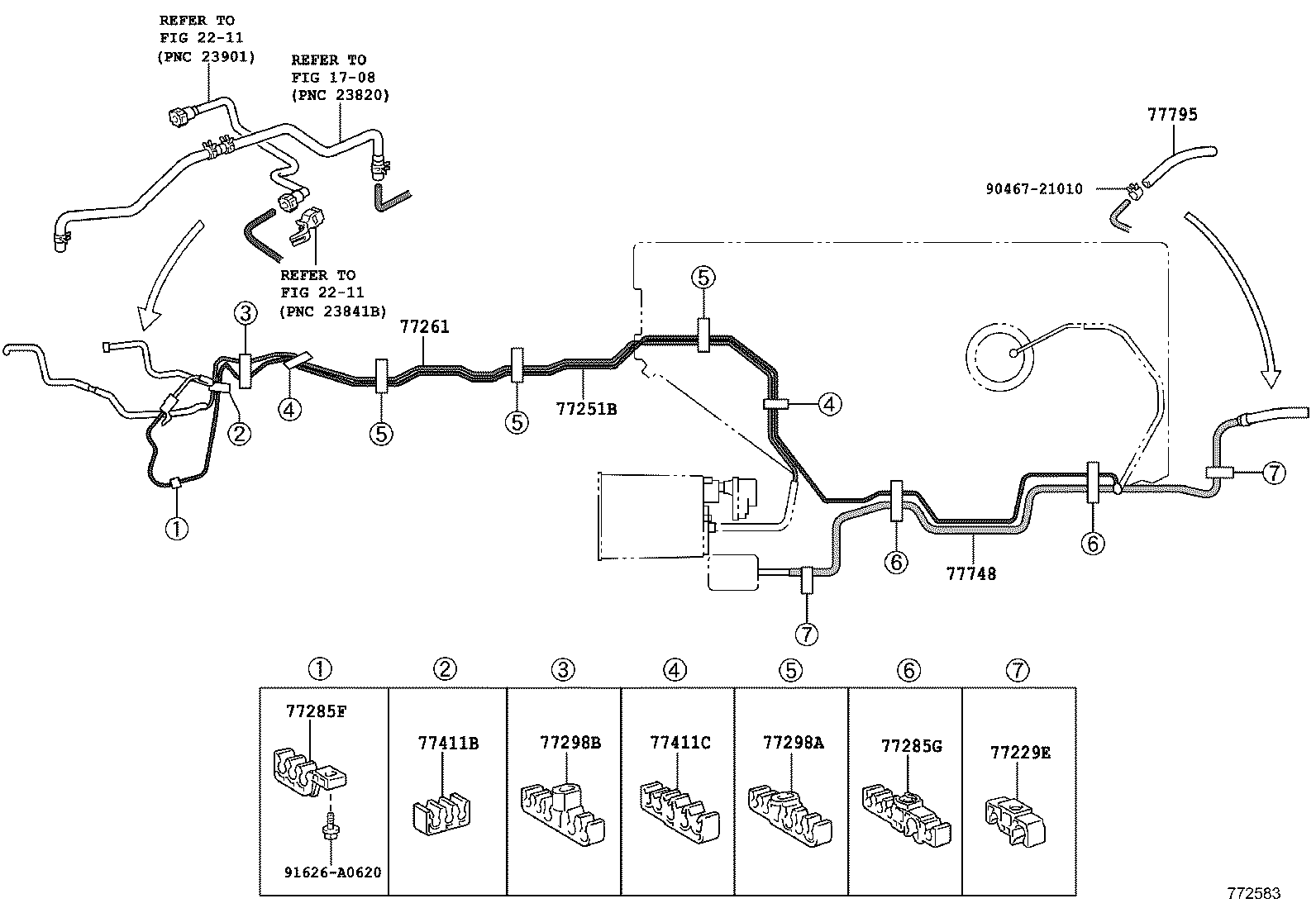

ILLUST NO. 2 OF 2(0903- )GYL1#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-48040 |
GYL1#..JPP |
2 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48210 |
GYL1#..JPP |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-48200 |
GYL1#..JPP |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48020 |
GGL1#,GYL1#..JPP |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48030 |
GYL1#..JPP |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48020 |
GYL1#..JPP |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48020 |
GGL1#,GYL1#..JPP |
1 | ||
| 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48040 |
GYL1#..JPP |
2 | ||
| 77411-48041 |
GYL1#..JPP |
2 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-48040 |
GYL1#..JPP |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-48030 |
GYL1#..JPP |
1 | ||
| Common parts | ||||
| 90467-21010 | ||||
| 91626-A0620 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
