GYL15L-AWXGKA (2009)

Toyota Lexus Rx350/450h(Jpp

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )GYL1#

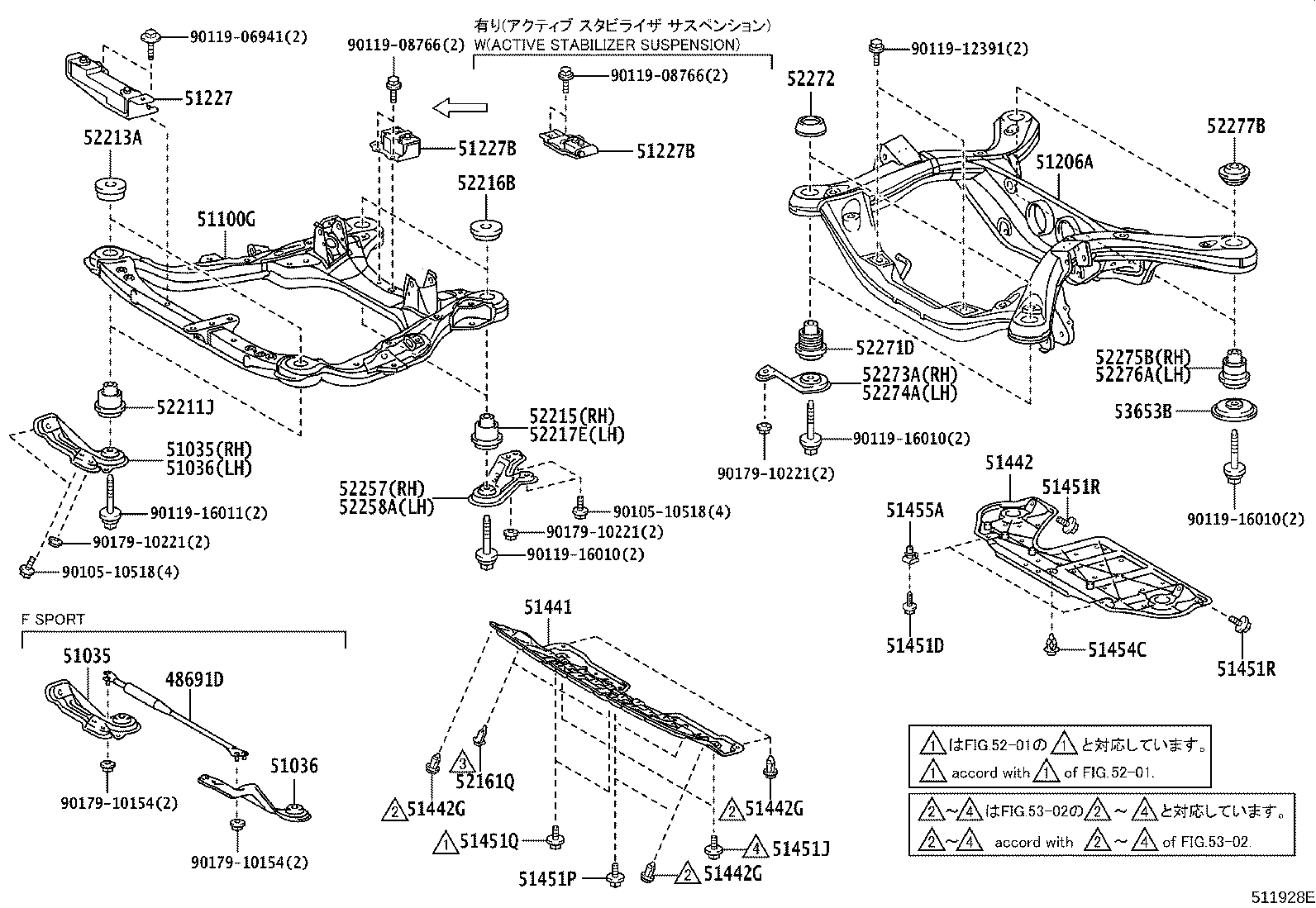

Click highlighted areas on diagram

diagram 48691D 51035 51035 51036 51036 51100G 51206A 51227 51227B 51227B 51441 51442 51442G 51442G 51442G 51451D 51451J 51451P 51451Q 51451R 51451R 51454C 51455A 52161Q 52211J 52213A 52215 52216B 52217E 52257 52258A 52271D 52272 52273A 52274A 52275B 52276A 52277B 53653B 9010510518 9010510518 9011906941 9011908766 9011908766 9011912391 9011916010 9011916010 9011916010 9011916011 9017910154 9017910154 9017910221 9017910221 9017910221
Part # Description Qty Price
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-48021

GGL1#,GYL1#..JPP

 1
51035-48020

GGL1#,GYL1#..JPP

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-48021

GGL1#,GYL1#..JPP

 1
51035-48020

GGL1#,GYL1#..JPP

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-48020

GGL1#,GYL1#..JPP

 1
51036-48021

GGL1#,GYL1#..JPP

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-48020

GGL1#,GYL1#..JPP

 1
51036-48021

GGL1#,GYL1#..JPP

 1
51100G - FRAME ASSY, FRONT
51100-48071

GGL1#,GYL1#..JPP

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-48090

GYL1#..JPP

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-48100

GYL1#..JPP

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-48120

GYL15..JPP

WITH(ACTIVE STABILIZER SUSPENSION)

 1
51227-48130

GGL10,GYL1#..JPP

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-48120

GYL15..JPP

WITH(ACTIVE STABILIZER SUSPENSION)

 1
51227-48130

GGL10,GYL1#..JPP

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-48071

GGL1#,GYL1#..JPP

 1
51441-48070

GGL1#,GYL1#..JPP

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-48040

GGL1#,GYL1#..JPP

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07201

GGL1#,GYL1#..JPP

 4
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07201

GGL1#,GYL1#..JPP

 4
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07201

GGL1#,GYL1#..JPP

 4
51451D - SCREW, NO.1
90159-60590

GGL1#,GYL1#..JPP

 2
51451J - BOLT, NO.1
90119-06699

GGL1#,GYL1#..JPP

 2
51451P - BOLT, NO.2
90119-06699

GGL1#,GYL1#..JPP

 2
51451Q - BOLT, NO.3
90119-06699

GGL1#,GYL1#..JPP

 2
51451R - BOLT, NO.4
90119-06699

GGL1#,GYL1#..JPP

 2
51451R - BOLT, NO.4
90119-06699

GGL1#,GYL1#..JPP

 2
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-48010

GGL1#,GYL1#..JPP

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-48010

GGL1#,GYL1#..JPP

 2
52161Q - PIECE, FRONT BUMPER
52161-16010

GGL1#,GYL1#..JPP

 2
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-28020

GGL1#,GYL1#..JPP

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-28020

GGL1#,GYL1#..JPP

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-28010

GGL1#,GYL1#..JPP

 1
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-28010

GGL1#,GYL1#..JPP

 2
52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52217-28010

GGL1#,GYL1#..JPP

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
51023-48030

GGL1#,GYL1#..JPP

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
51024-48040

GGL1#,GYL1#..JPP

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-48030

GGL1#,GYL1#..JPP

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-48020

GGL1#,GYL1#..JPP

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-48010

GGL1#,GYL1#..JPP

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-48010

GYL1#..JPP

 1
52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52275-48021

GGL1#,GYL1#..JPP

 1
52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52276-48011

GGL1#,GYL1#..JPP

 1
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-48020

GGL1#,GYL1#..JPP

 2
53653B - BRACE, REAR SUSPENSION, LOWER
53653-48010

GGL1#,GYL1#..JPP

 2
Common parts
90105-10518
90119-06941
90119-08766
90119-12391
90119-16010
90119-16011
90179-10154
90179-10221
