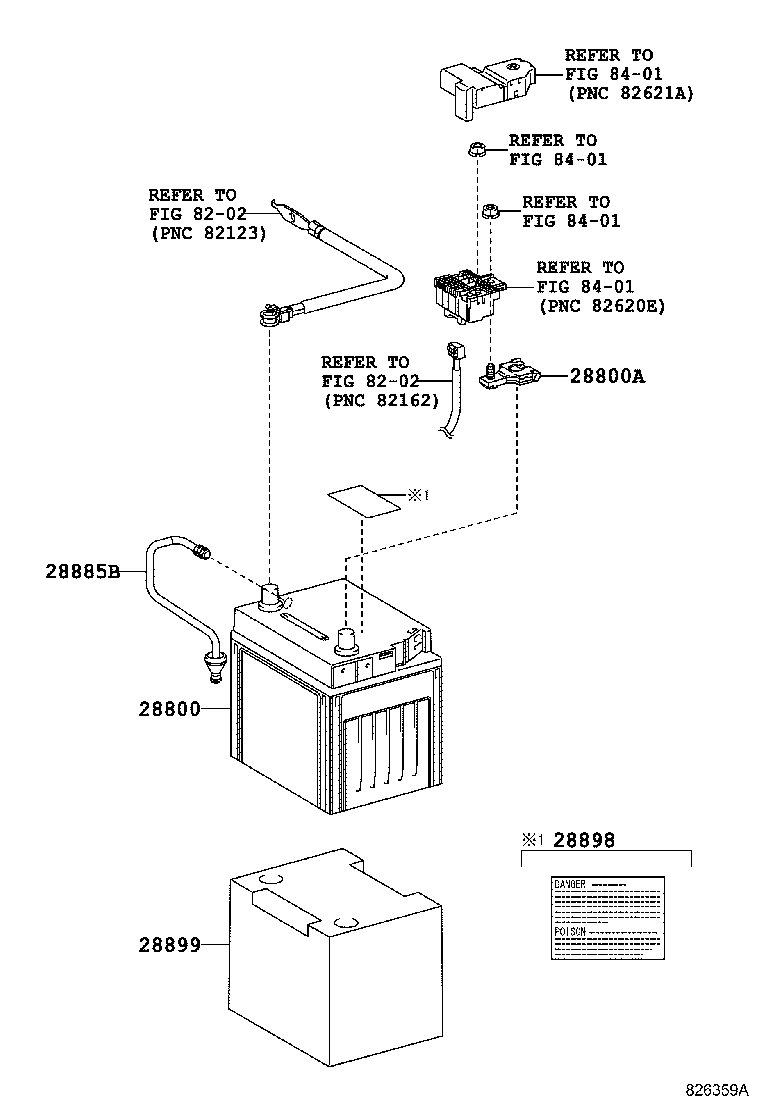

GYL10L-AWXGKA (2009)
Toyota Lexus Rx350/450h(Jpp
(0903- )GYL1#
12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-31290 |
2GRFXE..GYL1#..JPP S55D23L |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05054 |
2GRFXE..GYL1#..JPP |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-31050 |
2GRFXE..GYL1#..JPP |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28897-38010 |
2GR#..GGL10,GYL10..JPP CANADA SPEC |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-31100 |
2GRFXE..GYL1#..JPP |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

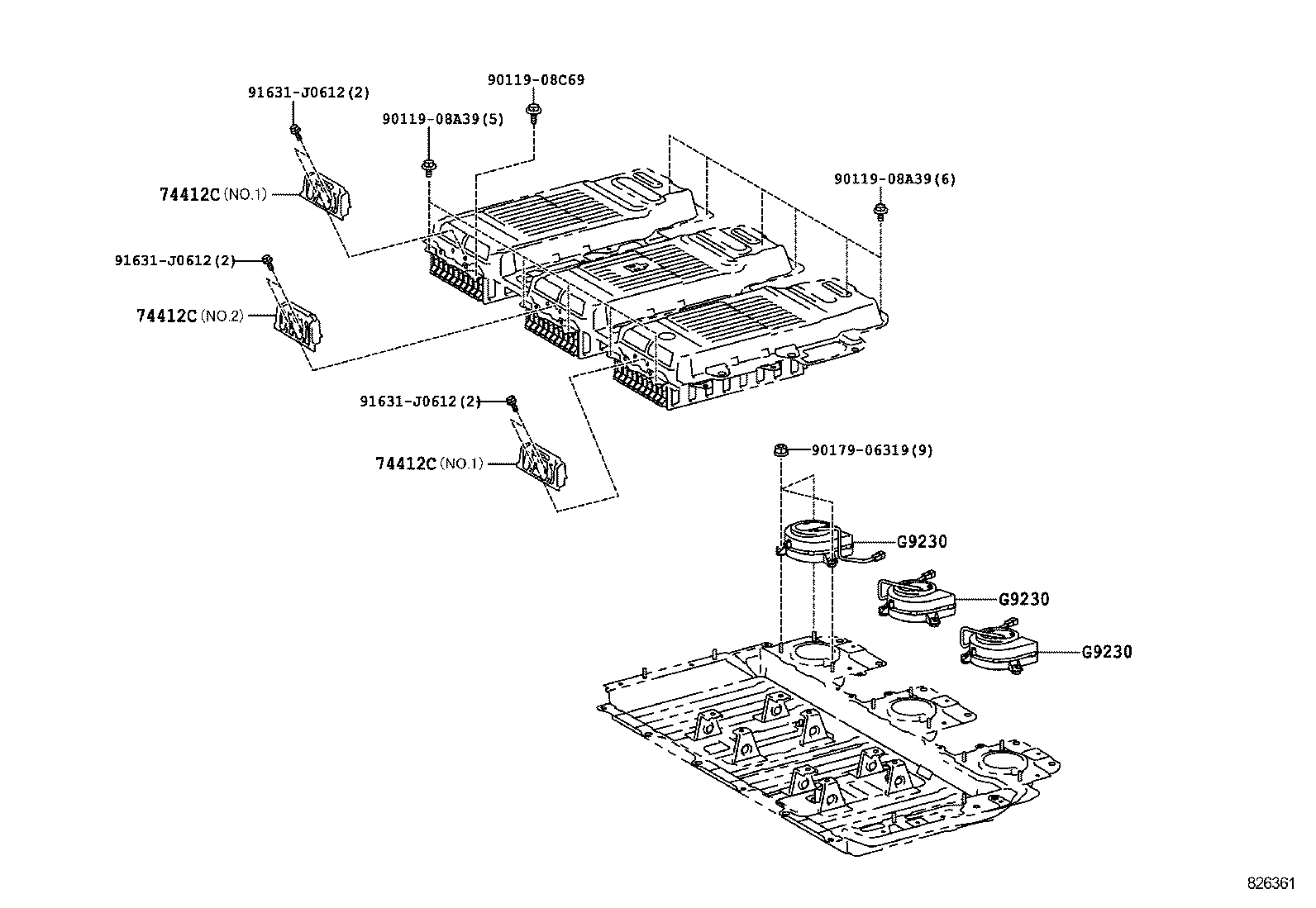

ILLUST NO. 1 OF 3(0903- )GYL1#
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-48030 |
GYL1#..JPP NO.1 |
2 | ||
| 74412-48040 |
GYL1#..JPP NO.2 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-48030 |
GYL1#..JPP NO.1 |
2 | ||
| 74412-48040 |
GYL1#..JPP NO.2 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-48030 |
GYL1#..JPP NO.1 |
2 | ||
| 74412-48040 |
GYL1#..JPP NO.2 |
1 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-48040 |
GYL1#..JPP |
3 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-48040 |
GYL1#..JPP |
3 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-48040 |
GYL1#..JPP |
3 | ||
| Common parts | ||||
| 90119-08A39 | ||||
| 90119-08C69 | ||||
| 90179-06319 | ||||
| 91631-J0612 | ||||

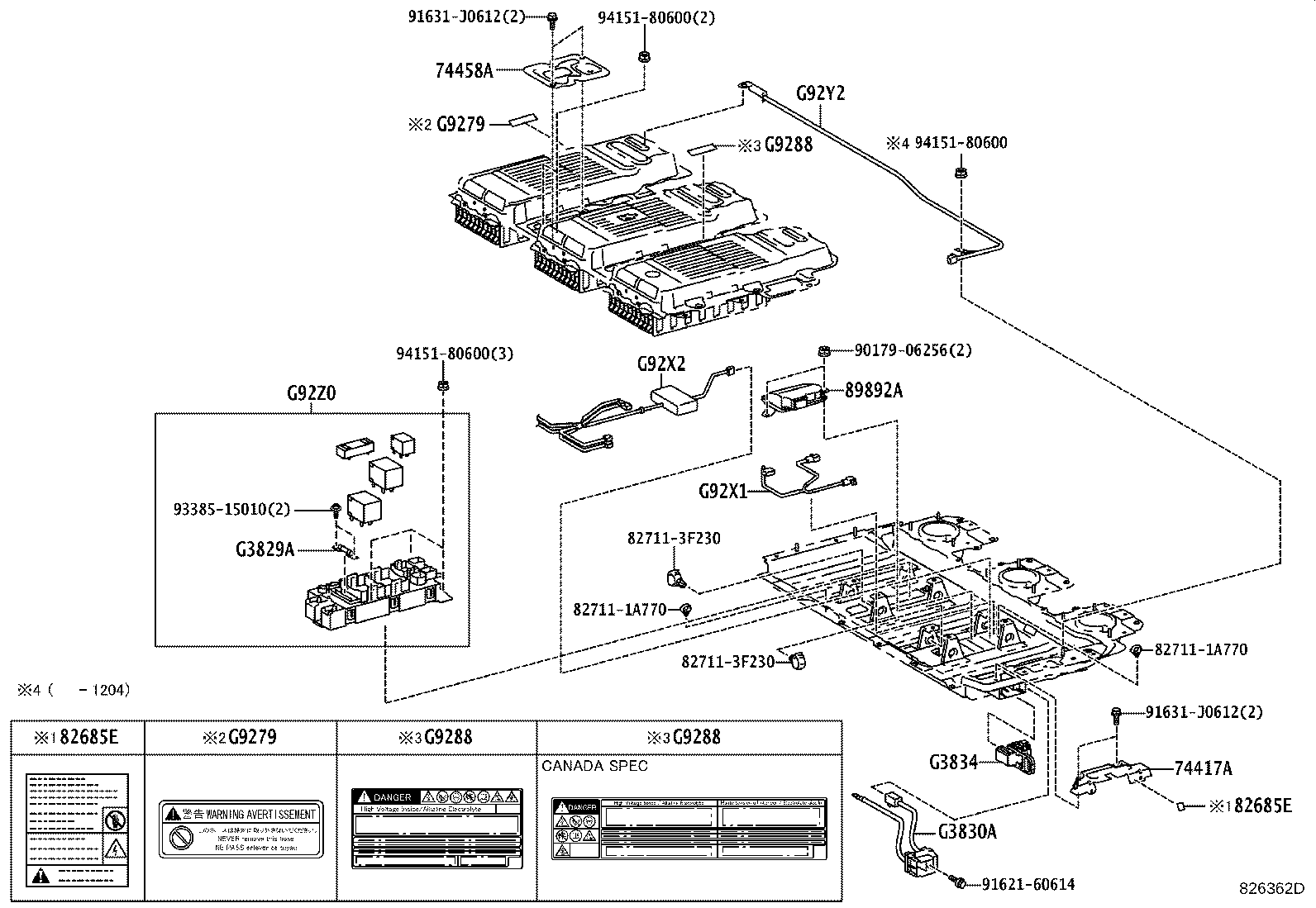

ILLUST NO. 2 OF 3(0903- )GYL1#
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74417A - BRACKET, BATTERY CARRIER | ||||
| 74417-48040 |
GYL1#..JPP |
1 | ||
| 74458A - LID, BATTERY COVER, NO.1 | ||||
| 74458-48020 |
GYL1#..JPP |
1 | ||
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-47090 |
GYL1#..JPP |
1 | ||
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-47090 |
GYL1#..JPP |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-48020 |
GYL1#..JPP |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| 90982-11051 |
GYL1#..JPP 15A |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-48020 |
GYL1#..JPP |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-48010 |
GYL1#..JPP |
1 | ||
| G9279 - LABEL, BATTERY CAUTION, NO.4 | ||||
| G9279-47040 |
GYL1#..JPP |
1 | ||
| G9279 - LABEL, BATTERY CAUTION, NO.4 | ||||
| G9279-47040 |
GYL1#..JPP |
1 | ||
| G9288 - LABEL, BATTERY CHARGING NOTICE | ||||
| G9288-48030 |
GYL10..JPP CANADA SPEC |
1 | ||
| G9288-48020 |
GYL1#..JPP |
1 | ||
| G9288 - LABEL, BATTERY CHARGING NOTICE | ||||
| G9288-48030 |
GYL10..JPP CANADA SPEC |
1 | ||
| G9288-48020 |
GYL1#..JPP |
1 | ||
| G9288 - LABEL, BATTERY CHARGING NOTICE | ||||
| G9288-48030 |
GYL10..JPP CANADA SPEC |
1 | ||
| G9288-48020 |
GYL1#..JPP |
1 | ||
| G92X1 - WIRE, HYBRID BATTERY PACK, NO.1 | ||||
| G92X1-48010 |
GYL1#..JPP |
1 | ||
| G92X2 - WIRE, HV BATTERY PACK, NO.2 | ||||
| G92X2-48010 |
GYL1#..JPP |
1 | ||
| G92Y2 - CABLE, HV BATTERY PACK, NO.2 | ||||
| G92Y2-48010 |
GYL1#..JPP |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-48010 |
GYL1#..JPP |
1 | ||
| G92Z0-48011 |
GYL1#..JPP |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-3F230 | ||||
| 90179-06256 | ||||
| 91621-60614 | ||||
| 91631-J0612 | ||||
| 93385-15010 | ||||
| 94151-80600 | ||||

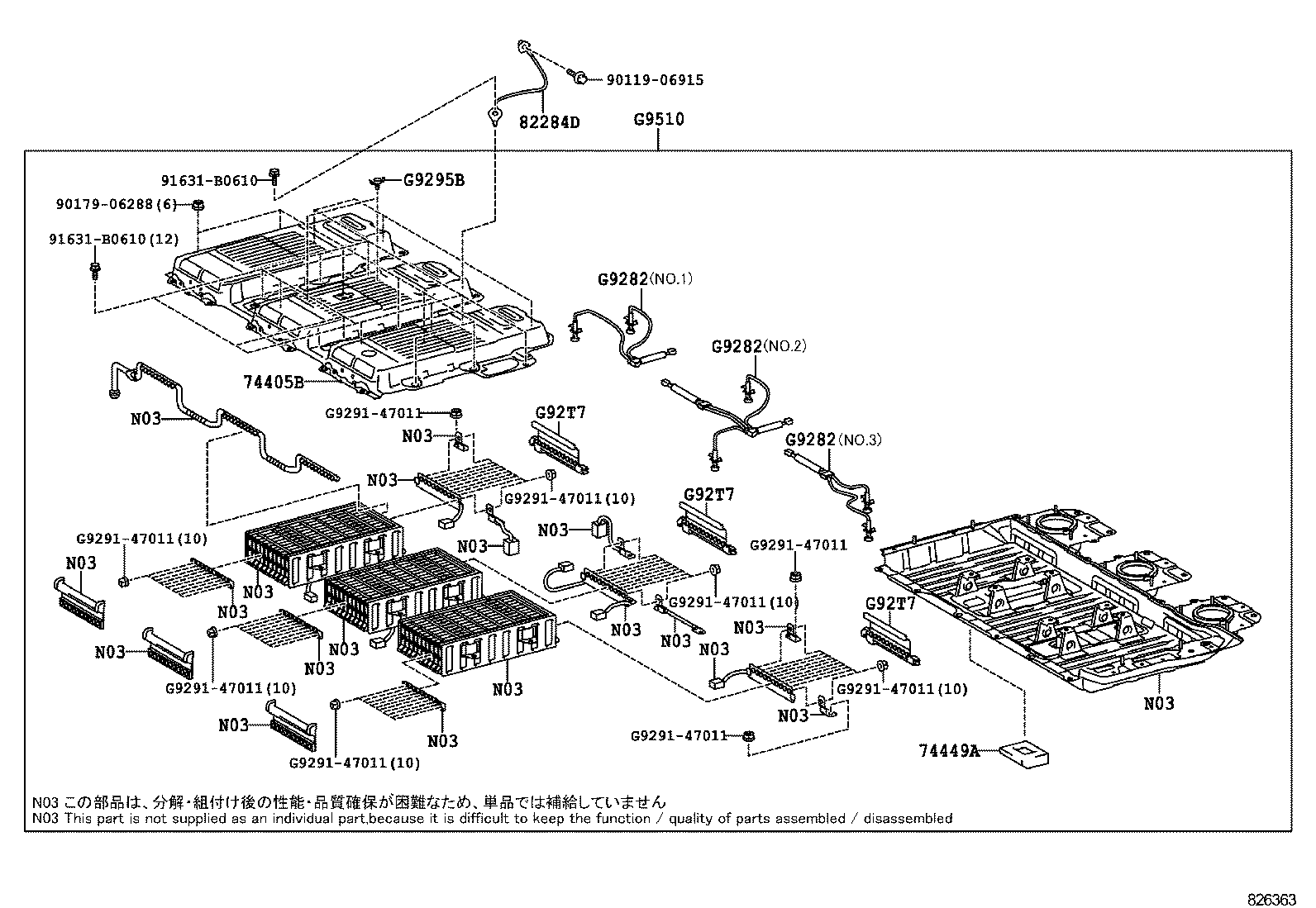

ILLUST NO. 3 OF 3(0903- )GYL1#
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74405B - COVER SUB-ASSY, BATTERY | ||||
| 74405-48040 |
GYL1#..JPP |
1 | ||
| 74449A - PACKING, BATTERY, NO.2 | ||||
| 74448-48010 |
GYL1#..JPP |
1 | ||
| 82284D - WIRE, EARTH | ||||
| 82284-48030 |
GYL1#..JPP |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-48040 |
GYL1#..JPP NO.1 |
1 | ||
| G9282-48050 |
GYL1#..JPP NO.2 |
1 | ||
| G9282-48060 |
GYL1#..JPP NO.3 |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-48040 |
GYL1#..JPP NO.1 |
1 | ||
| G9282-48050 |
GYL1#..JPP NO.2 |
1 | ||
| G9282-48060 |
GYL1#..JPP NO.3 |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-48040 |
GYL1#..JPP NO.1 |
1 | ||
| G9282-48050 |
GYL1#..JPP NO.2 |
1 | ||
| G9282-48060 |
GYL1#..JPP NO.3 |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
GYL1#..JPP |
2 | ||
| G92T7 - COVER, HYBRID BATTERY BUS-BAR BLOCK, NO.1 | ||||
| G92T7-48010 |
GYL1#..JPP |
3 | ||
| G92T7 - COVER, HYBRID BATTERY BUS-BAR BLOCK, NO.1 | ||||
| G92T7-48010 |
GYL1#..JPP |
3 | ||
| G92T7 - COVER, HYBRID BATTERY BUS-BAR BLOCK, NO.1 | ||||
| G92T7-48010 |
GYL1#..JPP |
3 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-48050 |
GYL1#..JPP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06288 | ||||
| 91631-B0610 | ||||
| G9291-47011 | ||||
