GGL15L-AWTGKA (2008)
Toyota Lexus Rx350/450h(Jpp
ILLUST NO. 2 OF 2(0812- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-48080B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 64780-48080C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 64780-48080A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-10161 |
GGL1#,GYL1#..JPP |
10 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 63395-12150 |
GGL1#,GYL1#..JPP |
2 | ||
| 64783A - TRIM, BACK WINDOW PANEL, UPPER | ||||
| 64783-48070A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 64783-48070B0 |
GGL1#,GYL1#..JPP LT.GRAY,TRIM1#,2# |
1 | ||
| 64783-48080A0 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE,IVORY,TRIM0# |
1 | ||
| 64783-48080B0 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE,LT.GRAY,TRIM1#,2# |
1 | ||
| 64783-48080A0 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE,IVORY,TRIM0# |
1 | ||
| 64783-48080B0 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE,LT.GRAY,TRIM1#,2# |
1 | ||
| 64785A - BASE, BACK DOOR TRIM | ||||
| 64785-48010A0 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE,IVORY,TRIM0# |
1 | ||
| 64785-48010B0 |
GGL1#..JPP ULTRAPREMIUM PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 64785-48010C0 |
GGL1#..JPP ULTRAPREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 64785-48010A0 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE,IVORY,TRIM0# |
1 | ||
| 64785-48010C0 |
GGL1#..JPP PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 64785-48010B0 |
GGL1#..JPP PREMIUM PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 64791C - COVER, BACK DOOR TRIM, RH | ||||
| 64791-48050B0 |
GGL1#,GYL1#..JPP LT.GRAY,TRIM1#,2# |
1 | ||
| 64791-48050A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64792-48060A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 64792-48060B0 |
GGL1#,GYL1#..JPP LT.GRAY,TRIM1#,2# |
1 | ||
| 64893 - COVER, BACK DOOR TRIM, UPPER, RH | ||||
| 64893-48010B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 64893-48010C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 64893-48010A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 64894 - COVER, BACK DOOR TRIM, UPPER, LH | ||||
| 64894-48010A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 64894-48010C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 64894-48010B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 67751B - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-32090 |
GGL1#,GYL1#..JPP |
4 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-48010A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 67765-48010B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 67765-48010C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-48010B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 67766-48010C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 67766-48010A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 67767B - COVER, BACK DOOR SERVICE HOLE, NO.3 | ||||
| 67767-48010A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 67767-48010C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 67767-48010B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09204 |
GGL1#,GYL1#..JPP |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09204 |
GGL1#,GYL1#..JPP |
6 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
GGL1#,GYL1#..JPP |
6 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
GGL1#,GYL1#..JPP |
6 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 69291-48020B0 |
GGL1#..JPP ULTRAPREMIUM PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 69291-48020B0 |
GGL1#..JPP PREMIUM PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 69291-48020A0 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE,IVORY,TRIM0# |
1 | ||
| 69291-48020C0 |
GGL1#..JPP ULTRAPREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 69291-48020C0 |
GGL1#..JPP PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 69291-48020A0 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE,IVORY,TRIM0# |
1 | ||
| 75837D - COVER, BACK DOOR FINISH, RH | ||||
| 75837-48010A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 75837-48010C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 75837-48010B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 75838D - COVER, BACK DOOR FINISH, LH | ||||
| 75838-48010A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 75838-48010C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 75838-48010B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 63395-12150 | ||||
| 90159-60411 | ||||
| 90168-40002 | ||||

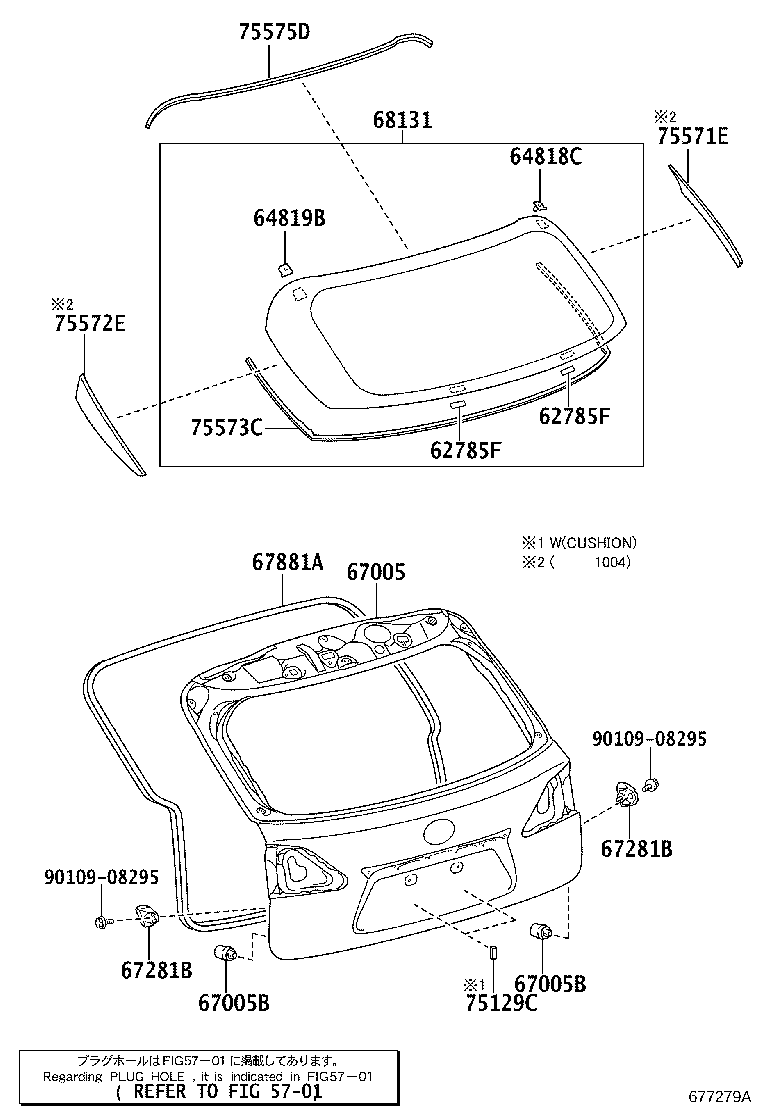

ILLUST NO. 1 OF 2(0812- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
GGL1#,GYL1#..JPP |
2 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-60030 |
GGL1#,GYL1#..JPP |
2 | ||
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-48070 |
GGL1#,GYL1#..JPP |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-48610 |
GGL15,GYL15..JPP KOREA SPEC&ULTRAPREMIUM PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 67005-48740 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 67005-48610 |
GGL15,GYL15..JPP KOREA SPEC&PREMIUM PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 67005-48770 |
GGL1#,GYL1#..JPP |
1 | ||
| 67005-48740 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 67005-48750 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE |
1 | ||
| 67005-48760 |
GGL1#,GYL1#..JPP INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 67005-48740 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 67005-48611 |
GGL15,GYL15..JPP KOREA SPEC&PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 67005-48750 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE |
1 | ||
| 67005-48741 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 67005-48740 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 67005-48611 |
GGL15,GYL15..JPP KOREA SPEC&ULTRAPREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 67005-48751 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE |
1 | ||
| 67005-48741 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 67005-48741 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 67005-48751 |
GGL1#,GYL1#..JPP PREMIUM PACKAGE |
1 | ||
| 67005-48771 |
GGL1#,GYL1#..JPP |
1 | ||
| 67005-48761 |
GGL1#,GYL1#..JPP INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 67005-48741 |
GGL1#,GYL15..JPP ULTRAPREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09128 |
GGL1#,GYL1#..JPP |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09128 |
GGL1#,GYL1#..JPP |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-48010 |
GGL1#,GYL1#..JPP |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-48010 |
GGL1#,GYL1#..JPP |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-48050 |
GGL1#,GYL1#..JPP |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-48380 |
GGL15,GYL15..JPP *UVCEHT,T=3.5,GREEN,KOREA SPEC |
1 | ||
| 68105-48370 |
GGL1#,GYL1#..JPP *EHT,T=3.5,DARK GRAY |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
GGL1#,GYL1#..JPP |
2 | ||
| 75571E - MOULDING, BACK WINDOW, OUTSIDE UPPER RH | ||||
| 75571-48010 |
GGL1#,GYL1#..JPP |
1 | ||
| 75572E - MOULDING, BACK WINDOW, OUTSIDE UPPER LH | ||||
| 75572-48010 |
GGL1#,GYL1#..JPP |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-48030 |
GGL1#,GYL1#..JPP |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| Linked diagrams | ||||
| 5701 | ||||
