GGL10L-AWTGKA (2008)
Toyota Lexus Rx350/450h(Jpp

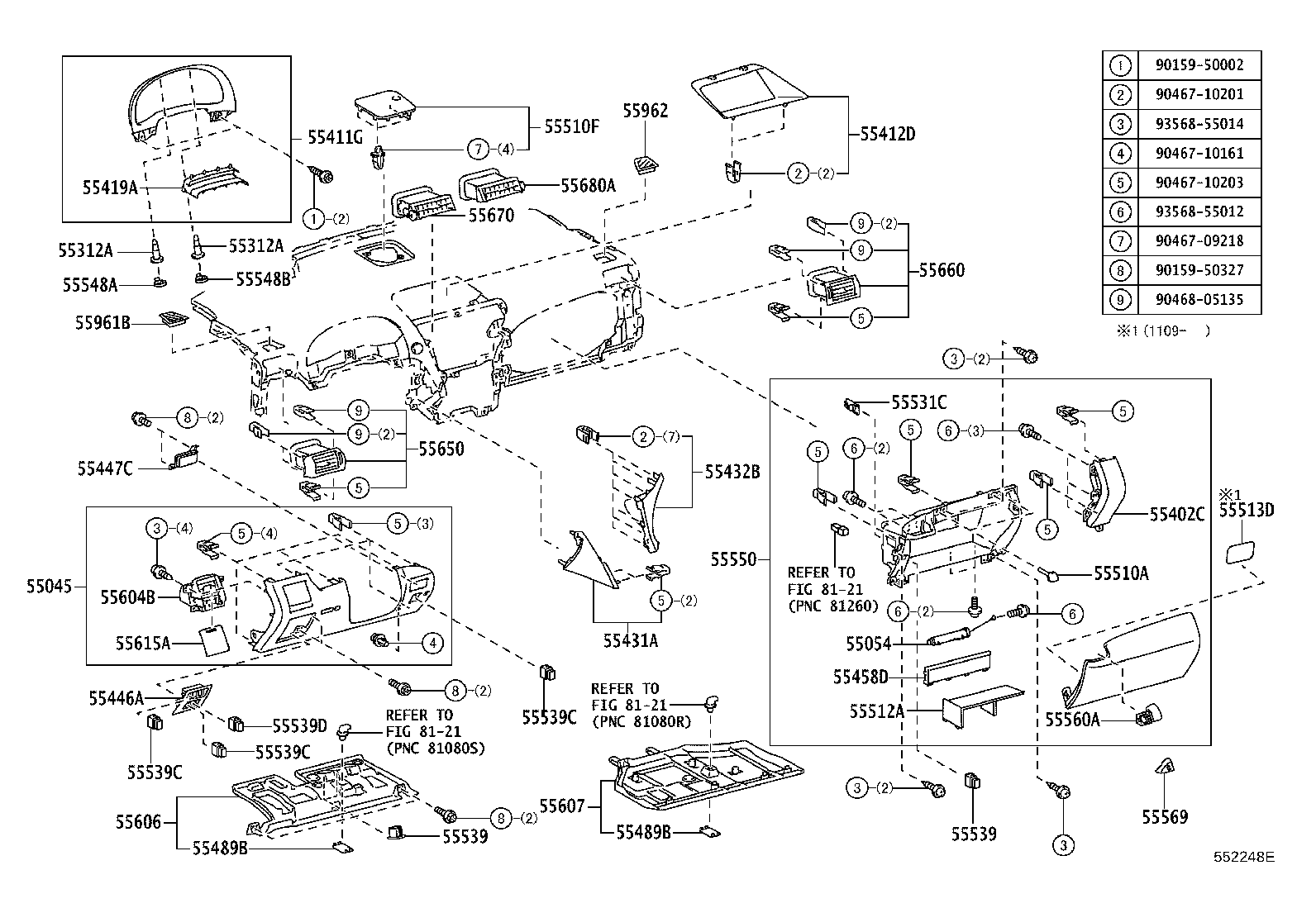

ILLUST NO. 2 OF 2(0812-1203)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-48160B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55045-48160A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 55045-48160C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-48050 |
GGL1#,GYL1#..JPP |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-0707122 |
GGL1#,GYL1#..JPP BLACK |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-0707122 |
GGL1#,GYL1#..JPP BLACK |
2 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55403-48040B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55403-48040C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 55403-48040A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55404-48060E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55404-48060C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-48190C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55405-48190E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-48010C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55419-48010E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-48020C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55431-48020E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-48400E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55432-48400C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-48050C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 55446-48050A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 55446-48050B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-48070A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 55447-48070C0 |
GGL1#,GYL1#..JPP BLACK,TRIM2# |
1 | ||
| 55447-48070B0 |
GGL1#,GYL15..JPP HEAD UP DISPLAY-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55447-48070A0 |
GGL1#,GYL15..JPP HEAD UP DISPLAY-WITH,IVORY,TRIM0# |
1 | ||
| 55447-48070C0 |
GGL1#,GYL15..JPP HEAD UP DISPLAY-WITH,BLACK,TRIM2# |
1 | ||
| 55447-48070B0 |
GGL1#,GYL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55458D - COVER, INSTRUMENT LOWER, RH | ||||
| 55459-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
GGL1#,GYL1#..JPP |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
GGL1#,GYL1#..JPP |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
GGL1#,GYL1#..JPP |
2 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-48030C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55510-48040E0 |
GGL10,GYL10..JPP AUDIO-DVD CHANGER,15SPEAKER,*MAR,DK. BROWN,TRIM0# |
1 | ||
| 55510-48040C0 |
GGL10,GYL10..JPP AUDIO-DVD CHANGER,15SPEAKER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55510-48040C0 |
GGL1#,GYL1#..JPP AUDIO-DVD CHANGER,SDARS,15SPEAKER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55510-48040E0 |
GGL1#,GYL1#..JPP AUDIO-DVD CHANGER,SDARS,15SPEAKER,*MAR,DK. BROWN,TRIM0# |
1 | ||
| 55510-48030E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-48050 |
GGL1#,GYL1#..JPP |
1 | ||
| 55531C - PIN, GLOVE DOOR STOPPER | ||||
| 55531-48030 |
GGL1#,GYL1#..JPP |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GGL1#,GYL1#..JPP |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GGL1#,GYL1#..JPP |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
GGL1#,GYL1#..JPP |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-48050 |
GGL1#,GYL1#..JPP |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-48020C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55548-48020E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55549-48010E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55549-48010C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-48020B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55550-48020C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 55550-48020A0 |
GGL1#..JPP IVORY,TRIM0# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-48040A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 55560-48040B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55560-48040C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-48020B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55569-48020A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 55569-48020C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-48200 |
GGL1#,GYL1#..JPP |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-48020 |
GGL1#,GYL1#..JPP |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48180 |
GGL1#..JPP |
1 | ||
| 55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER | ||||
| 55615-48090A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 55615-48090C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 55615-48090B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-48070E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55650-48070C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-48070E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55660-48070C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-48070 |
GGL1#,GYL1#..JPP |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-48060 |
GGL1#,GYL1#..JPP |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-48030C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55961-48030E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-48030E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55962-48030C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90159-50327 | ||||
| 90467-09218 | ||||
| 90467-10161 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||

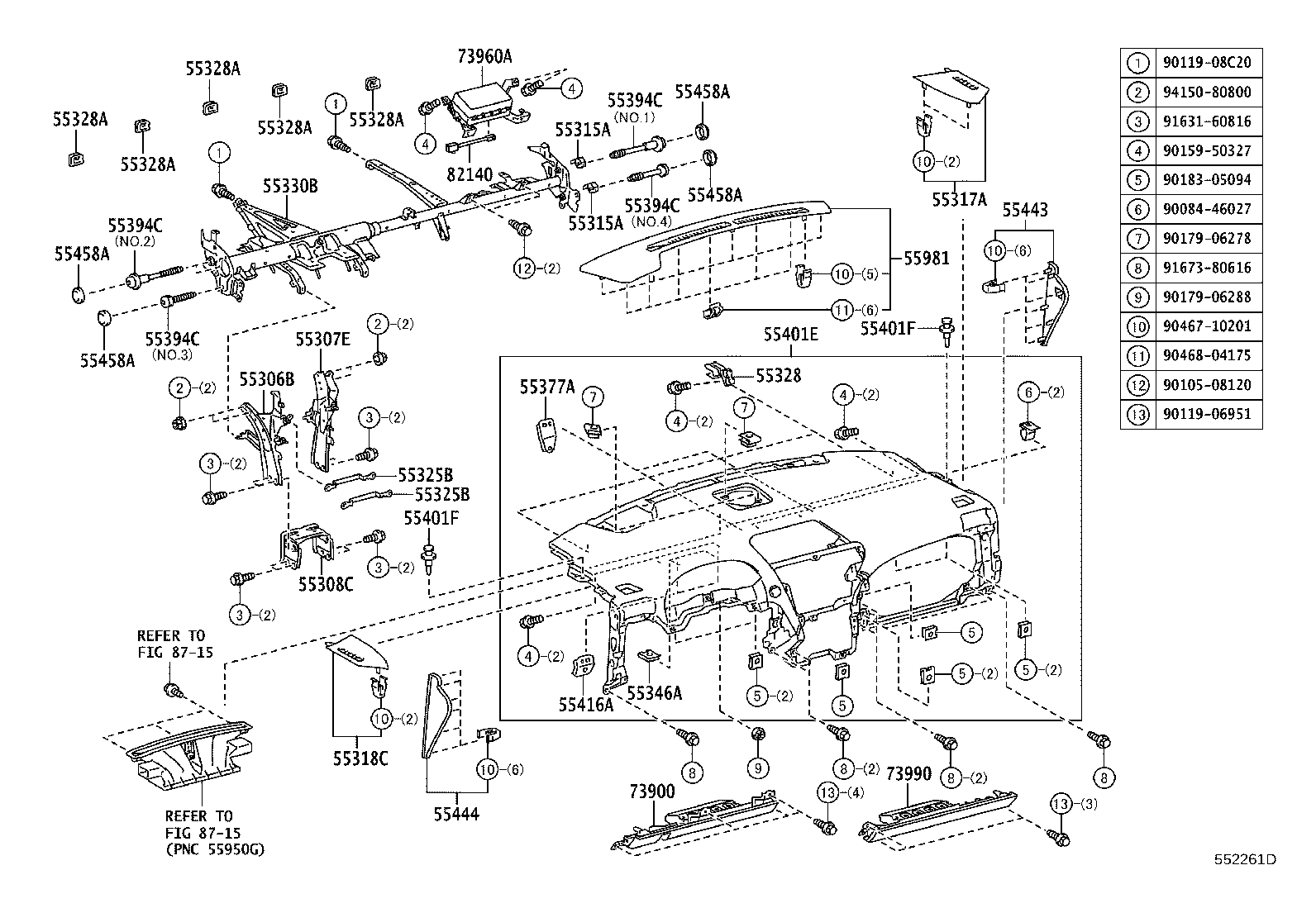

ILLUST NO. 1 OF 2(0812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-48120 |
GGL1#,GYL1#..JPP |
1 | ||
| 55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-48120 |
GGL1#,GYL1#..JPP |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-48080 |
GGL1#,GYL1#..JPP |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-48160 |
GGL1#,GYL1#..JPP |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-48160 |
GGL1#,GYL1#..JPP |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-48140C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55317-48140E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-48100C0 |
GGL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55318-48100E0 |
GGL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-48040 |
GGL1#,GYL1#..JPP |
2 | ||
| 55325-48040 |
GGL1#,GYL1#..JPP EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
2 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-48040 |
GGL1#,GYL1#..JPP |
2 | ||
| 55325-48040 |
GGL1#,GYL1#..JPP EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50160 |
GGL1#,GYL1#..JPP |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-48110 |
GGL1#,GYL1#..JPP |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-48110 |
GGL1#,GYL1#..JPP |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-48110 |
GGL1#,GYL1#..JPP |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-48110 |
GGL1#,GYL1#..JPP |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-48110 |
GGL1#,GYL1#..JPP |
5 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-48180 |
GGL1#,GYL1#..JPP |
1 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 55345-12060 |
GGL1#,GYL1#..JPP |
2 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-48070 |
GGL1#,GYL1#..JPP |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-48050 |
GGL1#,GYL1#..JPP NO.3 |
1 | ||
| 55394-48030 |
GGL1#,GYL1#..JPP NO.1 |
1 | ||
| 55394-48060 |
GGL1#,GYL1#..JPP NO.4 |
1 | ||
| 55394-48040 |
GGL1#,GYL1#..JPP NO.2 |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-48050 |
GGL1#,GYL1#..JPP NO.3 |
1 | ||
| 55394-48030 |
GGL1#,GYL1#..JPP NO.1 |
1 | ||
| 55394-48060 |
GGL1#,GYL1#..JPP NO.4 |
1 | ||
| 55394-48040 |
GGL1#,GYL1#..JPP NO.2 |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-48050 |
GGL1#,GYL1#..JPP NO.3 |
1 | ||
| 55394-48030 |
GGL1#,GYL1#..JPP NO.1 |
1 | ||
| 55394-48060 |
GGL1#,GYL1#..JPP NO.4 |
1 | ||
| 55394-48040 |
GGL1#,GYL1#..JPP NO.2 |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-48050 |
GGL1#,GYL1#..JPP NO.3 |
1 | ||
| 55394-48030 |
GGL1#,GYL1#..JPP NO.1 |
1 | ||
| 55394-48060 |
GGL1#,GYL1#..JPP NO.4 |
1 | ||
| 55394-48040 |
GGL1#,GYL1#..JPP NO.2 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-48120C0 |
GGL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55401-48120E0 |
GGL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
GGL1#,GYL1#..JPP |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
GGL1#,GYL1#..JPP |
2 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
GGL1#,GYL1#..JPP |
2 | ||
| 55443 - GARNISH, INSTRUMENT PANEL, RH | ||||
| 55443-48070C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55443-48070E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55444 - GARNISH, INSTRUMENT PANEL, LH | ||||
| 55444-48050E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55444-48050C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
GGL1#,GYL1#..JPP |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
GGL1#,GYL1#..JPP |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
GGL1#,GYL1#..JPP |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
GGL1#,GYL1#..JPP |
5 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-48040E0 |
GGL1#,GYL1#..JPP DK. BROWN,TRIM0# |
1 | ||
| 55981-48060E0 |
GGL1#,GYL15..JPP HEAD UP DISPLAY-WITH,DK. BROWN,TRIM0# |
1 | ||
| 55981-48040C0 |
GGL1#,GYL1#..JPP BLACK,TRIM1#,2# |
1 | ||
| 55981-48060C0 |
GGL1#,GYL15..JPP HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-48060A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 73900-48060C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 73900-48060B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-48060 |
GGL1#,GYL1#..JPP |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-48020A0 |
GGL1#,GYL1#..JPP IVORY,TRIM0# |
1 | ||
| 73990-48020B0 |
GGL1#..JPP LT.GRAY,TRIM1# |
1 | ||
| 73990-48020C0 |
GGL1#..JPP BLACK,TRIM2# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-48010 |
GGL1#,GYL1#..JPP |
1 | ||
| Common parts | ||||
| 90084-46027 | ||||
| 90105-08120 | ||||
| 90119-06951 | ||||
| 90119-08C20 | ||||
| 90159-50327 | ||||
| 90179-06278 | ||||
| 90179-06288 | ||||
| 90183-05094 | ||||
| 90467-10201 | ||||
| 90468-04175 | ||||
| 91631-60816 | ||||
| 91673-80616 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
