GGL10L-AWTGKA (2008)
Toyota Lexus Rx350/450h(Jpp
ILLUST NO. 2 OF 2(0812- )2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GGL1#..JPP MEXICO SPEC |
1 | ||
| 16261-31050 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16261-31050 |
2GRFE..GGL1#..JPP MEXICO SPEC&TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16261-31050 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31040 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16267-31040 |
2GRFE..GGL1#..JPP MEXICO SPEC&TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16267-31040 |
2GRFE..GGL1#..JPP MEXICO SPEC |
1 | ||
| 16267-31040 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-31030 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16321-31011 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31030 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16322-31020 |
2GRFE..GGL1#..JPP MEXICO SPEC |
1 | ||
| 16322-31010 |
2GRFE..GGL1#..JPP |
1 | ||
| 16322-31030 |
2GRFE..GGL1#..JPP MEXICO SPEC&TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-31040 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-31010 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31150 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16331-31140 |
2GRFE..GGL1#..JPP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GR#..GGL1#,GYL1#..JPP *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| Common parts | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||

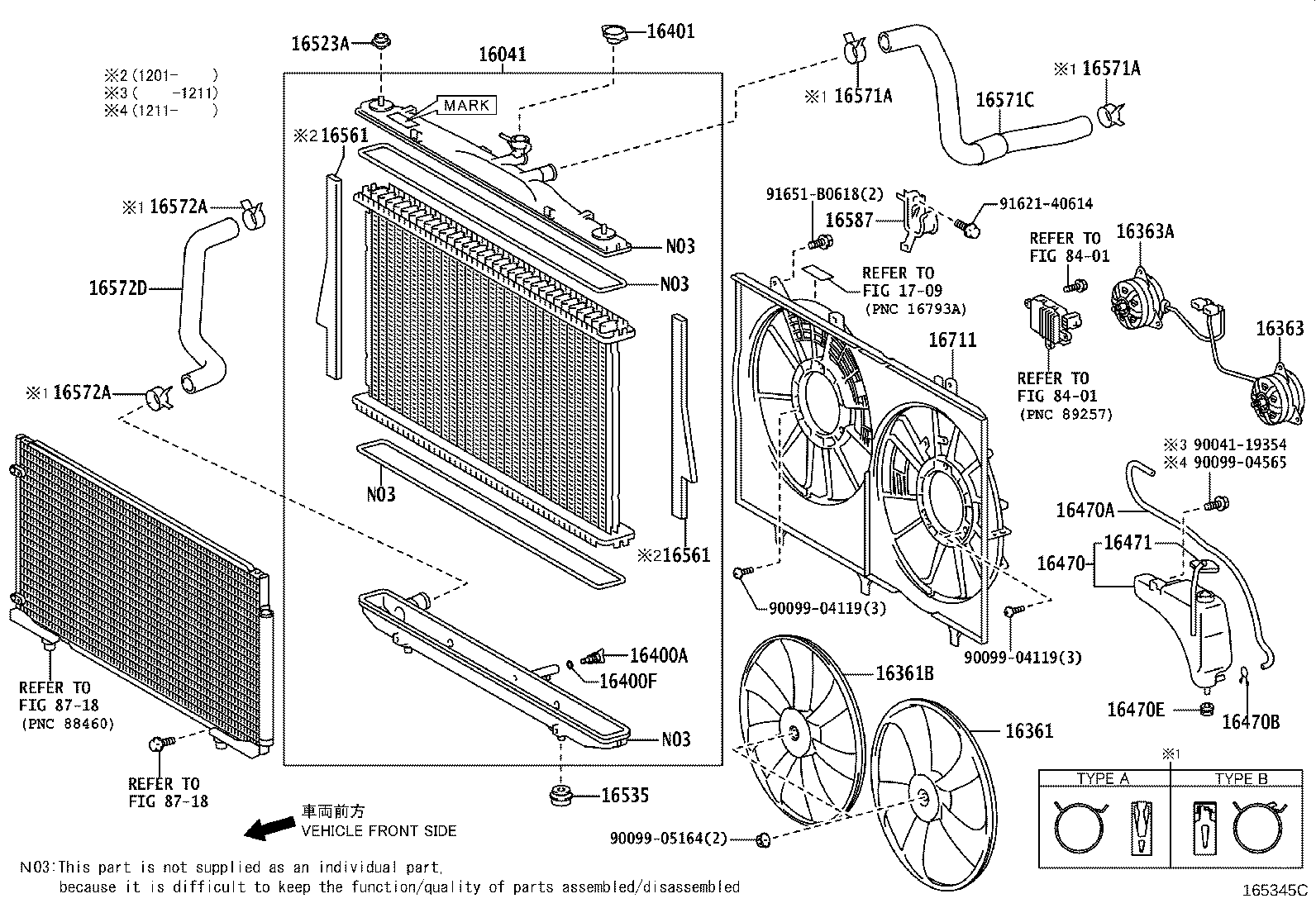

ILLUST NO. 1 OF 2(0812- )2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-31610 |
2GRFE..GGL1#..JPP |
1 | ||
| 16041-31670 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER),RADIATOR MARK=3167 |
1 | ||
| 16041-31660 |
2GRFE..GGL1#..JPP |
1 | ||
| 16041-31620 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER),RADIATOR MARK=3162 |
1 | ||
| 16361 - FAN | ||||
| 16361-31310 |
2GRFE..GGL1#..JPP |
1 | ||
| 16361-31280 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-31270 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16361-31320 |
2GRFE..GGL1#..JPP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-46170 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16363-20370 |
2GRFE..GGL1#..JPP |
1 | ||
| 16363-31330 |
2GRFE..GGL1#..JPP |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-31250 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16363-31160 |
2GRFE..GGL1#..JPP |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-21280 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31520 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16401-31480 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31110 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-31260 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
1 | ||
| 16377-31260 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-17028 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-31070 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31100 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
2 | ||
| 16561-31100 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
4 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31100 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
2 | ||
| 16561-31100 |
2GRFE..GGL1#..JPP TOWING PACKAGE-3500LBS(W/T.CONVERTER) |
4 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP TYPE A:REFER ILLUST. |
2 | ||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 96136-44301 |
2GR#..GGL1#,GYL1#..JPP TYPE B:REFER ILLUST. |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP TYPE A:REFER ILLUST. |
2 | ||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 96136-44301 |
2GR#..GGL1#,GYL1#..JPP TYPE B:REFER ILLUST. |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31260 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 96136-44301 |
2GR#..GGL1#,GYL1#..JPP TYPE B:REFER ILLUST. |
2 | ||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP TYPE A:REFER ILLUST. |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP |
2 | ||
| 96136-44301 |
2GR#..GGL1#,GYL1#..JPP TYPE B:REFER ILLUST. |
2 | ||
| 90466-35001 |
2GR#..GGL1#,GYL1#..JPP TYPE A:REFER ILLUST. |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31320 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16587 - CLAMP, RADIATOR PIPE | ||||
| 16587-31030 |
2GR#..GGL1#,GYL1#..JPP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-31440 |
2GRFE..GGL1#..JPP |
1 | ||
| Common parts | ||||
| 90041-19354 | ||||
| 90099-04119 | ||||
| 90099-04565 | ||||
| 90099-05164 | ||||
| 91621-40614 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||
