MCU38L-CWAGKA (2003)

Toyota Lexus Rx330/350(Nap)

Production Sep 2003 - Feb 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )NAP

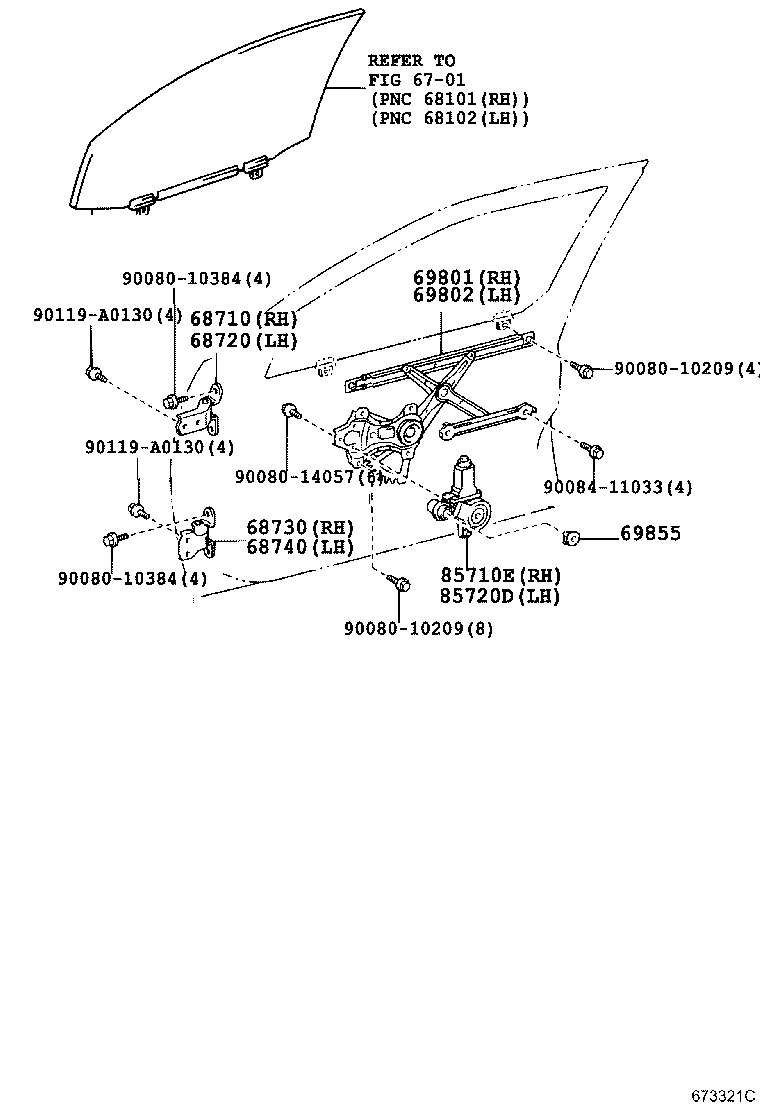

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 69855 85710E 85720D 9008010209 9008010209 9008010384 9008010384 9008014057 9008411033 90119A0130 90119A0130
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-AA020

MCU3#..NAP

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-AA020

MCU3#..NAP

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-AC010

MCU3#..NAP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-AC010

MCU3#..NAP

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0E010

MCU3#..NAP

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0E010

MCU3#..NAP

 1
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

MCU3#..NAP

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0E010

MCU3#..NAP

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-AE020

MCU3#..NAP

 1
Common parts
90080-10209
90080-10384
90080-14057
90084-11033
90119-A0130
Linked diagrams
6701
