MCU38L-CWAGKA (2003)
Toyota Lexus Rx330/350(Nap)
Production
Sep 2003
-
Feb 2006
Engine
3MZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0309- )NAP

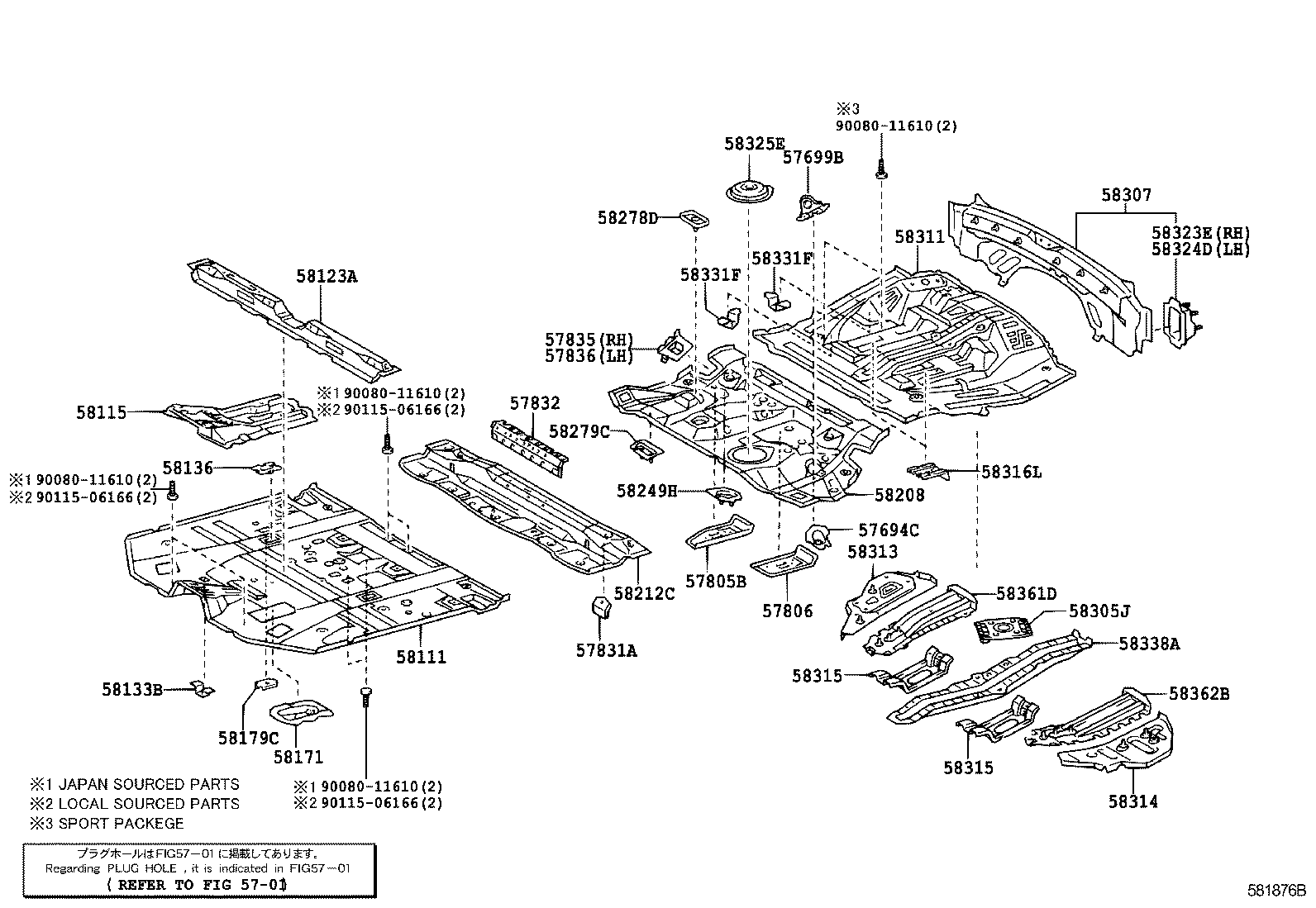

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH | ||||
| 57693-0E010 |
MCU3#..NAP |
1 | ||
| 57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3 | ||||
| 57699-0E010 |
MCU3#..NAP |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-0E010 |
MCU3#..NAP |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-0E010 |
MCU3#..NAP |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-0E010 |
MCU3#..NAP |
2 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-0E010 |
MCU3#..NAP |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-0E010 |
MCU3#..NAP |
1 | ||
| 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-0E010 |
MCU3#..NAP |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-0E900 |
MCU3#..NAP |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-0E010 |
MCU3#..NAP |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-0E010 |
MCU3#..NAP |
1 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-0E010 |
MCU3#..NAP |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-0E010 |
MCU3#..NAP |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-0E010 |
MCU3#..NAP |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-0E010 |
MCU3#..NAP |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-0E900 |
MCU3#..NAP |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-0E900 |
MCU3#..NAP |
1 | ||
| 58249H - BRACKET, CENTER FLOOR BOARD SUPPORT | ||||
| 58249-0E010 |
MCU3#..NAP |
1 | ||
| 58278D - PROTECTOR, FUEL TANK, UPPER | ||||
| 58278-0E010 |
MCU3#..NAP |
1 | ||
| 58279C - PROTECTOR, FUEL TANK, UPPER NO.2 | ||||
| 58279-0E010 |
MCU3#..NAP |
1 | ||
| 58305J - BRACKET, SPARE WHEEL CARRIER | ||||
| 58305-0E010 |
MCU3#..NAP |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0E030 |
MCU3#..NAP |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0E900 |
MCU3#..NAP |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-0E010 |
MCU3#..NAP |
1 | ||
| 58313-0E020 |
MCU3#..NAP SPORT PACKAGE |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-0E010 |
MCU3#..NAP |
1 | ||
| 58315 - EXTENSION, REAR FLOOR PANEL | ||||
| 58315-0E011 |
MCU3#..NAP |
1 | ||
| 58315 - EXTENSION, REAR FLOOR PANEL | ||||
| 58315-0E011 |
MCU3#..NAP |
1 | ||
| 58316L - EXTENSION, REAR FLOOR SIDE PANEL, REAR | ||||
| 58316-0E010 |
MCU3#..NAP |
1 | ||
| 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-0E030 |
MCU3#..NAP |
1 | ||
| 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-0E030 |
MCU3#..NAP |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-0E010 |
MCU3#..NAP |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-0E010 |
MCU3#..NAP |
2 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-0E010 |
MCU3#..NAP |
2 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58339-0E010 |
MCU3#..NAP |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58361-0E010 |
MCU3#..NAP |
1 | ||
| 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH | ||||
| 58362-0E010 |
MCU3#..NAP |
1 | ||
| Common parts | ||||
| 90080-11610 | ||||
| 90115-06166 | ||||
| Linked diagrams | ||||
| 5701 | ||||
