MCU38L-CWAGKA (2003)

Toyota Lexus Rx330/350(Nap)

Production Sep 2003 - Feb 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )NAP

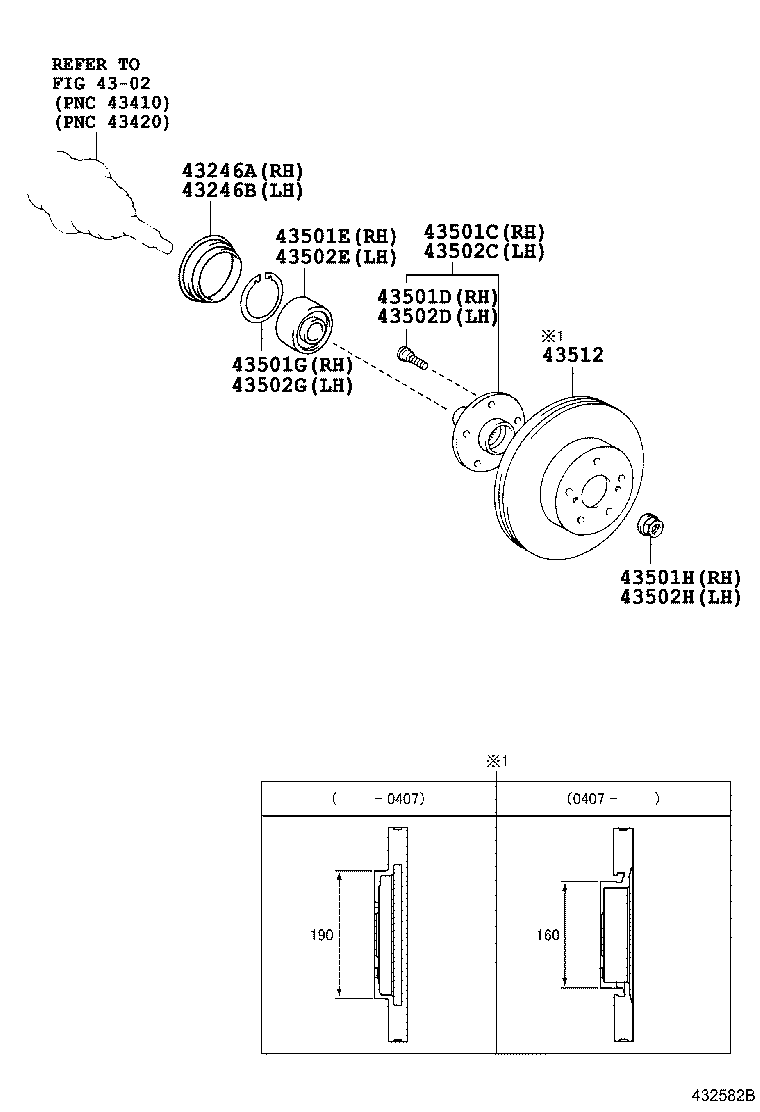

Click highlighted areas on diagram

diagram 4302 43246A 43246B 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512
Part # Description Qty Price
43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
43246-28020

MCU3#..NAP

 1
43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
43246-28020

MCU3#..NAP

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-08010

MCU3#..NAP

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

MCU3#..NAP

 5
43501E - BEARING (FOR FRONT AXLE HUB RH)
90080-36193

MCU3#..NAP

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90520-77001

MCU3#..NAP

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90080-17238

MCU3#..NAP

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-08010

MCU3#..NAP

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

MCU3#..NAP

 5
43502E - BEARING (FOR FRONT AXLE HUB LH)
90080-36193

MCU3#..NAP

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90520-77001

MCU3#..NAP

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90080-17238

MCU3#..NAP

 1
43512 - DISC, FRONT
43512-0E010

MCU3#..NAP

REFER ILLUST.

 2
43512-0E021

MCU3#..NAP

 2
43512-0E020

MCU3#..NAP

REFER ILLUST.

 2
Linked diagrams
4302
