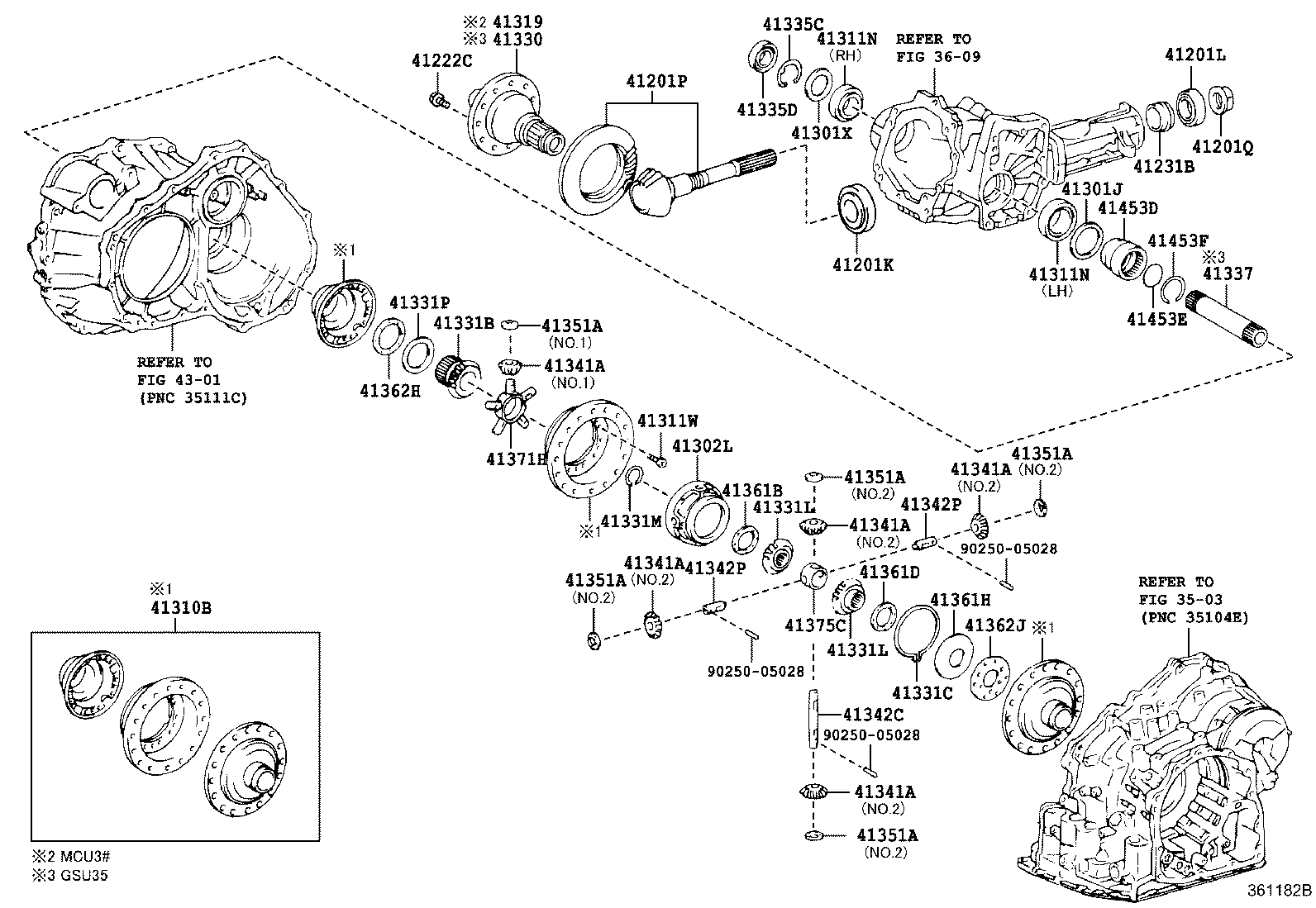

MCU38L-CWAGKA (2003)
Toyota Lexus Rx330/350(Nap)
(0309- )GSU35,MCU38..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41201K - BEARING (FOR TRANSFER DRIVEN PINION FRONT) | ||||
| 90366-40105 |
MCU38..NAP |
1 | ||
| 41201L - BEARING (FOR TRANSFER DRIVEN PINION REAR) | ||||
| 90366-35096 |
MCU38..NAP |
1 | ||
| 41201P - GEAR KIT, TRANSFER | ||||
| 41201-21040 |
MCU38..NAP |
1 | ||
| 41201Q - NUT (FOR TRANSFER GEAR) | ||||
| 90177-30001 |
MCU38..NAP |
1 | ||
| 41222C - BOLT (FOR TRANSFER RING GEAR) | ||||
| 90105-11043 |
MCU38..NAP |
12 | ||
| 41231B - SPACER, TRANSFER PINION BEARING | ||||
| 41231-21010 |
MCU38..NAP |
1 | ||
| 41301J - WASHER, PLATE(FOR RING GEAR MOUNTING CASE) | ||||
| 36265-21020 |
MCU38..NAP T=2.10,MARK AB |
1 | ||
| 36265-21100 |
MCU38..NAP T=2.34,MARK DA |
1 | ||
| 36265-21070 |
MCU38..NAP T=2.25,MARK CA |
1 | ||
| 36265-21110 |
MCU38..NAP T=2.37,MARK DB |
1 | ||
| 36265-21030 |
MCU38..NAP T=2.13,MARK AC |
1 | ||
| 36265-21050 |
MCU38..NAP T=2.19,MARK BB |
1 | ||
| 36265-21010 |
MCU38..NAP T=2.07,MARK AA |
1 | ||
| 36265-21140 |
MCU38..NAP T=2.46,MARK EB |
1 | ||
| 36265-21120 |
MCU38..NAP T=2.40,MARK DC |
1 | ||
| 36265-21060 |
MCU38..NAP T=2.22,MARK BC |
1 | ||
| 36265-21090 |
MCU38..NAP T=2.31,MARK CC |
1 | ||
| 36265-21080 |
MCU38..NAP T=2.28,MARK CB |
1 | ||
| 36265-21160 |
MCU38..NAP T=2.52,MARK FA |
1 | ||
| 36265-21150 |
MCU38..NAP T=2.49,MARK EC |
1 | ||
| 36265-21170 |
MCU38..NAP T=2.55,MARK FB |
1 | ||
| 36265-21040 |
MCU38..NAP T=2.16,MARK BA |
1 | ||
| 36265-21190 |
MCU38..NAP T=2.61,MARK GA |
1 | ||
| 36265-21200 |
MCU38..NAP T=2.64,MARK GB |
1 | ||
| 36265-21270 |
MCU38..NAP T=2.85,MARK JC |
1 | ||
| 36265-21240 |
MCU38..NAP T=2.76,MARK HC |
1 | ||
| 36265-21230 |
MCU38..NAP T=2.73,MARK HB |
1 | ||
| 36265-21220 |
MCU38..NAP T=2.70,MARK HA |
1 | ||
| 36265-21280 |
MCU38..NAP T=2.88,MARK KA |
1 | ||
| 36265-21130 |
MCU38..NAP T=2.43,MARK EA |
1 | ||
| 36265-21180 |
MCU38..NAP T=2.58,MARK FC |
1 | ||
| 36265-21250 |
MCU38..NAP T=2.79,MARK JA |
1 | ||
| 36265-21310 |
MCU38..NAP T=2.97,MARK LA |
1 | ||
| 36265-21320 |
MCU38..NAP T=3.00,MARK LB |
1 | ||
| 36265-21210 |
MCU38..NAP T=2.67,MARK GC |
1 | ||
| 36265-21290 |
MCU38..NAP T=2.91,MARK KB |
1 | ||
| 36265-21300 |
MCU38..NAP T=2.94,MARK KC |
1 | ||
| 36265-21260 |
MCU38..NAP T=2.82,MARK JB |
1 | ||
| 41301X - WASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2 | ||||
| 36266-21030 |
MCU38..NAP T=1.53,MARK AC |
1 | ||
| 36266-21010 |
MCU38..NAP T=1.47,MARK AA |
1 | ||
| 36266-21020 |
MCU38..NAP T=1.50,MARK AB |
1 | ||
| 36266-21090 |
MCU38..NAP T=1.71,MARK CC |
1 | ||
| 36266-21040 |
MCU38..NAP T=1.56,MARK BA |
1 | ||
| 36266-21070 |
MCU38..NAP T=1.65,MARK CA |
1 | ||
| 36266-21050 |
MCU38..NAP T=1.59,MARK BB |
1 | ||
| 36266-21080 |
MCU38..NAP T=1.68,MARK CB |
1 | ||
| 36266-21100 |
MCU38..NAP T=1.74,MARK DA |
1 | ||
| 36266-21140 |
MCU38..NAP T=1.86,MARK EB |
1 | ||
| 36266-21180 |
MCU38..NAP T=1.98,MARK FC |
1 | ||
| 36266-21230 |
MCU38..NAP T=2.13,MARK HB |
1 | ||
| 36266-21160 |
MCU38..NAP T=1.92,MARK FA |
1 | ||
| 36266-21060 |
MCU38..NAP T=1.62,MARK BC |
1 | ||
| 36266-21150 |
MCU38..NAP T=1.89,MARK EC |
1 | ||
| 36266-21190 |
MCU38..NAP T=2.01,MARK GA |
1 | ||
| 36266-21110 |
MCU38..NAP T=1.77,MARK DB |
1 | ||
| 36266-21170 |
MCU38..NAP T=1.95,MARK FB |
1 | ||
| 36266-21250 |
MCU38..NAP T=2.19,MARK JA |
1 | ||
| 36266-21220 |
MCU38..NAP T=2.10,MARK HA |
1 | ||
| 36266-21260 |
MCU38..NAP T=2.22,MARK JB |
1 | ||
| 36266-21300 |
MCU38..NAP T=2.34,MARK KC |
1 | ||
| 36266-21240 |
MCU38..NAP T=2.16,MARK HC |
1 | ||
| 36266-21210 |
MCU38..NAP T=2.07,MARK GC |
1 | ||
| 36266-21310 |
MCU38..NAP T=2.37,MARK LA |
1 | ||
| 36266-21200 |
MCU38..NAP T=2.04,MARK GB |
1 | ||
| 36266-21320 |
MCU38..NAP T=2.40,MARK LB |
1 | ||
| 36266-21360 |
MCU38..NAP T=2.52,MARK MC |
1 | ||
| 36266-21370 |
MCU38..NAP T=2.55,MARK NA |
1 | ||
| 36266-21380 |
MCU38..NAP T=2.58,MARK NB |
1 | ||
| 36266-21280 |
MCU38..NAP T=2.28,MARK KA |
1 | ||
| 36266-21270 |
MCU38..NAP T=2.25,MARK JC |
1 | ||
| 36266-21340 |
MCU38..NAP T=2.46,MARK MA |
1 | ||
| 36266-21350 |
MCU38..NAP T=2.49,MARK MB |
1 | ||
| 36266-21290 |
MCU38..NAP T=2.31,MARK KB |
1 | ||
| 36266-21130 |
MCU38..NAP T=1.83,MARK EA |
1 | ||
| 36266-21330 |
MCU38..NAP T=2.43,MARK LC |
1 | ||
| 36266-21120 |
MCU38..NAP T=1.80,MARK DC |
1 | ||
| 41302L - CASE SUB-ASSY, DIFFERENTIAL, NO.2 | ||||
| 41302-21010 |
MCU38..NAP |
1 | ||
| 41310B - GEAR ASSY, CENTER DIFFERENTIAL PLANETARY | ||||
| 41310-21020 |
MCU38..NAP |
1 | ||
| 41311N - BEARING, TAPERED ROLLER (FOR CENTER DIFFERENTIAL CASE) | ||||
| 90366-48002 |
MCU38..NAP LH |
1 | ||
| 90366-38020 |
MCU38..NAP RH |
1 | ||
| 41311N - BEARING, TAPERED ROLLER (FOR CENTER DIFFERENTIAL CASE) | ||||
| 90366-48002 |
MCU38..NAP LH |
1 | ||
| 90366-38020 |
MCU38..NAP RH |
1 | ||
| 41311W - SCREW | ||||
| 90149-10006 |
MCU38..NAP |
15 | ||
| 41319 - CASE, TRANSFER RING GEAR MOUNTING | ||||
| 41319-45010 |
MCU38..NAP |
1 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-21030 |
MCU38..NAP |
1 | ||
| 41331C - RING, SHAFT SNAP(FOR PINION SHAFT SPACER) | ||||
| 90520-86002 |
MCU38..NAP |
1 | ||
| 41331L - GEAR, CENTER DIFFERENTIAL PLANETARY RING | ||||
| 41331-20020 |
MCU38..NAP |
2 | ||
| 41331L - GEAR, CENTER DIFFERENTIAL PLANETARY RING | ||||
| 41331-20020 |
MCU38..NAP |
2 | ||
| 41331M - RING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING | ||||
| 90521-36004 |
MCU38..NAP |
1 | ||
| 41331P - WASHER, CONICAL SPRING | ||||
| 90208-54001 |
MCU38..NAP |
1 | ||
| 41335C - RING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER) | ||||
| 90521-55004 |
MCU38..NAP |
1 | ||
| 41335D - BEARING (FOR SIDE GEAR SHAFT HOLDER) | ||||
| 90363-28012 |
MCU38..NAP |
1 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-20020 |
MCU38..NAP NO.1 |
5 | ||
| 41341-20030 |
MCU38..NAP NO.2 |
4 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-20020 |
MCU38..NAP NO.1 |
5 | ||
| 41341-20030 |
MCU38..NAP NO.2 |
4 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-20020 |
MCU38..NAP NO.1 |
5 | ||
| 41341-20030 |
MCU38..NAP NO.2 |
4 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-20020 |
MCU38..NAP NO.1 |
5 | ||
| 41341-20030 |
MCU38..NAP NO.2 |
4 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-20020 |
MCU38..NAP NO.1 |
5 | ||
| 41341-20030 |
MCU38..NAP NO.2 |
4 | ||
| 41342C - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-20030 |
MCU38..NAP |
1 | ||
| 41342P - SHAFT, DIFFERENTIAL PINION | ||||
| 41342-20040 |
MCU38..NAP |
2 | ||
| 41342P - SHAFT, DIFFERENTIAL PINION | ||||
| 41342-20040 |
MCU38..NAP |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-20020 |
MCU38..NAP NO.2 |
4 | ||
| 41351-20010 |
MCU38..NAP NO.1 |
5 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-20020 |
MCU38..NAP NO.2 |
4 | ||
| 41351-20010 |
MCU38..NAP NO.1 |
5 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-20020 |
MCU38..NAP NO.2 |
4 | ||
| 41351-20010 |
MCU38..NAP NO.1 |
5 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-20020 |
MCU38..NAP NO.2 |
4 | ||
| 41351-20010 |
MCU38..NAP NO.1 |
5 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-20020 |
MCU38..NAP NO.2 |
4 | ||
| 41351-20010 |
MCU38..NAP NO.1 |
5 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12380 |
MCU38..NAP T=1.20,MARK F |
2 | ||
| 41361-12350 |
MCU38..NAP T=1.05,MARK C |
2 | ||
| 41361-12360 |
MCU38..NAP T=1.10,MARK D |
2 | ||
| 41361-12340 |
MCU38..NAP T=1.00,MARK B |
2 | ||
| 41361-12390 |
MCU38..NAP T=1.25,MARK G |
2 | ||
| 41361-12370 |
MCU38..NAP T=1.15,MARK E |
2 | ||
| 41361D - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-12360 |
MCU38..NAP T=1.10,MARK D |
2 | ||
| 41361-12380 |
MCU38..NAP T=1.20,MARK F |
2 | ||
| 41361-12340 |
MCU38..NAP T=1.00,MARK B |
2 | ||
| 41361-12350 |
MCU38..NAP T=1.05,MARK C |
2 | ||
| 41361-12400 |
MCU38..NAP T=1.30,MARK H |
1 | ||
| 41361-12390 |
MCU38..NAP T=1.25,MARK G |
2 | ||
| 41361-12370 |
MCU38..NAP T=1.15,MARK E |
2 | ||
| 41361-12330 |
MCU38..NAP T=0.95,MARK A |
1 | ||
| 41361-12420 |
MCU38..NAP T=1.40,MARK K |
1 | ||
| 41361-12410 |
MCU38..NAP T=1.35,MARK J |
1 | ||
| 41361H - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-36001 |
MCU38..NAP |
1 | ||
| 41362H - WASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, LH | ||||
| 41362-21050 |
MCU38..NAP T=1.00,MARK ME |
1 | ||
| 41362-21020 |
MCU38..NAP T=0.85,MARK MB |
1 | ||
| 41362-21040 |
MCU38..NAP T=0.95,MARK MD |
1 | ||
| 41362-21120 |
MCU38..NAP T=1.35,MARK MM |
1 | ||
| 41362-21010 |
MCU38..NAP T=0.08,MARK MA |
1 | ||
| 41362-21060 |
MCU38..NAP T=1.05,MARK MF |
1 | ||
| 41362-21030 |
MCU38..NAP T=0.90,MARK MC |
1 | ||
| 41362-21100 |
MCU38..NAP T=1.25,MARK MK |
1 | ||
| 41362-21080 |
MCU38..NAP T=1.15,MARK MH |
1 | ||
| 41362-21130 |
MCU38..NAP T=1.40,MARK MN |
1 | ||
| 41362-21110 |
MCU38..NAP T=1.30,MARK ML |
1 | ||
| 41362-21090 |
MCU38..NAP T=1.20,MARK MJ |
1 | ||
| 41362-21070 |
MCU38..NAP T=1.10,MARK MG |
1 | ||
| 41362J - WASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, RH | ||||
| 41362-20020 |
MCU38..NAP T=0.80,MARK O |
1 | ||
| 41362-20030 |
MCU38..NAP T=0.85,MARK 1 |
1 | ||
| 41362-20090 |
MCU38..NAP T=1.15,MARK 7 |
1 | ||
| 41362-20100 |
MCU38..NAP T=1.20,MARK 8 |
1 | ||
| 41362-20080 |
MCU38..NAP T=1.10,MARK 6 |
1 | ||
| 41362-20050 |
MCU38..NAP T=0.95,MARK 3 |
1 | ||
| 41362-20070 |
MCU38..NAP T=1.05,MARK 5 |
1 | ||
| 41362-20140 |
MCU38..NAP T=1.40,MARK C |
1 | ||
| 41362-20110 |
MCU38..NAP T=1.25,MARK 9 |
1 | ||
| 41362-20120 |
MCU38..NAP T=1.30,MARK A |
1 | ||
| 41362-20060 |
MCU38..NAP T=1.00,MARK 4 |
1 | ||
| 41362-20040 |
MCU38..NAP T=0.90,MARK 2 |
1 | ||
| 41362-20130 |
MCU38..NAP T=1.35,MARK B |
1 | ||
| 41371H - SPIDER, DIFFERENTIAL | ||||
| 41371-20030 |
MCU38..NAP |
1 | ||
| 41375C - HOLDER, CENTER DIFFERENTIAL PINION SHAFT | ||||
| 41375-20020 |
MCU38..NAP |
1 | ||
| 41453D - SLEEVE, CENTER DIFFERENTIAL LOCK | ||||
| 41453-21010 |
MCU38..NAP |
1 | ||
| 41453E - RING, O | ||||
| 90301-44003 |
MCU38..NAP |
1 | ||
| 41453F - RING, SHAFT SNAP | ||||
| 90520-48008 |
MCU38..NAP |
1 | ||
| Common parts | ||||
| 90250-05028 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 3503 | ||||
| 3609 | ||||
| 4301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
