MCU38L-CWAGKA (2003)
Toyota Lexus Rx330/350(Nap)
Production
Sep 2003
-
Feb 2006
Engine
3MZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0309-0602)NAP

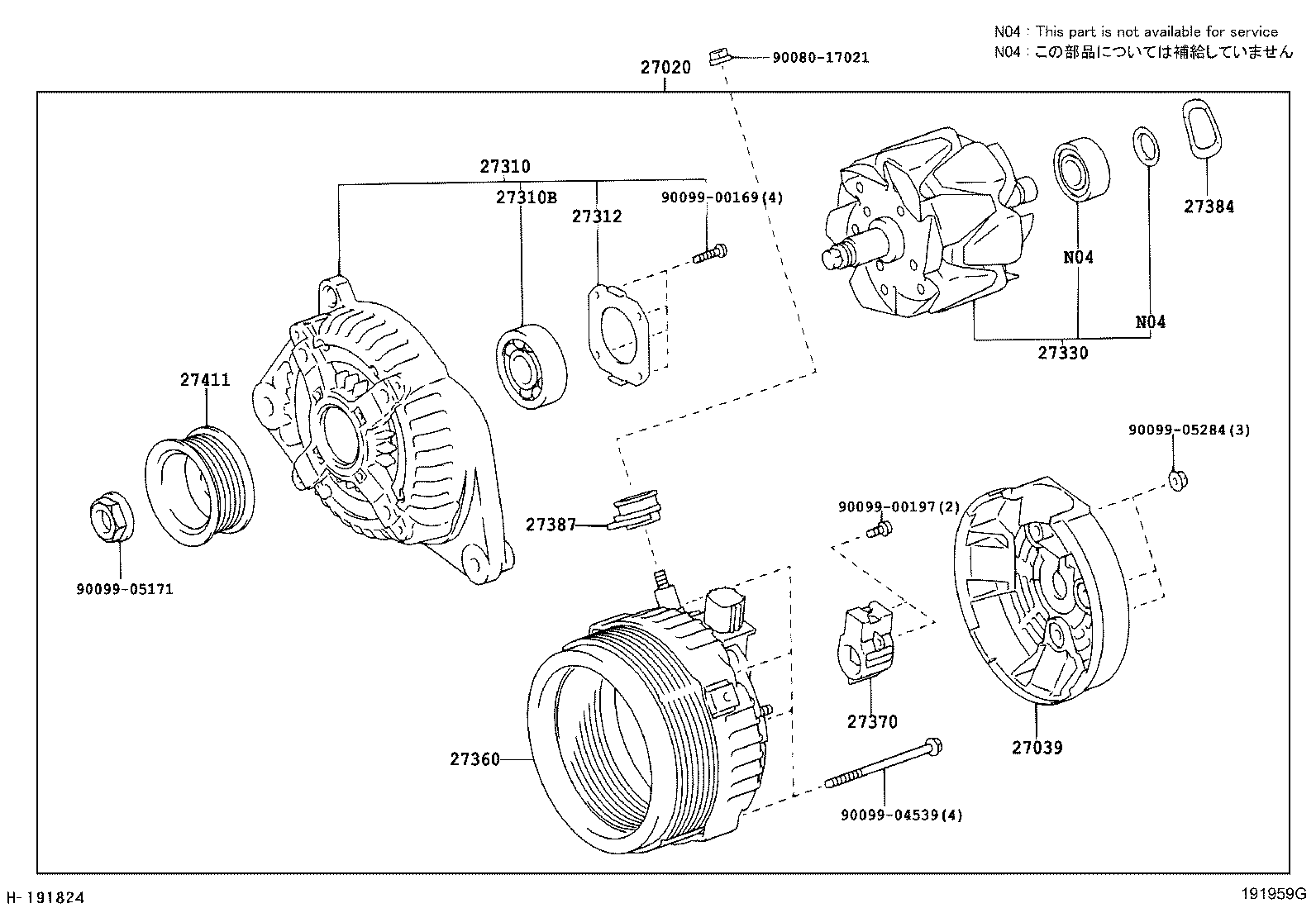

Click highlighted areas on diagram
12V 100A,130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0A130 |
3MZFE..MCU3#..NAP 12V 130A,TOWING PACKAGE-3500LBS |
1 | ||
| 27060-0A120 |
3MZFE..MCU3#..NAP 12V 100A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0A110 |
3MZFE..MCU3#..NAP |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0A110 |
3MZFE..MCU3#..NAP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10142 |
3MZFE..MCU3#..NAP |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3MZFE..MCU3#..NAP |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0A100 |
3MZFE..MCU3#..NAP TOWING PACKAGE-3500LBS |
1 | ||
| 27330-0F060 |
3MZFE..MCU3#..NAP |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0A130 |
3MZFE..MCU3#..NAP TOWING PACKAGE-3500LBS |
1 | ||
| 27360-0A120 |
3MZFE..MCU3#..NAP |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0F060 |
3MZFE..MCU3#..NAP |
1 | ||
| 27384 - WASHER | ||||
| 27384-0A020 |
3MZFE..MCU3#..NAP |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-0F060 |
3MZFE..MCU3#..NAP |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0A050 |
3MZFE..MCU3#..NAP |
1 | ||
| Common parts | ||||
| 90080-17021 | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
