MCU33L-CWAGKA (2003)
Toyota Lexus Rx330/350(Nap)

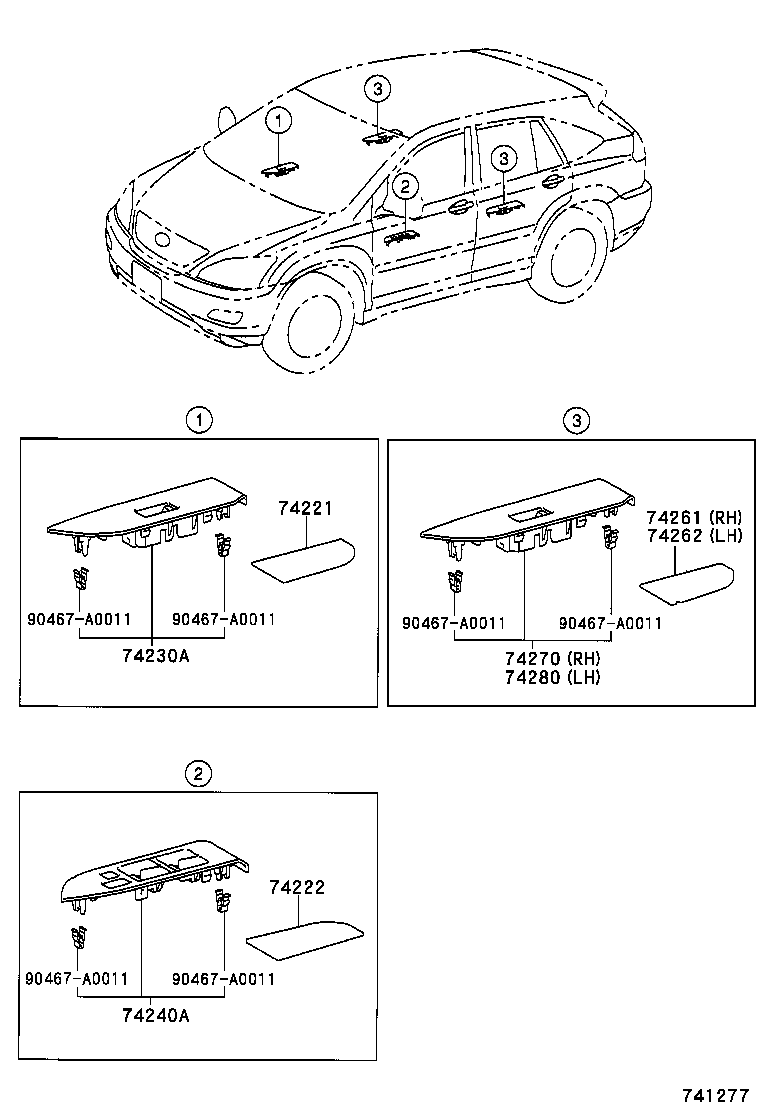

ILLUST NO. 1 OF 2(0309- )NAP
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-0E010 |
MCU3#..NAP |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-0E010 |
MCU3#..NAP |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-0E010 |
MCU3#..NAP |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-0E010 |
MCU3#..NAP |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74261-0E010 |
MCU3#..NAP |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74262-0E010 |
MCU3#..NAP |
1 | ||
| 74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH | ||||
| 74270-0E010 |
MCU3#..NAP |
1 | ||
| 74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH | ||||
| 74280-0E010 |
MCU3#..NAP |
1 | ||
| Common parts | ||||
| 90467-A0011 | ||||

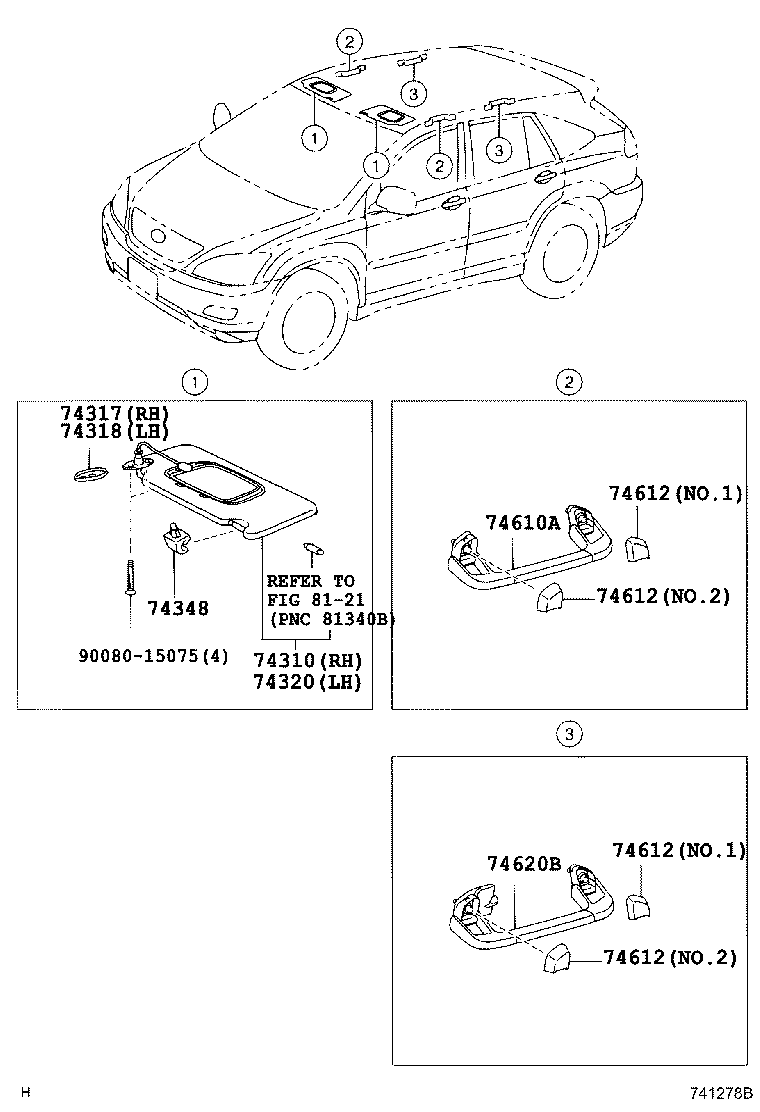

ILLUST NO. 2 OF 2(0309- )NAP
VISOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0E011B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2# |
1 | ||
| 74310-0E011A0 |
MCU3#..NAP IVORY,TRIM0# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-50010A0 |
MCU3#..NAP IVORY,TRIM0# |
1 | ||
| 74317-50010B1 |
MCU3#..NAP LT.GRAY,TRIM1#,2# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-50010B1 |
MCU3#..NAP LT.GRAY,TRIM1#,2# |
1 | ||
| 74317-50010A0 |
MCU3#..NAP IVORY,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0E011A0 |
MCU3#..NAP IVORY,TRIM0# |
1 | ||
| 74320-0E011B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2# |
2 | ||
| 74348-12040A0 |
MCU3#..NAP IVORY,TRIM0# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0E010A0 |
MCU3#..NAP IVORY,TRIM0# |
2 | ||
| 74610-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.1 |
4 | ||
| 74612-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.2 |
4 | ||
| 74611-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.1 |
4 | ||
| 74612-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.2 |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.1 |
4 | ||
| 74612-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.2 |
4 | ||
| 74611-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.1 |
4 | ||
| 74612-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.2 |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.1 |
4 | ||
| 74612-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.2 |
4 | ||
| 74611-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.1 |
4 | ||
| 74612-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.2 |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.1 |
4 | ||
| 74612-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,NO.2 |
4 | ||
| 74611-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.1 |
4 | ||
| 74612-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,NO.2 |
4 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-0E010A0 |
MCU3#..NAP IVORY,TRIM0#,RH |
1 | ||
| 74620-0E020A0 |
MCU3#..NAP IVORY,TRIM0#,LH |
1 | ||
| 74620-0E020B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,LH |
1 | ||
| 74620-0E010B0 |
MCU3#..NAP LT.GRAY,TRIM1#,2#,RH |
1 | ||
| Common parts | ||||
| 90080-15075 | ||||
| Linked diagrams | ||||
| 8121 | ||||
