MCU33L-CWAGKA (2003)

Toyota Lexus Rx330/350(Nap)

Production Sep 2003 - Feb 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )NAP

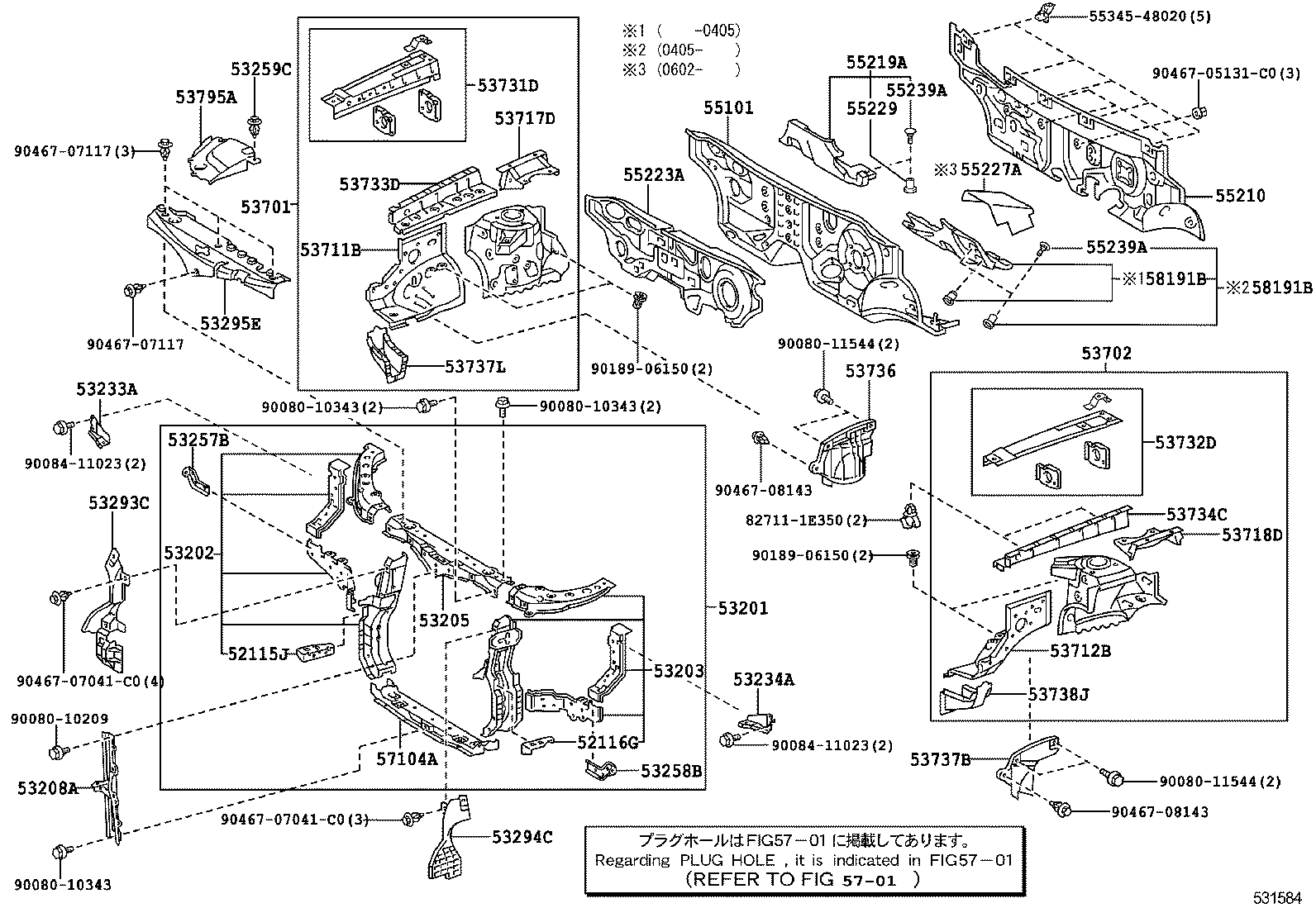

Click highlighted areas on diagram

diagram 52115J 52116G 53201 53202 53203 53205 53208A 53233A 53234A 53257B 53258B 53259C 53293C 53294C 53295E 53701 53702 53711B 53712B 53717D 53718D 53731D 53732D 53733D 53734C 53736 53737B 53737L 53738J 53795A 55101 55210 55219A 55223A 55227A 55229 55239A 55239A 5534548020 5701 57104A 58191B 58191B 827111E350 9008010209 9008010343 9008010343 9008010343 9008011544 9008011544 9008411023 9008411023 9018906150 9018906150 9046705131C0 9046707041C0 9046707041C0 9046707117 9046707117 9046708143 9046708143
Part # Description Qty Price
52115J - SUPPORT, FRONT BUMPER SIDE, RH
52115-0E010

MCU3#..NAP

 1
52116G - SUPPORT, FRONT BUMPER SIDE, LH
52116-0E010

MCU3#..NAP

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-0E011

MCU3#..NAP

 1
53201-0E010

MCU3#..NAP

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0E010

MCU3#..NAP

 1
53202-0E011

MCU3#..NAP

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0E010

MCU3#..NAP

 1
53203-0E011

MCU3#..NAP

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0E010

MCU3#..NAP

 1
53205-0E010

MCU3#..NAP

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-0E010

MCU3#..NAP

 1
53233A - BRACKET, HEADLAMP, NO.1 RH
53233-48010

MCU3#..NAP

HEAD LAMP-DISCHARGE & W(AFS)

 1
53233-48010

MCU3#..NAP

 1
53234A - BRACKET, HEADLAMP, NO.1 LH
53234-48010

MCU3#..NAP

HEAD LAMP-DISCHARGE & W(AFS)

 1
53234-48010

MCU3#..NAP

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-0E010

MCU3#..NAP

 1
53257-0E010

MCU3#..NAP

 1
53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258-0E010

MCU3#..NAP

 1
53258-0E010

MCU3#..NAP

 1
53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL
53259-0E010

MCU3#..NAP

 4
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-0E010

MCU3#..NAP

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-0E010

MCU3#..NAP

 1
53295E - SEAL, COOL AIR INTAKE DUCT
53295-0E010

MCU3#..NAP

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0E010

MCU3#..NAP

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0E010

MCU3#..NAP

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-0E010

MCU3#..NAP

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-0E010

MCU3#..NAP

 1
53717D - GUSSET, FENDER APRON, RH
53717-0E010

MCU3#..NAP

 1
53718D - GUSSET, FENDER APRON, LH
53718-0E010

MCU3#..NAP

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-0E900

MCU3#..NAP

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-0E900

MCU3#..NAP

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-0E010

MCU3#..NAP

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-0E010

MCU3#..NAP

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-06030

MCU3#..NAP

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-06040

MCU3#..NAP

 1
53737L - GUSSET, FRONT FENDER APRON WIND GUIDE, RH
53737-0E010

MCU3#..NAP

 1
53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH
53738-0E010

MCU3#..NAP

 1
53795A - COVER, ENGINE ROOM, SIDE
53795-0E010

MCU3#..NAP

 1
55101 - PANEL SUB-ASSY, DASH
55101-0E010

MCU3#..NAP

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0E010

MCU3#..NAP

 1
55219A - PACKING, DASH PANEL HOLE COVER
55219-0E010

MCU3#..NAP

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-0E010

MCU3#..NAP

 1
55229 - PLATE, DASH PANEL INSULATOR, NO.4
55229-48010

MCU3#..NAP

 1
55229-48010

MCU3#..NAP

 1
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-48020

MCU3#..NAP

 2
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-48020

MCU3#..NAP

 2
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-0E010

MCU3#..NAP

 1
57104-0E010

MCU3#..NAP

 1
58191B - FOOTREST, FRONT FLOOR
58191-0E011

MCU3#..NAP

 1
58191-0E010

MCU3#..NAP

 1
58191B - FOOTREST, FRONT FLOOR
58191-0E011

MCU3#..NAP

 1
58191-0E010

MCU3#..NAP

 1
Common parts
55345-48020
82711-1E350
90080-10209
90080-10343
90080-11544
90084-11023
90189-06150
90467-05131C0
90467-07041C0
90467-07117
90467-08143
Linked diagrams
5701
