MCU33L-CWAGKA (2003)

Toyota Lexus Rx330/350(Nap)

Production Sep 2003 - Feb 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )NAP

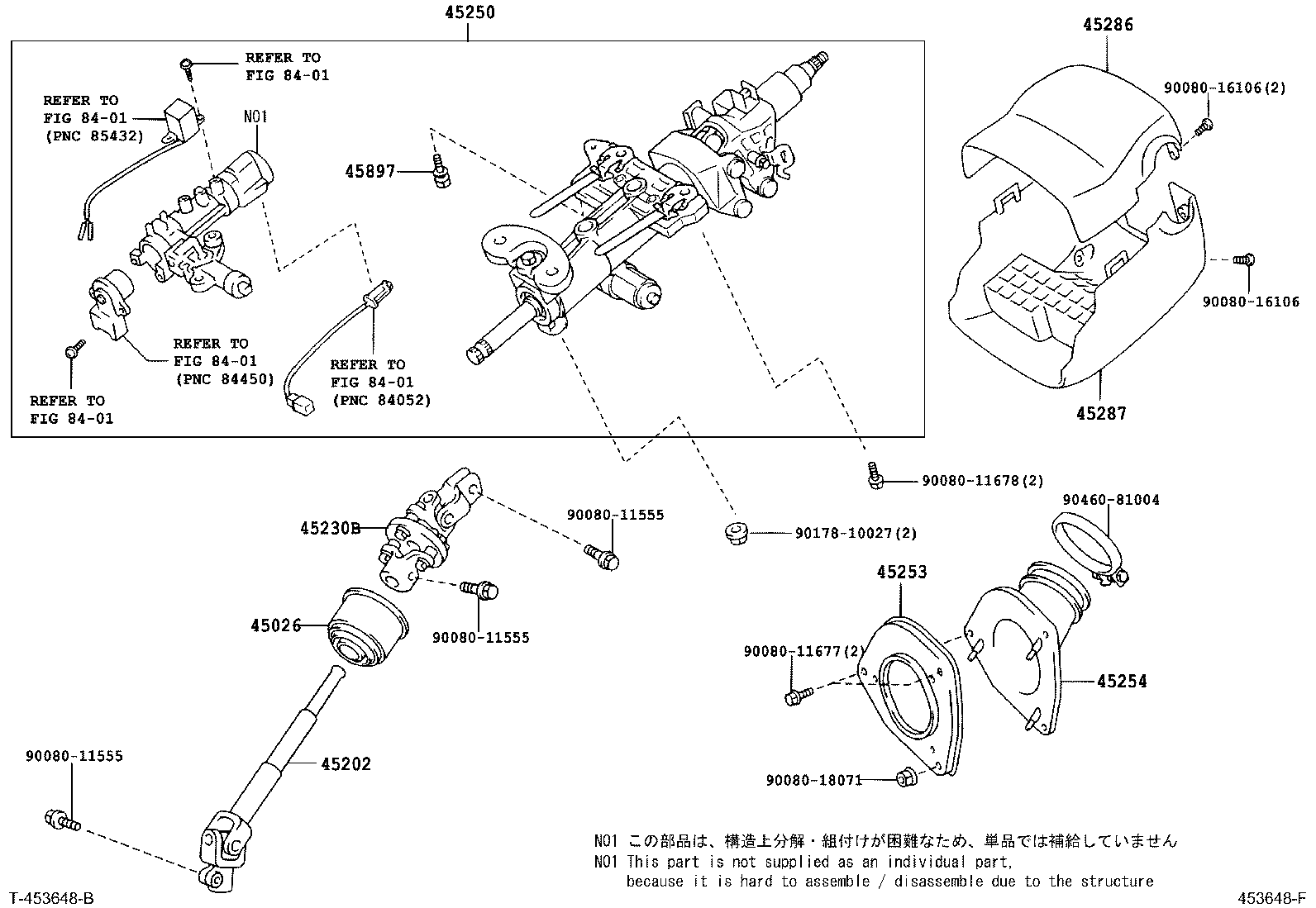

Click highlighted areas on diagram

diagram 45026 45202 45230B 45250 45253 45254 45286 45287 45897 8401 8401 8401 8401 8401 9008011555 9008011555 9008011555 9008011677 9008011678 9008016106 9008016106 9008018071 9017810027 9046081004
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-0E020

MCU3#..NAP

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-0E010

MCU3#..NAP

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-0E010

MCU3#..NAP

 1
45250 - COLUMN ASSY, STEERING
45250-0E010

MCU3#..NAP

 1
45253 - COVER, STEERING COLUMN HOLE
45253-0E010

MCU3#..NAP

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-0E010

MCU3#..NAP

 1
45286 - COVER, STEERING COLUMN
45286-0E010C0

MCU3#..NAP

BLACK,TRIM1#,2#

 1
45286-0E010E0

MCU3#..NAP

SANDAL WOOD,TRIM0#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0E010E0

MCU3#..NAP

SANDAL WOOD,TRIM0#

 1
45287-0E010C0

MCU3#..NAP

BLACK,TRIM1#,2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

MCU3#..NAP

 2
Common parts
90080-11555
90080-11677
90080-11678
90080-16106
90080-18071
90178-10027
90460-81004
Linked diagrams
8401
