MCU33L-CWAGKA (2003)

Toyota Lexus Rx330/350(Nap)

Production Sep 2003 - Feb 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )3MZFE..NAP

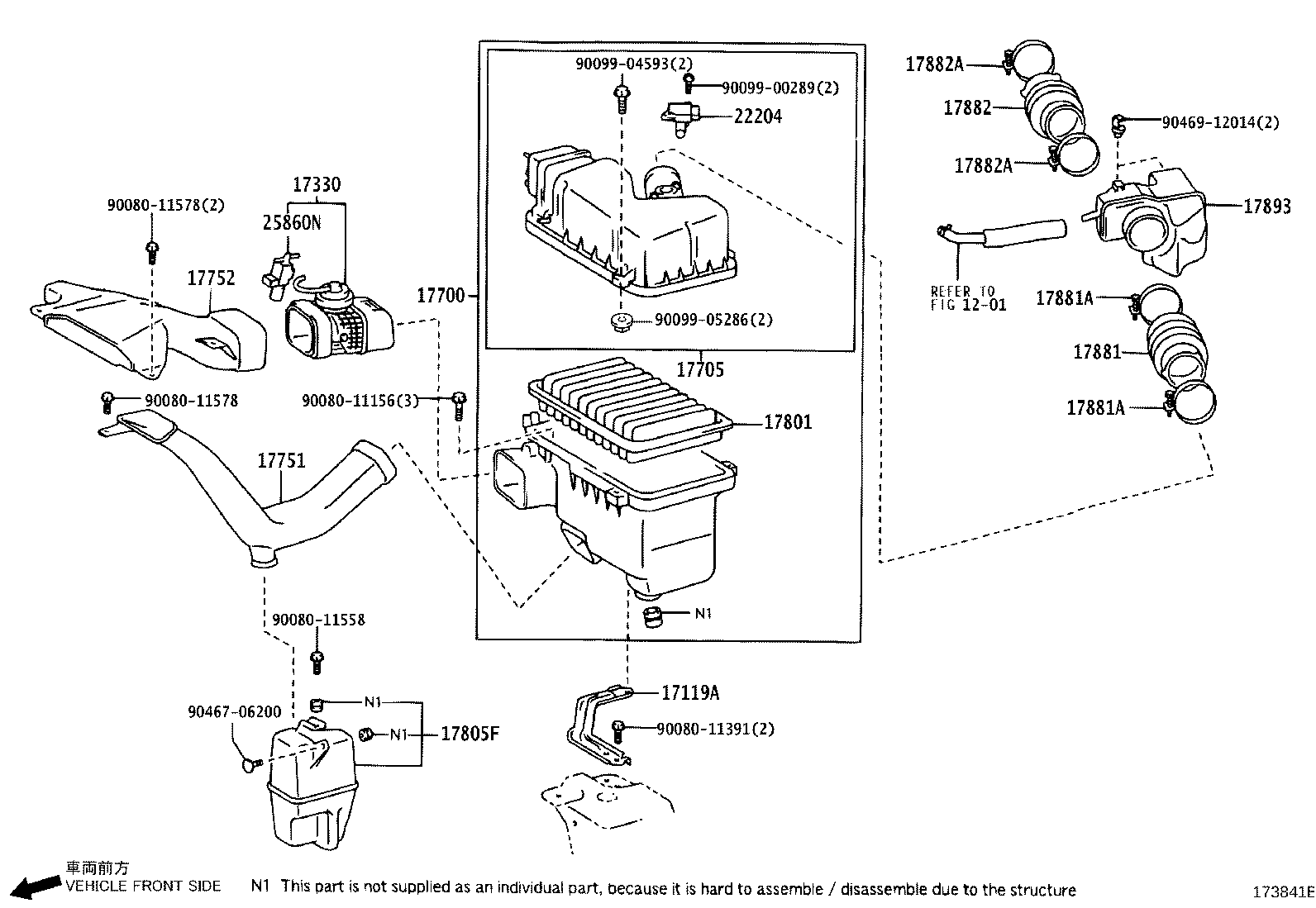

diagram 1201 17119A 17330 17700 17705 17751 17752 17801 17805F 17881 17881A 17881A 17882 17882A 17882A 17893 22204 25860N 9008011156 9008011391 9008011558 9008011578 9008011578 9009900289 9009904593 9009905286 9046706200 9046912014
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-0A010

3MZFE..MCU3#..NAP

 1
17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3
17330-0A010

3MZFE..MCU3#..NAP

 1
17700 - CLEANER ASSY, AIR
17700-0A210

3MZFE..MCU3#..NAP

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0A170

3MZFE..MCU3#..NAP

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0A020

3MZFE..MCU3#..NAP

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0A030

3MZFE..MCU3#..NAP

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0H010

3MZFE..MCU3#..NAP

 1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-0A051

3MZFE..MCU3#..NAP

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-AA020

3MZFE..MCU3#..NAP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10880

3MZFE..MCU3#..NAP

 4
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10880

3MZFE..MCU3#..NAP

 4
17882 - HOSE, AIR CLEANER, NO.2
17882-AA020

3MZFE..MCU3#..NAP

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10880

3MZFE..MCU3#..NAP

 4
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10880

3MZFE..MCU3#..NAP

 4
17893 - RESONATOR, INTAKE AIR
17893-0A100

3MZFE..MCU3#..NAP

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0D030

3MZFE..MCU3#..NAP

 1
25860N - VALVE ASSY, VACUUM SWITCHING
25860-0A010

3MZFE..MCU3#..NAP

 1
Common parts
90080-11156 None epc.PartDetail.None
90080-11391 None epc.PartDetail.None
90080-11558 None epc.PartDetail.None
90080-11578 None epc.PartDetail.None
90099-00289 None epc.PartDetail.None
90099-04593 None epc.PartDetail.None
90099-05286 None epc.PartDetail.None
90467-06200 None epc.PartDetail.None
90469-12014 None epc.PartDetail.None
Linked diagrams
1201
