MCU33L-CWAGKA (2003)

Toyota Lexus Rx330/350(Nap)

Production Sep 2003 - Feb 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )3MZFE..NAP

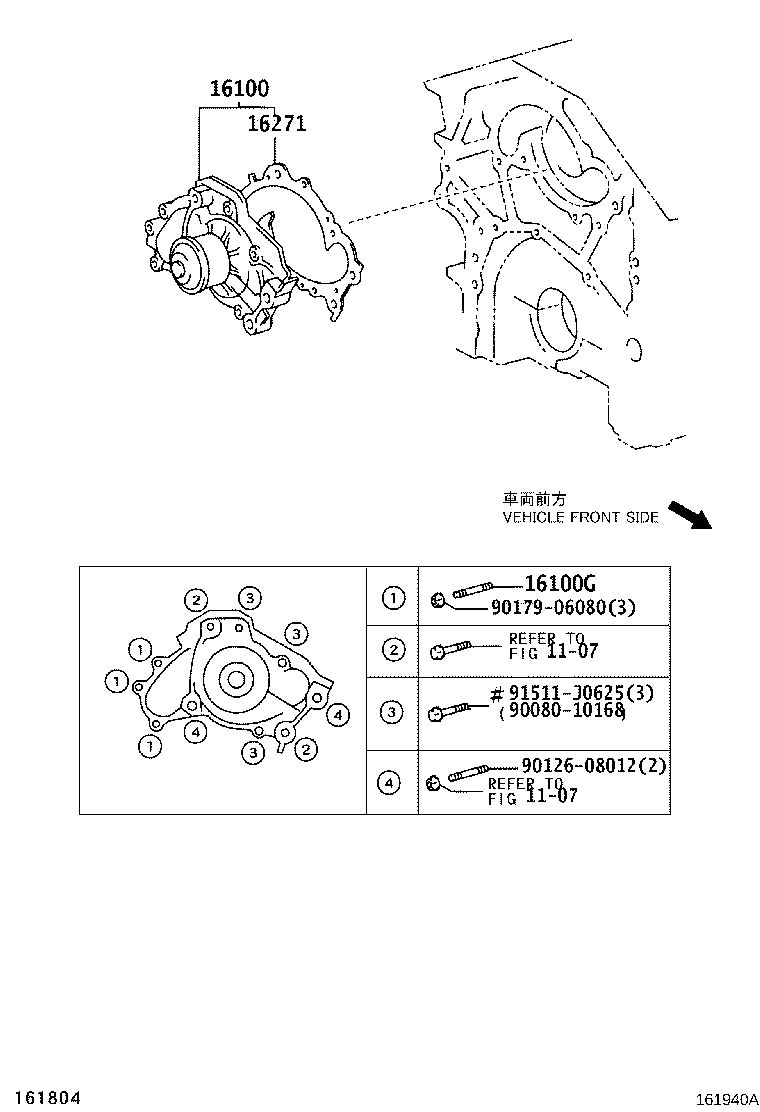

Click highlighted areas on diagram

diagram 1107 1107 16100 16100G 16271 9008010168 9012608012 9017906080 91511J0625
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09070

3MZFE..MCU3#..NAP

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-06144

3MZFE..MCU3#..NAP

 3
16271 - GASKET, WATER PUMP
16271-20020

3MZFE..MCU3#..NAP

 1
Common parts
90080-10168
90126-08012
90179-06080
91511-J0625
Linked diagrams
1107
