GSU35L-CWAGKA (2006)

Toyota Lexus Rx330/350(Nap)

Production Feb 2006 - Jan 2009
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

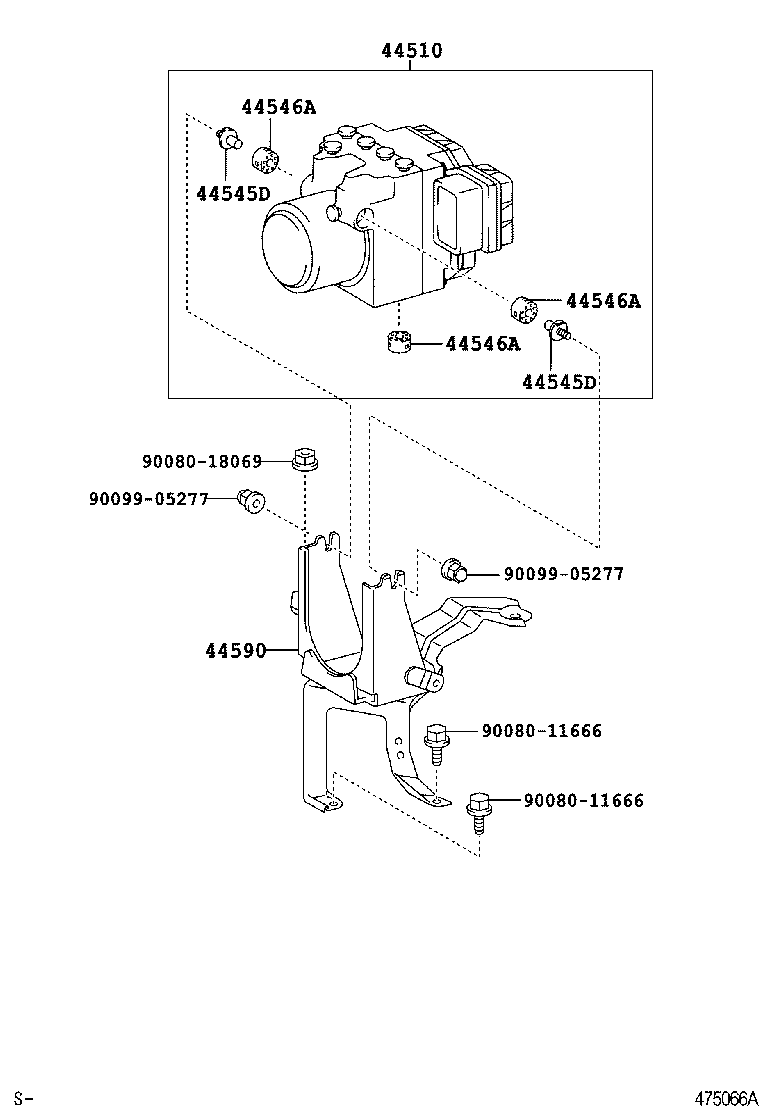

ILLUST NO. 2 OF 2(0602- )NAP

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9008011666 9008011666 9008018069 9009905277 9009905277
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-48400

GSU35..NAP

CRUISE CONTROL-RADAR CRUISE

 1
44050-48250

GSU35..NAP

CRUISE CONTROL-RADAR CRUISE

 1
44050-48370

GSU35..NAP

 1
44050-48230

GSU35..NAP

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GSU3#..NAP

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GSU3#..NAP

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSU3#..NAP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSU3#..NAP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSU3#..NAP

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0E030

GSU3#..NAP

 1
Common parts
90080-11666
90080-18069
90099-05277

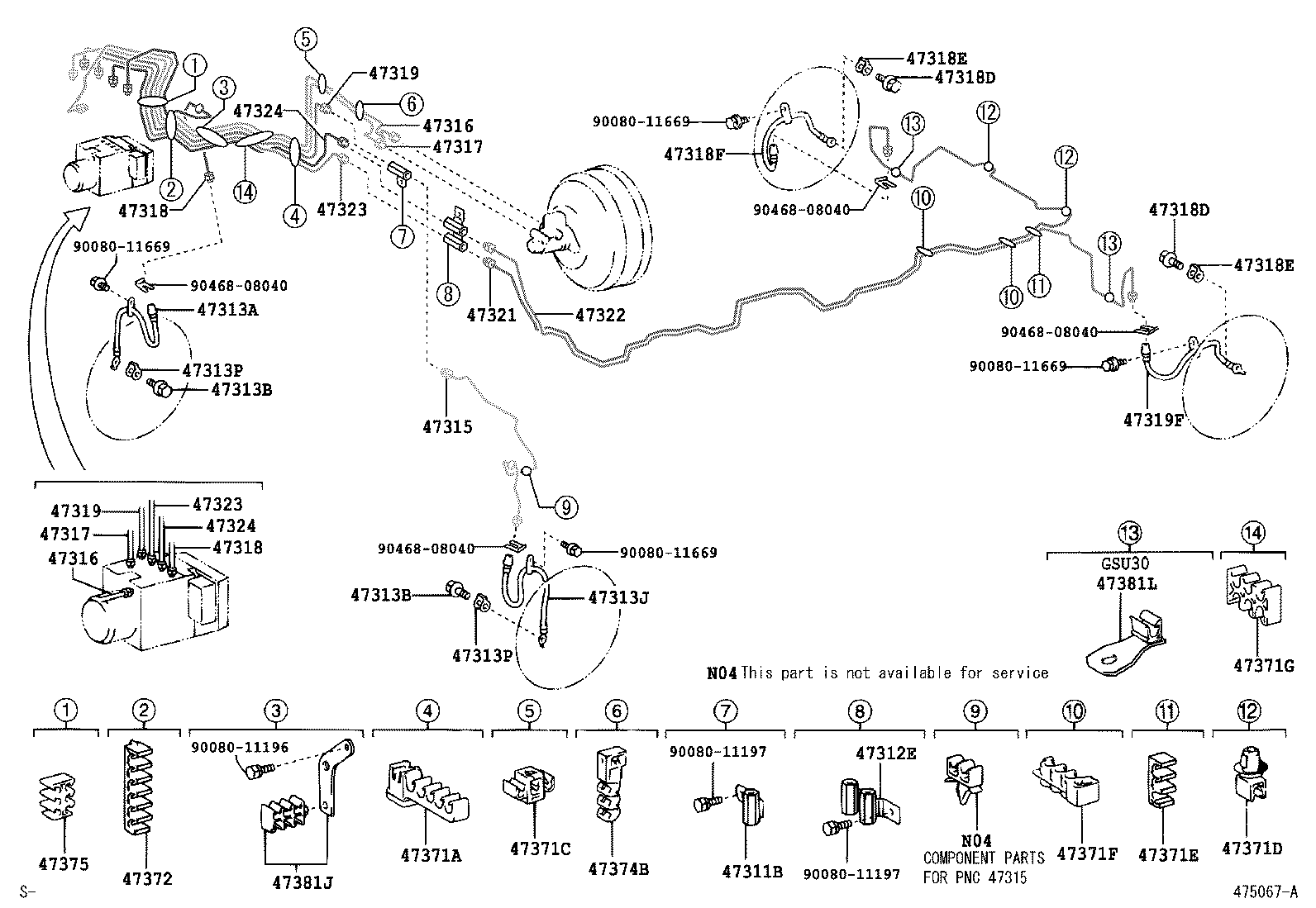

ILLUST NO. 1 OF 2(0602- )NAP

Click highlighted areas on diagram

diagram 47311B 47312E 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47316 47317 47317 47318 47318 47318D 47318D 47318E 47318E 47318F 47319 47319 47319F 47321 47322 47323 47323 47324 47324 47371A 47371C 47371D 47371E 47371F 47371G 47372 47374B 47375 47381J 47381L 9008011196 9008011197 9008011197 9008011669 9008011669 9008011669 9008011669 9046808040 9046808040 9046808040 9046808040
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

GSU3#..NAP

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10246

GSU3#..NAP

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94213

GSU3#..NAP

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSU3#..NAP

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSU3#..NAP

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90080-94214

GSU3#..NAP

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GSU3#..NAP

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GSU3#..NAP

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0E010

GSU3#..NAP

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0E020

GSU3#..NAP

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0E020

GSU3#..NAP

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0E020

GSU3#..NAP

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0E020

GSU3#..NAP

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0E020

GSU3#..NAP

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0E020

GSU3#..NAP

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GSU3#..NAP

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GSU3#..NAP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GSU3#..NAP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GSU3#..NAP

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94209

GSU35..NAP

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-0E020

GSU3#..NAP

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-0E020

GSU3#..NAP

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94210

GSU35..NAP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0E010

GSU3#..NAP

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0E010

GSU3#..NAP

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0E020

GSU3#..NAP

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0E020

GSU3#..NAP

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0E020

GSU3#..NAP

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0E020

GSU3#..NAP

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-A1001

GSU3#..NAP

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90080-46358

GSU3#..NAP

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90469-07017

GSU3#..NAP

 2
47371E - CLAMP, BRAKE TUBE, NO.9
90080-46357

GSU3#..NAP

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90080-46359

GSU3#..NAP

 2
47371G - CLAMP, BRAKE TUBE, NO.11
90464-A0002

GSU3#..NAP

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90080-46366

GSU3#..NAP

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90080-46360

GSU3#..NAP

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90080-46365

GSU3#..NAP

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90080-93056

GSU3#..NAP

 1
Common parts
90080-11196
90080-11197
90080-11669
90468-08040
