GSU30L-CWAGKA (2006)

Toyota Lexus Rx330/350(Nap)

Production Feb 2006 - Jan 2009
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0602- )NAP

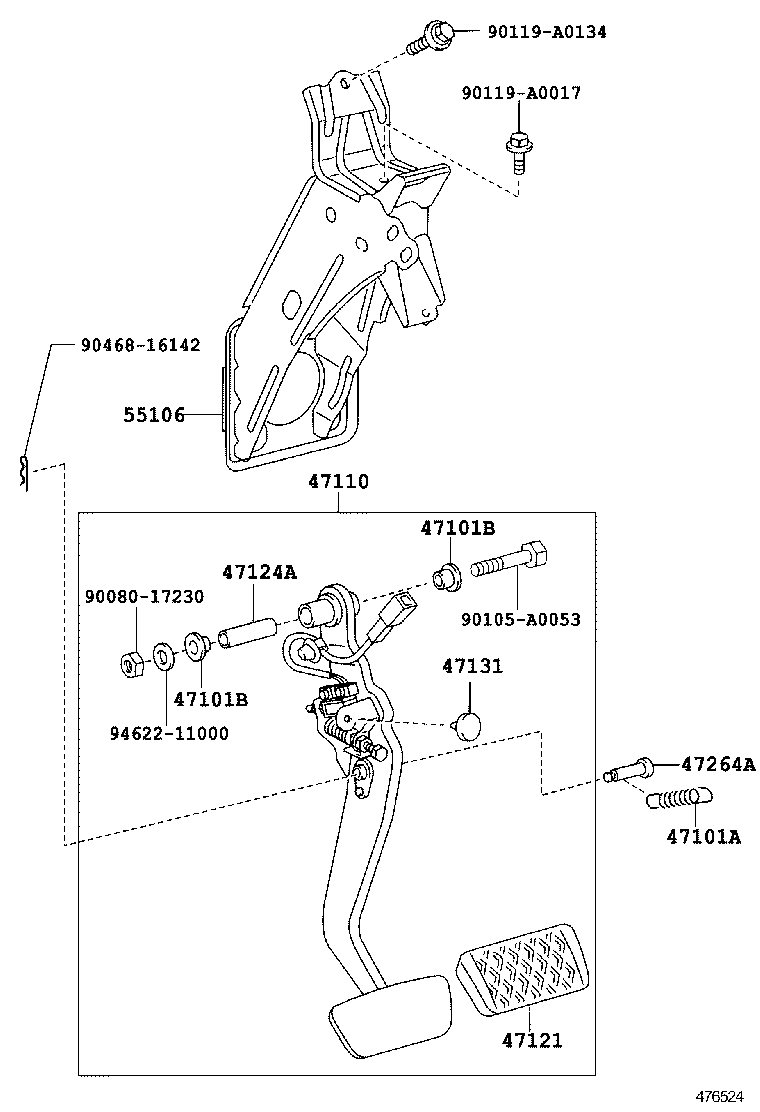

Click highlighted areas on diagram

diagram 47101A 47101B 47101B 47110 47121 47124A 47131 47264A 55106 9008017230 90105A0053 90119A0017 90119A0134 9046816142 9462211000
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90080-50333

GSU3#..NAP

 1
47101B - BUSH(FOR BRAKE PEDAL)
90080-38144

GSU3#..NAP

 2
47101B - BUSH(FOR BRAKE PEDAL)
90080-38144

GSU3#..NAP

 2
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-0E011

GSU3#..NAP

 1
47121 - PAD, BRAKE PEDAL
47121-0E010

GSU3#..NAP

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90080-38147

GSU3#..NAP

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90080-54033

GSU3#..NAP

 1
47264A - PIN(FOR PUSH ROD)
90080-24138

GSU3#..NAP

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-0E011

GSU3#..NAP

 1
Common parts
90080-17230
90105-A0053
90119-A0017
90119-A0134
90468-16142
94622-11000
