MCU38L-AWAGKA (2003)
Toyota Lexus Rx330/350(Jpp)

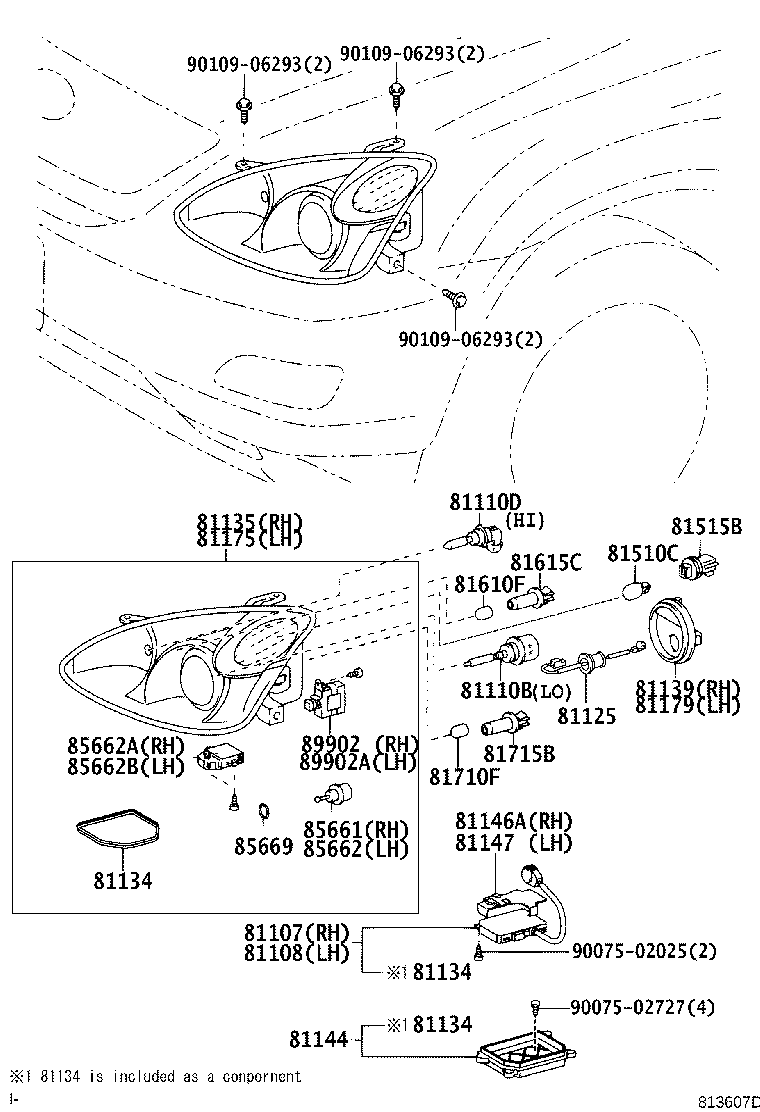

ILLUST NO. 2 OF 2(0302- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81126A - PLATE, HEADLAMP, RH | ||||
| 81126-48020 |
MCU3#..JPP |
1 | ||
| 81166 - PLATE, HEADLAMP, LH | ||||
| 81166-48020 |
MCU3#..JPP |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-48030 |
MCU3#..JPP |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-48030 |
MCU3#..JPP |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-48040 |
MCU3#..JPP |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-48040 |
MCU3#..JPP |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-48020 |
MCU3#..JPP |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-48020 |
MCU3#..JPP |
1 | ||

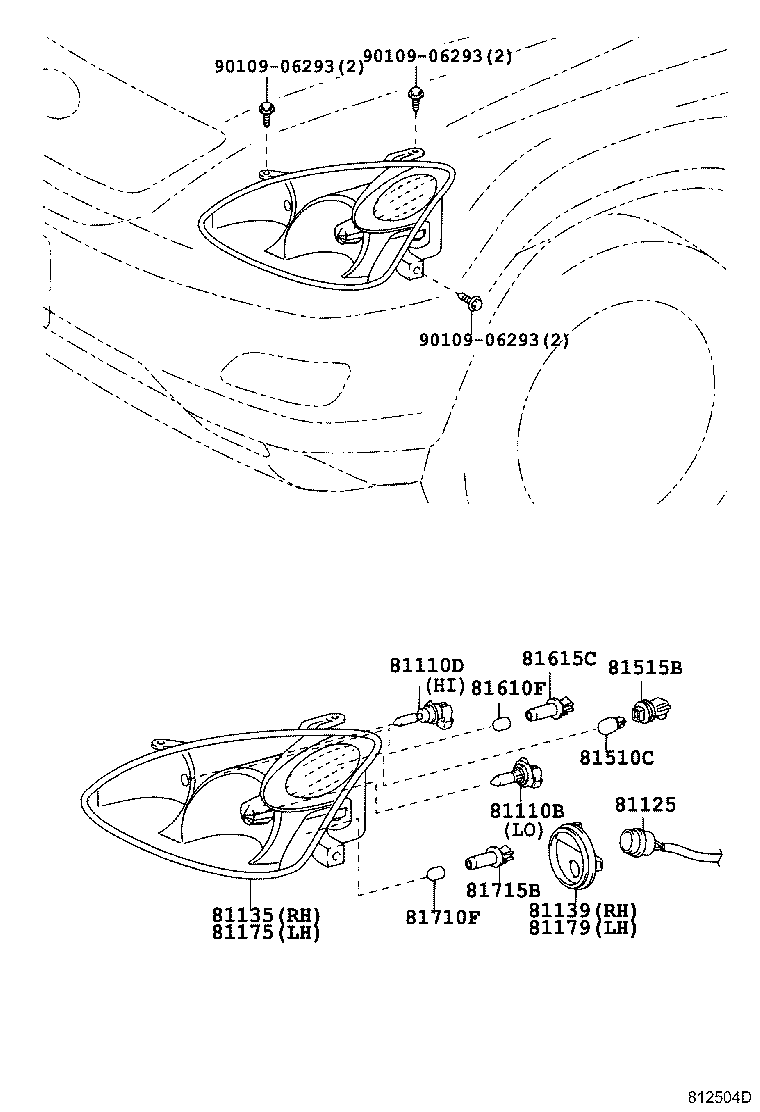

ILLUST NO. 1 OF 2(0302- )JPP
HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-13075 |
MCU3#..JPP 12V 55W,HALOGEN |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
MCU3#..JPP 12V65W(SAE),60W(ECE) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48200 |
MCU3#..JPP |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81130-48200 |
MCU3#..JPP |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48180 |
MCU3#..JPP |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81170-48200 |
MCU3#..JPP |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-48180 |
MCU3#..JPP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
MCU3#..JPP 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
MCU3#..JPP |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
MCU3#..JPP 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60046 |
MCU3#..JPP |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
MCU3#..JPP |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60056 |
MCU3#..JPP |
2 | ||
| Common parts | ||||
| 90109-06293 | ||||

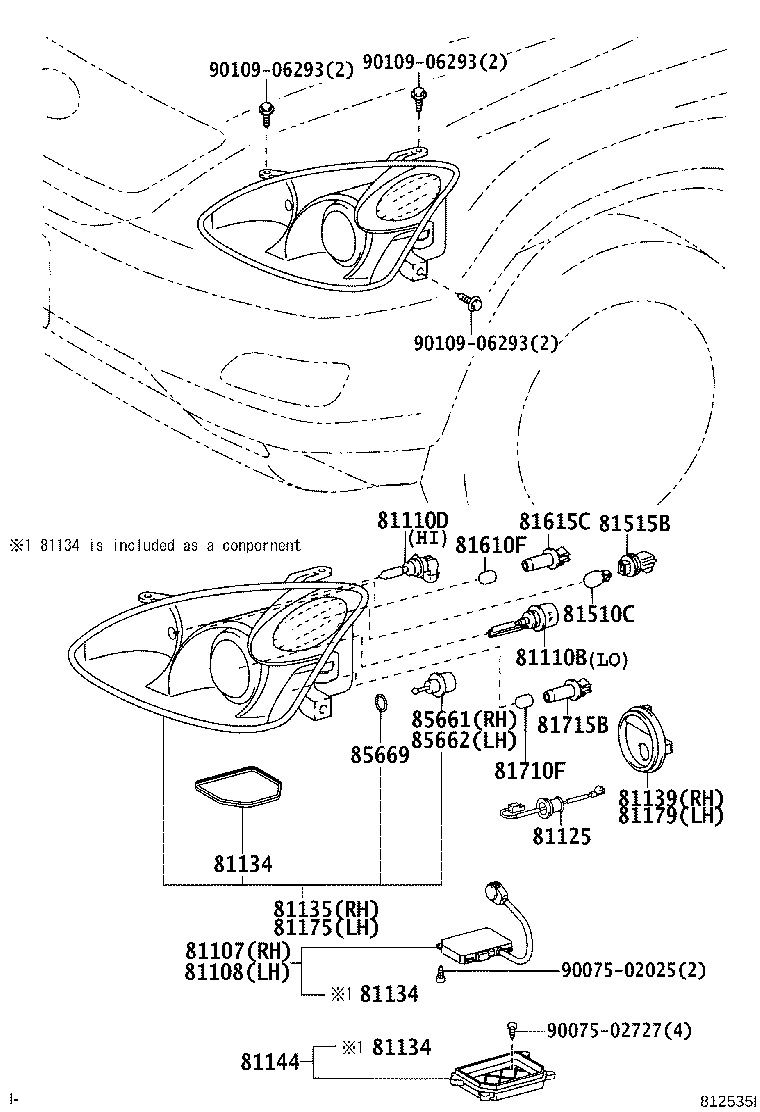

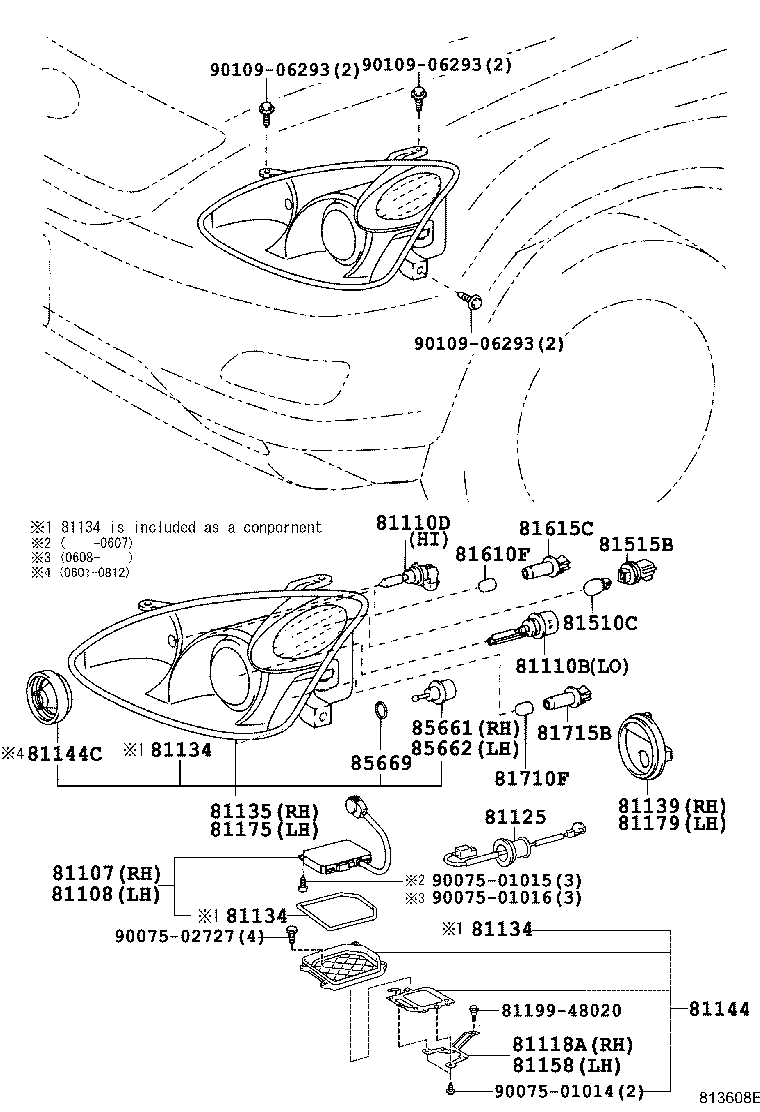

ILLUST NO. 1 OF 2(0302-0508)JPP
DISCHARGE HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-13075 |
MCU3#..JPP 12V 55W,HALOGEN |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
MCU3#..JPP 12V65W(SAE),60W(ECE) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48200 |
MCU3#..JPP |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81130-48200 |
MCU3#..JPP |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48180 |
MCU3#..JPP |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68008 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,RH |
1 | ||
| 90075-68008 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68003 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,LH |
1 | ||
| 90075-68009 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81170-48200 |
MCU3#..JPP |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-48180 |
MCU3#..JPP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
MCU3#..JPP 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
MCU3#..JPP |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
MCU3#..JPP 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60046 |
MCU3#..JPP |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
MCU3#..JPP |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60056 |
MCU3#..JPP |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90075-02727 | ||||
| 90109-06293 | ||||
ILLUST NO. 1 OF 2(0302-0508)JPP
DISCHARGE HEADLAMP & W(AFS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-13075 |
MCU3#..JPP 12V 55W,HALOGEN |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
MCU3#..JPP 12V65W(SAE),60W(ECE) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48200 |
MCU3#..JPP |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81130-48200 |
MCU3#..JPP |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48180 |
MCU3#..JPP |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68008 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,RH |
1 | ||
| 90075-68008 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68003 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,LH |
1 | ||
| 90075-68009 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81170-48200 |
MCU3#..JPP |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-48180 |
MCU3#..JPP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
MCU3#..JPP 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
MCU3#..JPP |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
MCU3#..JPP 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60046 |
MCU3#..JPP |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
MCU3#..JPP |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60056 |
MCU3#..JPP |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85662A - MOTOR, LIGHT REFLECTOR, RH | ||||
| 85662-48010 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662B - MOTER, LIGHT REFLECTOR, LH | ||||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 89902 - COMPUTER SUB-ASSY, HEADLAMP SWIVEL, RH | ||||
| 89902-48020 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902A - COMPUTER SUB-ASSY, HEADLAMP SWIVEL, LH | ||||
| 89902-48010 |
MCU38..JPP HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU38..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90075-02727 | ||||
| 90109-06293 | ||||
ILLUST NO. 1 OF 2(0508- )JPP
DISCHARGE HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-13075 |
MCU3#..JPP 12V 55W,HALOGEN |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
MCU3#..JPP 12V65W(SAE),60W(ECE) |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81118-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48200 |
MCU3#..JPP |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81130-48200 |
MCU3#..JPP |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48180 |
MCU3#..JPP |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68008 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,RH |
1 | ||
| 90075-68008 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68003 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,LH |
1 | ||
| 90075-68009 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81158-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81170-48200 |
MCU3#..JPP |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-48180 |
MCU3#..JPP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
MCU3#..JPP 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
MCU3#..JPP |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
MCU3#..JPP 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60046 |
MCU3#..JPP |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
MCU3#..JPP |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60056 |
MCU3#..JPP |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| Common parts | ||||
| 81199-48020 | ||||
| 90075-01014 | ||||
| 90075-01015 | ||||
| 90075-01016 | ||||
| 90075-02727 | ||||
| 90109-06293 | ||||
ILLUST NO. 1 OF 2(0508- )JPP
DISCHARGE HEADLAMP & W(AFS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81107-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81107-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-13075 |
MCU3#..JPP 12V 55W,HALOGEN |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90981-20005 |
MCU38..JPP 85V 35W,TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90981-20005 |
MCU3#..JPP 85V 35W,PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
MCU3#..JPP 12V65W(SAE),60W(ECE) |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81118-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48200 |
MCU3#..JPP |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81125-48180 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 90075-68005 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 90075-68005 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81130-48200 |
MCU3#..JPP |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81145-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81145-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48180 |
MCU3#..JPP |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-68008 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,RH |
1 | ||
| 90075-68008 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68008 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68003 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68003 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-68009 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE,LH |
1 | ||
| 90075-68009 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68008 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),RH |
1 | ||
| 90075-68009 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 90075-68009 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM),LH |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48190 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81146-48261 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81158-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48210 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48211 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48210 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48210 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 81185-48260 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48260 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81185-48261 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 81170-48200 |
MCU3#..JPP |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-48180 |
MCU3#..JPP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
MCU3#..JPP 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
MCU3#..JPP |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
MCU3#..JPP 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60046 |
MCU3#..JPP |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
MCU3#..JPP |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60056 |
MCU3#..JPP |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-50040 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85661-48030 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-48030 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85661-50040 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
1 | ||
| 85662A - MOTOR, LIGHT REFLECTOR, RH | ||||
| 85662-48010 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662B - MOTER, LIGHT REFLECTOR, LH | ||||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85662-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 90075-99120 |
MCU38..JPP KOREA SPEC&HEAD LAMP-DISCHARGE |
2 | ||
| 90075-99120 |
MCU3#..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
2 | ||
| 89902 - COMPUTER SUB-ASSY, HEADLAMP SWIVEL, RH | ||||
| 89902-48020 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU38..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48020 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902A - COMPUTER SUB-ASSY, HEADLAMP SWIVEL, LH | ||||
| 89902-48010 |
MCU38..JPP HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU3#..JPP SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU38..JPP PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU38..JPP TAIWAN SPEC&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&SPORT PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU38..JPP TAIWAN SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| 89902-48010 |
MCU3#..JPP USA DEPENDANCY SPEC&PREMIUM PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM) |
1 | ||
| Common parts | ||||
| 81199-48020 | ||||
| 90075-01014 | ||||
| 90075-01015 | ||||
| 90075-01016 | ||||
| 90075-02727 | ||||
| 90109-06293 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
