MCU38L-AWAGKA (2003)

Toyota Lexus Rx330/350(Jpp)

Production Feb 2003 - Jan 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )JPP

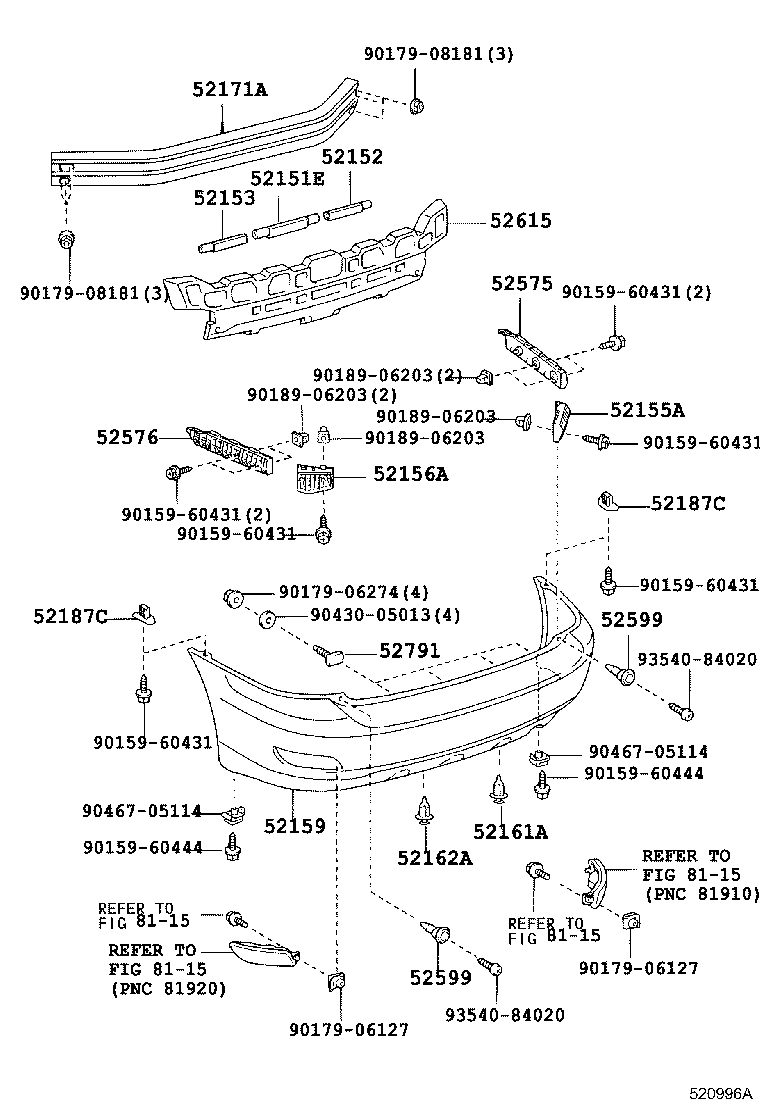

Click highlighted areas on diagram

diagram 52151E 52152 52153 52155A 52156A 52159 52161A 52162A 52171A 52187C 52187C 52575 52576 52599 52599 52615 52791 8115 8115 8115 8115 9015960431 9015960431 9015960431 9015960431 9015960431 9015960431 9015960444 9015960444 9017906127 9017906127 9017906274 9017908181 9017908181 9018906203 9018906203 9018906203 9018906203 9043005013 9046705114 9046705114 9354084020 9354084020
Part # Description Qty Price
52151E - BAR, REAR BUMPER
52151-48021

MCU3#..JPP

 1
52151-48020

MCU3#..JPP

 1
52152 - BAR, REAR BUMPER, RH
52152-48010

MCU3#..JPP

 1
52152-30150

MCU3#..JPP

 1
52153 - BAR, REAR BUMPER, LH
52152-48010

MCU3#..JPP

 1
52152-30150

MCU3#..JPP

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-48011

MCU3#..JPP

 1
52155-48010

MCU3#..JPP

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-48011

MCU3#..JPP

 1
52156-48010

MCU3#..JPP

 1
52159 - COVER, REAR BUMPER
52159-48903

MCU3#..JPP

 1
52161A - PIECE, REAR BUMPER, RH
52161-16010

MCU3#..JPP

 1
52162A - PIECE, REAR BUMPER, LH
52161-16010

MCU3#..JPP

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-48110

MCU38..JPP

KOREA SPEC

 1
52171-48110

MCU3#..JPP

CANADA SPEC

 1
52171-48110

MCU38..JPP

TAIWAN SPEC

 1
52171-48110

MCU3#..JPP

 1
52187C - BRACKET, REAR BUMPER SIDE, NO.2
52187-48010

MCU3#..JPP

 2
52187C - BRACKET, REAR BUMPER SIDE, NO.2
52187-48010

MCU3#..JPP

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-48020

MCU3#..JPP

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-48020

MCU3#..JPP

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-48030

MCU3#..JPP

 2
52599-48031

MCU3#..JPP

 2
52599 - STOPPER, REAR BUMPER, UPPER
52599-48030

MCU3#..JPP

 2
52599-48031

MCU3#..JPP

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-48070

MCU3#..JPP

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-33010

MCU3#..JPP

 4
Common parts
90159-60431
90159-60444
90179-06127
90179-06274
90179-08181
90189-06203
90430-05013
90467-05114
93540-84020
Linked diagrams
8115
