MCU38L-AWAGKA (2003)

Toyota Lexus Rx330/350(Jpp)

Production Feb 2003 - Jan 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )GSU35,MCU38..JPP

Click highlighted areas on diagram

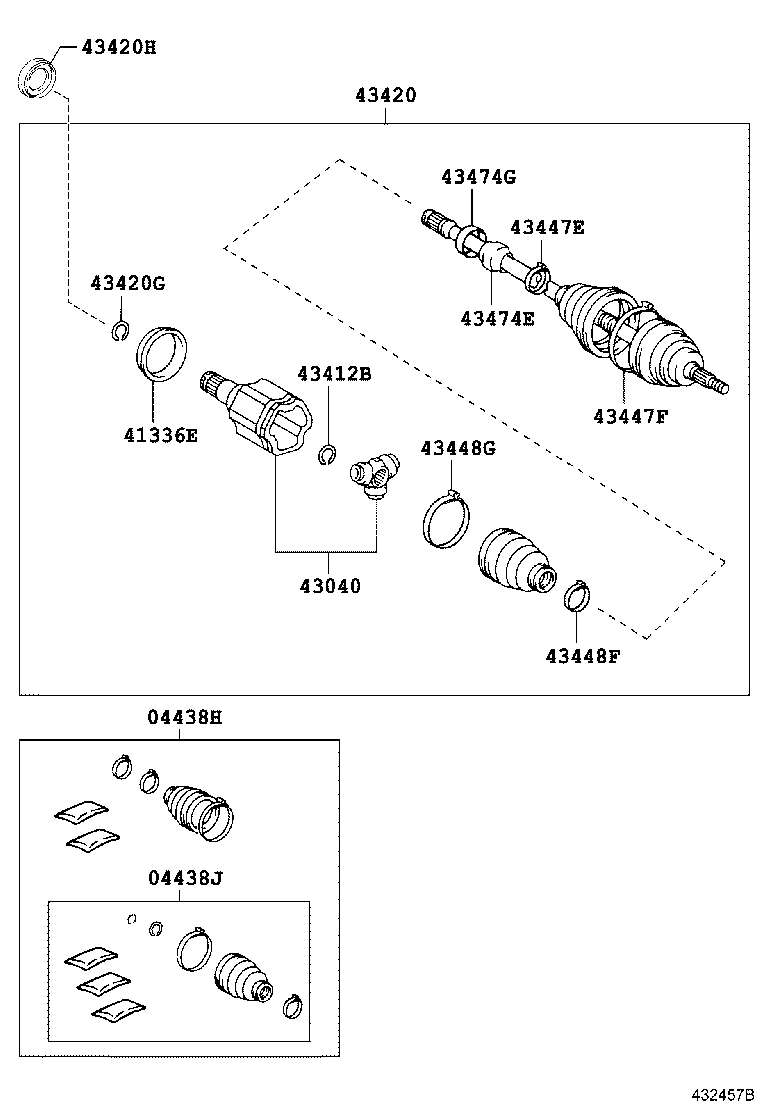

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-0E020

MCU38..JPP

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-08030

MCU38..JPP

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-08010

MCU38..JPP

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90080-52118

MCU38..JPP

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0E011

MCU38..JPP

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-08060

MCU38..JPP

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50023

MCU3#..JPP

 1
90311-50037

MCU3#..JPP

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030

MCU3#..JPP

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06080

MCU38..JPP

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-07020

MCU38..JPP

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-07010

MCU38..JPP

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-0E010

MCU3#..JPP

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100

MCU3#..JPP

 1

(0302- )GSU35,MCU38..JPP

Click highlighted areas on diagram

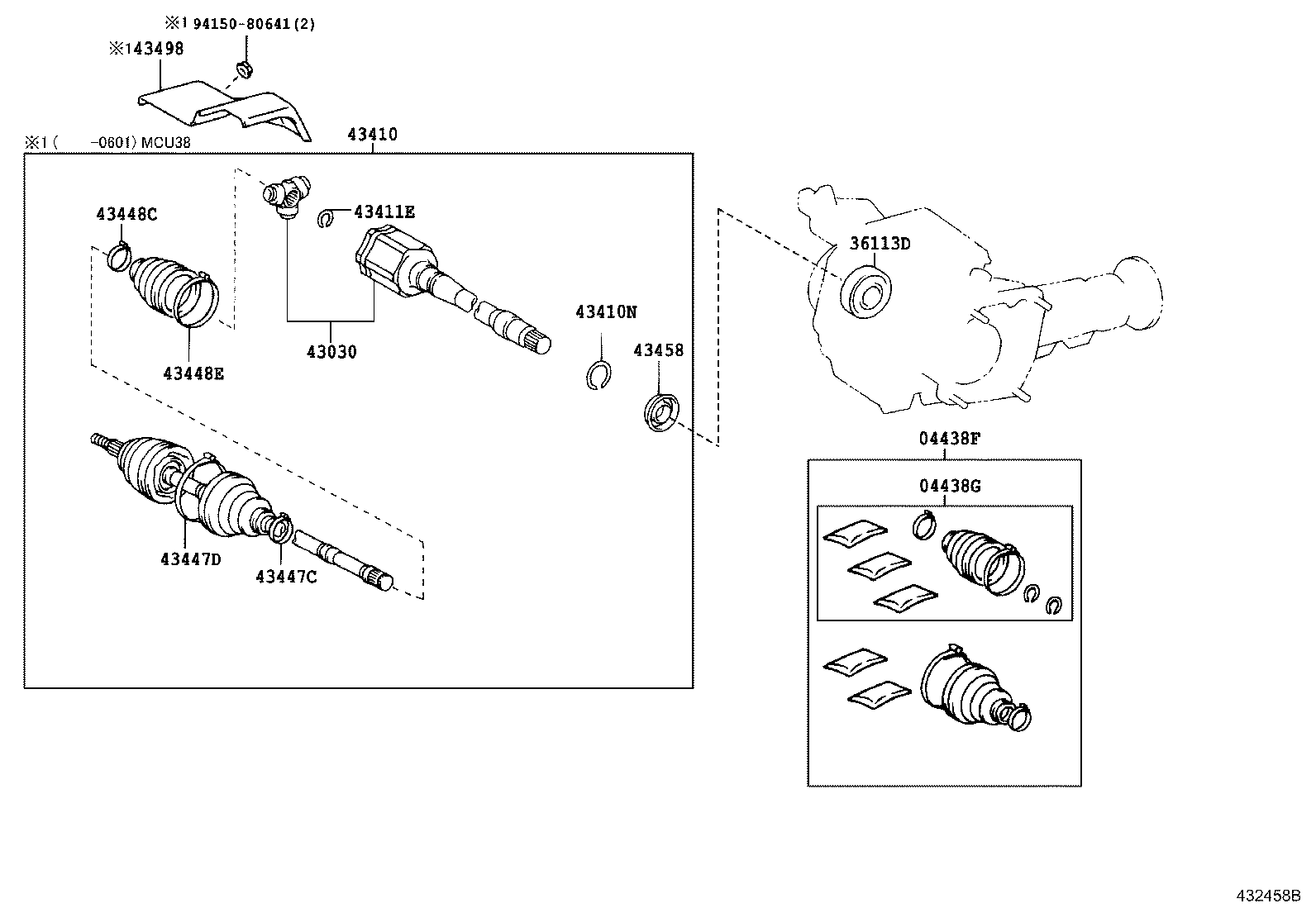

RH

diagram 04438F 04438G 36113D 43030 43410 43410N 43411E 43447C 43447D 43448C 43448E 43458 43498 9415080641
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-0E040

MCU38..JPP

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-08030

MCU38..JPP

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-34021

MCU38..JPP

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0E011

MCU38..JPP

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-08060

MCU38..JPP

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90080-52118

MCU38..JPP

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-04030

MCU3#..JPP

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-06080

MCU38..JPP

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-07020

MCU38..JPP

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-07010

MCU38..JPP

 1
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-08010

MCU38..JPP

 1
43498 - INSULATOR, DRIVE SHAFT HEAT
43498-48010

MCU3#..JPP

 1
43498-48011

MCU3#..JPP

 1
Common parts
94150-80641
