MCU38L-AWAGKA (2003)

Toyota Lexus Rx330/350(Jpp)

Production Feb 2003 - Jan 2006
Engine 3MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0302-0601)JPP

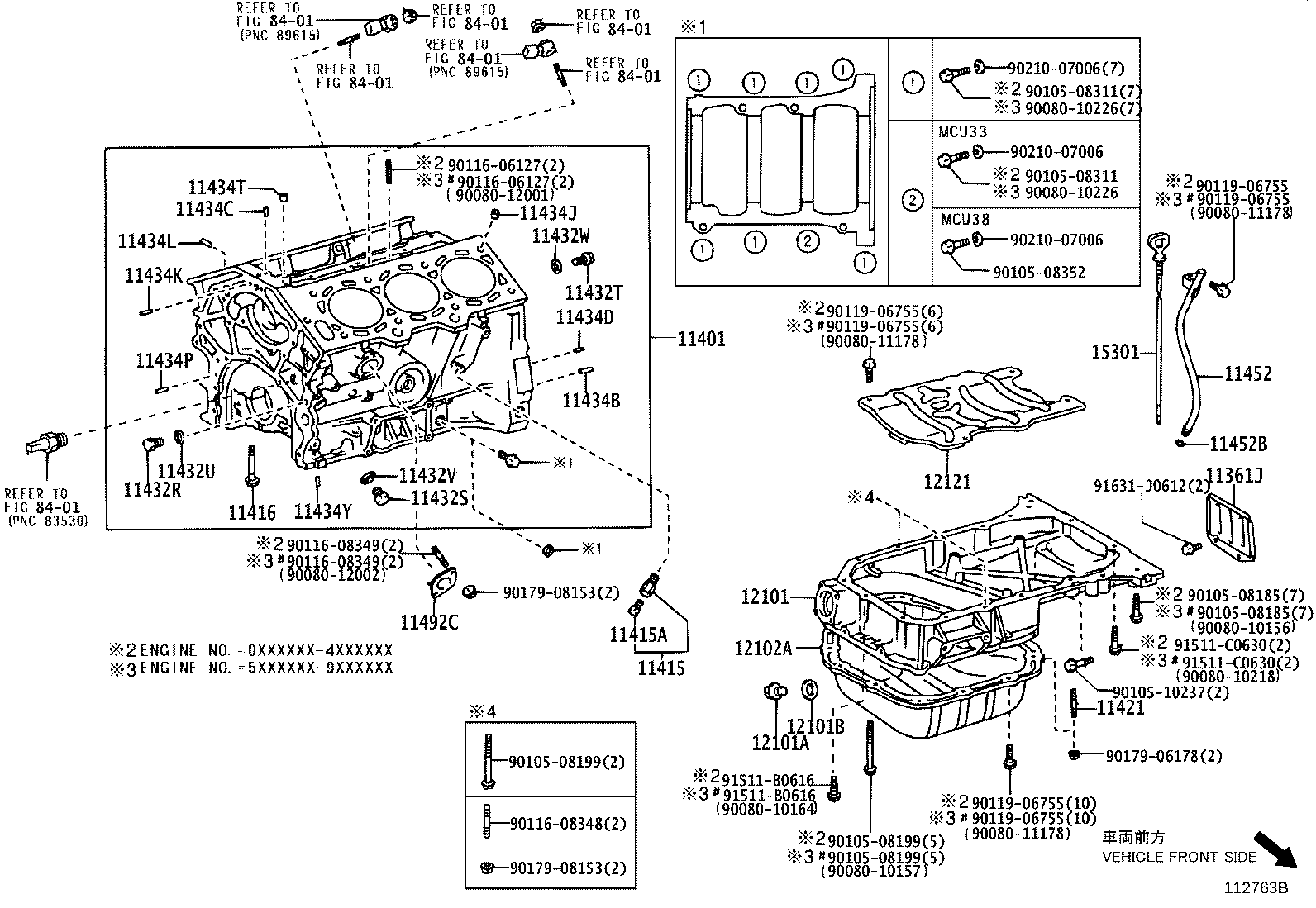

Click highlighted areas on diagram

diagram 11361J 11401 11415 11415A 11416 11421 11432R 11432S 11432T 11432U 11432V 11432W 11434B 11434C 11434D 11434J 11434K 11434L 11434P 11434T 11434Y 11452 11452B 11492C 12101 12101A 12101B 12102A 12121 15301 8401 8401 8401 8401 8401 8401 8401 9008010156 9008010157 9008010164 9008010218 9008010226 9008010226 9008011178 9008011178 9008011178 9008012001 9008012002 9010508185 9010508185 9010508199 9010508199 9010508199 9010508311 9010508311 9010508352 9010510237 9011606127 9011606127 9011608348 9011608349 9011608349 9011906755 9011906755 9011906755 9011906755 9011906755 9011906755 9017906178 9017908153 9017908153 9021007006 9021007006 9021007006 91511B0616 91511B0616 91511C0630 91511C0630 91631J0612
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-20011

3MZFE..MCU3#..JPP

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29735

3MZFE..MCU38..JPP

(J)

 1
11401-09270

3MZFE..MCU38..JPP

(L)

 1
11401-29735

3MZFE..MCU38..JPP

(L)

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09095

3MZFE..MCU3#..JPP

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

3MZFE..MCU3#..JPP

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02114

3MZFE..MCU3#..JPP

 16
11421 - BOLT, STUD(FOR OIL PAN)
90080-11538

3MZFE..MCU3#..JPP

(L)

 2
90116-06098

3MZFE..MCU3#..JPP

 2
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-16013

3MZFE..MCU3#..JPP

 1
11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
90341-16013

3MZFE..MCU3#..JPP

 1
11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
90341-20013

3MZFE..MCU3#..JPP

 1
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-16009

3MZFE..MCU3#..JPP

 1
11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
90430-16009

3MZFE..MCU3#..JPP

 1
11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
90430-20004

3MZFE..MCU3#..JPP

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3MZFE..MCU3#..JPP

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-04097

3MZFE..MCU3#..JPP

L=12,OD=4.0

 6
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

3MZFE..MCU3#..JPP

L=12,OD=4.0

 12
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-16001

3MZFE..MCU3#..JPP

 4
11434K - PIN, STRAIGHT(FOR WATER PUMP)
90250-04097

3MZFE..MCU3#..JPP

 12
11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING)
90250-04097

3MZFE..MCU3#..JPP

 12
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-04097

3MZFE..MCU3#..JPP

L=12,OD=4.0

 12
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90253-11021

3MZFE..MCU3#..JPP

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

3MZFE..MCU3#..JPP

 12
11452 - GUIDE, OIL LEVEL GAGE
11452-20020

3MZFE..MCU3#..JPP

 1
11452-0A020

3MZFE..MCU3#..JPP

(L)

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

3MZFE..MCU3#..JPP

 1
11492C - PLATE, WATER SEAL
11492-20010

3MZFE..MCU3#..JPP

 1
12101 - PAN SUB-ASSY, OIL
12111-0A040

3MZFE..MCU3#..JPP

(L)

 1
12111-20060

3MZFE..MCU3#..JPP

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

3MZFE..MCU3#..JPP

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

3MZFE..MCU3#..JPP

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0A010

3MZFE..MCU3#..JPP

(L)

 1
12102-20010

3MZFE..MCU3#..JPP

(J)

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-0A011

3MZFE..MCU3#..JPP

(L)

 1
12121-20021

3MZFE..MCU3#..JPP

(J)

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-20021

3MZFE..MCU3#..JPP

 1
Common parts
90080-10156
90080-10157
90080-10164
90080-10218
90080-10226
90080-11178
90080-12001
90080-12002
90105-08185
90105-08199
90105-08311
90105-08352
90105-10237
90116-06127
90116-08348
90116-08349
90119-06755
90179-06178
90179-08153
90210-07006
91511-B0616
91511-C0630
91631-J0612
Linked diagrams
8401
