GSU35L-AWAGKA (2006)
Toyota Lexus Rx330/350(Jpp)
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-0812)JPP

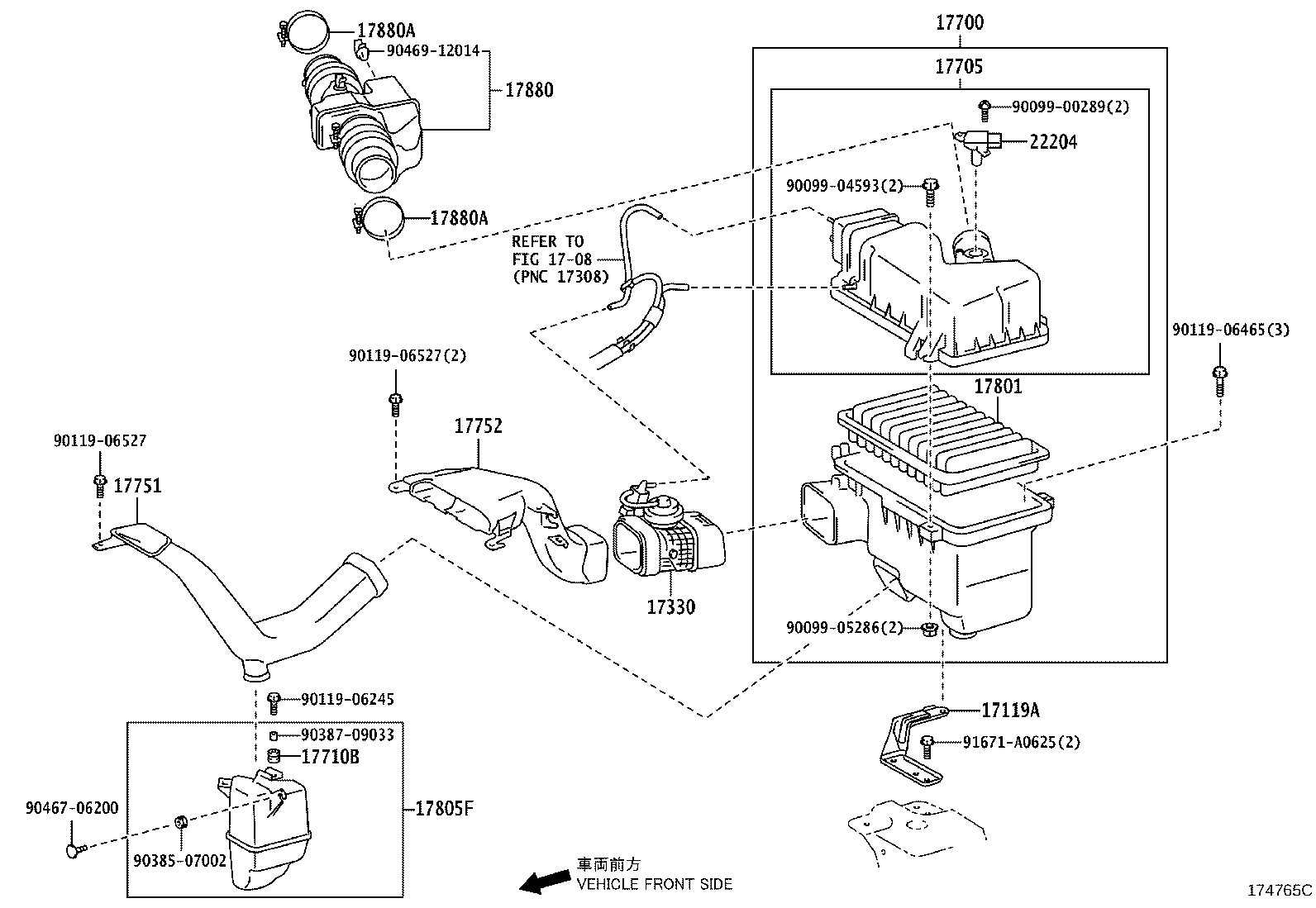

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-28050 |
2GRFE..GSU3#..JPP |
1 | ||
| 17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3 | ||||
| 17330-20010 |
2GRFE..GSU3#..JPP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31670 |
2GRFE..GSU3#..JPP |
1 | ||
| 17700-31671 |
2GRFE..GSU3#..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-31211 |
2GRFE..GSU3#..JPP |
1 | ||
| 17705-31210 |
2GRFE..GSU3#..JPP |
1 | ||
| 17710B - GROMMET | ||||
| 90480-17013 |
2GRFE..GSU3#..JPP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-31170 |
2GRFE..GSU3#..JPP |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-31050 |
2GRFE..GSU3#..JPP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0H020 |
2GRFE..GSU3#..JPP (L) |
1 | ||
| 17801-20040 |
2GRFE..GSU3#..JPP (J) |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-31020 |
2GRFE..GSU3#..JPP |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-31120 |
2GRFE..GSU3#..JPP |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10880 |
2GRFE..GSU3#..JPP |
2 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10880 |
2GRFE..GSU3#..JPP |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-31020 |
2GRFE..GSU3#..JPP |
1 | ||
| 22204-31010 |
2GRFE..GSU3#..JPP |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90099-04593 | ||||
| 90099-05286 | ||||
| 90119-06245 | ||||
| 90119-06465 | ||||
| 90119-06527 | ||||
| 90385-07002 | ||||
| 90387-09033 | ||||
| 90467-06200 | ||||
| 90469-12014 | ||||
| 91671-A0625 | ||||
| Linked diagrams | ||||
| 1708 | ||||
