MCU15L-AWPGKA (1998)
Toyota Lexus Rx300
Production
Jan 1998
-
Feb 2003
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )

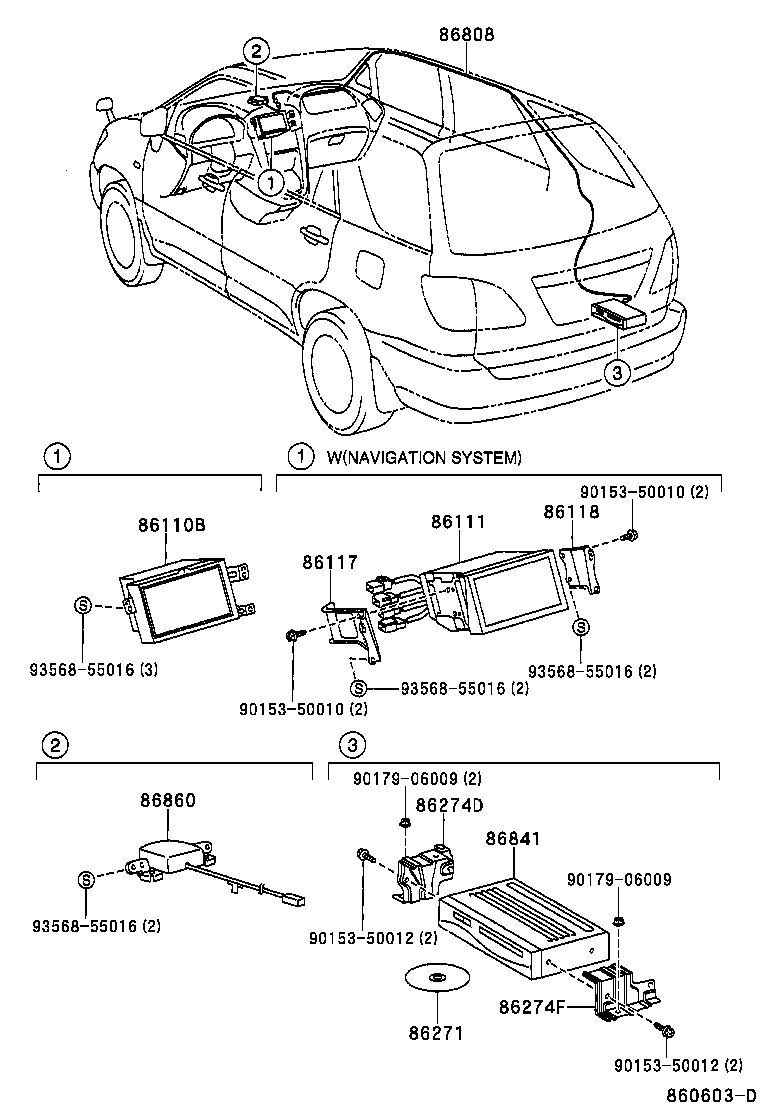

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-48040 |
MCU15 FUJITSU TEN,TAIWAN SPEC |
1 | ||
| 86110-48030 |
MCU1# FUJITSU TEN |
1 | ||
| 86110-48041 |
MCU15 FUJITSU TEN,TAIWAN SPEC |
1 | ||
| 86111 - MULTI-DISPLAY | ||||
| 86111-48030 |
MCU1# FUJITSU TEN,W(NAVIGATION SYSTEM) |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-48010 |
MCU1# W(NAVIGATION SYSTEM) |
1 | ||
| 86118 - BRACKET, MULTI-DISPLAY CONTROLER, B | ||||
| 86118-48010 |
MCU1# W(NAVIGATION SYSTEM) |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-33031 |
MCU1# |
1 | ||
| 86271-47020 |
MCU1# |
1 | ||
| 86271-33030 |
MCU1# |
1 | ||
| 86274D - BRACKET, DISC PLAYER | ||||
| 86274-48050 |
MCU1# |
1 | ||
| 86274F - BRACKET, DISC PLAYER, NO.2 | ||||
| 86274-48060 |
MCU1# |
1 | ||
| 86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1 | ||||
| 86808-48040 |
MCU1# W(MOON ROOF) |
1 | ||
| 86808-48030 |
MCU1# |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86841-50010 |
MCU1# |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-48020 |
MCU1# |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90153-50012 | ||||
| 90179-06009 | ||||
| 93568-55016 | ||||
