MCU15L-AWPGKA (1998)

Toyota Lexus Rx300

Production Jan 1998 - Feb 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

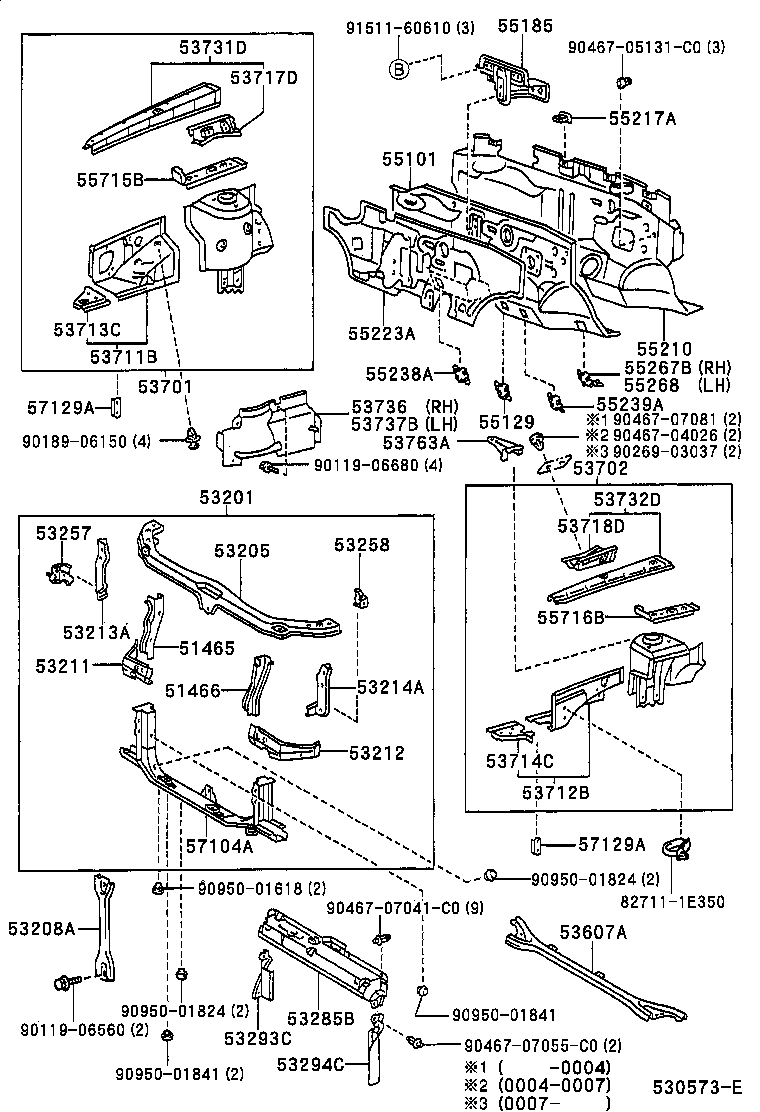

Click highlighted areas on diagram

diagram 51465 51466 53201 53205 53208A 53211 53212 53213A 53214A 53257 53258 53285B 53293C 53294C 53607A 53701 53702 53711B 53712B 53713C 53714C 53717D 53718D 53731D 53732D 53736 53737B 53763A 55101 55129 55185 55210 55217A 55223A 55238A 55239A 55267B 55268 55715B 55716B 57104A 57129A 57129A 827111E350 9011906560 9011906680 9018906150 9026903037 9046704026 9046705131C0 9046707041C0 9046707055C0 9046707081 9095001618 9095001824 9095001824 9095001841 9095001841 9151160610
Part # Description Qty Price
51465 - BRACE, RADIATOR SUPPORT, UPPER RH
51465-48010

MCU1#

 1
51466 - BRACE, RADIATOR SUPPORT, UPPER LH
51466-48010

MCU1#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-48010

MCU1#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-48901

MCU1#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53217-48010

MCU1#

 1
53211 - SUPPORT, RADIATOR, RH
53211-48010

MCU1#

 1
53212 - SUPPORT, RADIATOR, LH
53212-48010

MCU1#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-48010

MCU1#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-48010

MCU1#

 1
53257 - BRACKET, FRONT END PANEL MOUNTING, RH
53257-48010

MCU1#

 1
53258 - BRACKET, FRONT END PANEL MOUNTING, LH
53258-48010

MCU1#

 1
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-48010

MCU1#

 1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-48010

MCU1#

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-48010

MCU1#

 1
53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53608-48010

MCU1#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-48010

MCU1#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-48011

MCU1#

 1
53702-48010

MCU1#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-48901

MCU1#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-48901

MCU1#

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-48010

MCU1#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-48010

MCU1#

 1
53717D - GUSSET, FENDER APRON, RH
53717-48010

MCU1#

 1
53718D - GUSSET, FENDER APRON, LH
53718-48010

MCU1#

 1
53718-48011

MCU1#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-48901

MCU1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-48901

MCU1#

 1
53732-48902

MCU1#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-33020

MCU1#

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-33010

MCU1#

 1
53763A - BRACKET, AIR CLEANER INLET MOUNTING
53763-48010

MCU1#

 1
55101 - PANEL SUB-ASSY, DASH
55101-48020

MCU1#

 1
55101-48021

MCU1#

 1
55129 - COVER, DASH PANEL HOLE
55129-48010

MCU1#

 2
55185 - BRACE, DASH PANEL TO COWL
55185-48020

MCU1#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-48021

MCU1#

 1
55210-48020

MCU1#

 1
55217A - RETAINER, DASH PANEL SILENCER
55218-48010

MCU1#

 5
55223A - INSULATOR, DASH PANEL, OUTER
55223-48020

MCU1#

 1
55238A - PLATE, DASH PANEL INSULATOR, NO.2
55238-48010

MCU1#

 1
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-48010

MCU1#

 1
55267B - COVER, DASH PANEL INSULATOR, NO.3
55267-48010

MCU1#

 1
55268 - COVER, DASH PANEL INSULATOR, NO.4
55268-48010

MCU1#

 1
55715B - REINFORCEMENT, FRONT PANEL, RH
55715-48010

MCU1#

 1
55716B - BRACE, COWL TOP TO APRON, LH
55716-48010

MCU1#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-48010

MCU1#

 1
57129A - PLATE, FRONT SIDE MEMBER, FRONT LH
57129-45010

MCU1#

 1
57129A - PLATE, FRONT SIDE MEMBER, FRONT LH
57129-45010

MCU1#

 1
Common parts
82711-1E350
90119-06560
90119-06680
90189-06150
90269-03037
90467-04026
90467-05131C0
90467-07041C0
90467-07055C0
90467-07081
90950-01618
90950-01824
90950-01841
91511-60610
