MCU15L-AWPGKA (1998)
Toyota Lexus Rx300
Production
Jan 1998
-
Feb 2003
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

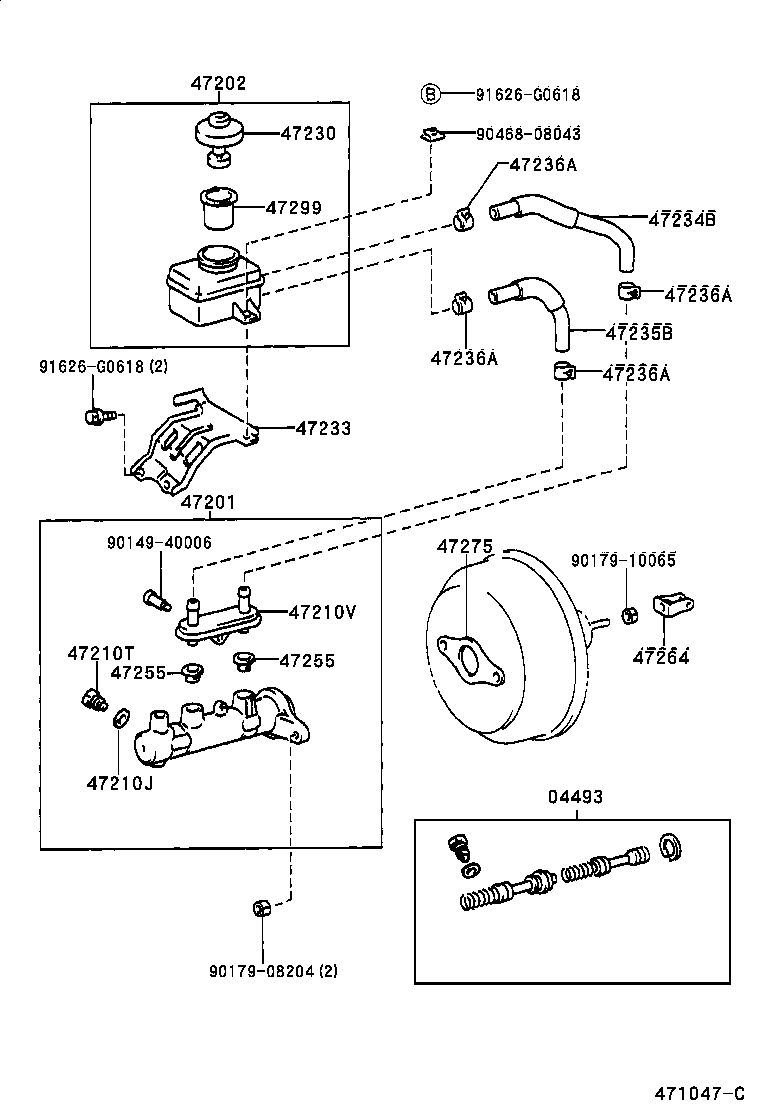

(9801-0007)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-48030 |
MCU1# |
1 | ||
| 04493-48020 |
MCU1# |
1 | ||
| 04493-33060 |
MCU1# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-48070 |
MCU1# |
1 | ||
| 47201-48090 |
MCU1# |
1 | ||
| 47201-48030 |
MCU1# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-48010 |
MCU1# |
1 | ||
| 47220-48060 |
MCU1# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
MCU1# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
MCU1# |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40407 |
MCU1# |
1 | ||
| 90029-40011 |
MCU1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-30040 |
MCU1# |
1 | ||
| 47230-24010 |
MCU1# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-48040 |
MCU1# |
1 | ||
| 47233-48020 |
MCU1# |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-48020 |
MCU1# |
1 | ||
| 47234-48040 |
MCU1# |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-48020 |
MCU1# |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCU1# |
2 | ||
| 31417-35010 |
MCU1# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCU1# |
2 | ||
| 31417-35010 |
MCU1# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-30060 |
MCU1# |
1 | ||
| 47264-48010 |
MCU1# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
MCU1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCU1# |
1 | ||
| 47299-32010 |
MCU1# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 90468-08043 | ||||
| 91626-G0618 | ||||

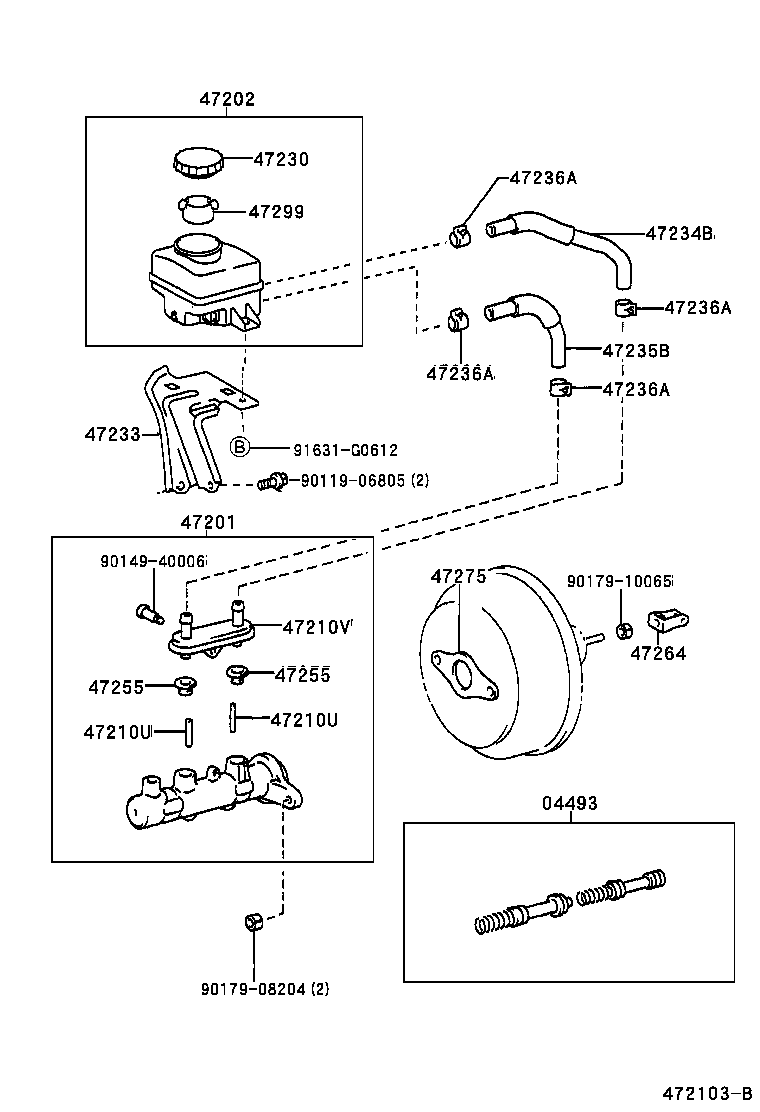

(0007-0208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-48030 |
MCU1# |
1 | ||
| 04493-48020 |
MCU1# |
1 | ||
| 04493-33060 |
MCU1# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-48070 |
MCU1# |
1 | ||
| 47201-48090 |
MCU1# |
1 | ||
| 47201-48030 |
MCU1# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-48010 |
MCU1# |
1 | ||
| 47220-48060 |
MCU1# |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
MCU1# |
2 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
MCU1# |
2 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40407 |
MCU1# |
1 | ||
| 90029-40011 |
MCU1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-30040 |
MCU1# |
1 | ||
| 47230-24010 |
MCU1# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-48040 |
MCU1# |
1 | ||
| 47233-48020 |
MCU1# |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-48020 |
MCU1# |
1 | ||
| 47234-48040 |
MCU1# |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-48020 |
MCU1# |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCU1# |
2 | ||
| 31417-35010 |
MCU1# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCU1# |
2 | ||
| 31417-35010 |
MCU1# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-30060 |
MCU1# |
1 | ||
| 47264-48010 |
MCU1# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
MCU1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCU1# |
1 | ||
| 47299-32010 |
MCU1# |
1 | ||
| Common parts | ||||
| 90119-06805 | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 91631-G0612 | ||||

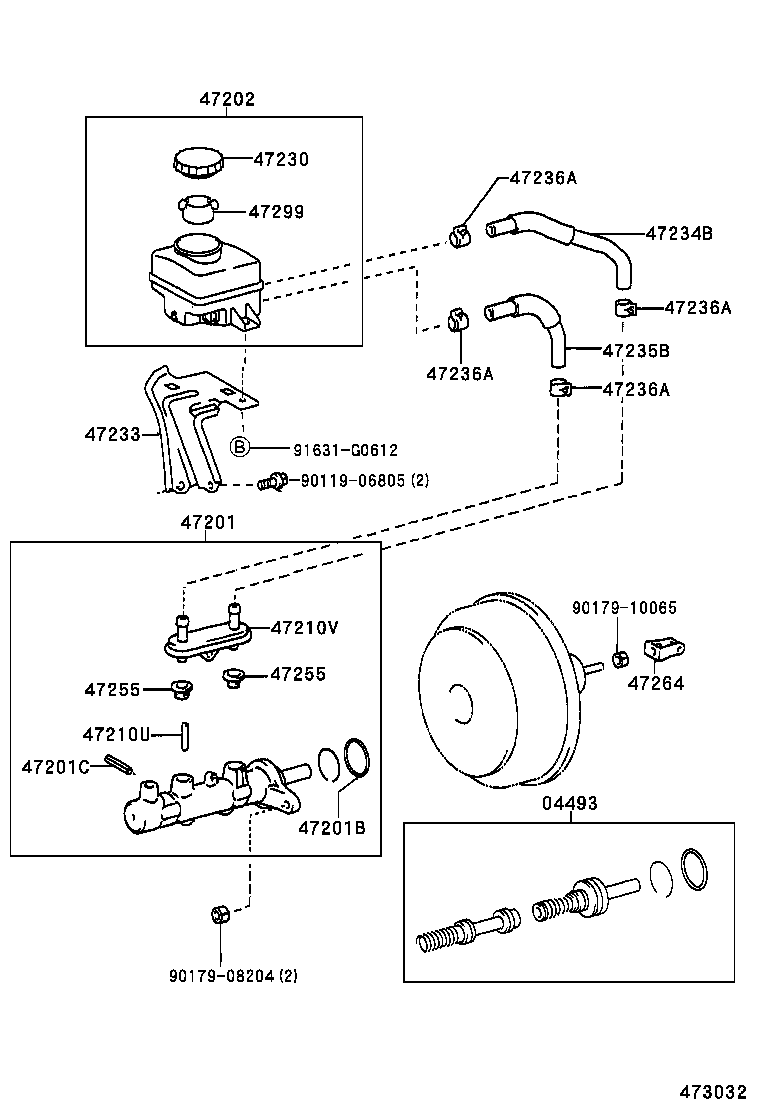

(0208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-48030 |
MCU1# |
1 | ||
| 04493-48020 |
MCU1# |
1 | ||
| 04493-33060 |
MCU1# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-48070 |
MCU1# |
1 | ||
| 47201-48090 |
MCU1# |
1 | ||
| 47201-48030 |
MCU1# |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
MCU1# |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15804 |
MCU1# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-48010 |
MCU1# |
1 | ||
| 47220-48060 |
MCU1# |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
MCU1# |
2 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40407 |
MCU1# |
1 | ||
| 90029-40011 |
MCU1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-30040 |
MCU1# |
1 | ||
| 47230-24010 |
MCU1# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-48040 |
MCU1# |
1 | ||
| 47233-48020 |
MCU1# |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-48020 |
MCU1# |
1 | ||
| 47234-48040 |
MCU1# |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-48020 |
MCU1# |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
MCU1# |
4 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCU1# |
2 | ||
| 31417-35010 |
MCU1# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCU1# |
2 | ||
| 31417-35010 |
MCU1# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-30060 |
MCU1# |
1 | ||
| 47264-48010 |
MCU1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCU1# |
1 | ||
| 47299-32010 |
MCU1# |
1 | ||
| Common parts | ||||
| 90119-06805 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 91631-G0612 | ||||
